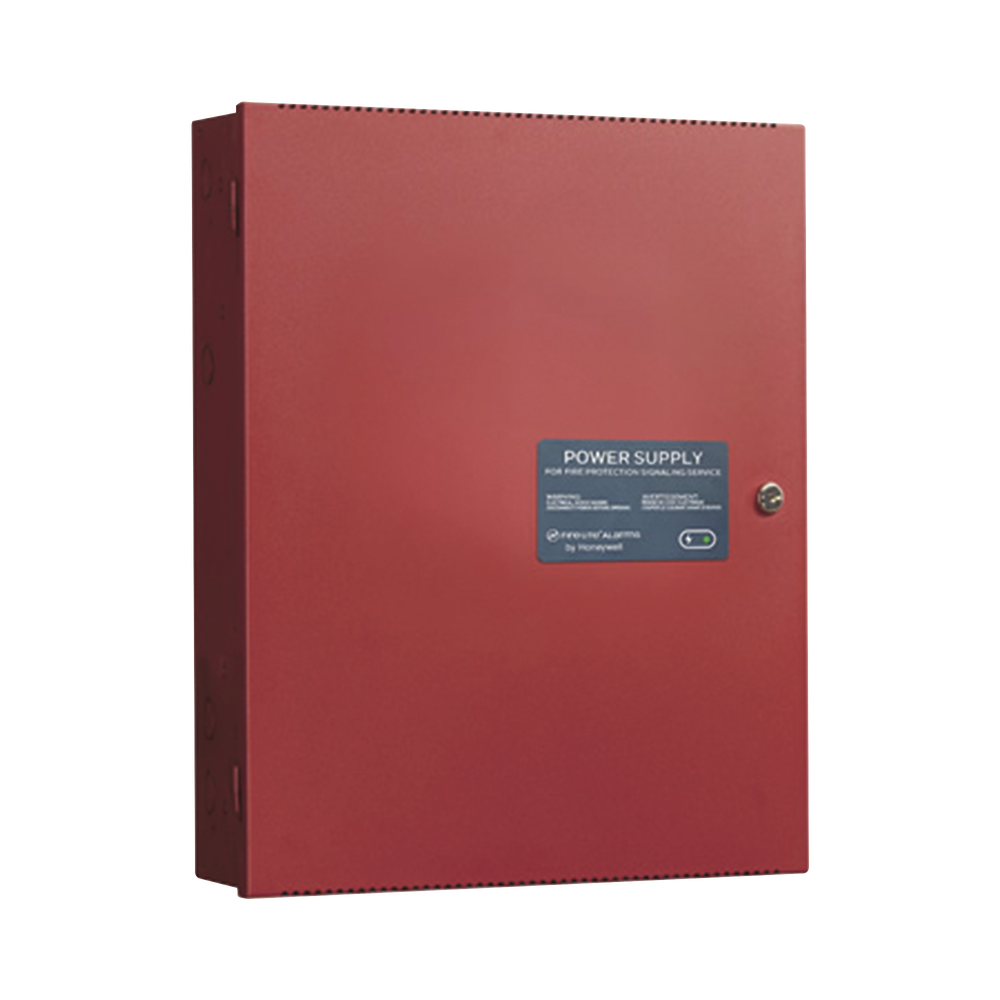

10A 24VDC Power Supply - Feeds NAC Circuits

FL-PS10

The PS Series is Fire•Lite Alarms’ remote power supply line and is a direct replacement for the FCPS-4FS6/8 Series. The FLPS6 is a 6-amp and the FL-PS10 is a 10-amp, remotely powered supply. The supply comes with a battery charger and can be connected to any 12 or 24 volt fire alarm control panel (FACP) or used as a stand-alone power supply. The PS Series provides 24 VDC power for NACs (Notification Appliance Circuits) configured as Class B or Class A (requires the optional ZNAC-PS card) with multiple synchronization protocol options. The PS Series also provides auxiliary power, constant or resettable, suitable for detectors, annunciators, door hangers, and other fire alarm system peripherals. The PS Series cabinet can hold two 7 AH or 18 AH batteries and can charge batteries up to 33 AH in a separate cabinet.


Characteristics

 • Up to five (6 amp model) or seven (10 amp model) independently configurable power-limited output circuits for:
 – NAC Class B and/or Class A
 – Class B and/or Class A 24V resettable or non-resettable auxiliary power
 – door support power
 • Convert Class B wiring to Class A without losing any output using the ZNAC-PS converter card (sold separately)
• Ideal for powering four-wire smoke detectors, annunciators,
 and other system peripherals that require regulated power
 • Configurable for ANSI® Temporal 3 or Temporal 4 encoded output
 • UL-certified NAC synchronization using System Sensor®, Wheelock®, Gentex®, or AMSECO® devices
 • Synchronization can be activated from FACP NAC/Remote Sync
 outputs, cascading power supply, or a control module, single or
multi, which can be housed inside the power supply cabinet
 • Ability to cascade up to four power supplies
 • Two (6 amp model) or three (10 amp model) inputs/
 control circuits that can be programmed for any output
 • Two normally closed Form C trouble relays for AC troubles and
 General problem, ground fault relay available on Canadian models only
• Full load output of 6 or 10 amps, respectively, with a maximum of 3 A/circuit
 • Individual NAC power and trouble LEDs for diagnostic efficiency
 • Problem history modes for diagnostic support
 • Wide range end-of-line monitoring value (typical: 2K-27K ohms)
 • Selectable ground fault detection (enable or disable)
 • AC Problem Report Delay Timer
• Fully configurable via onboard DIP switches, no additional software required

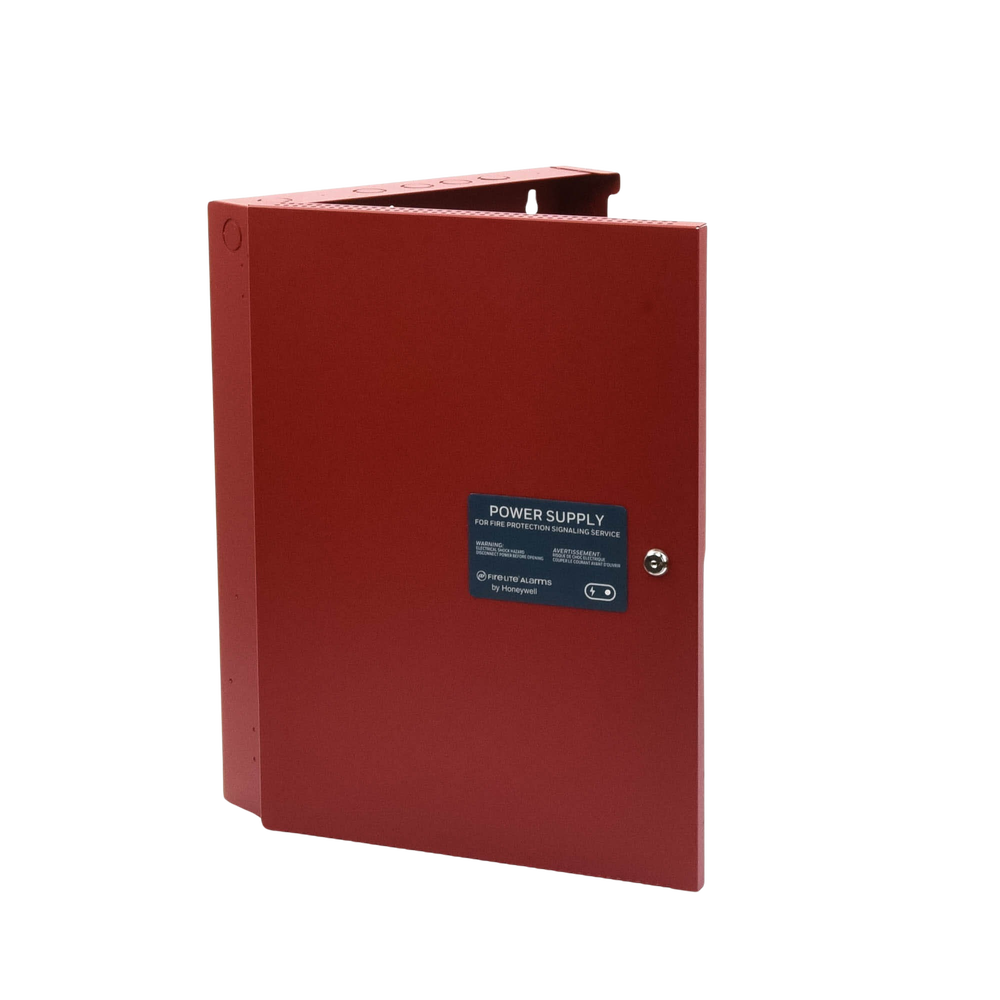

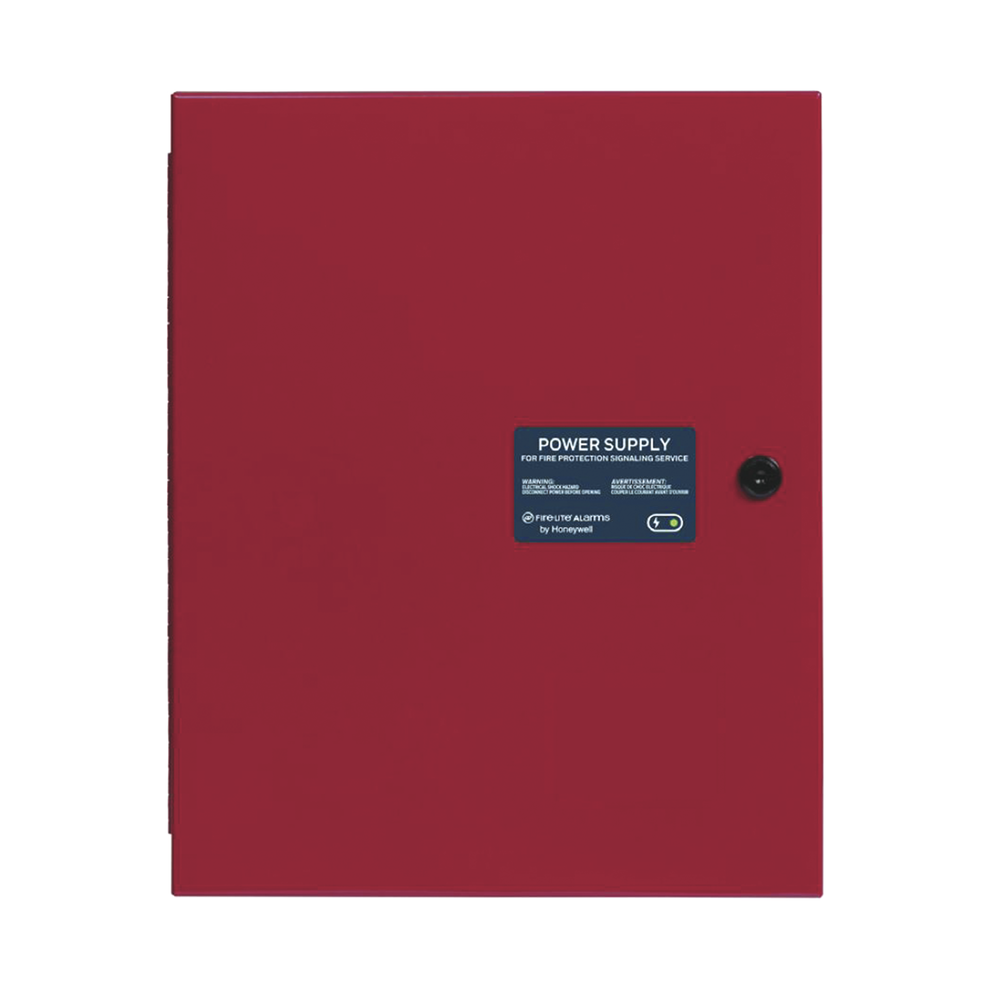

 • Self-contained in a compact lockable cabinet constructed of
 steel gauge with a corrosion-resistant powder coat chip and
 scratch-resistant finish

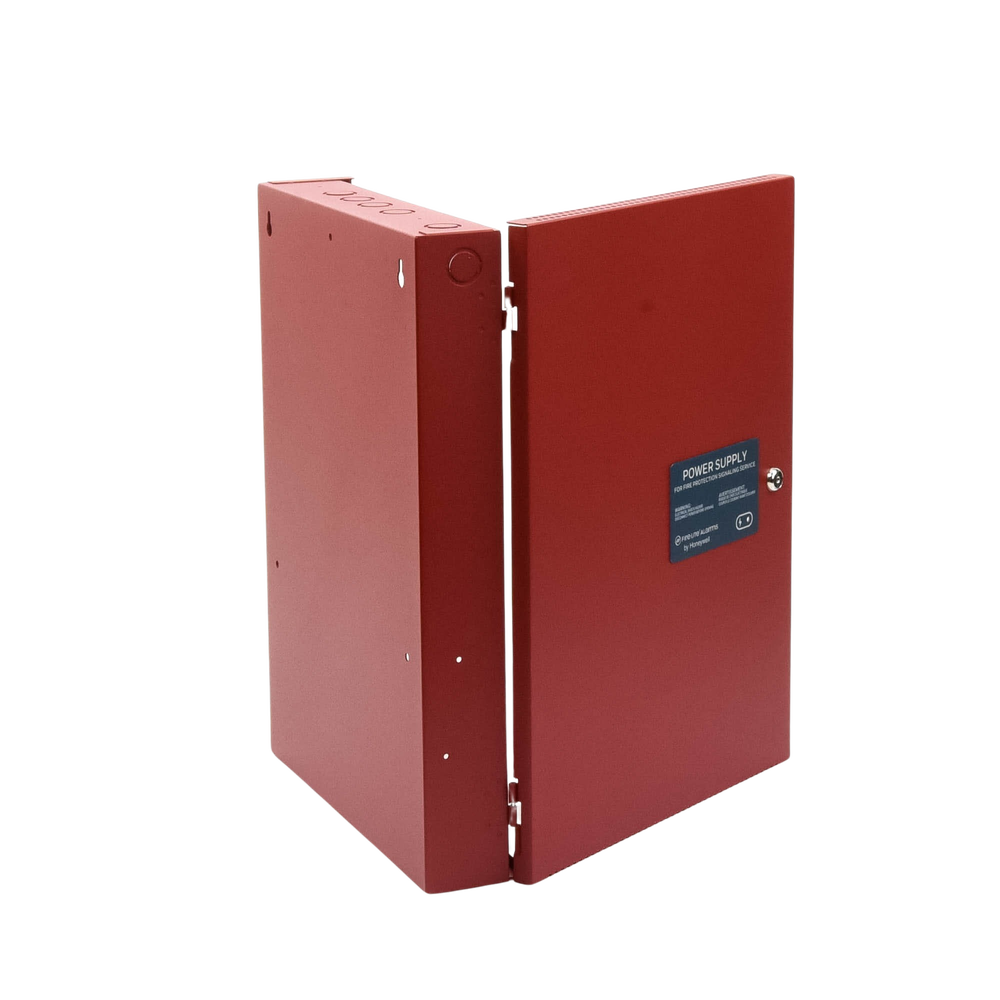

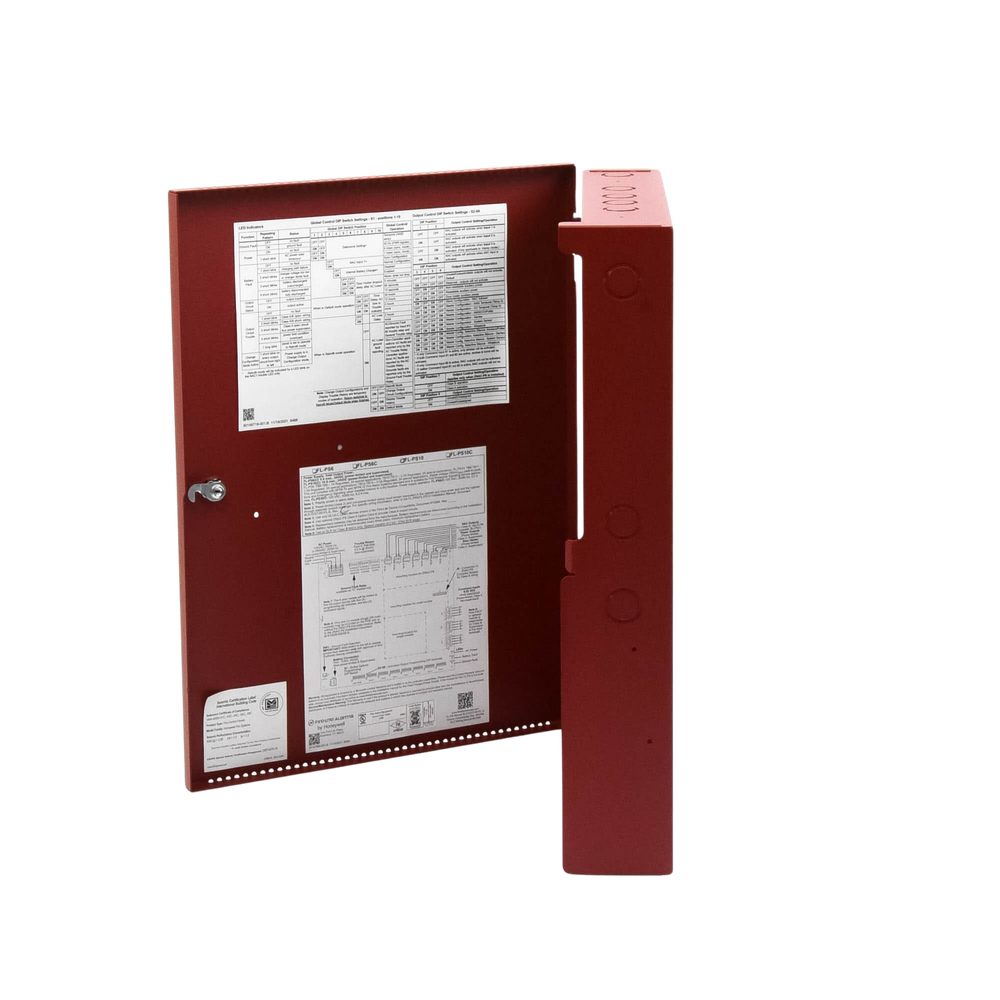

 • Cabinet designed with ten double holes and one removable
 door for easy installation and wiring
 • Includes integral battery charger capable of charging up to 33 AH
batteries
 • The cabinet can hold two 7 AH or 18 AH batteries

 Standards and Codes
 The FL-PS series complies with the following standards:• NFPA 72 National Fire Alarm Code• UL 864 Standard for Control Units for Fire Alarm Systems (NAC Expander Mode), 10th Edition• UL 1481 Power Supplies for Fire Alarm Systems• IBC 2009 (when using SEISKIT-MULTI-1)• CBC 2007 (when using SEISKIT-MULTI-1)

 Agency Listings and Approvals
These listings and approvals apply to the modules specified in this document. In some cases, certain modules or applications may not be listed by certain approval agencies, or listing may be in progress. Consult the factory for the most recent listing status. • UL Listed: S2424 • ULC Listed: S2424 (FL-PS6/10C) • CSFM Approved: 7315-0075:0510 • FDNY Approved • FM Approved
