• Panel de Detección de Incendio Direccionable Serie ONYX de Notifier / 318 Puntos: 159 Detectores y 159 Módulos / Conectividad en Red / en Inglés
1 5

NOTIFIER

Notifier ONYX Series Addressable Fire Detection Panel / 318 Points: 159 Detectors and 159 Modules / Network Connectivity / English

Notifier ONYX Series Addressable Fire Detection Panel / 318 Points: 159 Detectors and 159 Modules / Network Connectivity / English

$12.257.215 COP
$13.406.329 COP $12.257.215 COP
Sale Sold out
Shipping calculated at checkout.

Notifier ONYX Series Addressable Fire Detection Panel / 318 Points: 159 Detectors and 159 Modules / Network Connectivity / in English

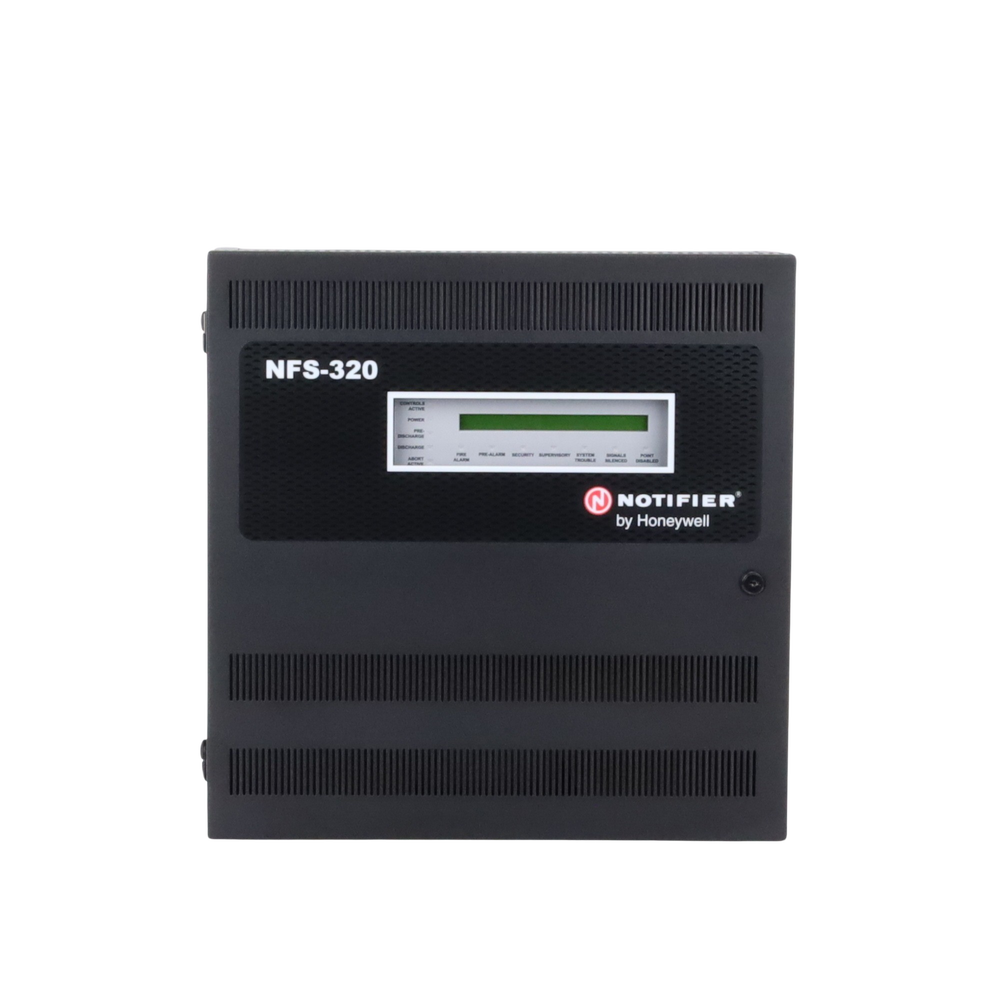

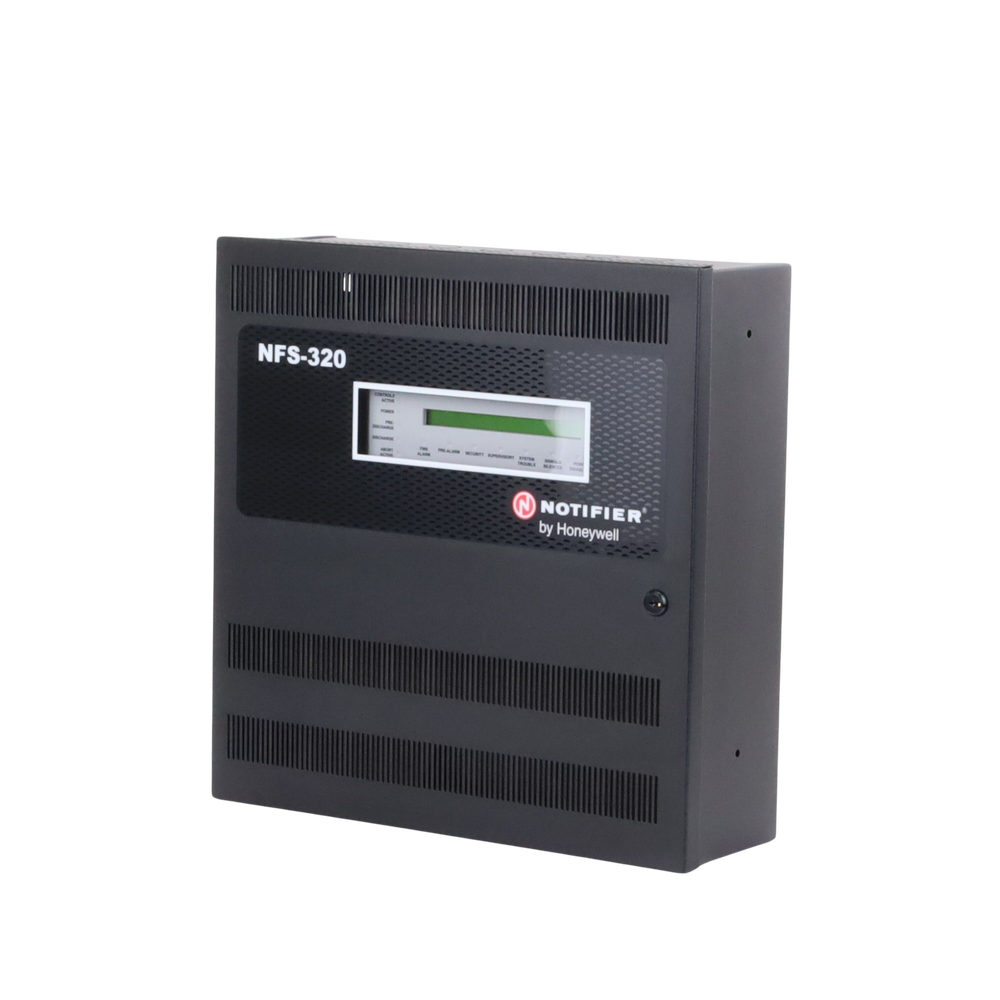

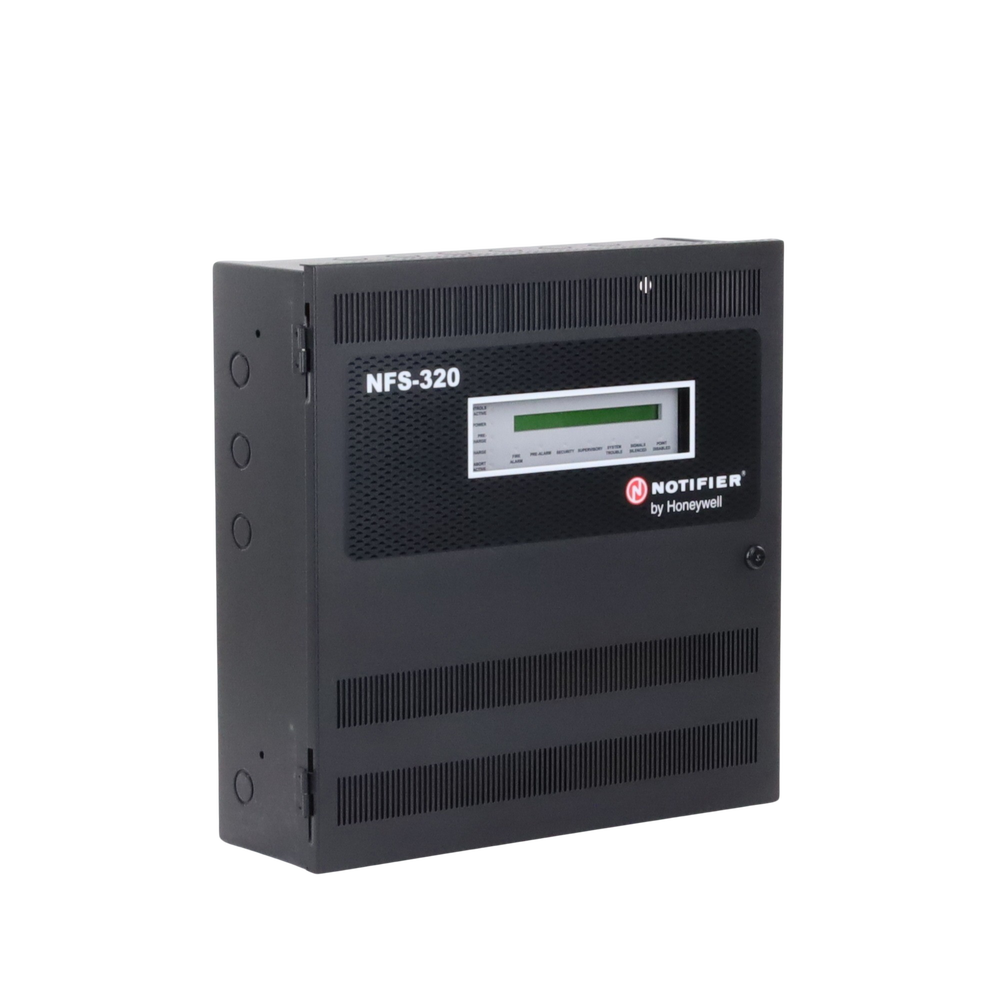

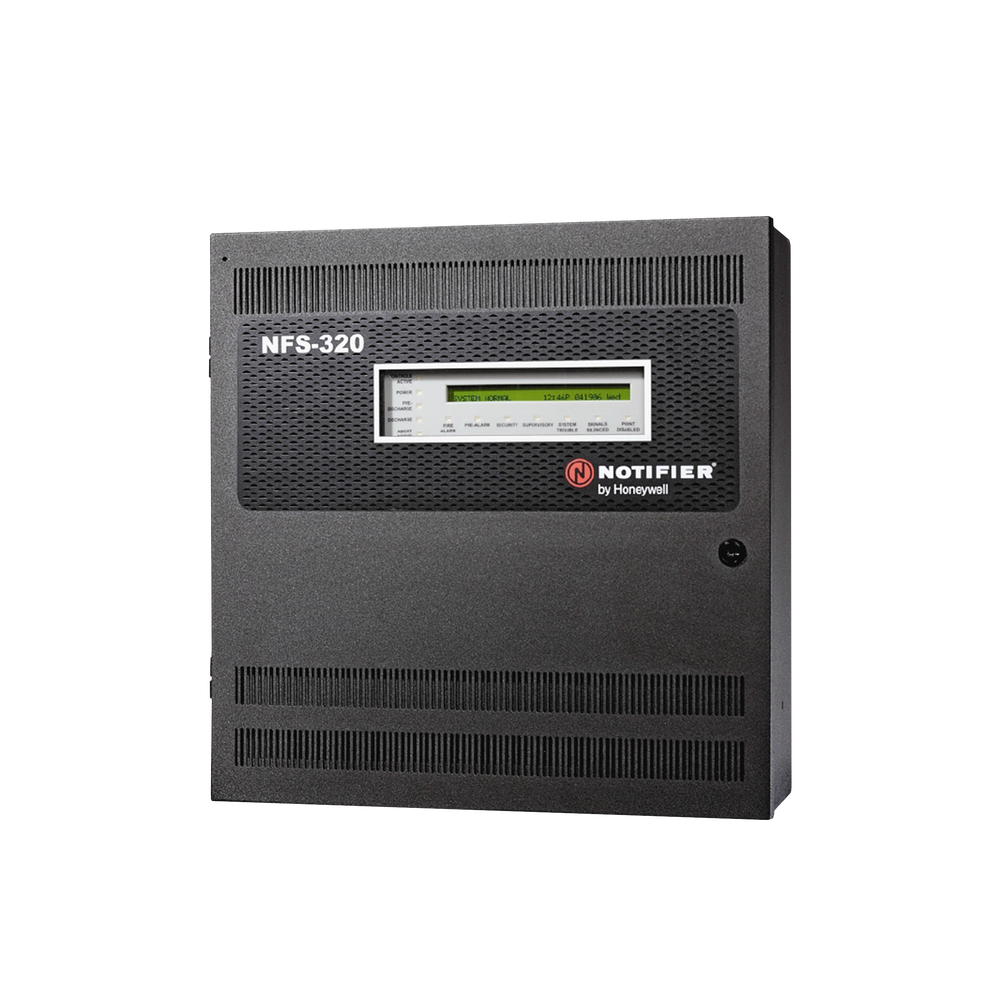

The NFS-320 intelligent fire alarm control panel is part of NOTIFIER's UL-listed ONYX Series and is specifically designed for small applications with features that minimize installation time, enable faster response times, and simplify maintenance and usability.
Features and benefits
  • Listed: UL, ULC, FM, CSFM, MEA
  • Fully field programmable
  • Removable chassis design for easy installation and service
  • Direct connection to the NOTIFIER FirstCommand™ emergency communications system
  • Networkable with NOTI-FIRE-NET and ONYXWorks supporting up to 200 nodes for NFN
  • Optional IP or GSM communicator
  • Release, Mass Notification, Seismic Certificate, Approved for Marine Use
  • 1 Signaling Line Circuit (SLC): Style 4, 6, or 7
  • 318 Smart Devices (159 detectors / 159 modules)
  • 4 Integrated Notification Appliance Circuits (NACs), 1.5 Amps each
  • Voice evacuation available, direct integration with FirstCommand 50/100
  • 6 Amps of total system power
  • 32 LCD type annunciators or 32 ACS type

Important note: All Notifier devices require Official Certification.

Notifier ONYX Series Addressable Fire Detection Panel

Main features:
  • Includes an SLC: 318 points (159 detectors and 159 modules)
  • 4 NACs
  • 99 software zones
  • 32 remote annunciators
  • Fully field programmable
  • Release, Mass Notification, Seismic Certificate, Approved for Marine Use
  • FlashScan Communication Protocol
  • Networkable with NOTI-FIRE-NET and ONYXWorks supporting up to 200 nodes for NFN
  • Voice evacuation available, direct integration with FirstCommand 50/100
  • Direct connection to the NOTIFIER FirstCommand™ emergency communications system
  • Listed: UL, ULC, FM, CSFM, MEA
  • Optional IP or GSM communicator
Physical and Electrical Characteristics:
  • Primary power supply: 120 VAC 50/60 Hz
  • Operating current: 5 A
  • Total 24Vdc output power: 6 A in Alarm
  • Standard Notification Circuits (NAC): 4
  • Current per NAC: 1.5 A
  • Two exits
  • Battery Charger Range: 18 to 200 AH (For batteries over 26 AH use extra cabinet)
  • Operating temperature: 0°C to 49°C
  • Operating humidity range: 10% to 93% non-condensing.
  • Rear Box Dimensions: 46.02 x 46.02 x 14.76 cm
  • Door Dimensions: 46.19 x 46.73 x 1.9 cm
  • Weight: 16.4 Kg
Notable Features:

The Notifier NBG-12LX is a state-of-the-art, dual-action (i.e., requires two movements to activate the station) emergency pull station that includes an addressable interface for any Notifier intelligent control panel, except the FireWarden Series panels and the NSP-25. Because the NBG-12LX is addressable, the control panel can display the exact location of the activated pull station. This quickly directs fire personnel to the location of the alarm.

    Listed: UL, ULC, FM, CSFM, MEA, Fully field programmable, Networkable with NOTI-FIRE-NET and ONYXWorks supporting up to 200 nodes for NFN

Out of stock

MODELO: NFS-320
