• New modern profile
• It is automatically identified as a monitor module in the control panel
• Stripped and tinned wires for easy wiring
• High immunity to electrical noise
• The LED “blinks” green whenever a communication is received from the control panel and turns solid red when activated.
• Addressing by rotary switches
• FlashScan Communication Protocol

• Power supply: 15 to 32 Vdc
• Operating current at 24 Vdc: 350 μA
• Maximum consumption current at 24 Vdc: 5 mA
• End-of-line resistor: 47 K ohms
• Operating temperature: 0°C to 49°C
• Operating humidity range: 10% to 93% non-condensing.
• Dimensions: 11.43 x 10.16 x 3.17 cm

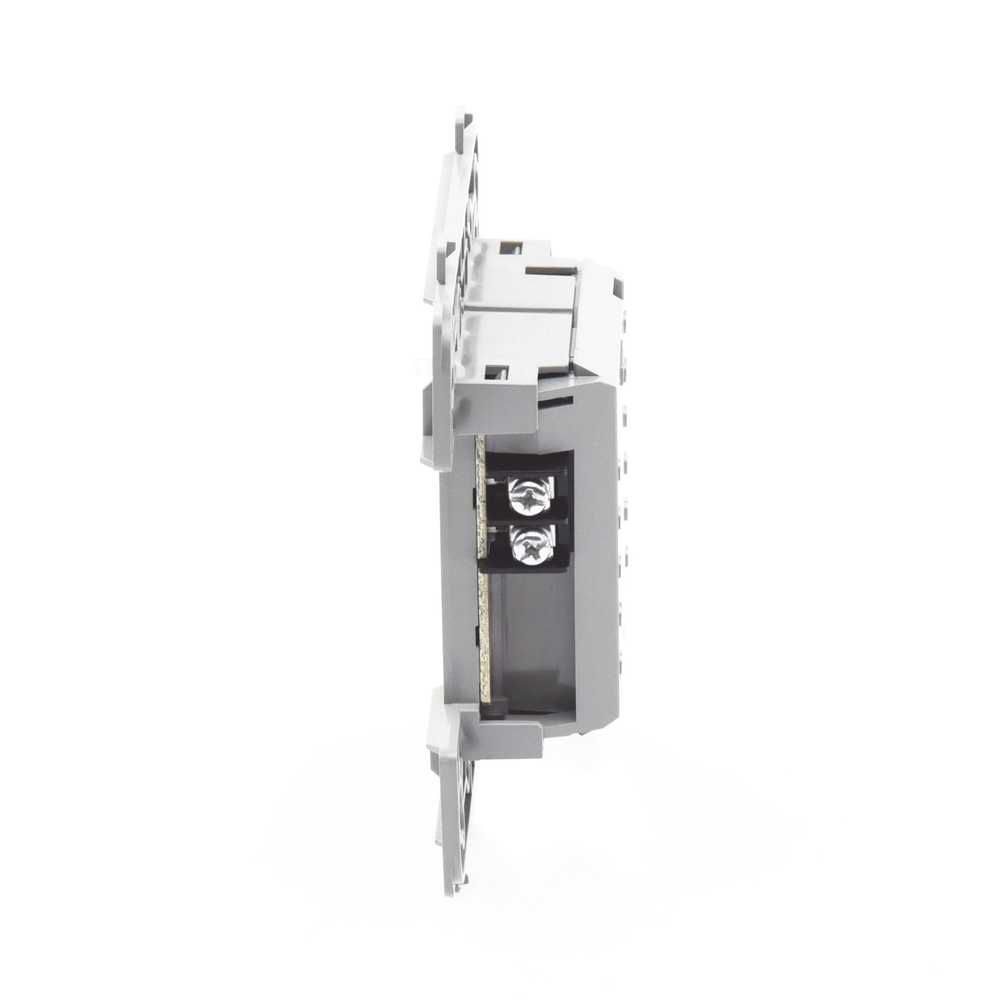

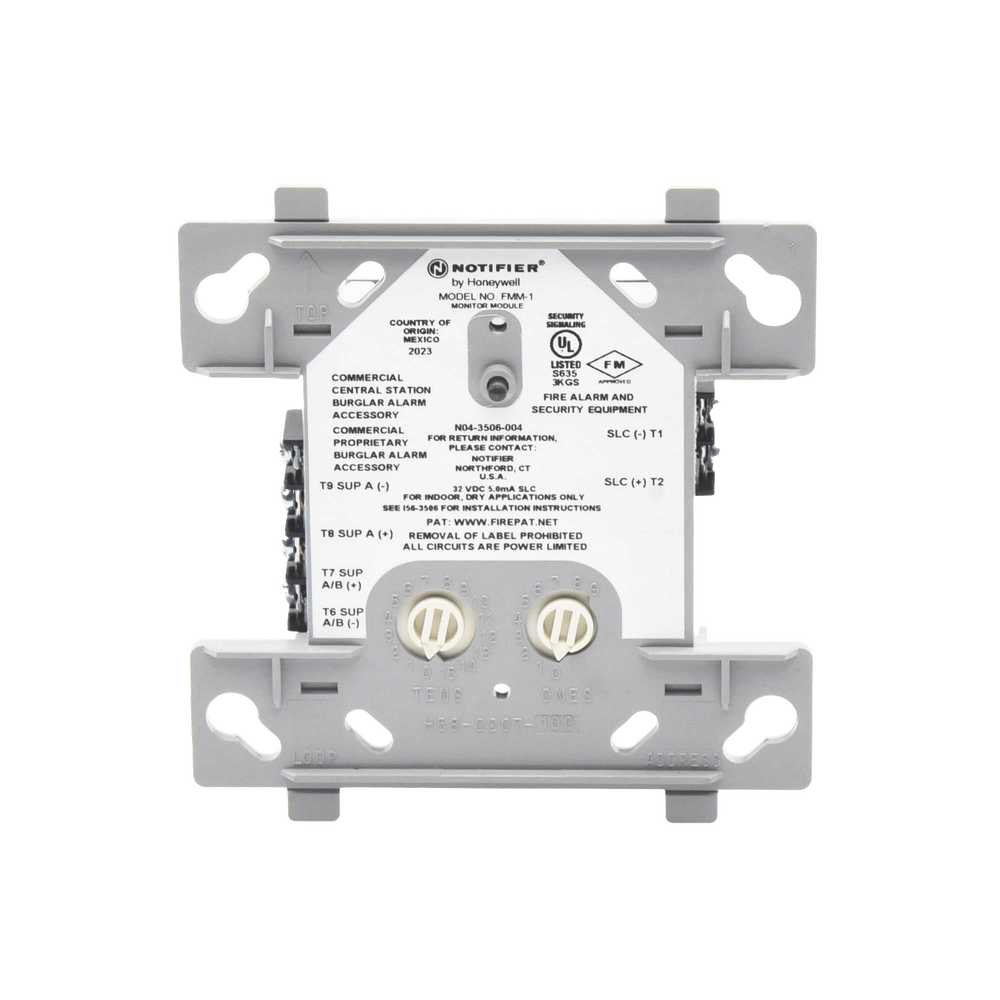

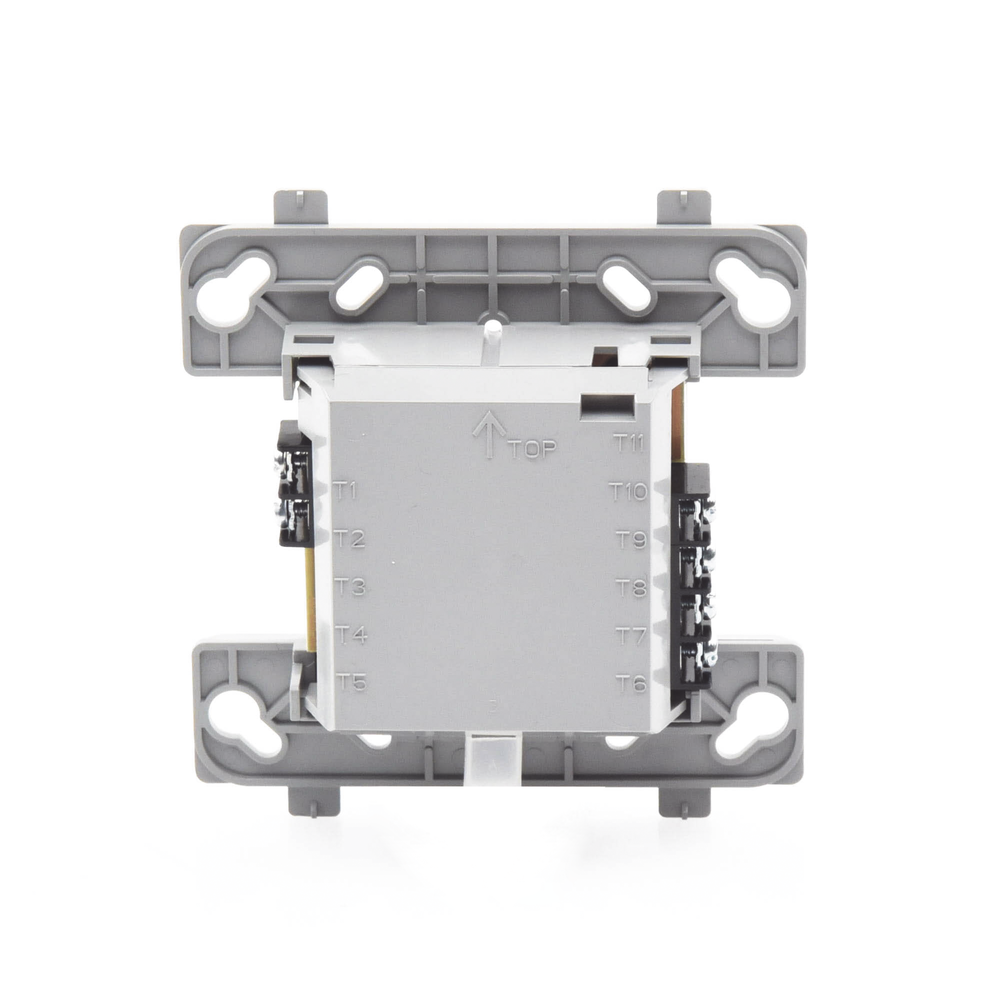

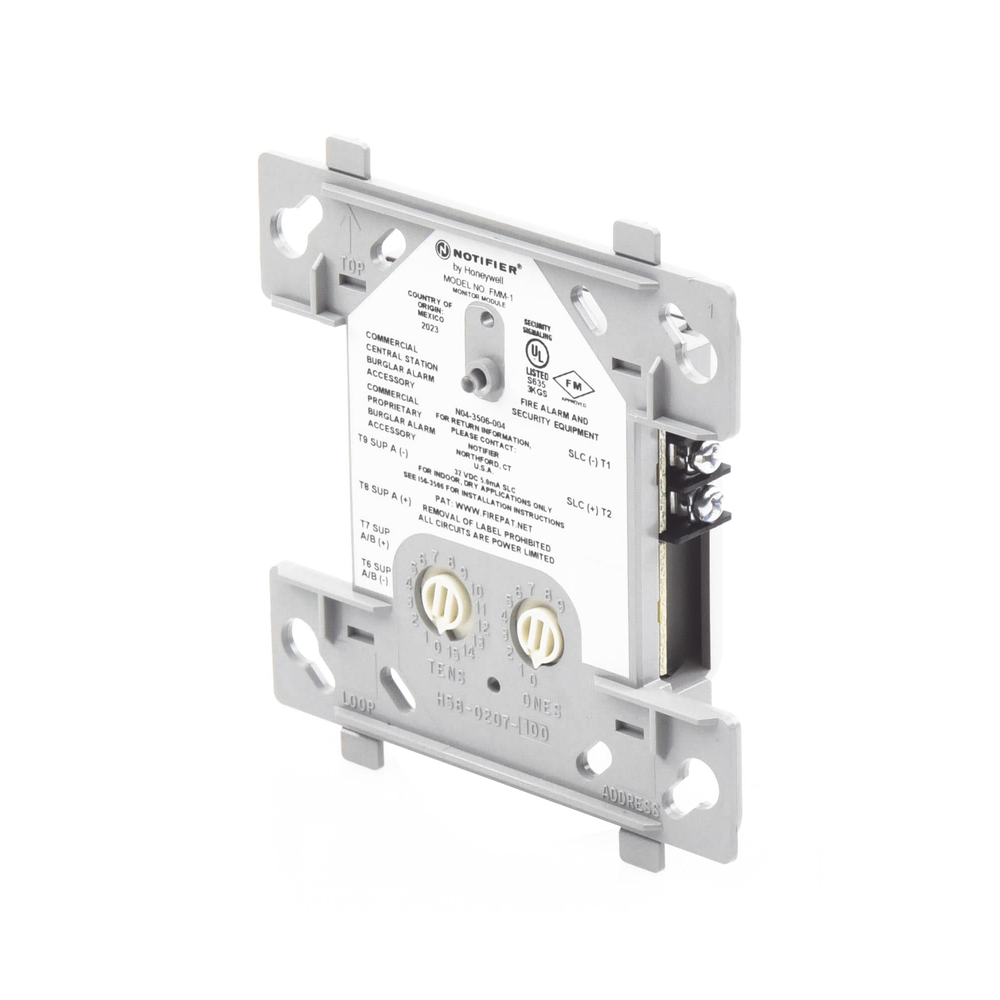

The FMM-1 monitor module is designed for use in intelligent two-wire systems, where the individual address of each module is selected using the built-in rotary switches. It provides an initiating device circuit (IDC) for normally open contact fire alarm and supervisory devices.
