• New modern profile
• It is automatically identified as a monitor module in the control panel
• Stripped and tinned wires for easy wiring
• High immunity to electrical noise
• Addressing by rotary switches
• FlashScan Communication Protocol

• Power supply: 15 to 32 Vdc
• Operating current at 24 Vdc: 600 μA
• Maximum consumption current at 24 Vdc: 400 μA
• End-of-line resistor: 47 K ohms
• Operating temperature: 0°C to 49°C
• Operating humidity range: 10% to 93% non-condensing.
• Dimensions: 3.3 x 6.9 x 1.6 cm

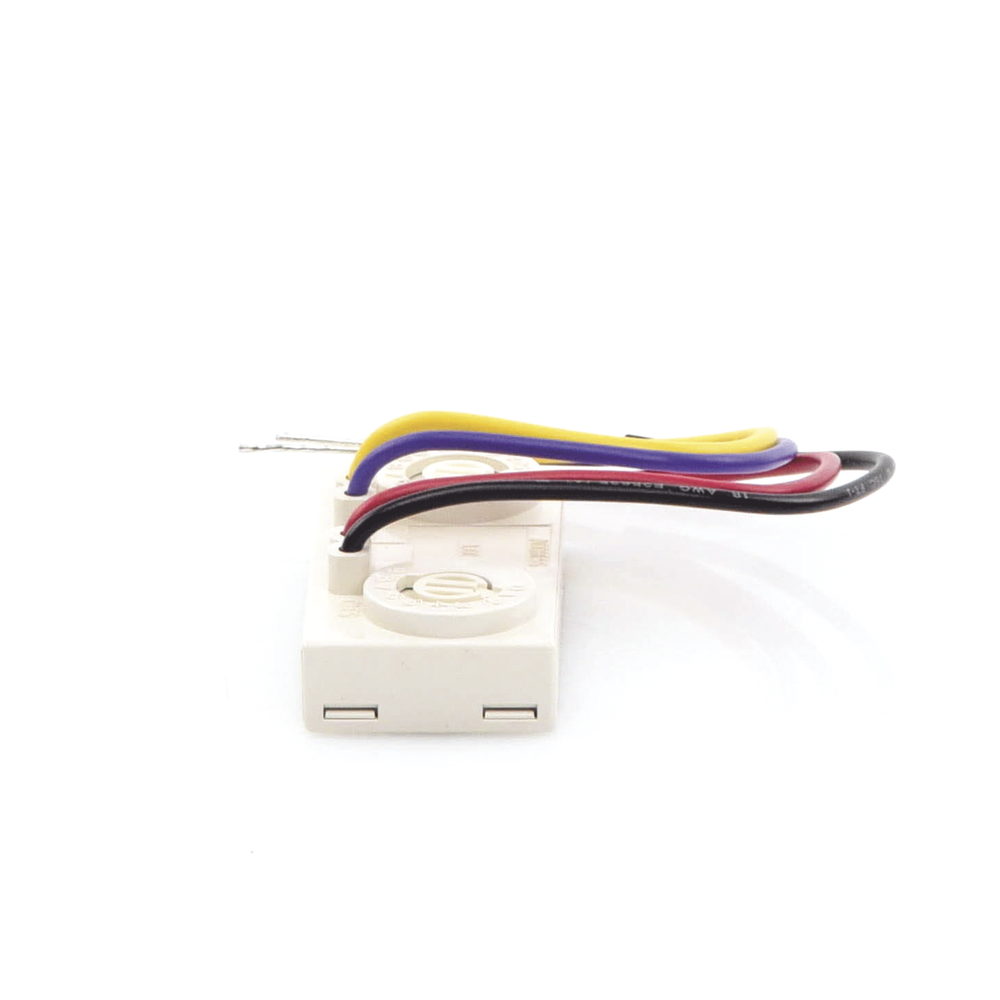

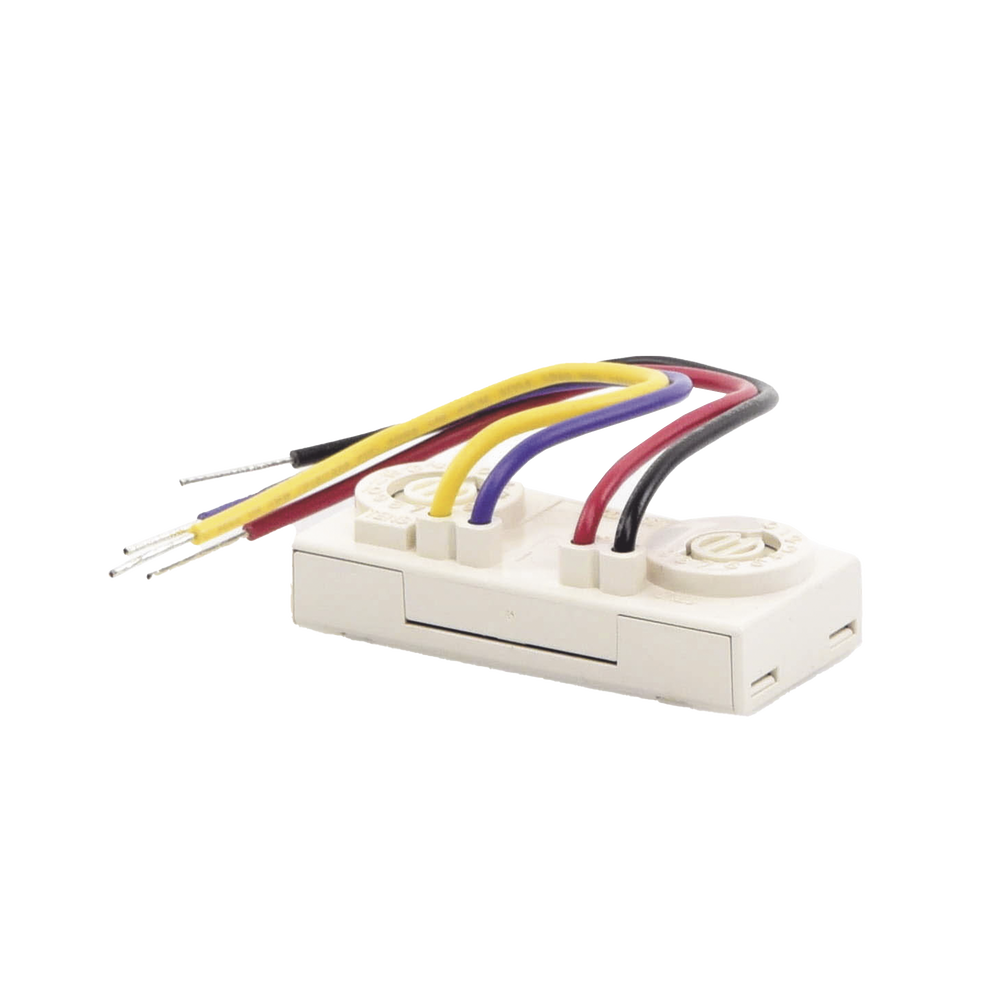

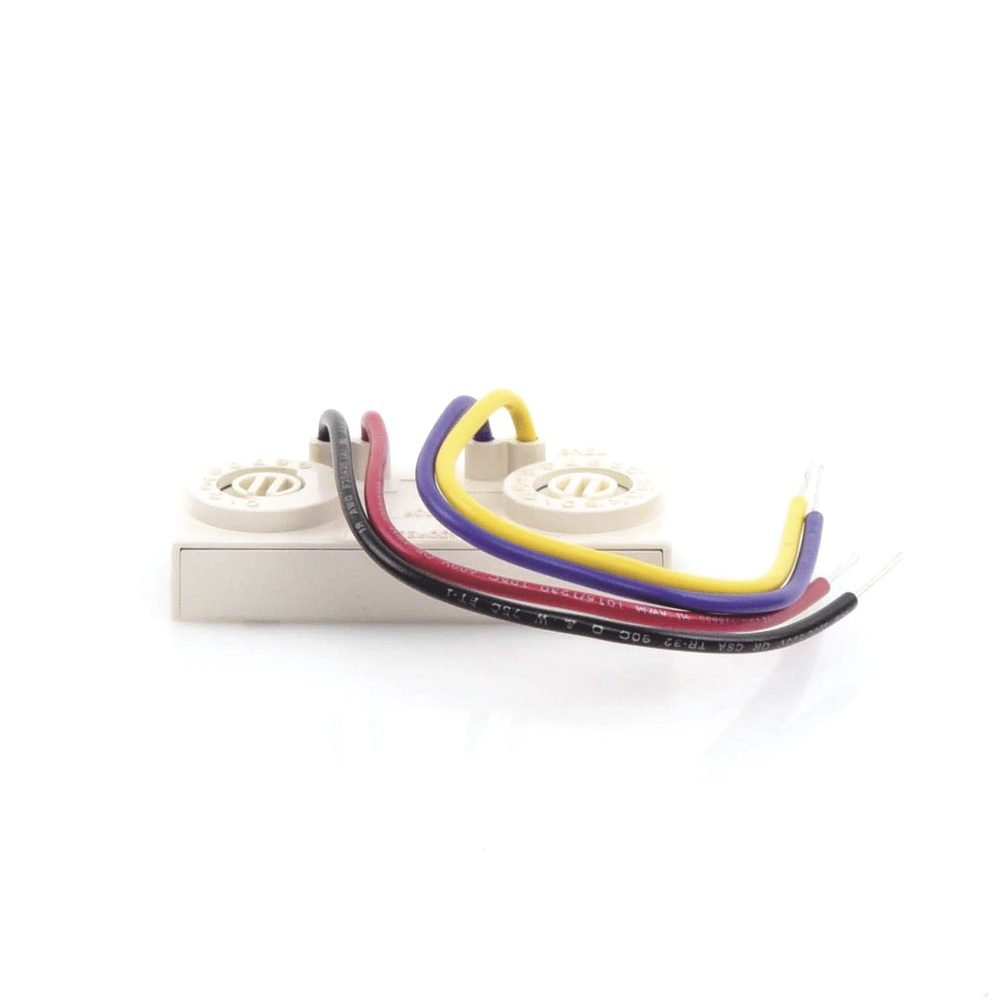

The FMM-101 mini monitor module can be installed directly behind the monitored unit. Its small size and light weight allow it to be installed without a rigid mount. The FMM-101 is designed for use in intelligent systems where the individual address of each module is selected by rotary switches. It provides an initiating device circuit for normally open contact fire alarm and safety devices.
