• New modern profile
• It is automatically identified as a control module in the control panel
• Requires power (for horns, strobes, etc.) or audio (for speakers)
• The LED “blinks” green whenever a communication is received from the control panel and turns solid red when activated.
• High immunity to electrical noise
• Internal circuit and relay powered directly by SLC loop
• Addressing by rotary switches
• Speaker, siren, and strobe applications can be wired for Class B or A
• FlashScan Communication Protocol

• Power supply: 15 to 32 Vdc
• Operating current at 24 Vdc: 255 μA
• Maximum consumption current at 24 Vdc: 6.5 mA
• Maximum NAC current: 3 A (Class B) and 2 A (Class A)
• Operating temperature: 0°C to 49°C
• Operating humidity range: 10% to 93% non-condensing.
• Dimensions: 114.3 x 101.6 x 31.75 mm

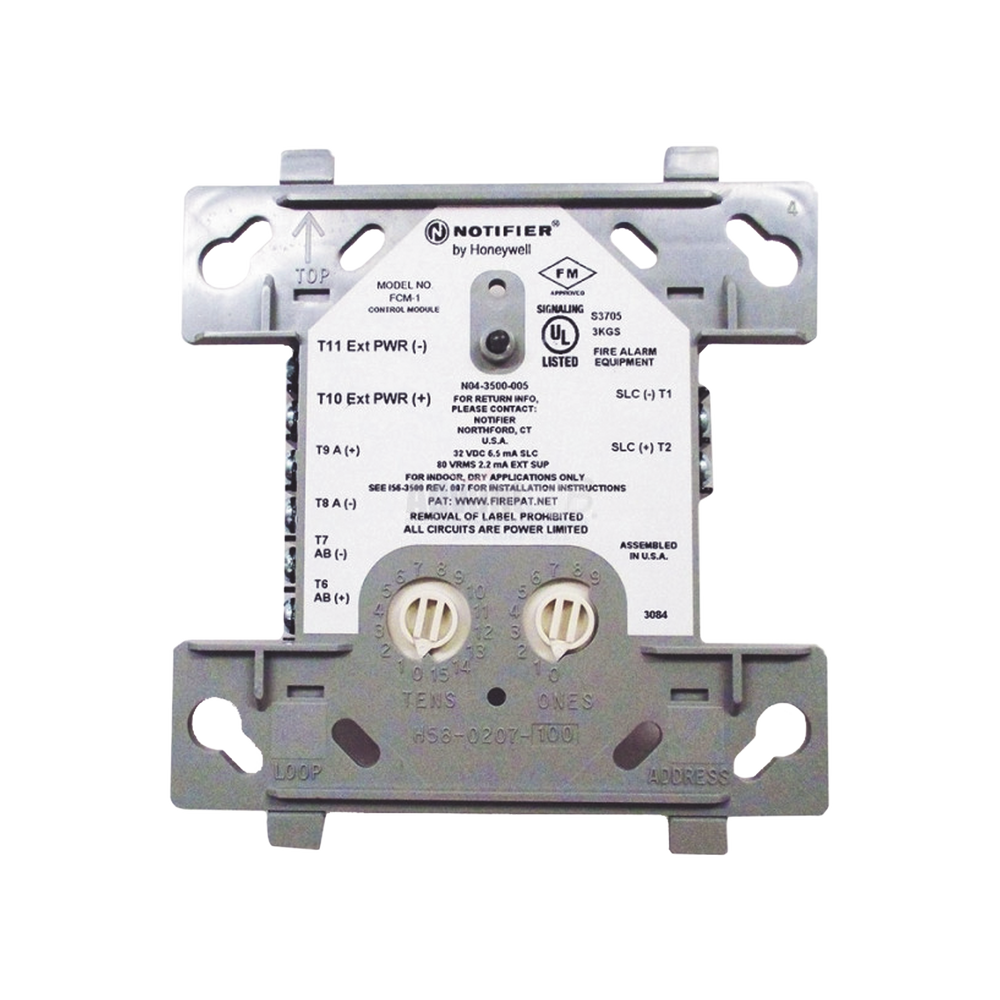

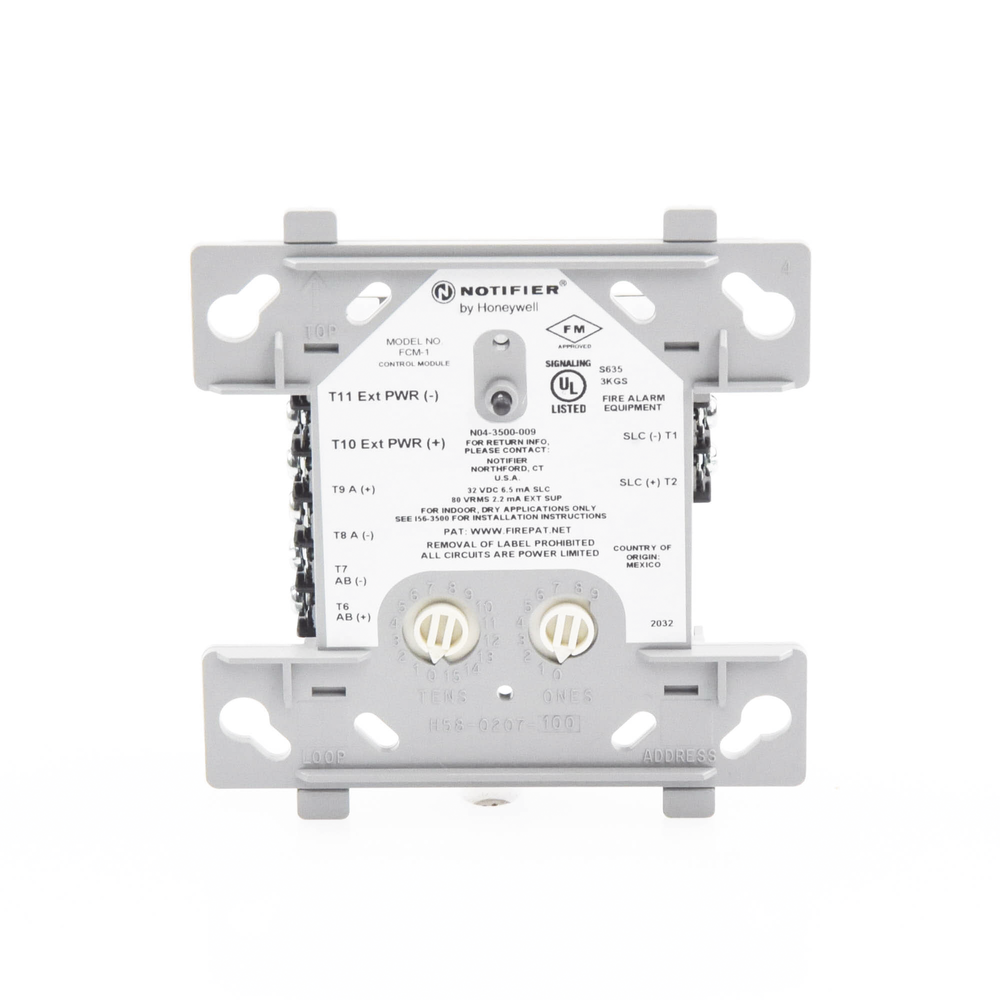

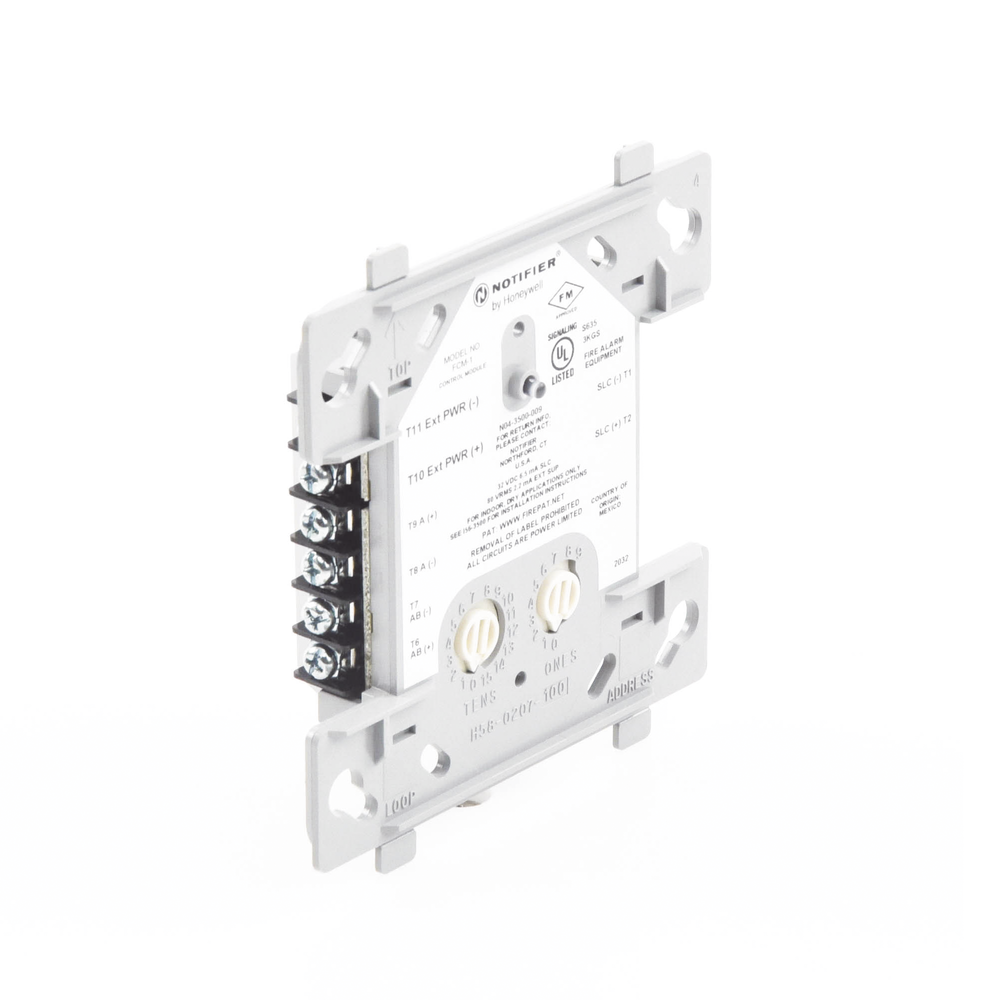

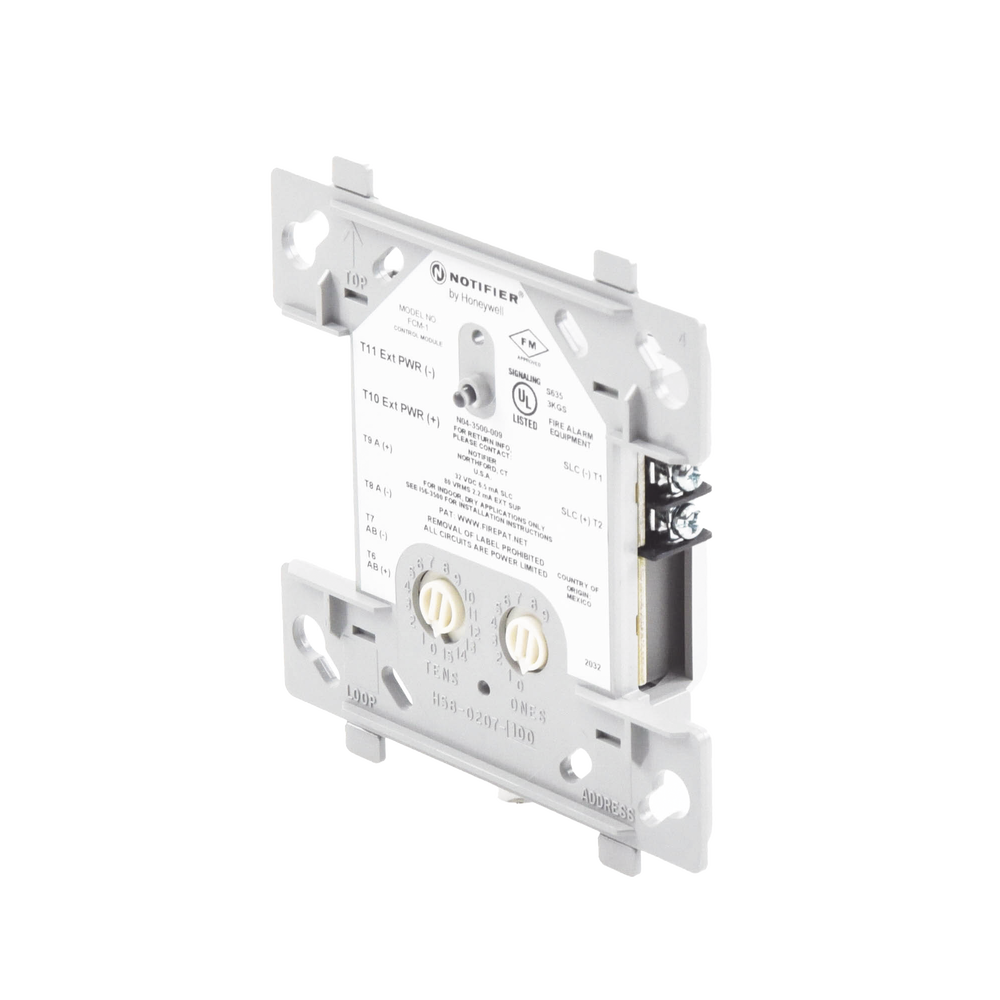

The FCM-1 addressable control module provides Notifier intelligent fire alarm control panels with a circuit for notification devices (horns, strobes, speakers, etc.). Addressability allows the FCM-1 to be activated by panel programming, based on a zone or coverage area selection.
