• New modern profile
• It is automatically identified as a monitor module in the control panel
• It uses 2 module addresses (the one set on the rotary switches and the consecutive one)
• The LED “blinks” green whenever a communication is received from the control panel and turns solid red when activated.
• High immunity to electrical noise
• Addressing by rotary switches
• FlashScan Communication Protocol

• Power supply: 15 to 32 Vdc
• Operating current at 24 Vdc: 750 μA
• Maximum consumption current at 24 Vdc: 6.4 mA
• End-of-line resistor: 47 K ohms
• Operating temperature: 0°C to 49°C
• Operating humidity range: 10% to 93% non-condensing.
• Dimensions: 11.43 x 10.16 x 5.39 cm

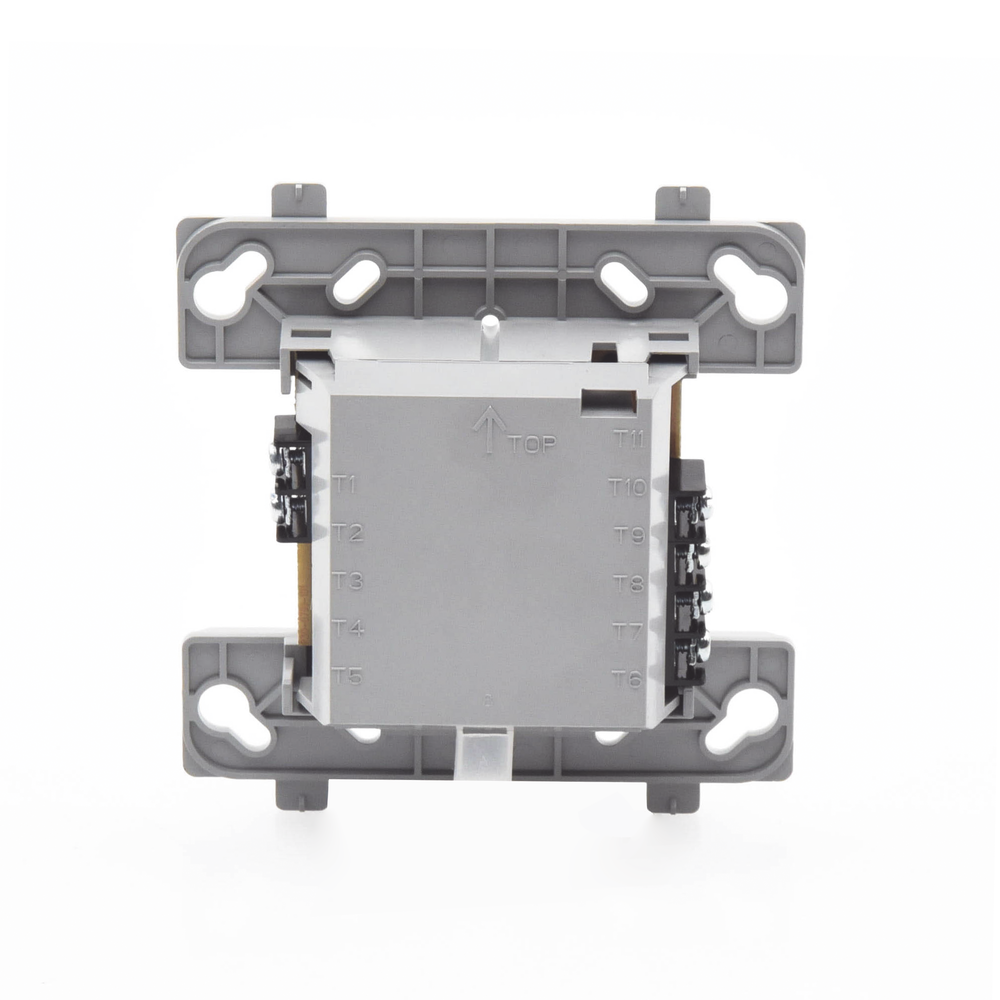

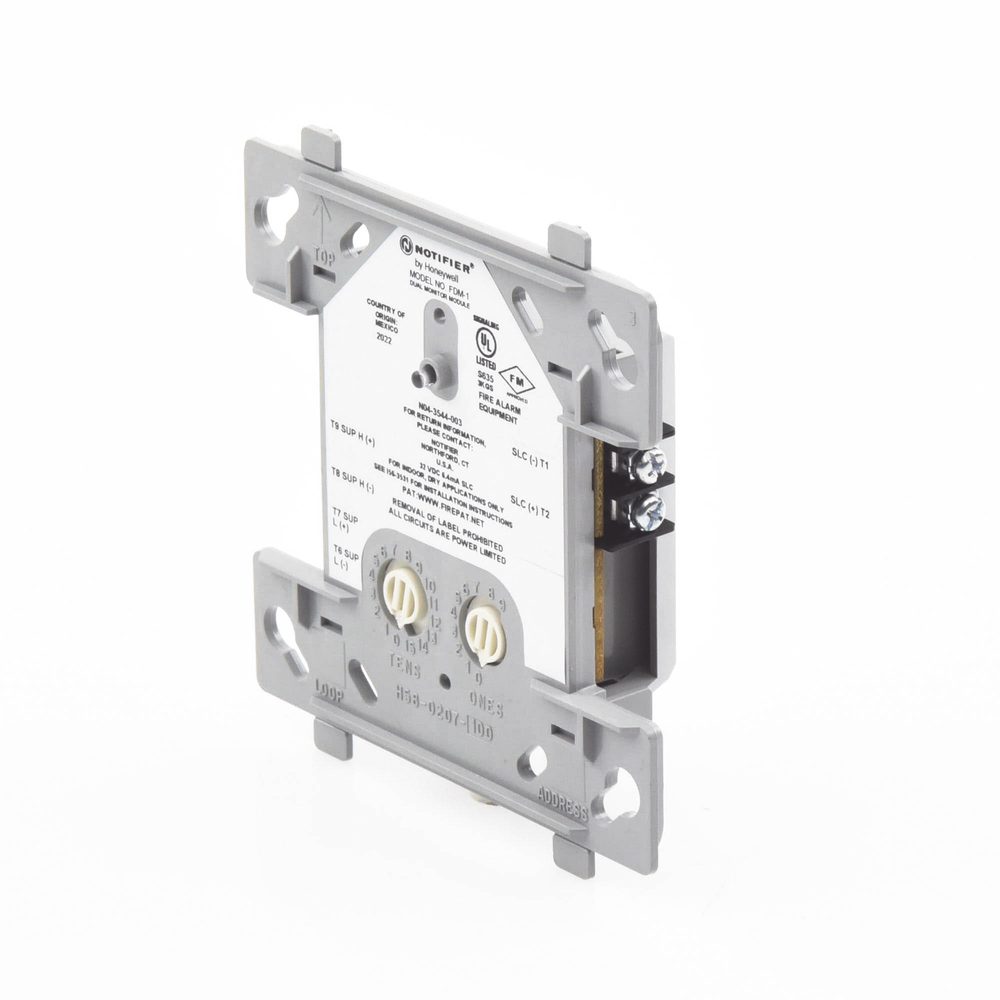

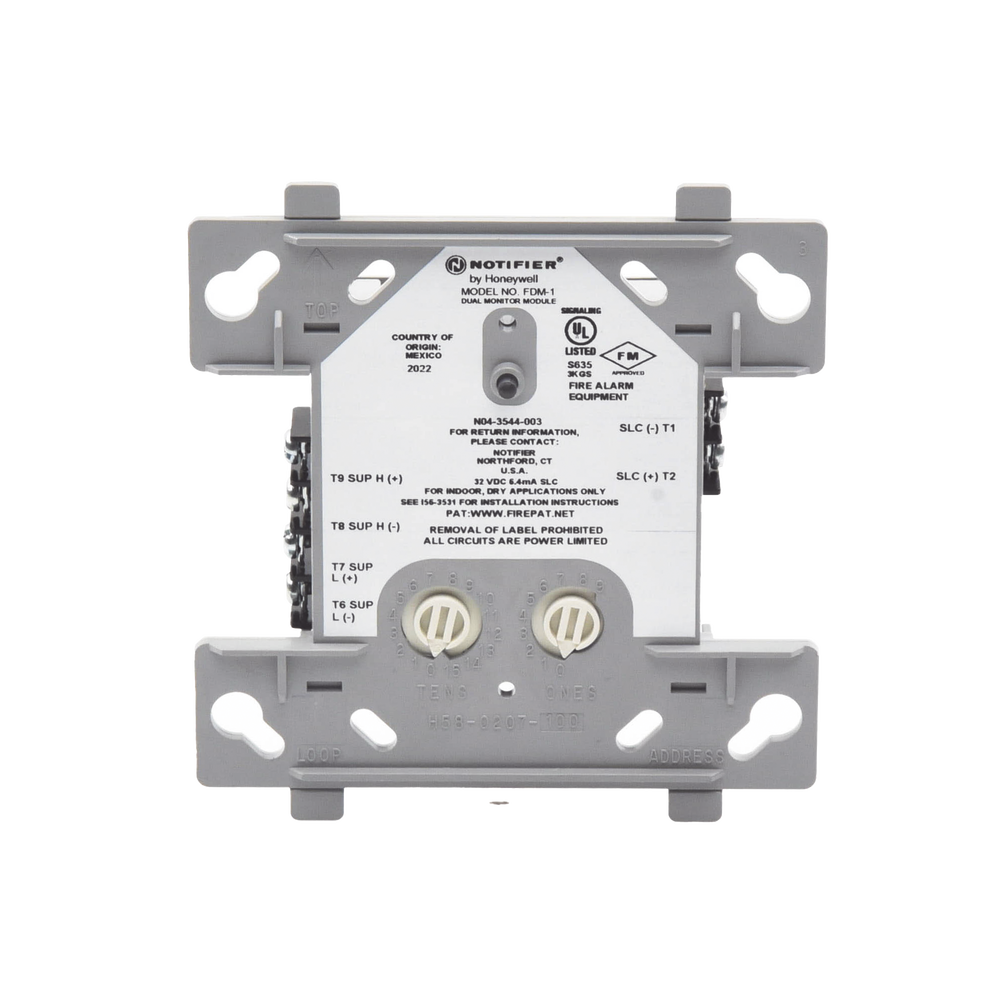

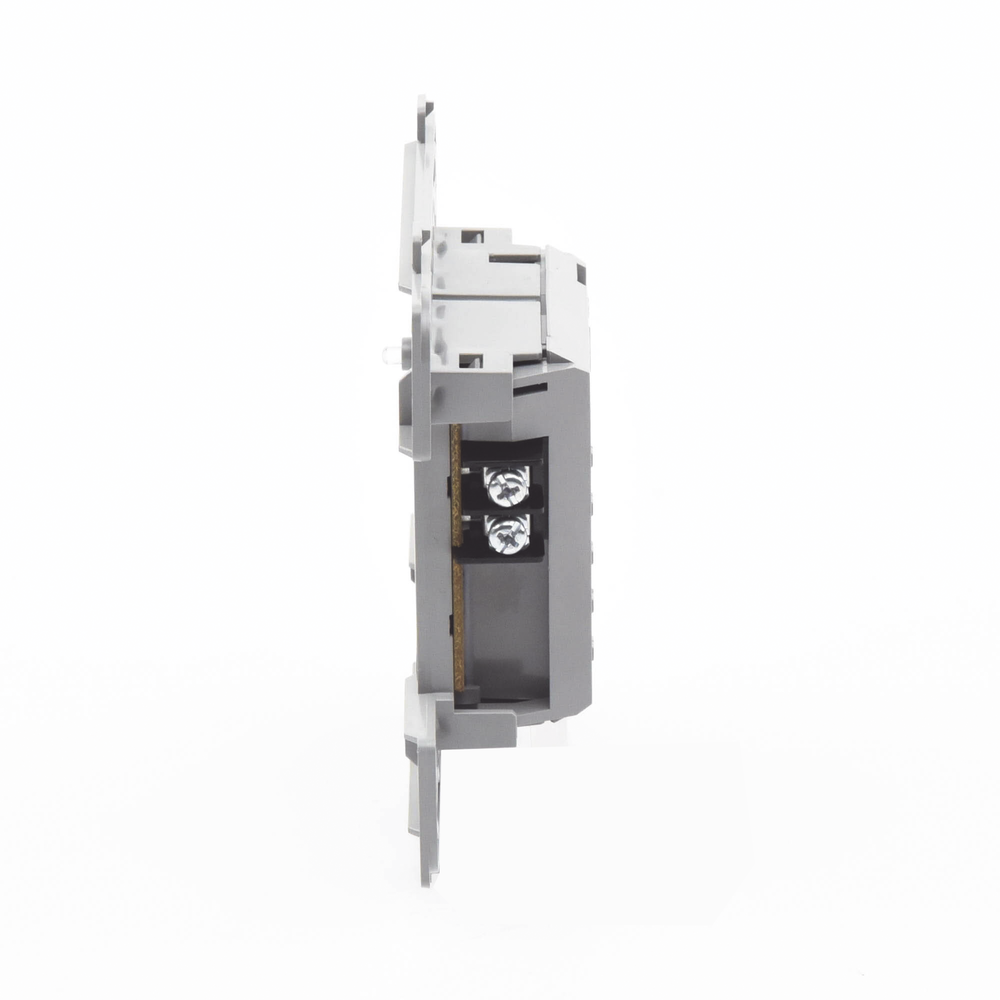

FDM-1 is a standard size dual monitor module that monitors and supervises two independent Class B dry contact initiating device circuits (IDCs) with two separate consecutive addresses in intelligent systems.
