Multi-technology fingerprint reader, Mifare cards and mobile phones via Bluetooth

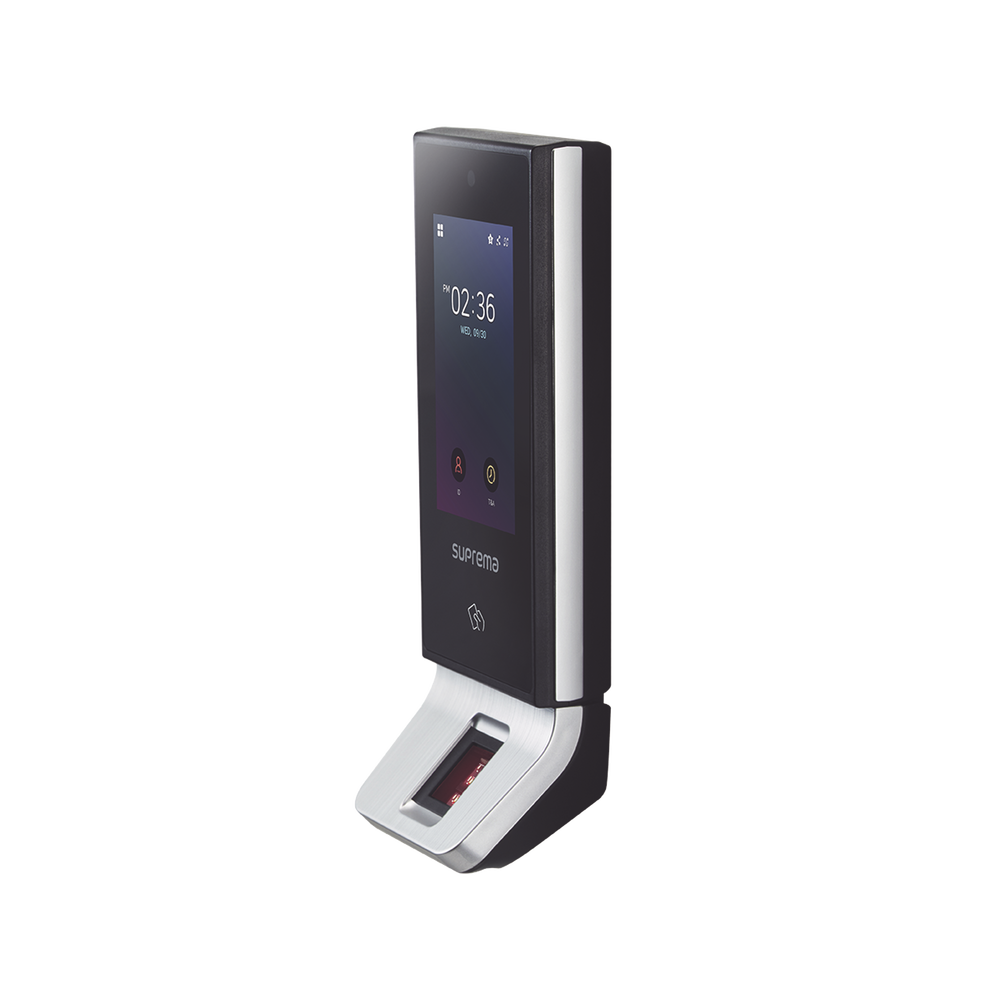

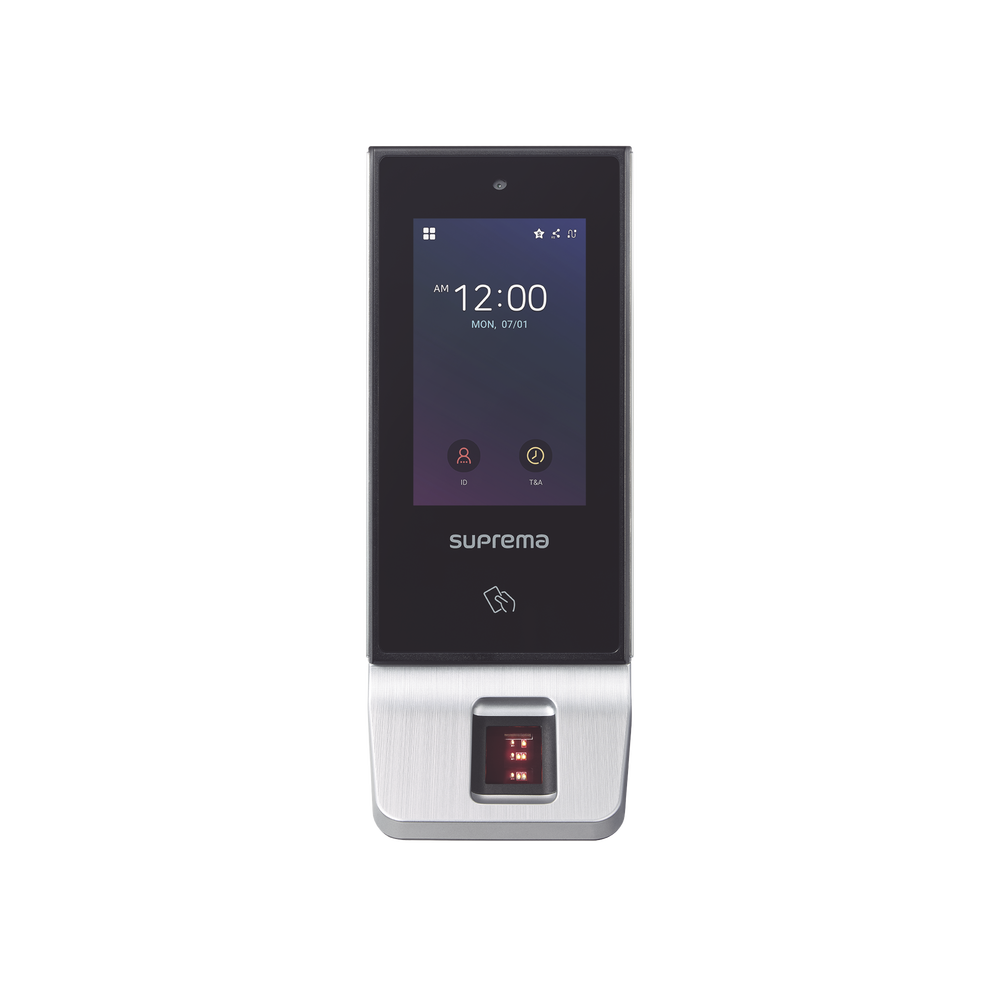

Supreme X-Station 2
It is a versatile smart terminal that supports RFID cards, mobile access, and also QR codes, offering the latest flexibility in terms of credential options and system design. Equipped with a secure login process, Open Supervisory Protocol (OSDP), and an event camera, the X-Station 2 enhances security while safeguarding user data. The X-Station 2 is easy to install, use, and maintain, with features such as PoE power , an intuitive graphical user interface on the large 4” touchscreen, and an IP65 protection rating.
Specs
| XS2-ODPB | XS2-OAPB | ||
|---|---|---|---|
| RFID | RF Option | 125 kHz EM & 13.56 MHz MIFARE, MIFARE Plus, DESFire EV1/EV2 1) , FeliCa |
125 kHz EM, HID Prox & 13.56 MHz MIFARE, MIFARE Plus,DESFire EV1/EV2 1) , FeliCa, iCLASS SE/SR/Seos |
| mobile card | NFC, BLE | ||
| Fingerprint | Supported 2) | Supported 2) | |
| Hardware | CPU | 1.5 GHz Quad Core | |
| Memory | 16 GB Flash + 1 GB RAM | ||
| User capacity | 500,000 | ||
| Events | Text 5,000,000 / Image 50,000 | ||
| LCD | 4' IPS color LCD / 480 x 800 pixels | ||
| Camera | CMOS 2M pixels / 1600 x 1200 | ||
| Operating Temperature | -20°C–50°C (-4°F–122°F) | ||
| Dimensions (WxHxD, mm) |
82 mm x 208 mm x 25.9 (53) mm |
82 mm x 208 mm x 25.9 (53) mm |
|
| Tamper | Supported | ||
| Certifications | KC, CE, FCC (Compliance: RoHS, REACH, WEEE) | ||
| Interfaces | Ethernet | Supports (10/100 Mbps, auto MDI/MDI-X) | |
| RS-485 | 1 Master or slave ( Selectable ) | ||
| Wiegand | 1 input or output (Selectable) | ||
| TTL | 2 tickets | ||
| Relay | 1 Relay | ||
| USB | USB 2.0 (Host) | ||
| PoE | Supports (IEEE 802.3af compliant) | ||
| IP protection grade | IP65 | ||
| Electrical | Feeding | 12 Vdc (Max. 0.8 A) or 24 Vdc (Max. 0.45 A) | |
1) DESFire EV2 cards are supported, being backward compatible with DESFire EV1 cards. CSN and smart cards are supported on X-Station 2.
2) Supports QR codes/barcodes composed of up to 32 ASCII code strings. QR codes can be issued on Suprema Biostar2 or third-party systems.
