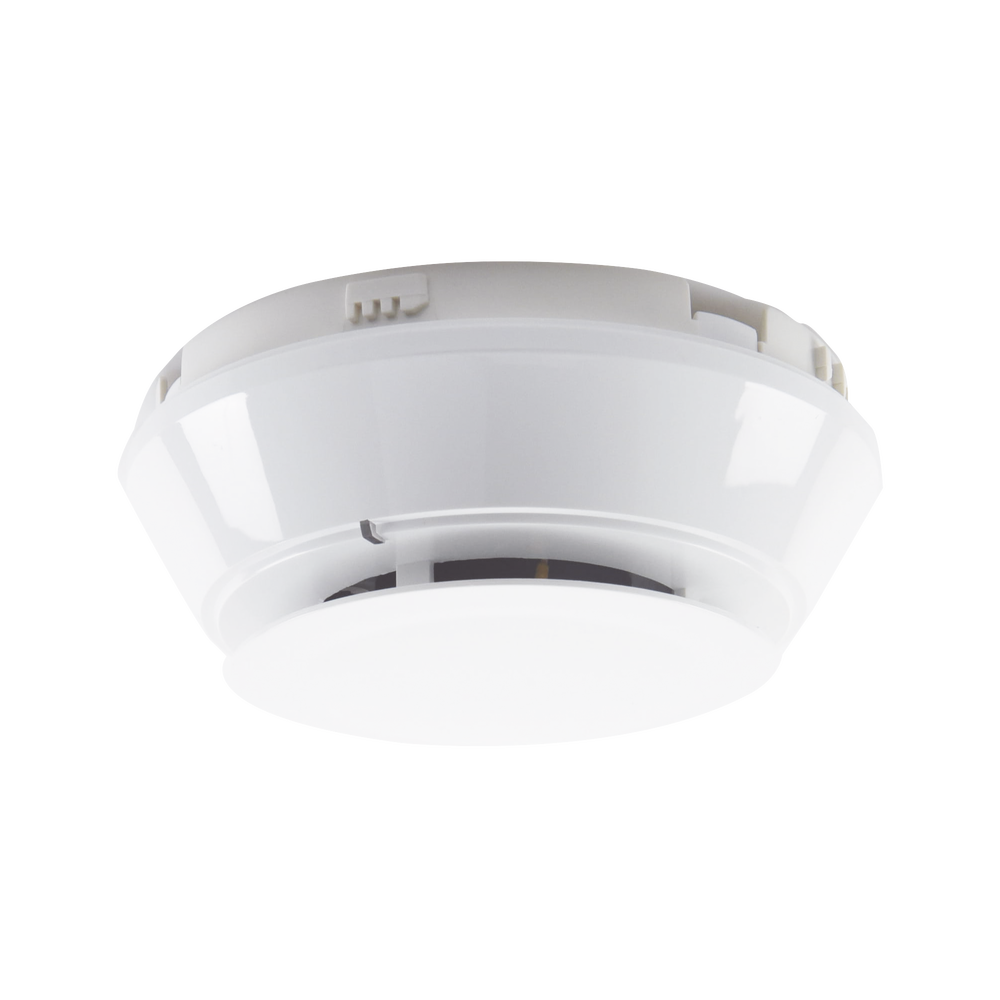

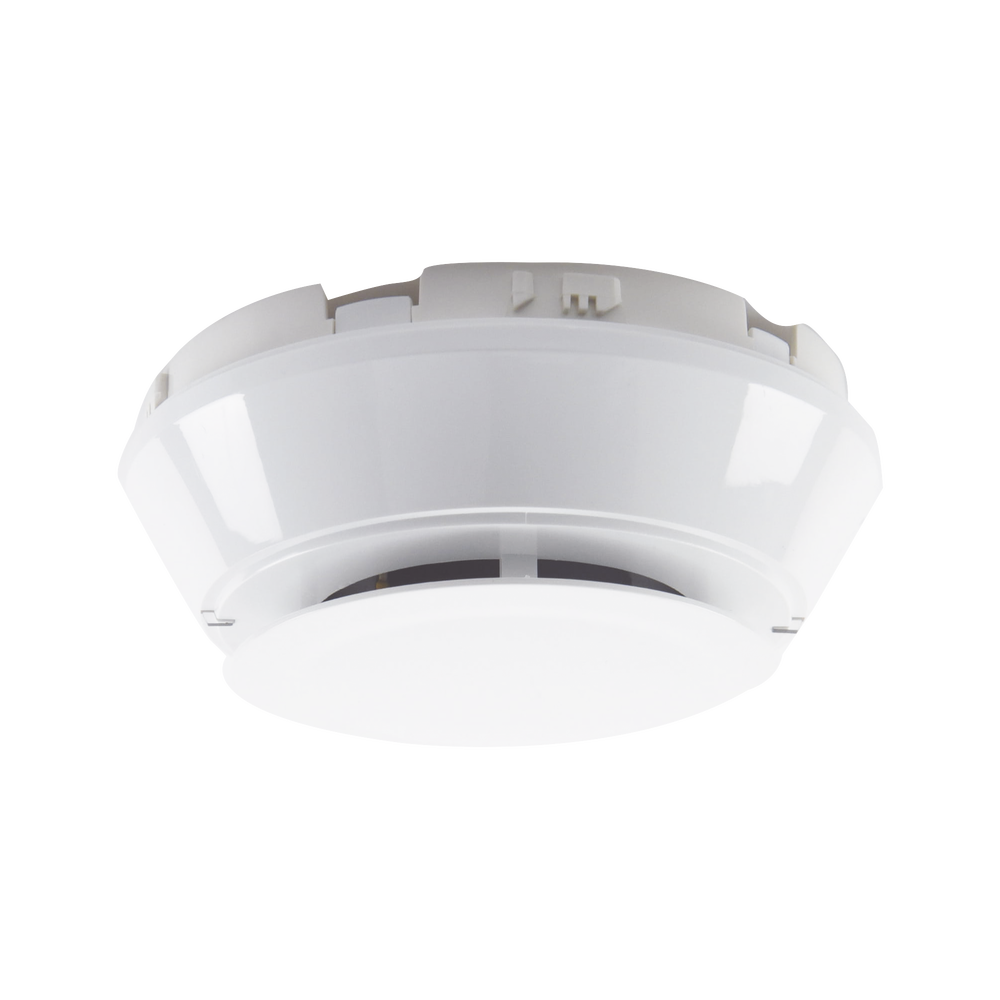

Smoke and Heat Detector / Addressable / 57°C / FlashScan® Technology / White

Smoke and Heat Detector / Addressable / 57°C / FlashScan® Technology / White

The NOTIFIER® FSP-951 Series intelligent smoke detectors are designed for both performance and aesthetics, and are direct replacements for the FSP-851 Series. A new, sleek, contemporary, and modern design and an enhanced optical sensing chamber are engineered to detect smoke produced by a wide range of combustion sources in accordance with the most stringent code standards.

Characteristics

SLC TIE:

• Two-wire SLC loop connection

• The unit uses a base (not included) for wiring.

• Compatible with FlashScan®

• Stable communication technique with noise immunity

ADDRESSING:

• Device addressable

• Rotary decimal addressing (refer to NOTIFIER panel manuals for device capabilities).

ARCHITECTURE:

• Discreet and elegant design

• Unique design to respond quickly and reliably to a wide range of fires

• Comprehensive communications and built-in device type identification

• Built-in tamper-evident feature

• Remote test function from the panel

• Address walk test (an address of 121 will flash the detector LED: 12-[pause]-1 (FlashScan systems only)

• Built-in functional test switch activated by external magnet

• Removable cover and insect-resistant screen for easy field cleaning

• Expanded color options

OPERATION:

• Designed to comply with UL 268, 7th Edition

• Factory preset to 1.5% of nominal sensitivity for the panel alarm threshold level

• The LED “blinks” when the unit is being queried (communicating with the fire panel) and is locked in alarm.

• Low standby current

MECHANICS:

• Sealed against back pressure

• SEMS screws for wiring the separate base

• Designed for direct surface or electrical box mounting

• Plugs into a separate base for easy installation and maintenance

• Separate base allows for sensor swapping

OPTIONS:

• Optional relay, isolator and siren bases

FlashScan® Compatible, Designed to meet UL 268 7th Edition, Rotary Decimal Addressing
