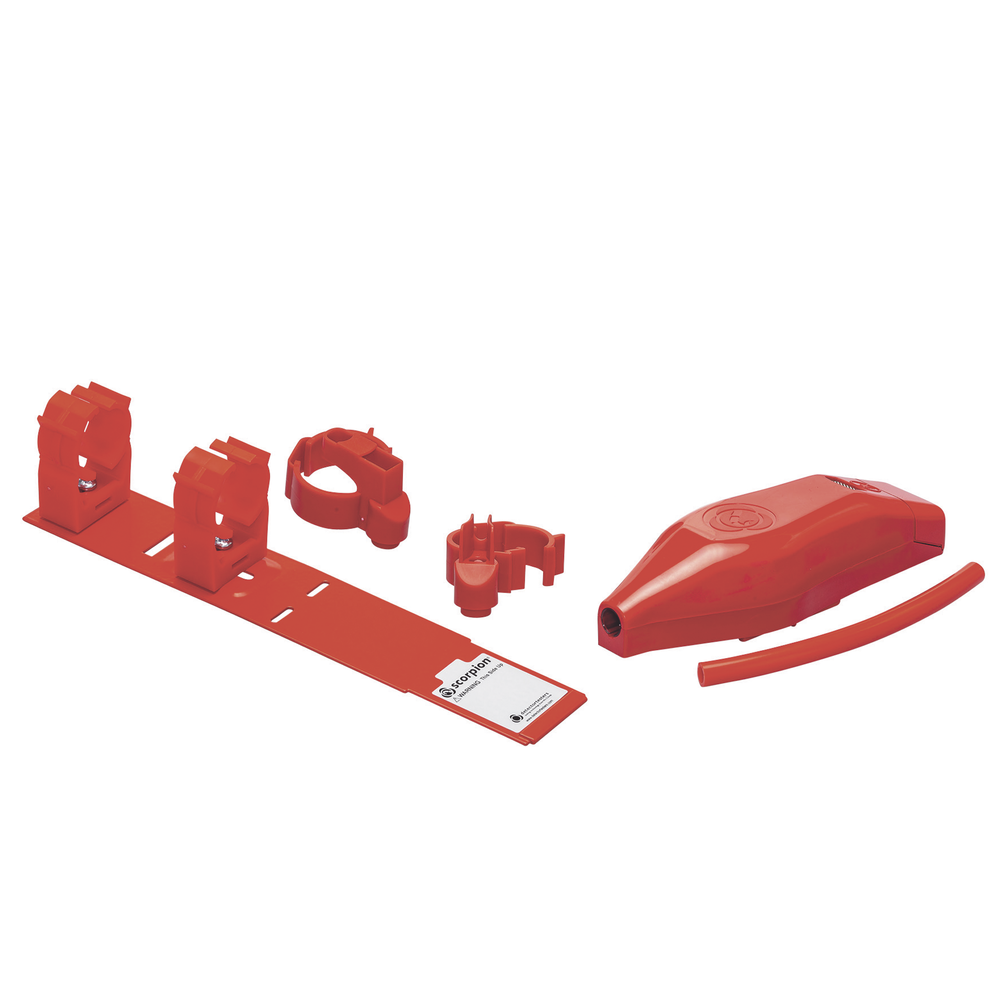

Fixed main unit kit for testing difficult-to-access aspirating smoke systems (ASD), used with the SCORP8000 Wall Controller

Scorpion is the best solution for testing smoke detectors in hard-to-reach installations.

Scorpion allows for testing smoke detectors in elevator shafts, department stores, shopping malls, airports, continuous operations areas such as manufacturing, and restricted-access areas, among others. This allows for fast, accurate, and efficient testing, reducing the costs of testing hard-to-reach smoke detectors, whether in a point detector or a piped aspirating smoke detection (ASD) system.

The Scorpion main unit is a smoke generator that is permanently installed next to a detector and, during testing, generates smoke for a functional test of the device.

The Scorpion system has a built-in transport timer to help assess the ongoing integrity of the ASD system from the end of the pipe to the detector itself. A cleaning function is used to remove smoke from the point detectors and reduce the possibility of repeat alarms, increasing on-site productivity.

Scorpion can be retrofitted into existing systems or installed alongside new ones. Each master unit has a testing capacity of over 240 15-second smoke tests each. Up to eight Scorpion heads can be connected to a single wall-mounted control panel, or for fewer detectors in multiple locations, access points can be used in conjunction with the engineer's controller.

General Characteristics

Main head kit for ASD suction pipe system ( Used with SCORP8000 wall controller )

Any reasons why they are necessary?

• Ensures 100% functional testing of detectors as required by standards.
• You can test detectors in sensitive or inaccessible areas.
• No additional access equipment or subcontracted personnel are required.
• Reduces the risk of falls or accidents for engineers.
• Reduce testing time by avoiding after-hours visits with direct access to detectors.

Ideal for 24/7 public areas, areas with restricted access, or areas with continuous operations

• Public areas 24/7
• Hospitals
• Hotels
• Asylums
• Universities
• Penalties
• Airports
• Military bases
• Banks
• Power plants
• Manufacturing plants
• Warehouses
• Call centers
• etc

NO EXCUSES FOR TESTING SMOKE DETECTORS

WITH DIFFICULT ACCESS

Ideal for conventional point-type and directional smoke detectors, Saves costs and time on testing and maintenance, Test capacity up to 240 tests, Use with the SCORP8000 Wall Controller
