• Bobina de cable 2 X 16 AWG FPL para Incendio o Voceo / 305 mts / Enterrado Directo o Intemperie / Resistente a la Luz Solar / Sin Blindaje
1 4

GENESIS

2 X 16 AWG FPL Fire or Paging Cable Reel / 305 m / Direct Burial or Weatherproof / Sunlight Resistant / Unshielded

2 X 16 AWG FPL Fire or Paging Cable Reel / 305 m / Direct Burial or Weatherproof / Sunlight Resistant / Unshielded

$1.718.577 COP
$1.879.694 COP $1.718.577 COP
Sale Sold out
Shipping calculated at checkout.

2 X 16 AWG FPL Fire or Paging Cable Reel / 305 m / Direct Burial or Weatherproof / Sunlight Resistant / Unshielded

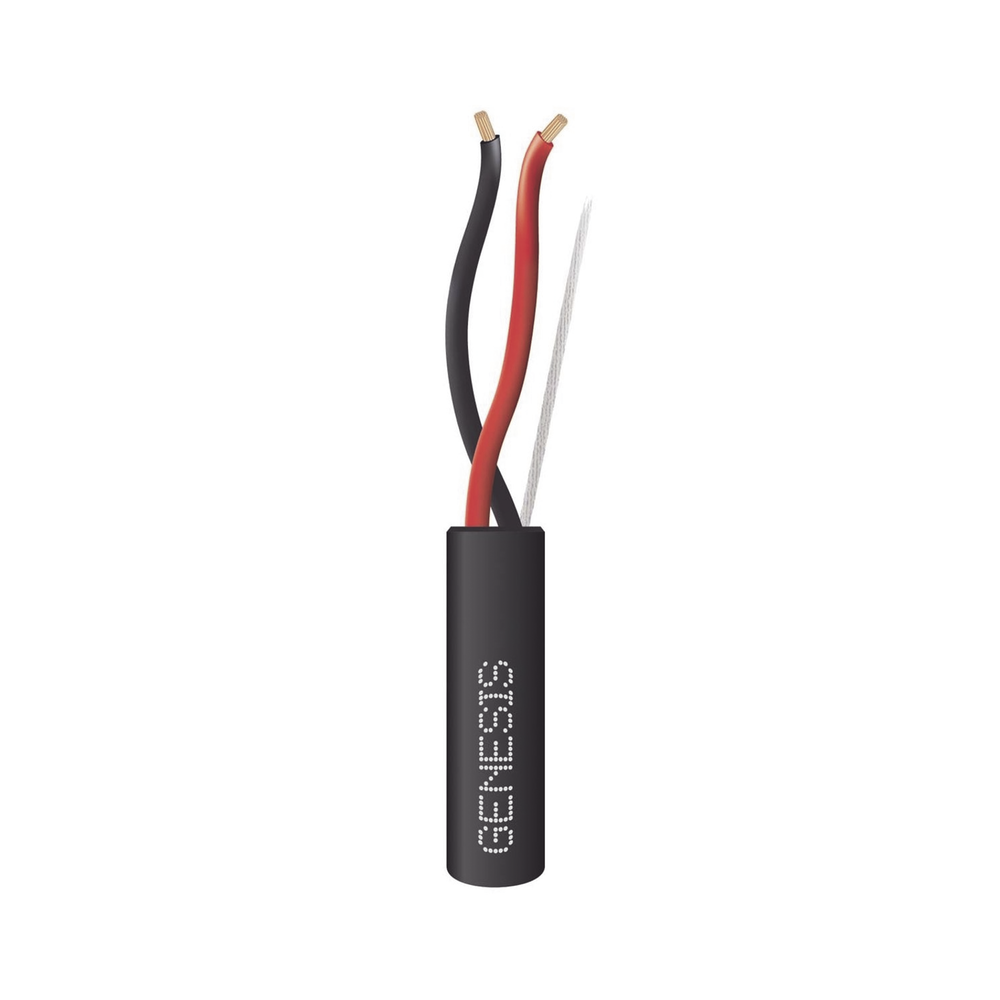

2-conductor, 16-gauge, black-sheathed direct burial cable for fire alarm or paging applications.

Honeywell Genesis® Series direct burial cables are specifically designed for underground burial. Manufactured with a more ribbed jacket, these cables exhibit a higher threshold of crush and impact resistance. Our outdoor cables are not only designed for burial, but are also independently tested and approved to meet direct burial and wet location requirements.

Characteristics:
  • Insulation colors: Black and Red .
  • Ripcord: Yes.
  • Nominal Outside Diameter: 0.71628 cm (0.282 in).
  • Solid or multi-stranded: Multi-stranded.
  • Conductor material: Bare copper.
  • Conductor insulation material: SRPVC.
  • Jacket material: PVC.
  • Shielding: No.
  • Operating temperature: -20° to 75°C.
  • Cable packaging: Reel.

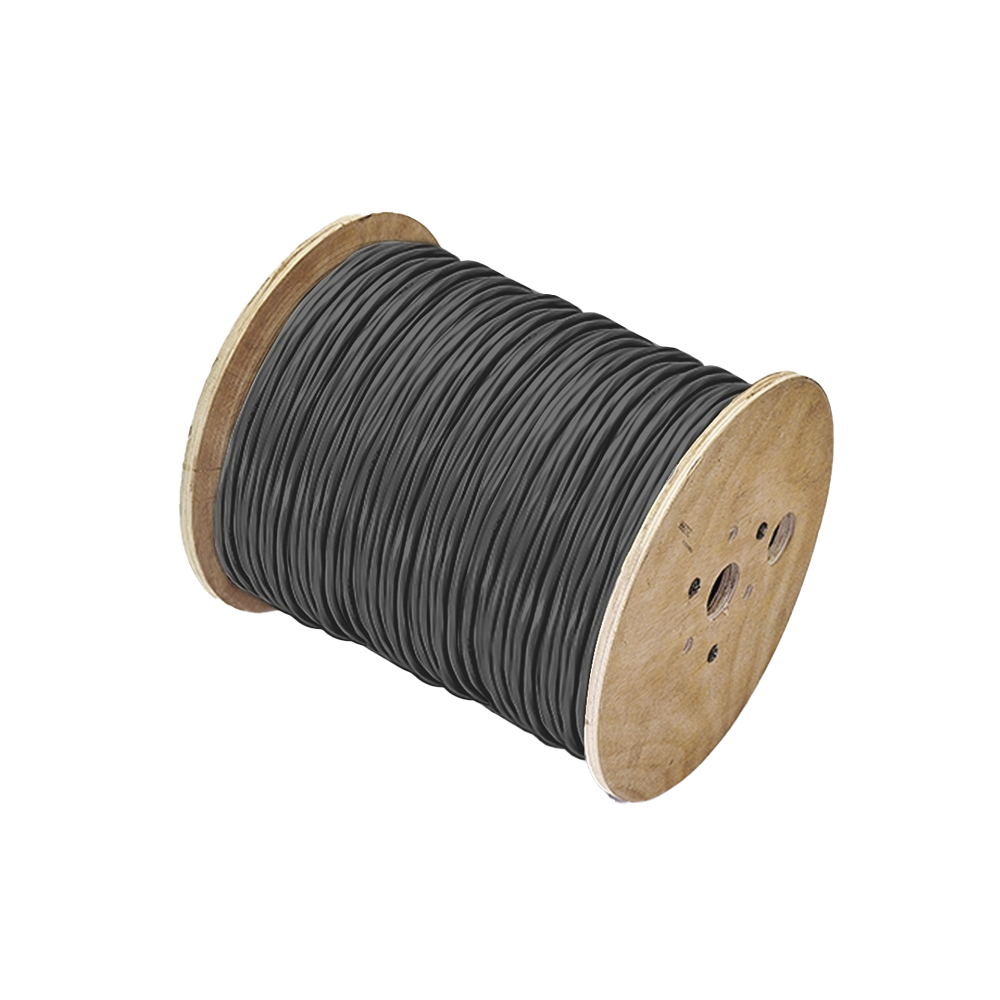

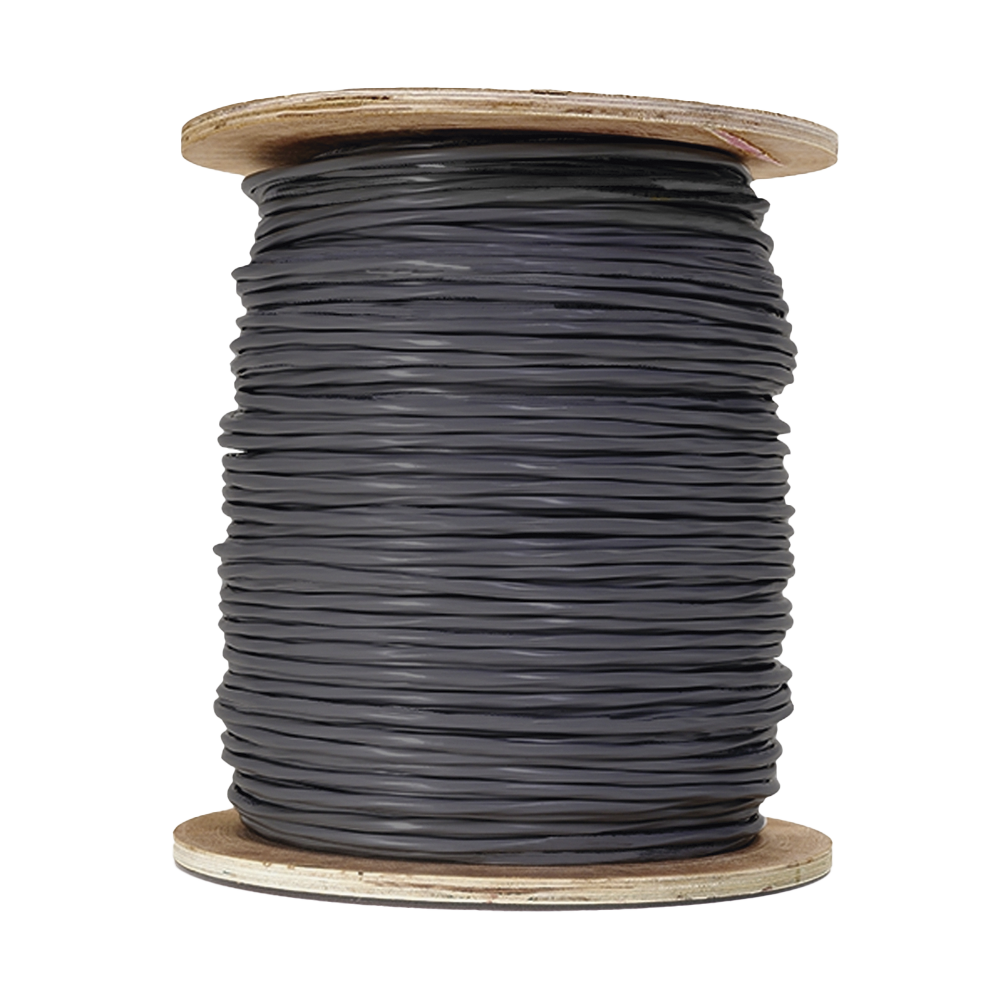

  • Length per unit: 305 meters (1000 feet).
  • Dimensions: 34.925 x 34.925 x 34.925 cm (13.75 x 13.75 x 13.25 inches).
  • Weight: 20366.3 g
Physical and electrical characteristics:
  • Nominal voltage (max.): 300 V.
  • Direct Current Resistance (Max): 4.19 ohms/1000 ft at 20°C.
  • Capacitance (nominal): 15.7 pF/ft.
  • Impedance (nominal): 97 Ohms.
Standards:
  • Cable listing: CL2, CM.
  • It can be installed in locations exposed to sunlight, as it has been tested for 720 continuous hours of sunlight without any alterations.
  • This Genesis® cable features two 16 AWG stranded copper conductors and a general-purpose rating. Choose this cable for a reliable connection for security, controls, audio, and other low-voltage applications.

* Price per 305 meter coil.

    2 x 16 AWG 305 m cable reel, Direct burial or outdoor, Sunlight resistant, Multi-strand cable

Low stock: 8 left

MODELO: 4151-1008
