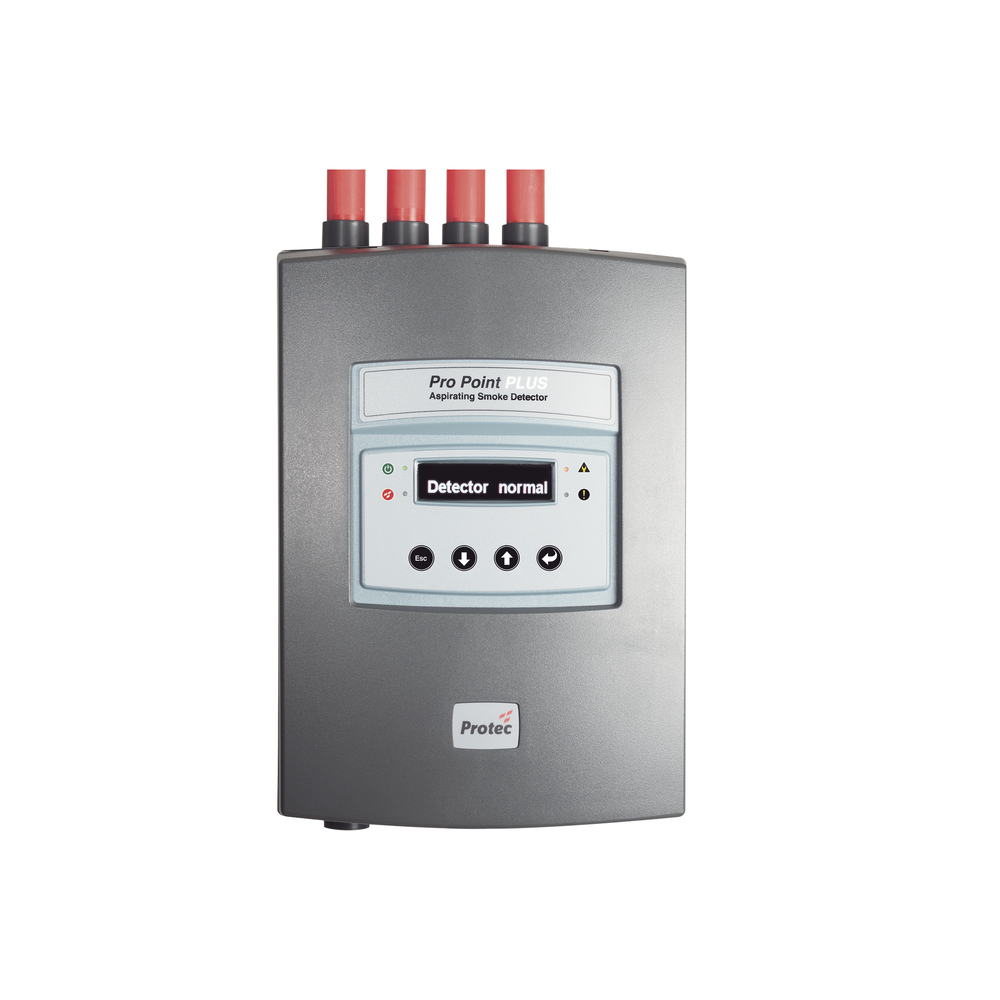

Aspirating Smoke Detector | ProPointPlus® 4 Tube

Aspirating Smoke Detector | ProPointPlus® 4 Tube

$0 COP
$0 COP $0 COP
Sale Sold out
Shipping calculated at checkout.

Aspirating Smoke Detector | ProPointPlus® 4 Tube

Main Features:
  • Detection of up to 4 independent areas
  • Multilingual and with LCD screen
  • High-performance optics (Scattering chamber detectors)
  • Pre-alarm and fire alarm warning
  • 3 supervised entrances
  • 5 programmable relays
  • Pipeline length up to 200 m
  • Up to 24,000 events
  • Approved by EN54-20 and AS 7240-20
Physical and Electrical Characteristics:
  • Supply voltage: 21 - 29 VDC
  • Power consumption: 9.6 W
  • Absorbed current 400 mA
  • Detector operating temperature: 0 to 38°C
  • Sampling temperature: -20°C to 60°C
  • Operating humidity: 10 - 95%RH, non-condensing
  • IP Rating: IP30
  • Dimensions: 380 x 250 x 137 mm
  • Weight: 3 Kg
Highlighted Features:

History tells us that there are really only two types of air sampling detection technology: Cloud Camera Detection (CCD) and laser or optical Scattering Camera Detection (SCD). Cirrus Hybrid uses both.

Depending on the materials burning, some fires burn with no or only a small amount of visible smoke, and others burn with much larger volumes of smoke. Dust and contaminants can be inadvertently detected as smoke by optical and laser detectors, causing a false alarm. Cirrus HYBRID uses CCD detection to determine if pre-smoke particles are present in the air and SCD detection to determine if smoke is present in the air. If the CCD detects pre-smoke particles in the air, but not smoke, it can sound an alarm. If the SCD detects and the CCD does not, it is a false alarm. Together, they give you a combined fire signal and a verified alarm.

Cirrus Hybrid also offers you the first cross-zone early warning air sampling detector that can safely activate a suppression system.

ProPointPlus

Advanced aspiration detection. The most sensitive technology on the market.

Aspirating detection is now a recognized solution for many different fire detection applications. ProPointPlus provides up to four separate detectors within a common aspirator enclosure, thus providing four individually identifiable detection areas per aspirator. Each of the four plug-in Scatter Chamber Detectors (SCD) detector modules can be either optical-only or combined optical/enhanced CO detectors; the CO-only sensor is suitable for small room applications. Integrated, independent alarm decision-making using complex algorithms extends the particle detection range, confirms genuine alarms, and reduces unwanted alarms. Installation, configuration, and commissioning of ProPointPlus detectors is very simple and easy to install. Configuration for Class A, Class B, or Class C sensitivity options is achieved via a multi-language multifunction LCD display, generally without the need for a laptop connection. Detector setup allows the installer to configure the detector sensitivity to an equivalent setting, such as a known number of point-type smoke detectors for each Class A, Class B, and Class C system. This ensures that the system specifier, designer installer, and commissioning engineer configure the ProPointPlus SCDs to the correct sensitivity for the particular application. Aspirator fan speed and airflow settings are also a very simple process, allowing ProPointPlus aspirating detectors to be installed in a variety of applications with both short and relatively long pipe runs.

    Out of stock

    MODELO: 61986104-FMULOP4
