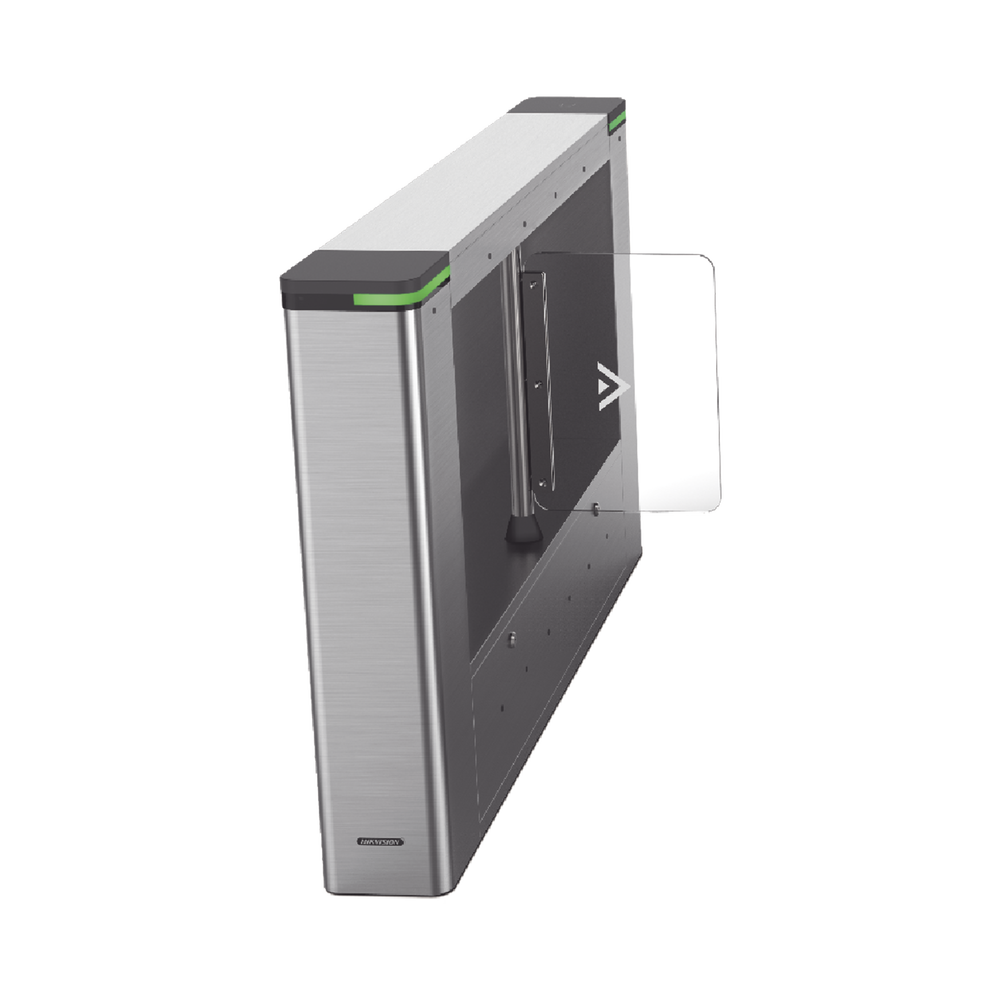

Left Swing Turnstile for 90cm Lane / Includes Card Reader / TCP/IP / Manageable by iVMS-4200 (Requires Right Turnstile)

• LED direction indicator.
• Throughput: 20 to 60 people per minute.
• Remote control operation.
• Auto detection, auto diagnosis and auto alarm.
• The audible and visual alarm includes: Intrusion alarm, reversing alarm and position change alarm.
• Barrier status configuration for entry and exit.
• Management through the iVMS-4200 client.
• 1 Year warranty.
• User capacity (cards): 60,000

• Material: SUS304 Stainless Steel
• Operating voltage: 100 to 240 VAC; 50 to 60 Hz
• Operating Temperature:-25°C to 70°C (-13°F to 158°F)
• Dimensions: 1500 x 200 x 990 mm (59.06” x 7.87” x 38.98”)
• Protection Index: IP54
• Weight without / with packaging: 56kg / 86 Kg

It is administered via IVMS4200 ( MIFARE card reader included ). It also works with dry contact pulses from any device.

It locks if someone tries to break in, preventing access.

Fire alarm to remain open in case of an emergency.

Requires right turnstile model DS-K3B501SX-R/M-DP90.
