ENFORCER SECOLARM
Surface Mount Magnetic Contact / UL Listed / GAP 19 mm / Normally Closed
Surface Mount Magnetic Contact / UL Listed / GAP 19 mm / Normally Closed
Regular price
$15.590 COP
Regular price
$17.052 COP
Sale price
$15.590 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Surface Mount Magnetic Contact / UL Listed / GAP 19 mm / Normally Closed

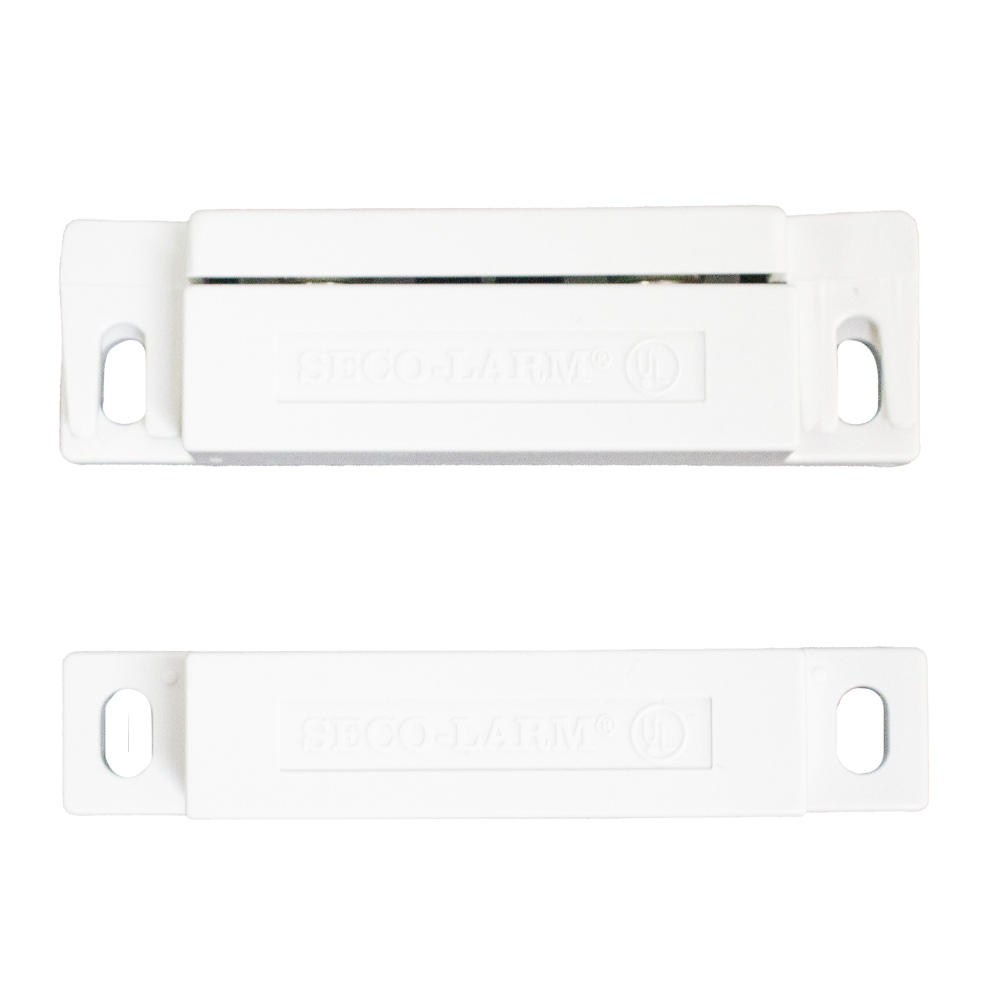

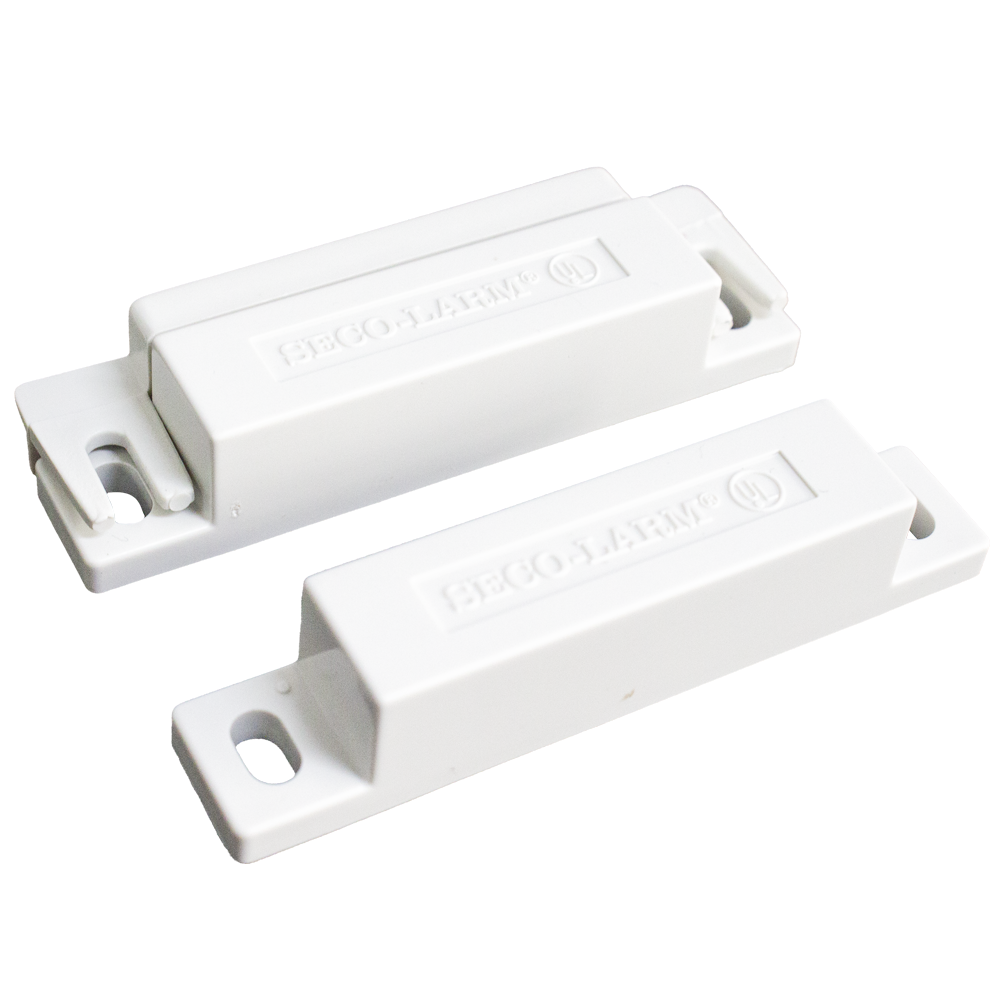

SM200Q/W Surface Mount Magnetic Contact
The ENFORCER SECOLARM model SM-204Q/W is a miniature magnetic contact that provides a normally closed contact output. It has a 19 mm sensing range and is UL Listed.
This magnetic contact is designed for use in a wide variety of applications, including doors, windows, and security systems. It's ideal for detecting the opening or closing of a door or window and generating an alarm signal.
Main features:
- Mounting with screw or adhesive (adhesive tape included).
- The mounting flange breaks away for additional miniature size.
- Weather-resistant, high-impact ABS plastic case.
- The reed switch is SPST, deactivated rhodium over gold plating, for long life.
- GAP of 19 mm (1 inch approx).
Physical and Electrical Characteristics:
- Contact: 10 VDC / 1 A Max.
- Dimensions: 35 x 10 x 6 mm.
- Operating temperature: -25°C to 70°C (-15°F to 160°F)
- Magnet Type: Alnico 5.
- Up to 50 Million commutations.
Highlighted Features:
- UL Listed
Share
500 in stock
MODELO: SM-200Q/W
