B680H Vehicle Barrier Kit with 6.3 meter Rectangular Arm / Includes Arm, Spring, Hitch and Cabinet
B680H Vehicle Barrier Kit with 6.3 meter Rectangular Arm / Includes Arm, Spring, Hitch and Cabinet
Couldn't load pickup availability
B680H Vehicle Barrier Kit with 6.3 meter Rectangular Arm / Includes Arm, Spring, Hook and Cabinet
- Opening in 1.5 s (2.3 m arm).
- Brushless electric motor.
- Built-in 2-channel mass sensor.
- Electronic slowdown by encoder.
- Integrated encoder.
- Frequency of continuous use.

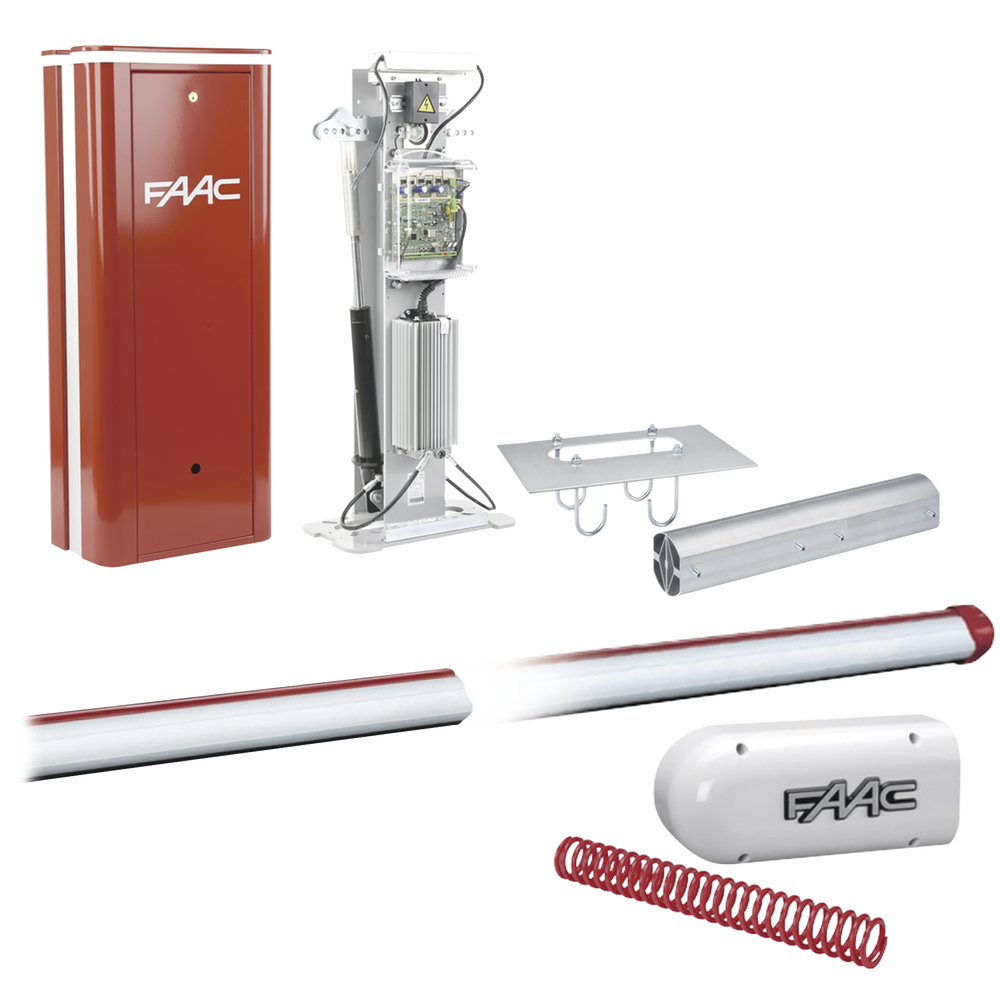

Kit Contents:
- 1 x 104680 B680H continuous duty hydraulic barrier without cover.
- 1 x 416016 Red cover or cabinet for B680H barrier.
- 1 x 428049 2.3 meter end arm.
- 1 x 428437 Spring and braket for B680H for arms of 5.3 m or more.
- 1 x 428048 4-meter starting arm for B680H barriers.
- 1 x 428616 Union for arm 428048.
- Supply voltage: 100 to 240 VAC.
- Power consumption: 240 W.
- Absorbed current 1.1 A at 230 VAC.
- Electric motor: 36 VDC.
- Pump flow rate: 3.2 lpm.
- IP56 protection rating.
- Weight: 85 Kg (65 Kg assembly + 20 Kg box).
- Operating temperature -20 to 55°C.
- Material: Steel.
- Oil type: FAAC HP OIL.
- Dimensions: 469 x 279 x 1100 mm.
- Electronic tablet: E680.
- Review the full data sheet.
The B680H barrier has a hybrid core that, together with its "infinitely long" springs, allows it to withstand 2,000,000 cycles of continuous use and raise 8m bars in less than 6 seconds, in completely safe conditions thanks to the reversal when faced with an obstacle.
The B680H features a load-bearing internal structure and a removable external cabinet. This solution provides great stability and allows for easy cabinet replacement.
Check the accessories needed for installation
Why is a hydraulic barrier better?
Extraordinary durability
The life expectancy is very long, with proven durability of at least 2 million cycles. The hydraulic components are enclosed in an oil bath, ensuring minimal wear.
Great strength and high resistance
More than twice the torque of electromechanical engines, fully available from the start-up phase. Ideal for harsh and aggressive environmental conditions: dust, sand, salt, cold, etc.
Kit contents
- 1 x 104680 B680H continuous duty hydraulic barrier without cover.
- 1 x 416016 Red cover or cabinet for B680H barrier.
- 1 x 428049 2.3 meter end arm.
- 1 x 428437 Spring and braket for B680H for arms of 5.3 m or more.
- 1 x 428048 4-meter starting arm for B680H barriers.
- 1 x 428616 Union for arm 428048.
Necessary accessories (choose arm and spring hook)
Circular Arm S: Up to 5 meters
Compatible arms
Compatible arms
Hitch and spring 428436
• All arms are provided with protective rubber on the bottom and are pre-installed for lights on the top. Adhesive reflective strips are not included.
• The arm profiles feature a 75 mm round section to maintain their effectiveness even in windy areas.
• The coupling of the modular bars is invisible once installed.
Rectangular Arm L: From 5 meters to 8 meters
Compatible arms
Compatible arms
Hitch and spring 428437
• All arms are provided with protective rubber on the bottom and are pre-installed for lights on the top. Adhesive reflective strips are not included.
• The arm profiles have an elliptical section of 85 x 95 mm in order to maintain their effectiveness even in windy areas.
• The coupling of the modular bars is invisible once installed.
Safety Devices
Avoid accidents and problems
Security devices are essential in an access control system, not only to prevent collisions with high-value vehicles, but also to protect nearby pedestrians.
Magnetic lasso
Model SYSLM6
Magnetic loops are useful for detecting the vehicle's chassis and thus preventing the arm from falling onto the vehicle. FAAC barriers already include a ground sensor, so only the magnetic loop needs to be connected for it to work.
Infrared photocells
Model XBSIR33
Photocells are excellent for detecting both objects and people, and can be installed to complement the magnetic loop.
Laser type detector
Model 10LZR-H100KIT-19327
This solution provides four laser curtains, each offering a three-dimensional detection zone for precise object detection. These laser curtains are highly configurable and can be set to open, security, and presence detection functions in vehicle sensing applications.
Infrared photocell with reflector
Model E-936-S45RRGQ
The installation of this type of photocell is much simpler since it does not require power where the reflector is placed.
Radar
Model XBS-RDA-09
The installation of a radar is much faster and does not require civil works like a magnetic loop.
Heavy-duty triple push-button panel
Model XBS-SW-01
It is highly recommended to install this type of push button so that the barrier can be activated manually and stop movement in case of emergency.
Additional accessories
They complement the installation
Various accessories contribute to a complete and professional installation. You can install accessories such as lights, traffic lights, reflective strips, etc.
Red LED hose
Model 390993
To install the LED hose, connector model 390992 is required. The strip measures 12 meters but can be trimmed to fit the length of the arm.
Flashing traffic light
Model 410033
Installs directly into the cabinet and provides a professional appearance and installation.
Adhesive reflective bands
Model 490117
They adhere directly to the barrier arm, allowing the arm to be clearly seen in low-light environments.
- Power supply 100 to 240 VAC, 2,000,000 cycles
Out of stock
MODELO: KITB680H6M
