• New modern profile
• High immunity to electrical noise
• The LED “blinks” green whenever a communication is received from the control panel and turns solid red when activated.
• Addressing by rotary switches
• FlashScan Communication Protocol

• Power supply: 15 to 32 Vdc
• Operating current at 24 Vdc: 700 μA
• Maximum consumption current at 24 Vdc: 500 mA
• End-of-line resistor: 47 K ohms
• Operating temperature: -10°C to 60°C
• Operating humidity range: 10% to 93% non-condensing.
• Dimensions: 10.86 x 11.87 x 3.5 cm
• Weight: 156 g

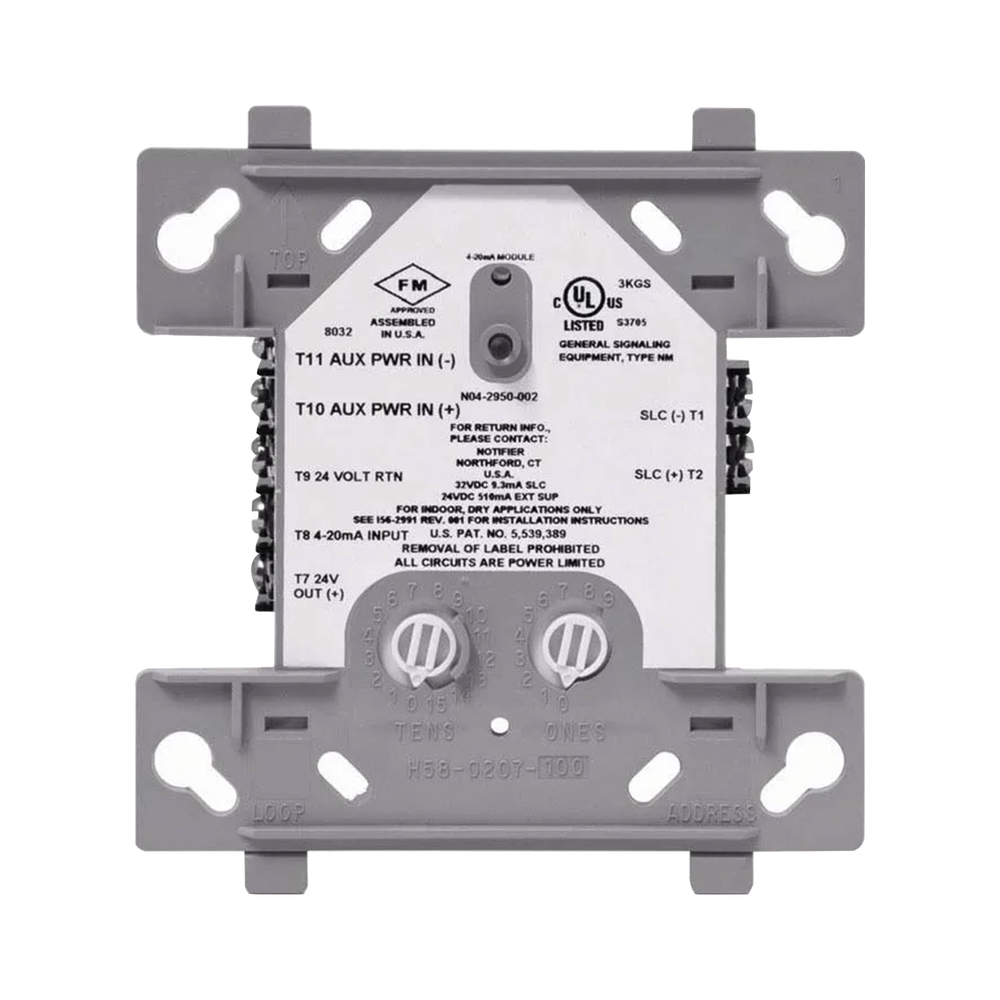

The FMM-4-20 analog input module enables the NFS2-3030 Fire Alarm Control Panel (FACP) to monitor industry-standard linear-scale 4–20 mA protocol sensors. The module converts the sensor output to a communication protocol that the FACP can interpret for monitoring and display. Numerous sensors are commercially available that communicate using a 4–20 mA output, including gas sensors, temperature sensors, air velocity sensors, and more.
