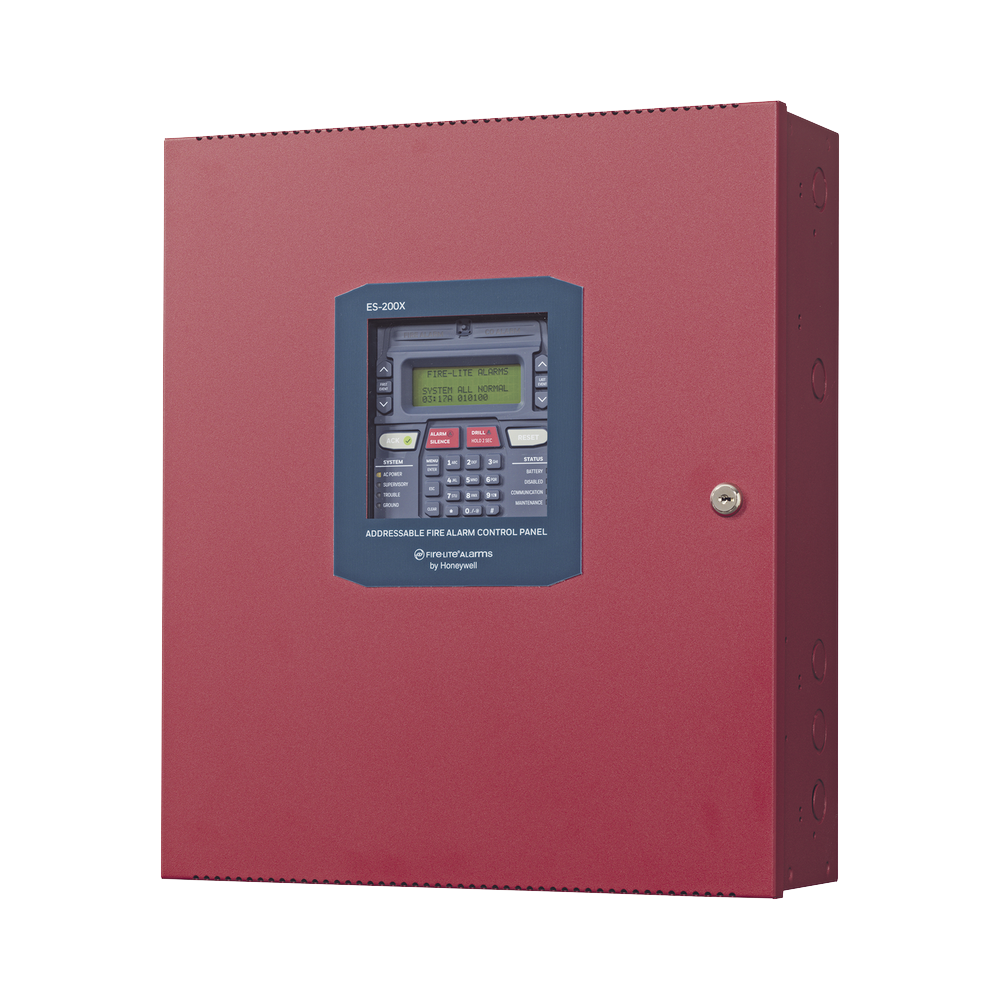

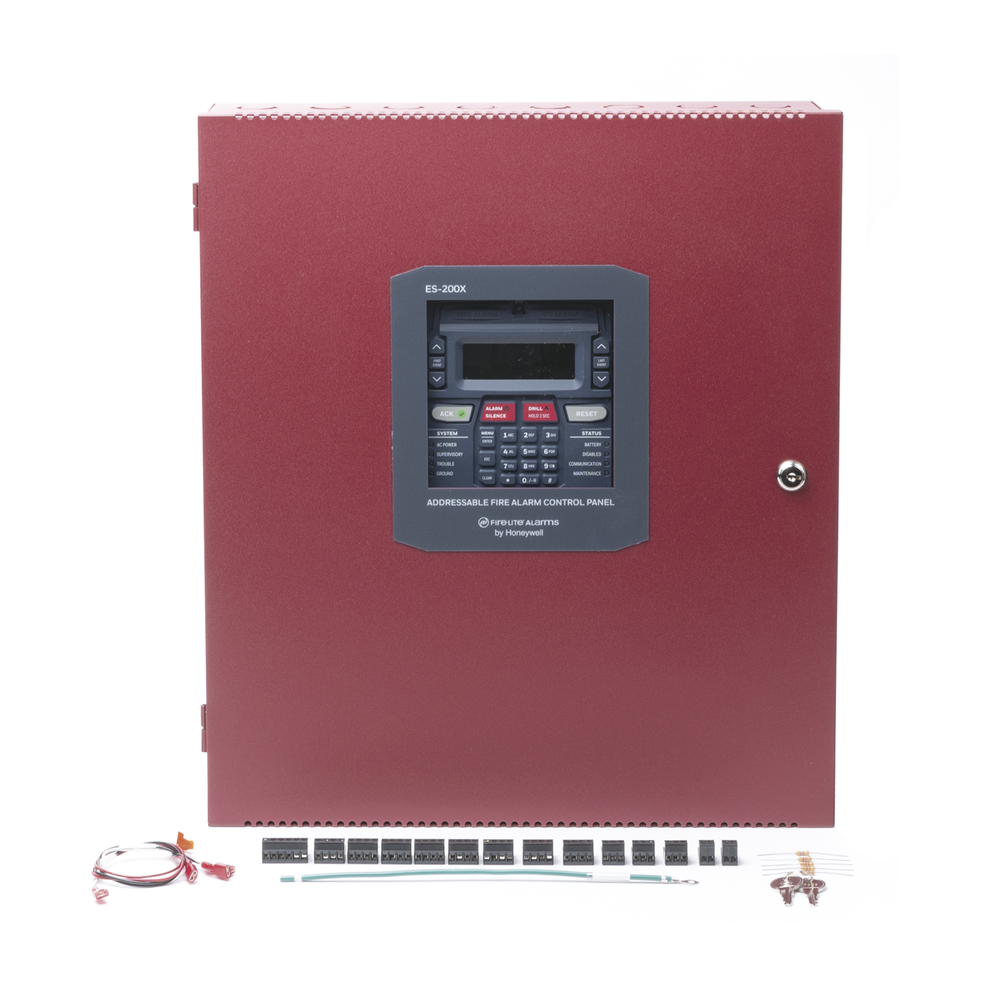

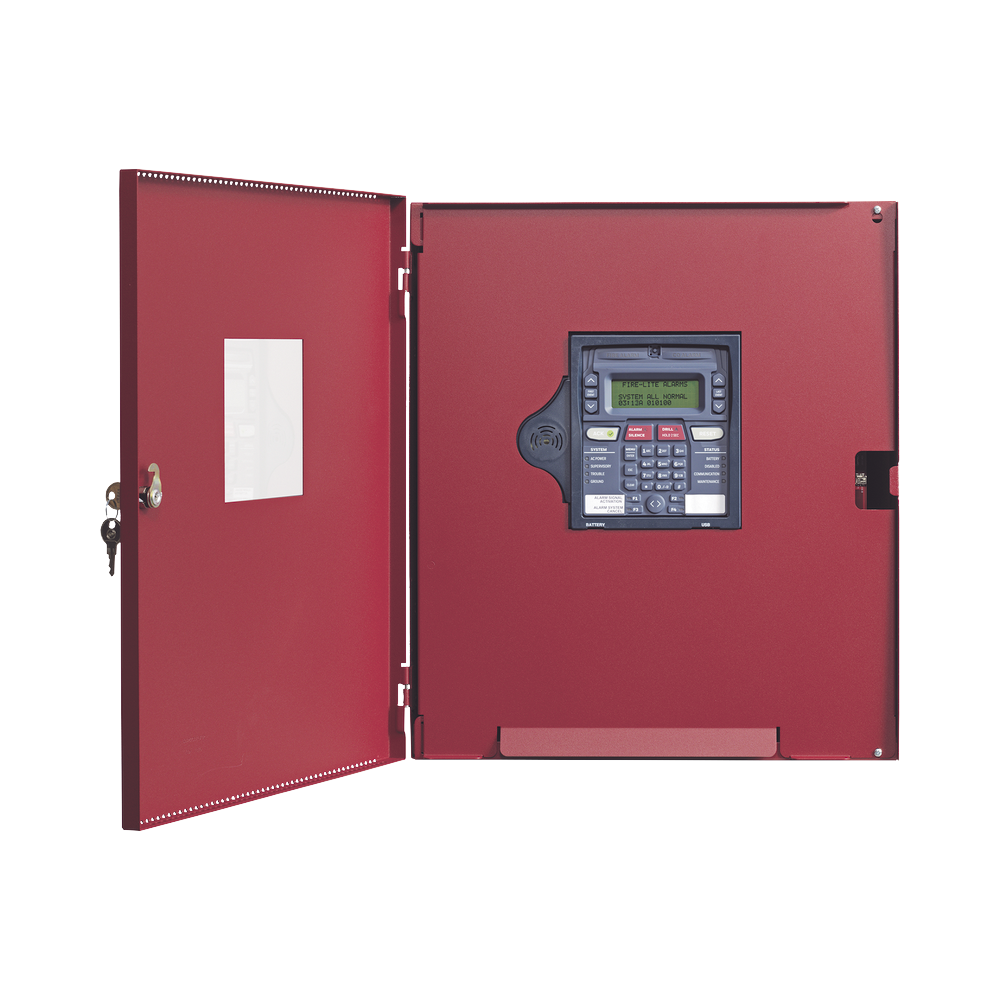

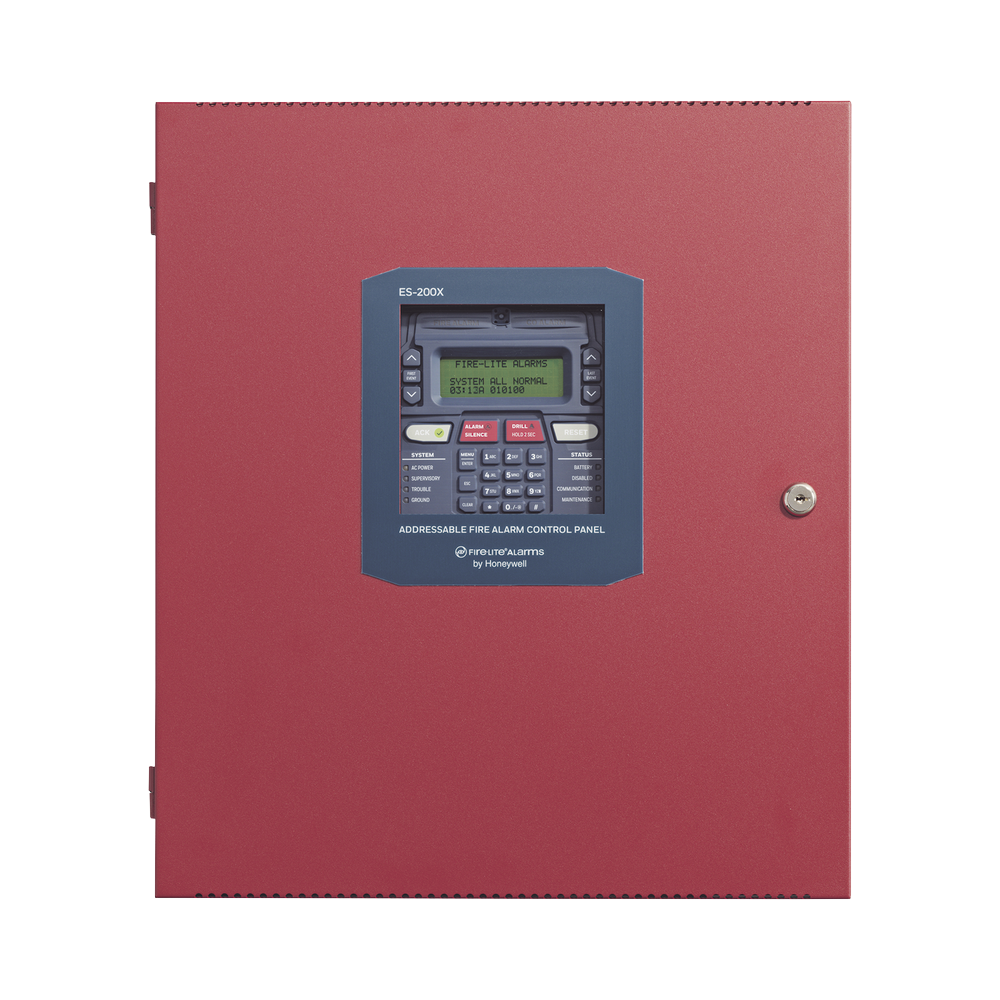

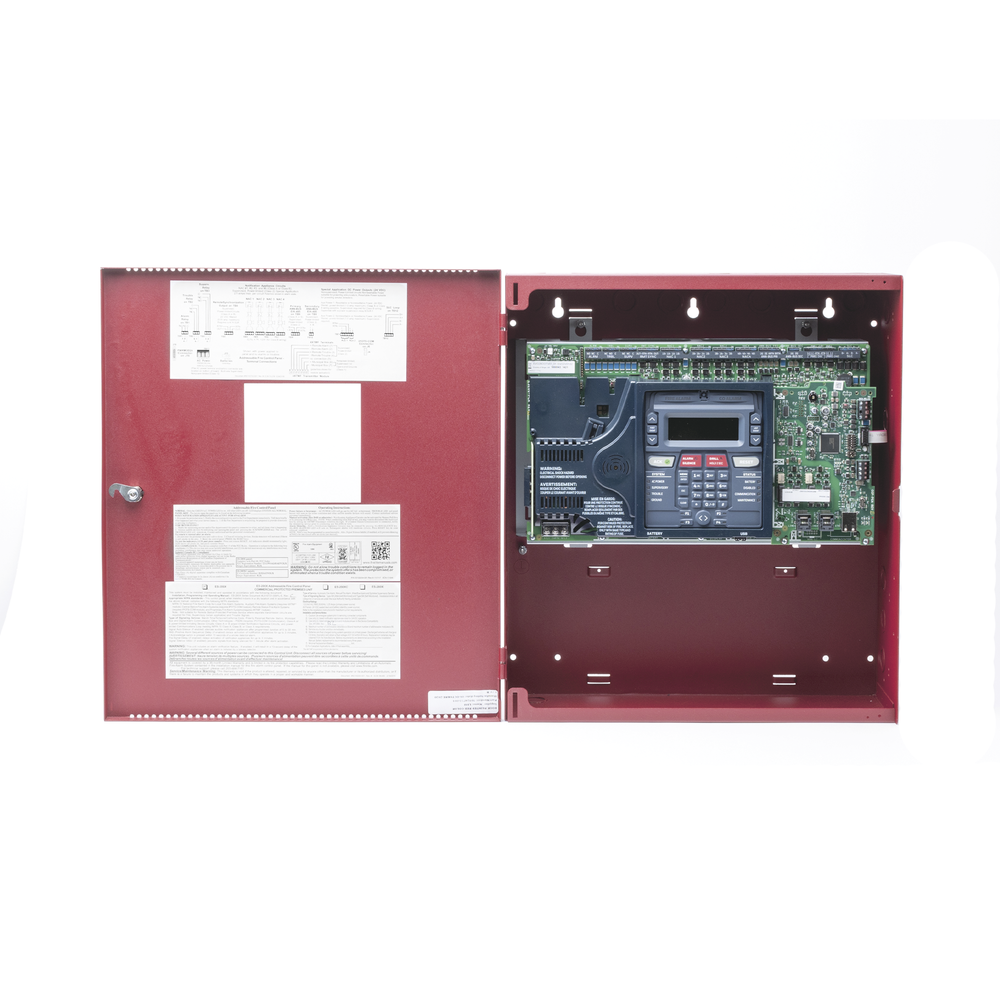

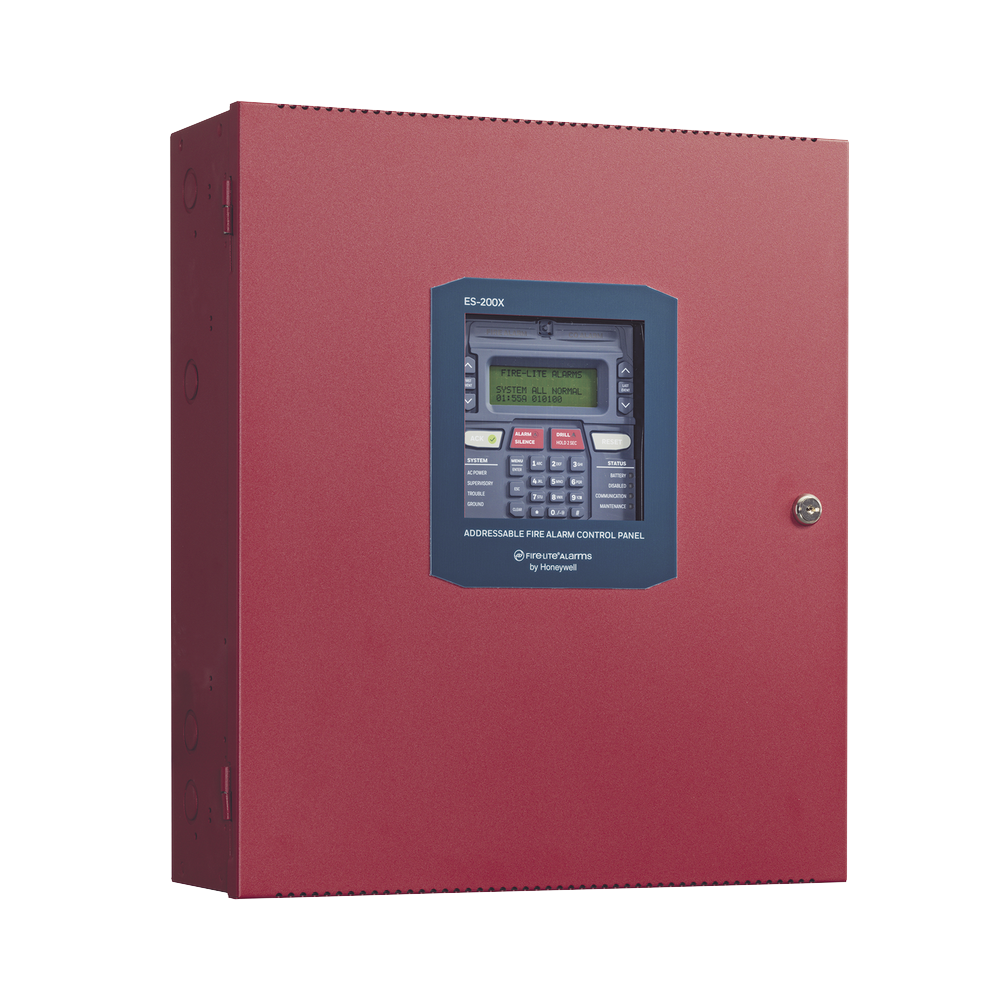

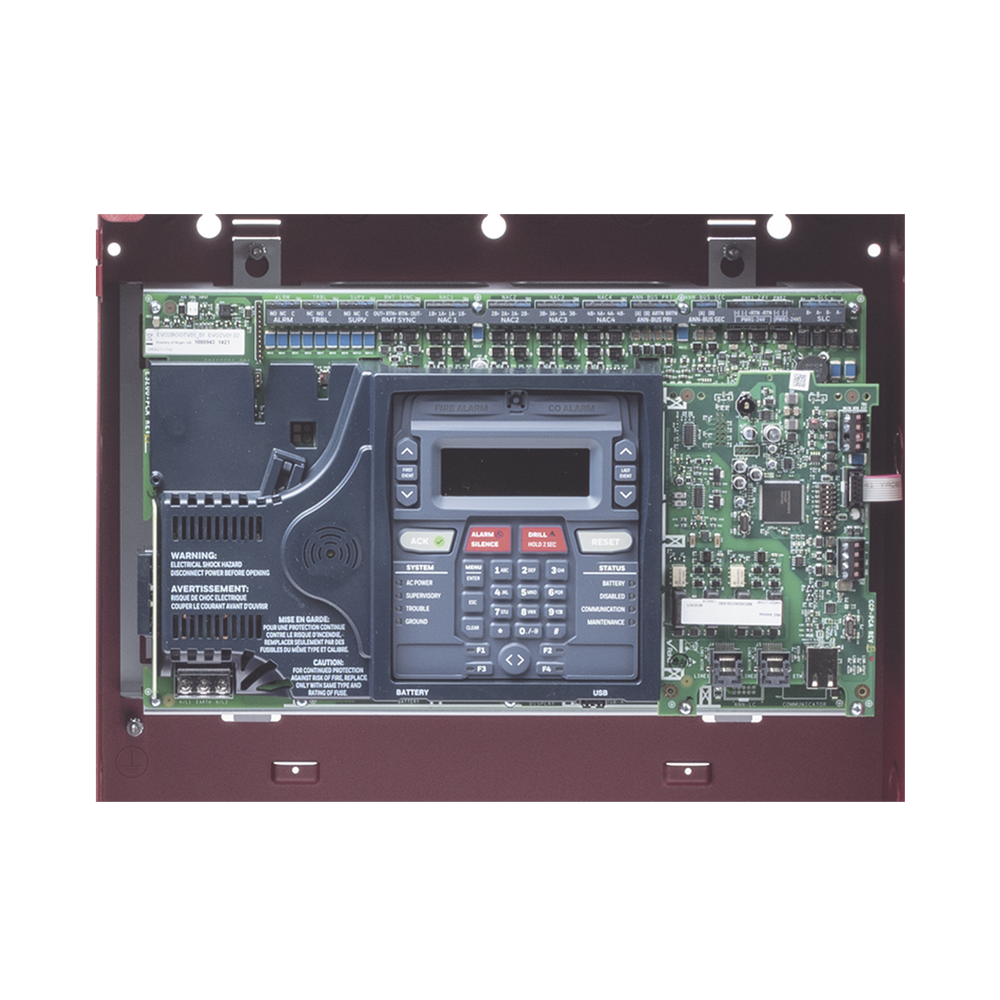

Addressable Fire Detection Panel / 318 Points: 159 Detectors and 159 Modules / Expandable up to 954 Points / 4 NACs / With Communicator

Addressable Fire Detection Panel / 318 Points: 159 Detectors and 159 Modules / Expandable up to 954 Points / 4 NACs / With Communicator

Smarter security doesn't have to be complicated. Fire-Lite's legacy of simplicity and reliable performance continues with the Fire-Lite Endurance Series. The new ES-1000X alarm control panel offers programmable buttons and supports addressable combination fire and CO detectors. It now offers more capacity and convenience than ever before for surprisingly simple security.

Characteristics

• Listings and Approvals: UL, FM, CSFM, and FDNY
• Telephone communicator installed ( Pathway compatible)
• Supports up to 954 addressable devices (159 detectors and 159 modules per loop), to reach its maximum capacity, 2 SLC-3LS cards are required.
• Uploading/Downloading with a USB Flash Drive
• Supports SD-355CO multi-criteria addressable detector (smoke, heat, CO)
• Supports addressable sound bases
• Four programmable function keys
• Built-in Class A capability for all 4 NACs; no optional card required
• Trouble indication for unprogrammed SLC devices
• Automatic detection of 'relay' versus 'NAC' type control modules during auto-programming
• SWIFT display controller and annunciator built into the panel.

Benefits

• Save time with 4 programmable buttons to automate tasks, enable updates, and program the panel via USB.
• Save on SWIFT wireless installations by replacing older Fire-Lite panels with built-in wireless. Display controller and annunciator.



  Scope of a Fire-Lite System





4 Function Keys, Local or Software Programming, Pathway Compatible
