Smart, Compact and Elegant Access Control Terminal / Keypad / Prox 125 kHz Reader / MIFARE 13.56 MHz / WEB Management

Smart, Compact and Elegant Access Control Terminal / Keypad / Prox 125 kHz Reader / MIFARE 13.56 MHz / WEB Management

$803.147 COP
$878.442 COP $803.147 COP
Sale Sold out
Shipping calculated at checkout.

Smart, Compact and Elegant Access Control Terminal / Keypad / Prox 125 kHz Reader / MIFARE 13.56 MHz / WEB Management

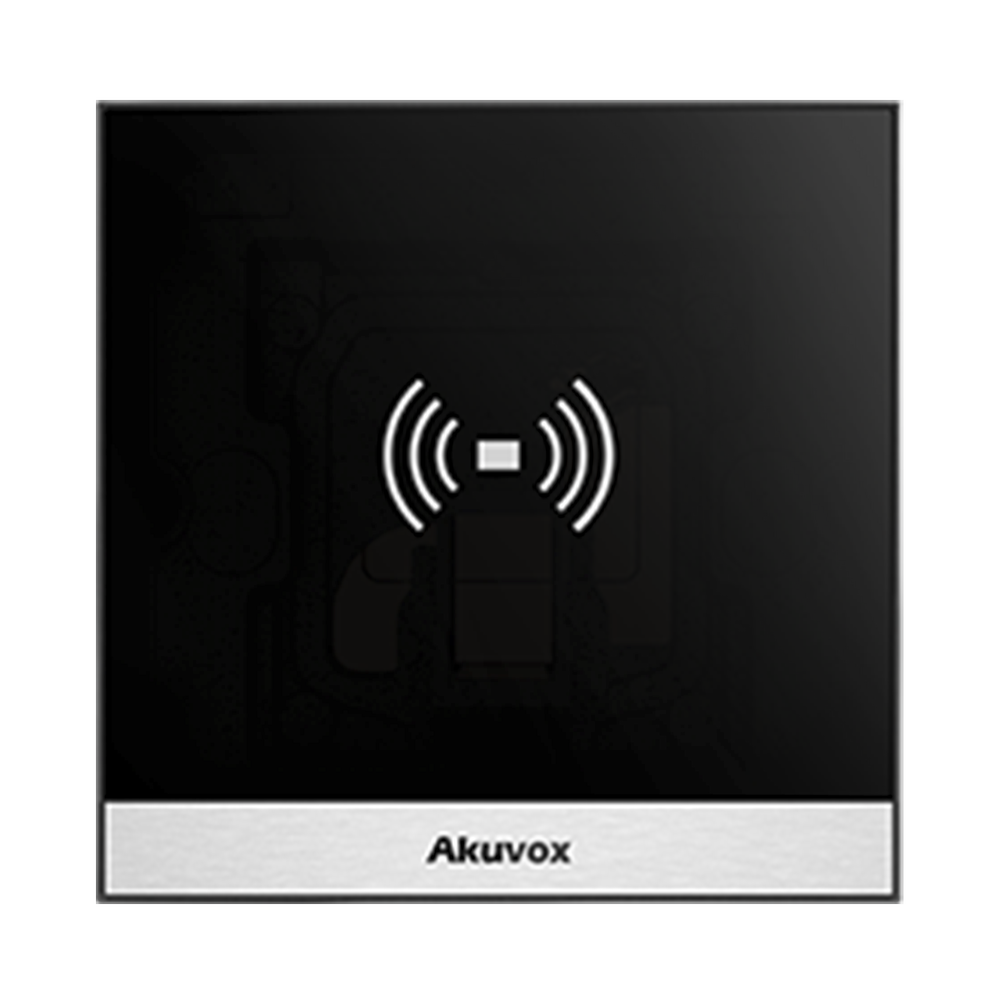

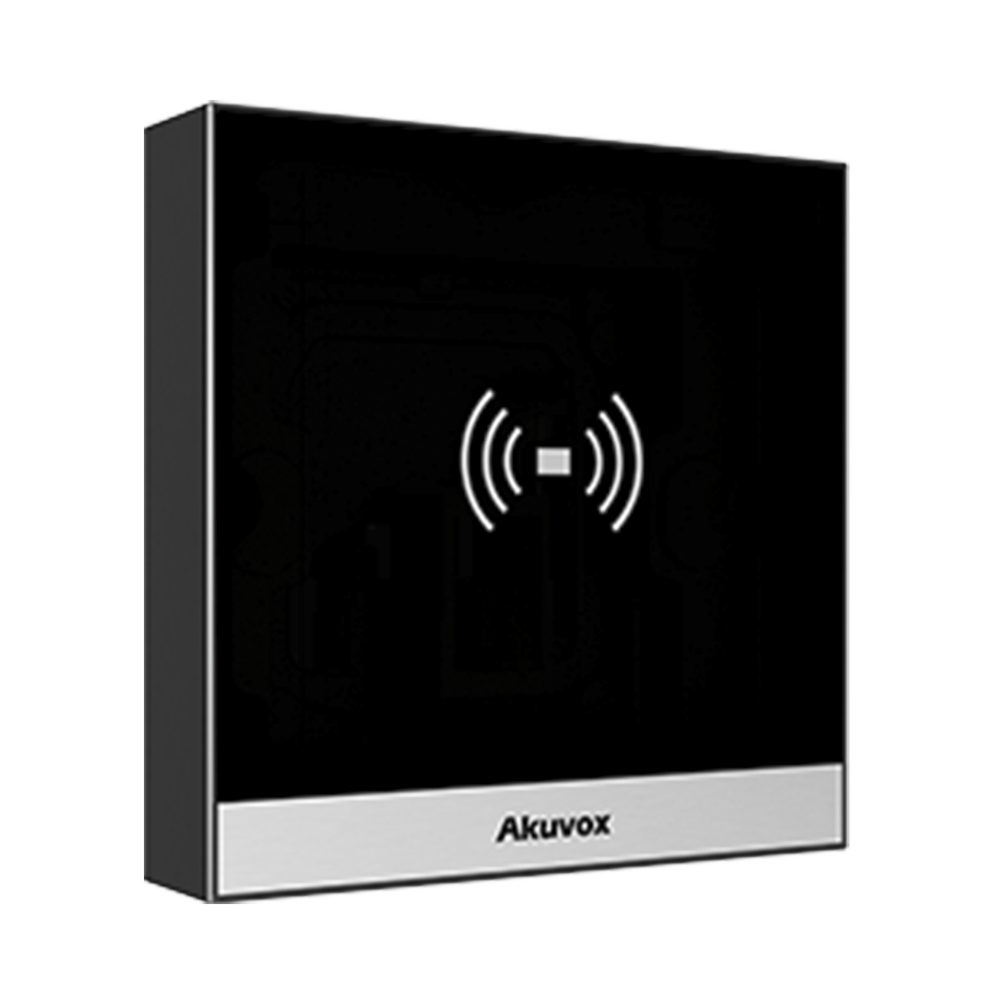

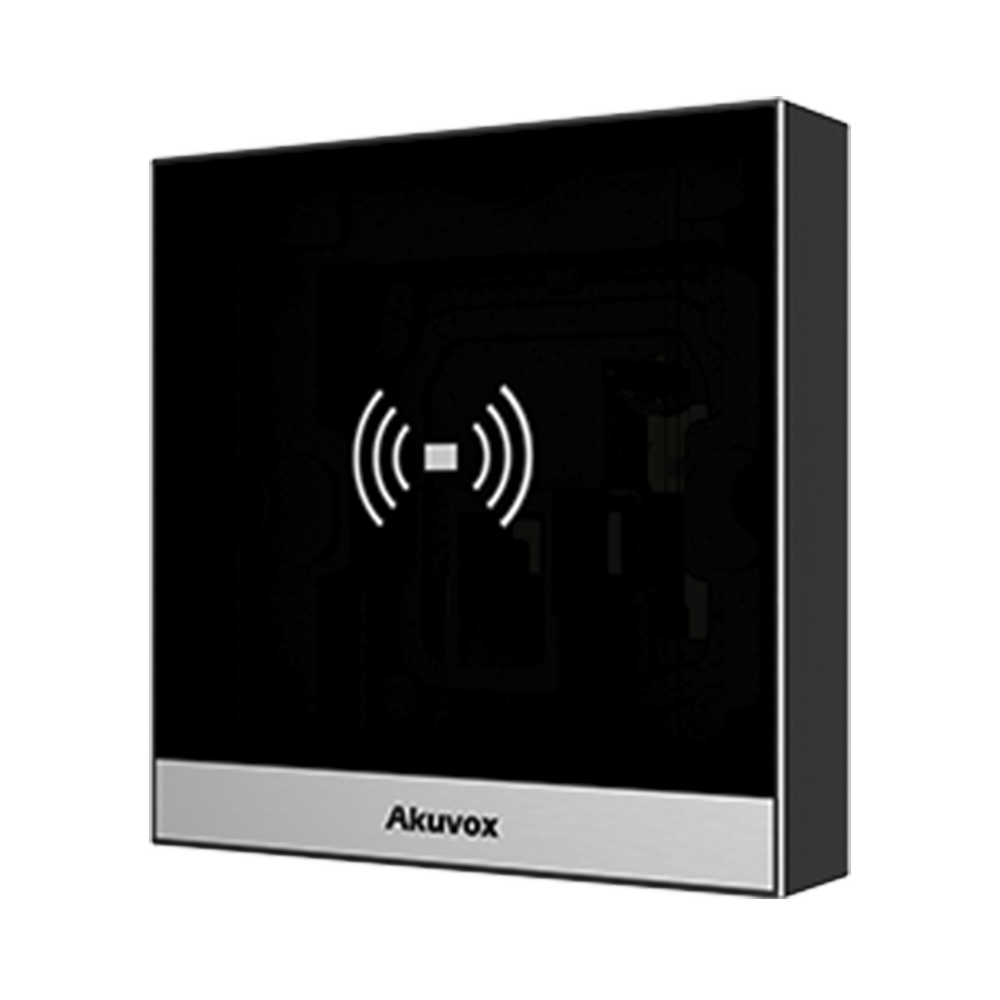

Smart, Compact and Elegant Access Control Terminal

The A03 is an IP-based access control terminal that combines a door controller and card reader in a single device. It supports RFID cards and mobile access via NFC, unlocking via Bluetooth, and offers users flexible credential options.

  • Elegant appearance design.
  • 20,000 card capacity and 100,000 event log.
  • Multi-frequency RFID card reader.
  • NFC support.
  • Configuration via web browser.
  • Access management authority through ACMS (Access Control Management System).

Physique and Power
  • Front panel: Toughened Glass
  • Frame: Aluminum alloy
  • RFID card reader: 13.56 MHz and 125KHz
  • Relay output: 1
  • Tickets: 2
  • Wiegand: Support
  • Speaker: 8 / / 0.5 W
  • Tamper-proof alarm: Support
  • Ethernet port: RJ45, 10/100Mbps adaptive
  • 12V DC connector (if not using PoE)
  • Output power: 12V 600mA
  • IP level: IP65
  • Installation: flush or wall mounted
  • Dimension: 86 x 86 x 33 (mm)
  • Working humidity: 10~90%, non-condensing
  • Working Temperature: -20°C ~ +55°C
  • Storage temperature: -30°C ~ +70°C
Ability
  • User capacity: 20,000
  • Card capacity: 20,000
  • Event log: 100,000

Implementation and Maintenance

  • Self-Provisioning
  • Web management portal
  • Web-based packet dumping
  • Backup/Restore Settings
  • Firmware update
  • System logs
Network connection
  • Protocol Support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Door Entry Feature

  • Export/Import Access Programming
  • Access level management
  • Support for switching reader modes
  • Query and export door access records
  • Flexible shift scheduling and attendance management

    Out of stock

    MODELO: A03
