Vehicle presence sensor / Ideal for automating motors or barriers

Reliable and flexible vehicle detection

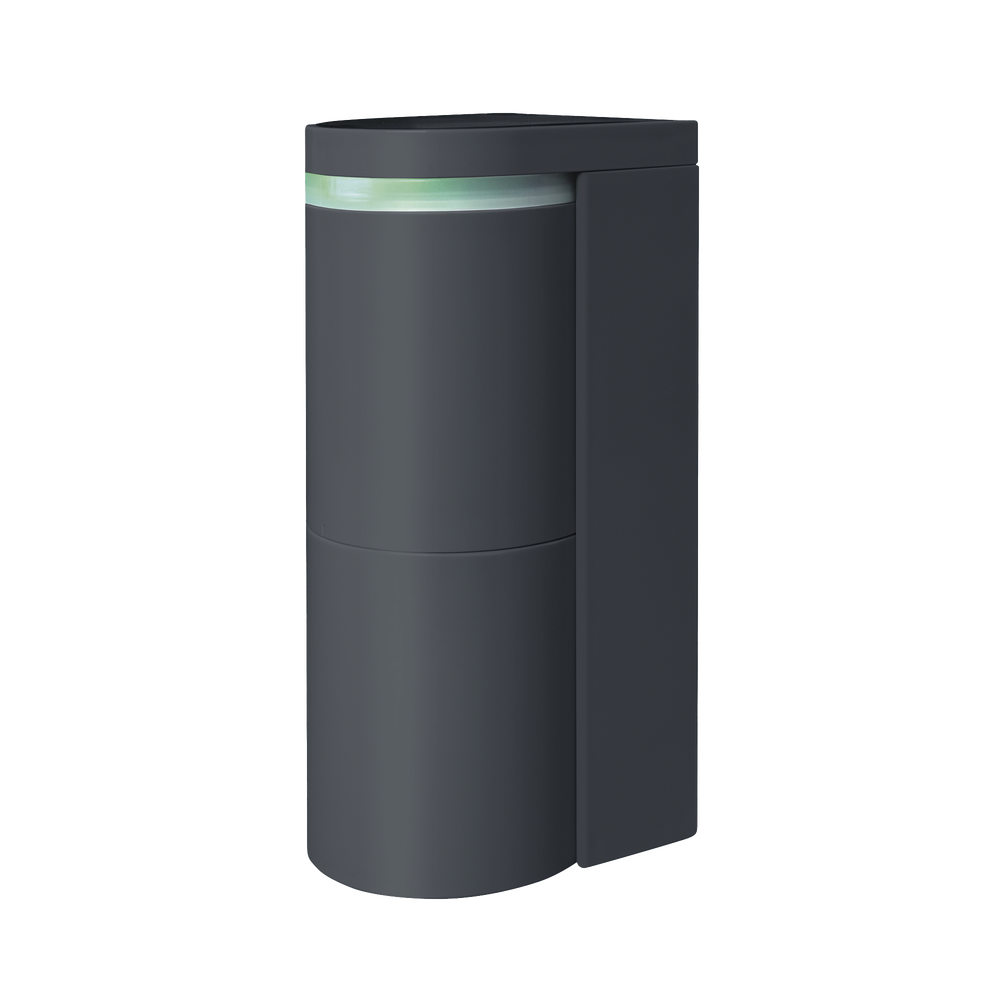

The OVS-02GT sensor for presence detection and activation of automatic gates, barriers, and industrial doors offers excellent short- and long-range detection up to 8 meters with wide-angle adjustment from 90° to 95°. It detects stationary or moving vehicles up to 35 km/h, made of all materials, and features an indicator light for visible detection. It is suitable for both simple gate activation applications and state-of-the-art parking systems. It is available in black (standard) and gray (optional).

Easy installation on the floor

The above-ground installation makes it a less intrusive solution for a variety of locations where a ground loop sensor isn't possible or isn't permitted. After mounting the sensor 50 cm above the ground—on a barrier, wall, or pole—configuration can be easily performed from a mobile device or tablet using a dedicated app called 'Virtual Loop.'

Excellent performance

The OVS-02GT sensor is unaffected by ground motion and can filter out pedestrian traffic to prevent unnecessary activations. Microwave technology, a built-in heater, and IP66 and NEMA4 ratings ensure stable detection in climates exposed to cold, humidity, and dust.

Vehicle protection

Thanks to presence detection, the sensor offers safety measures such as collision protection, which can prevent a barrier from hitting a car by closing before the vehicle passes through it.

Solutions

The OVS-02GT vehicle sensor is an ideal solution for many locations and can reliably replace the use of an inductive loop in the following situations:

• Where excavation is not possible:
  Resin pavements, cobblestone and brick pavements.
• Where civil engineering works are not possible:
  Public areas, post-tensioned concrete, steel grating roof drains.
• Locations prone to induction loop failures:
  Damaged surfaces, surfaces prone to flooding, damage caused by ice or snow.

Applications

Automatic swing and sliding doors, barriers, and high-speed folding gates can be easily activated with the OVS-02GT sensor. It provides surface-mounted detection technology for commercial facilities, parking garages, secure parking, and residential applications. Thanks to its dual output, it can also be used to simultaneously activate a ticket vending machine or a signal light.

Technical details

The OPTEX OVS-02GT vehicle detection sensor is the latest model in the OPTEX vehicle sensor range. It uses advanced microwave technology to provide accurate and reliable detection of cars, trucks, vans, and other motorized vehicles. It complements the existing sensor range by providing improved performance in detection range and accuracy, as well as easy surface installation and app configuration.

The sensor is an ideal alternative to an inductive loop, as it can be installed in situations where construction work is not possible. This sensor is suitable for indoor and outdoor applications, and its detection is stable even in adverse weather conditions, such as rain and frost, but of course also in hot weather. It is also equipped to ignore pedestrian traffic. Thanks to its dual output, it can activate multiple devices at once, such as barriers, gates, and automatic doors, as well as a signal light or ticket machine. Benefit from the OVS-02GT in your parking lot, garage, parking lot, fenced driveway, secure entrance with a high-speed folding door, or perimeter entrance. For more information on the possibilities, please contact us.
