• Doble Relevador / Interruptor WIFI Industrial y residencial Inteligente / Medidor de consumo / 10A / Soporta Google /Alexa / Nube P2P y local / Ideal para persianas y puertas de garage(Paquete de 2)
1 6

ALLTERCO ROBOTICS EOOD

Dual Relay / Smart Industrial and Residential WIFI Switch / Consumption Meter / 10A / Supports Google / Alexa / P2P Cloud and Local / Ideal for Blinds and Garage Doors (Pack of 2)

Dual Relay / Smart Industrial and Residential WIFI Switch / Consumption Meter / 10A / Supports Google / Alexa / P2P Cloud and Local / Ideal for Blinds and Garage Doors (Pack of 2)

$345.046 COP
$377.394 COP $345.046 COP
Sale Sold out
Shipping calculated at checkout.

Dual Relay / Smart Industrial and Residential WIFI Switch / Consumption Meter / 10A / Supports Google / Alexa / P2P Cloud and Local / Ideal for Blinds and Garage Doors (Pack of 2)

Main features:
  • Sold in pairs (2 units).
  • No Hub Required
  • 110v Wet Contact
  • Number of channels: 2
  • 2.4 GHz Wi-Fi connectivity
  • Watt consumption meter (AC power only)
  • High temperature protection
  • Overload protection
Physical and Electrical Characteristics:
  • AC power: 110-230V 50/60 Hz
  • DC power supply: 24-60V
  • Operating Temperature: 0°C to + 40°C
  • Device consumption: < 1W
  • Maximum load: 10 A per channel
  • Dimensions: 39mm x 36mm x 17mm
Installation examples:
  • Lighting (control 2 circuits with a single device)
  • Motorized blinds (check motor specifications)
  • Motor with starting capacitor ( diagram here )

SHELLY 2.5

The small team that brings together the best experience and engineering.


Extremely small: only 39 x 36 x 17 mm.
Shelly 2.5 fits everywhere, under the existing wall console, even if there are many cables.
30% smaller than Shelly 2.
5% smaller than Shelly 1.



WIRING DIAGRAMS




PROTECTION LIKE NEVER BEFORE

No more wiring hassles. You can reverse the poles of the AC or external switch whenever you need. Warning: Both relay inputs are interconnected and must be on the same pole.


Internal temperature sensor for overheat protection. If the PCB temperature reaches dangerous levels for any reason, the device will shut down.

FOR DEVELOPERS


Shelly 2.5 comes with a programming/debug header that can be used to flash alternative firmware onto the device. It has an ESP8266 inside, with a 2MB flash chip. A USB to UART adapter is required, as well as a reliable 3.3V power supply with at least 350mA of drive capability. The following diagram shows the device's pinout:

SHELLY 2.5 DOUBLE RELAY SWITCH AND ROLLER SHUTTER

Control any 110-230V roller blinds, motorized curtains or awnings

POWER SUPPLY

110-230 Vac or 24-60 Vdc Shelly 2.5 is compatible with all major international voltage standards.

WIRELESS 802.11 b/g/n (2.4 GHz)

Shelly 2.5 can connect directly to any WiFi network, no hub required, or it can function as an access point.

MAXIMUM LOAD

With the maximum load of 16A, you can control a wide range of household appliances and office equipment.

POWER METER

Shelly 2.5 has integrated an accurate power meter, providing you with detailed power consumption.

OVERHEATING PROTECTION

Internal temperature sensor for overheat protection

DUAL RELAY SWITCH AND ROLLER SHUTTER FUNCTIONALITY

You can configure Shelly without the need for any additional controllers or hubs, thanks to the built-in web interface.

BUILT-IN WEB INTERFACE

You can configure Shelly without the need for any additional controllers or hubs, thanks to the built-in web interface.

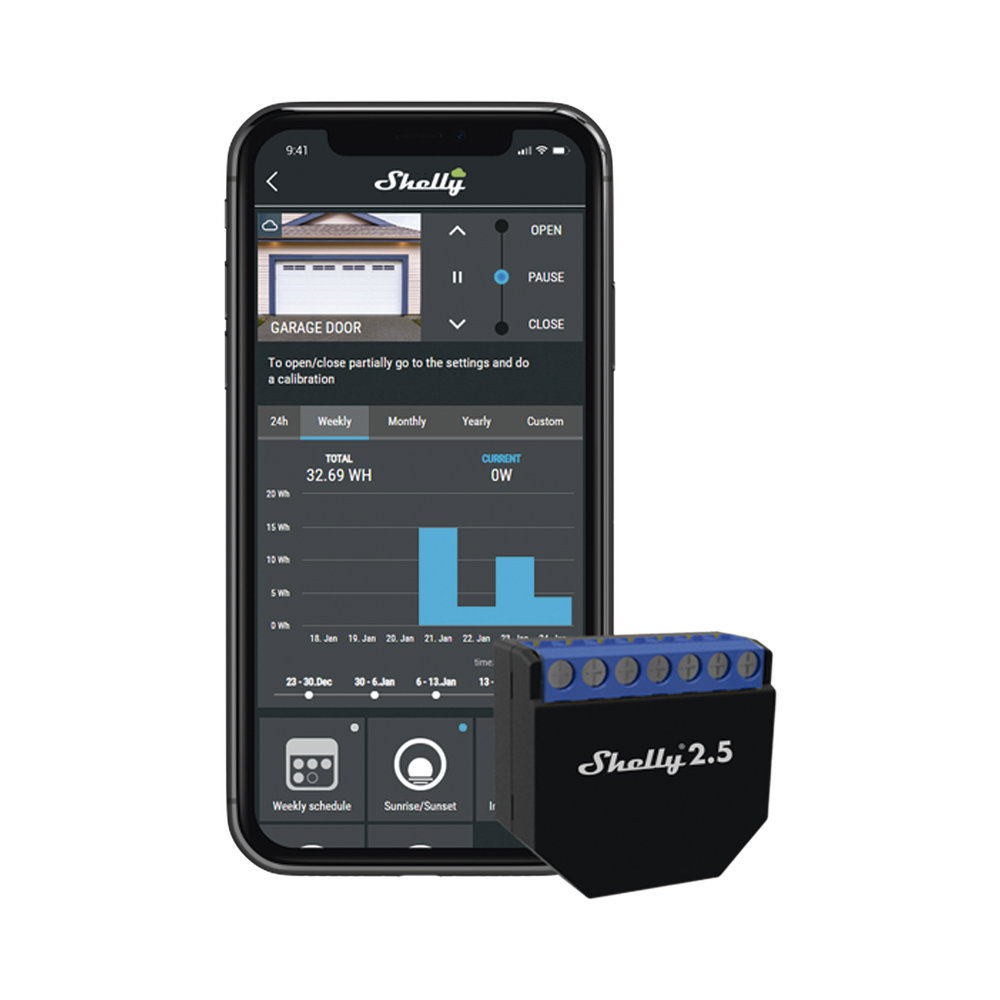

MOBILE APP CONTROL

Turn devices on and off directly from your smartphone or tablet. You can control lighting, heating, and any other connected appliances in your home.

SUNRISE / SEDSET SHEDULES

Shelly 2.5 can automatically turn on/off based on the sunrise and sunset times at home.

ONE APP - INFINITE POSSIBILITIES

Shelly Cloud: The free app that brings all your Shelly devices together in one place. The Shelly Cloud app lets you control your lamps and other small appliances whenever you want.

Compatibility

Shelly 2.5 is compatible with Alexa, Google Home, Android, and iOS. With these voice assistants, you can give Shelly commands with your voice while sitting on the couch. You can also manage Shelly 2.5 via your mobile phone while you're in the store.

Amazon Alexa

Google Home

Android

iOS

DISCHARGE

Download our User Guide and follow the instructions.

INSTALL

Mount your Shelly 2.5 relay on the wall behind the outlet or a standard light switch.

APPLICATION

Download and install the free mobile app from Google Play or the Apple® App Store.

    231 in stock

    MODELO: SHELLY2.5X2
