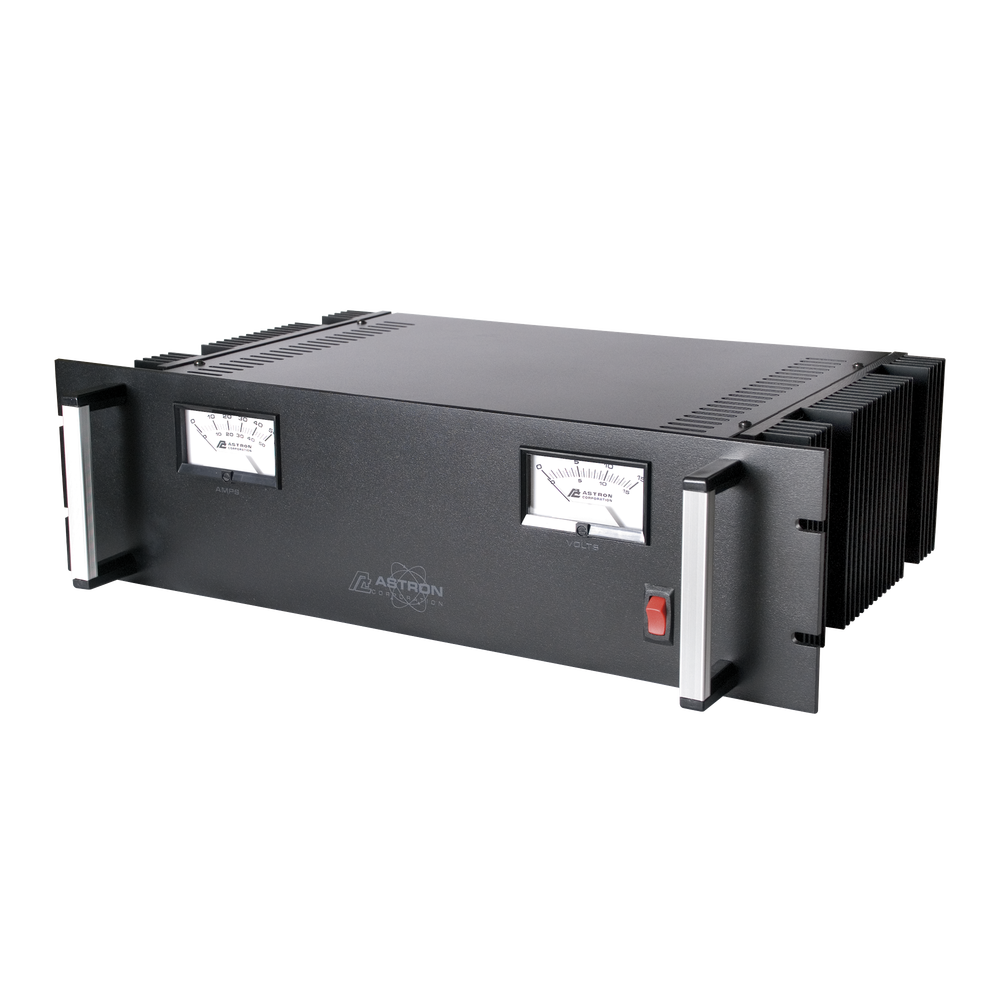

13.8Vdc, 50A, linear regulated power supply with battery charger circuit, meters, for rack installation

ASTRON Sources

Since 1976, Astron Corporation has been a leading manufacturer of power supplies. Made in the USA, our power supplies have served us reliably. Today, Astron is a worldwide distributor.

Characteristics

• Solid-state electronic regulation
• Current limiter (protects the source from excess current)
• Heavy-duty heat sink
• Maintains regulation at low voltage inputs
• Ideal for rack installation
• 1 Year Warranty

Specs

• Input voltage: 115 Vac / 60 Hz
• Output voltage: 13.8 Vdc
• Output current: 37 A continuous / 50 A max.
• Battery charger: Yes (4A for battery charging)
• Meters: Yes
• Weight: 22.7 kg
• Dimensions: 48.2 x 13.3 x 31.8 cm

Battery charger circuit, ideal for rack installation, with meters
