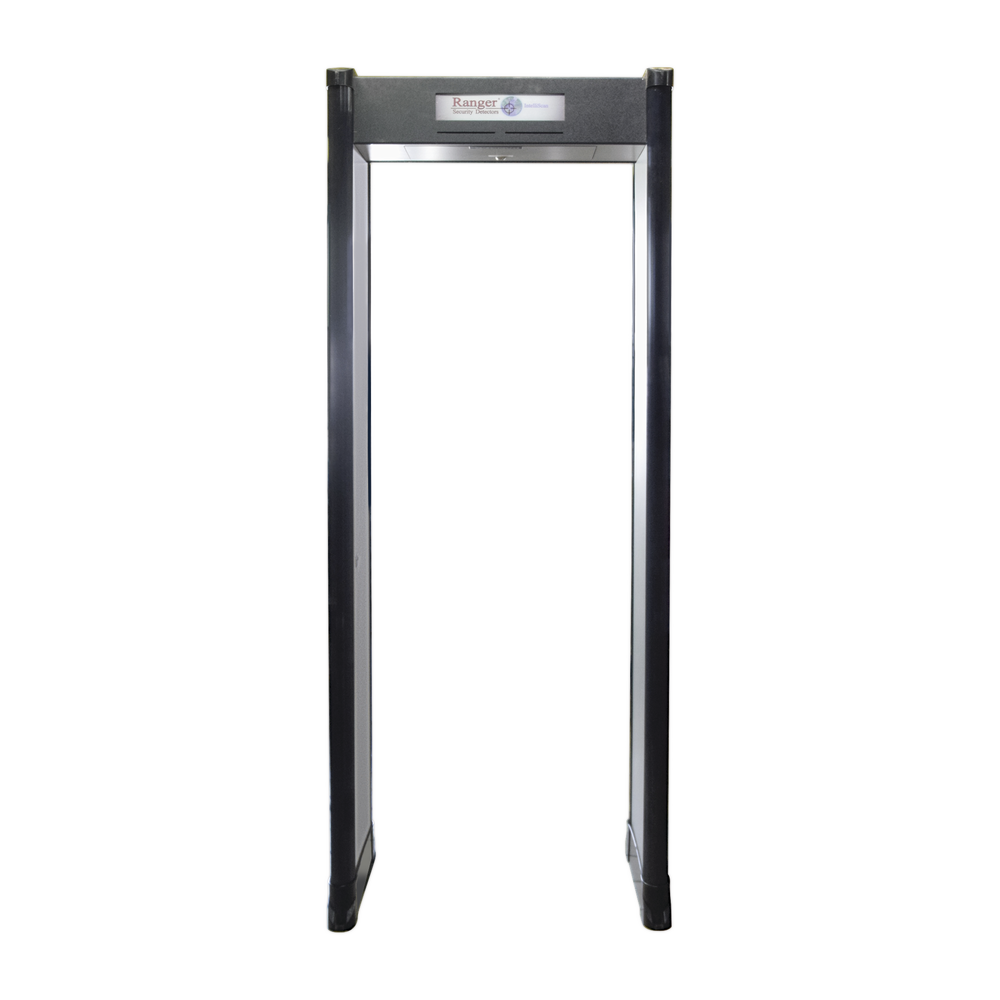

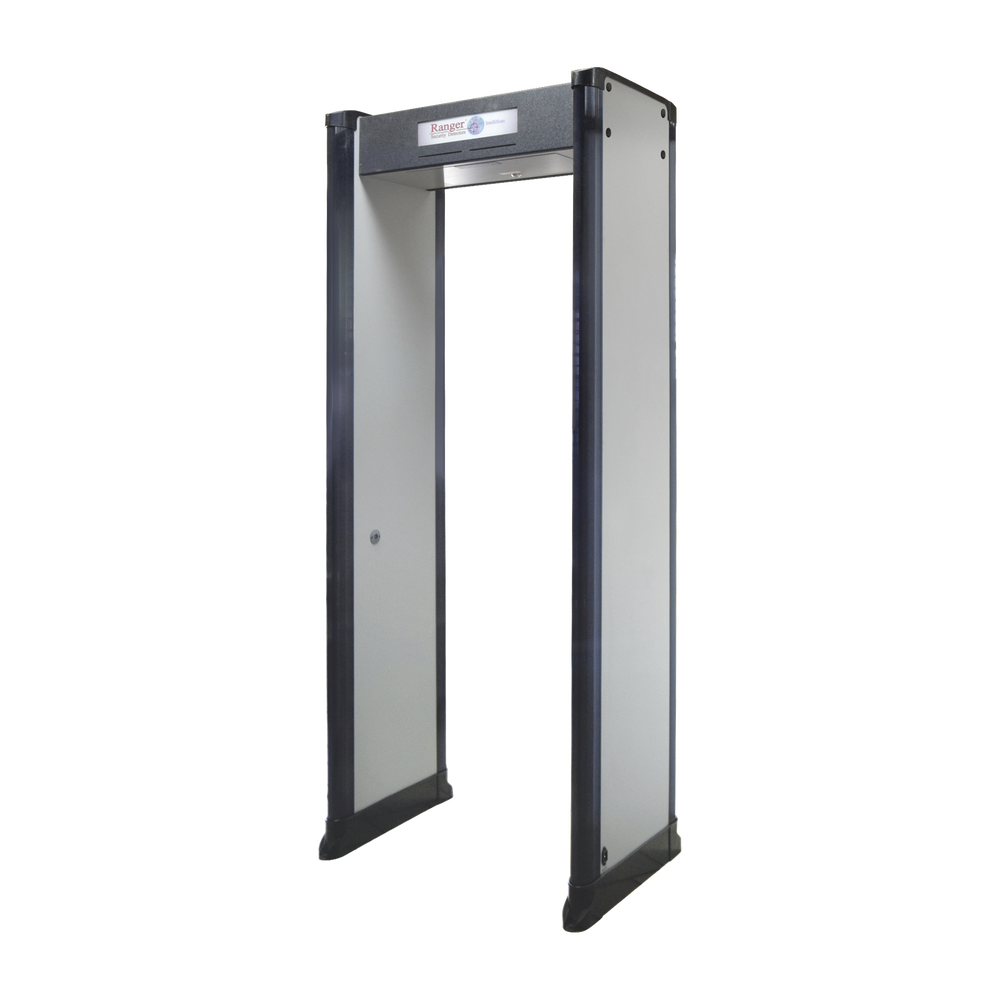

2-Zone Metal Detector Walkthrough with Floor Mounting Base

2-Zone Metal Detector Walkthrough with Floor Mounting Base

• Multi-zone technology.
• Continuous wave measurement technique.
• Self-diagnosis system.
• Complies with the United States Federal Aviation Administration (FAA) with perfect scores on exams
of evaluation and performance.
• Keyboard for programming.
• Alphanumeric display for programming.
• Independent zone adjustment.
• Master code for programming access.
• Detection of ferrous and non-ferrous metals. **
• 24 application detection programs (Version 9.9 and higher).
• 200 sensitivity levels (Version 9.10 or higher).
• Base to be fixed to the floor.
• Multiple frequencies for detector operation at the same site.
• Metal intensity level light bar.
• On/off key.
• Operating system status LED.
• More than 50 inspections per minute.
• Immunity to interference.
• Operating temperature from 0 to 55 ºC, humidity 95% non-condensing.
• Consumption: 12 W. Power supply: 110 Vac.
• Dimensions: 90 x 220 x 58 cm.
• Weight: 65.45 kg.

INTELLISCAN Series
• Display that shows the location of the metal or weapon.
• Capacity of 6, 18 and 33 separate zones.
• Side light bars indicating the location of the metal or weapon.

Applications
• Very useful in airports, businesses, shops, schools, hotels, hospitals, industries, exhibitions, casinos and civic events.
• Primarily weapons detection and protection of your metal assets.

** The volume, insulation, and weight of the metals will depend on the accuracy of detection. Consult the Engineering Department.

*2 Years Warranty.



For more information, call us!
Ask the engineering department about the Detention Levels they support.
