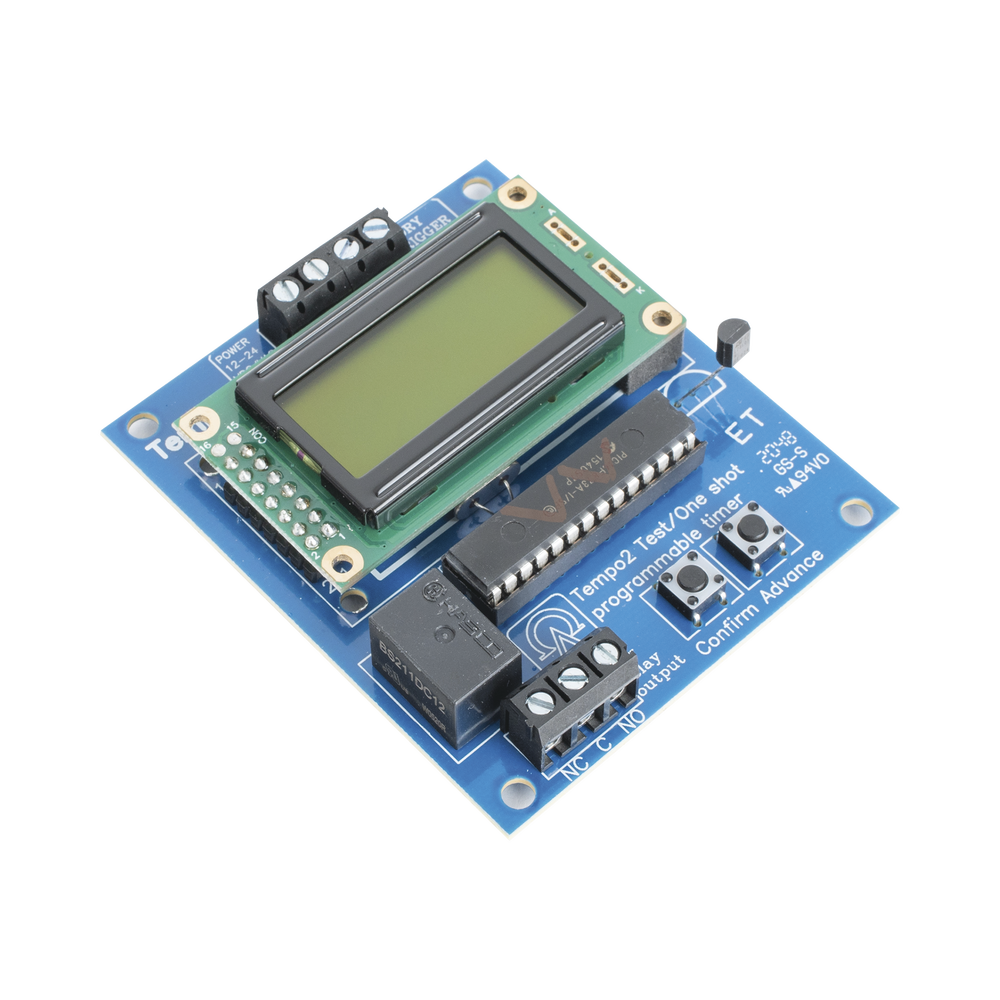

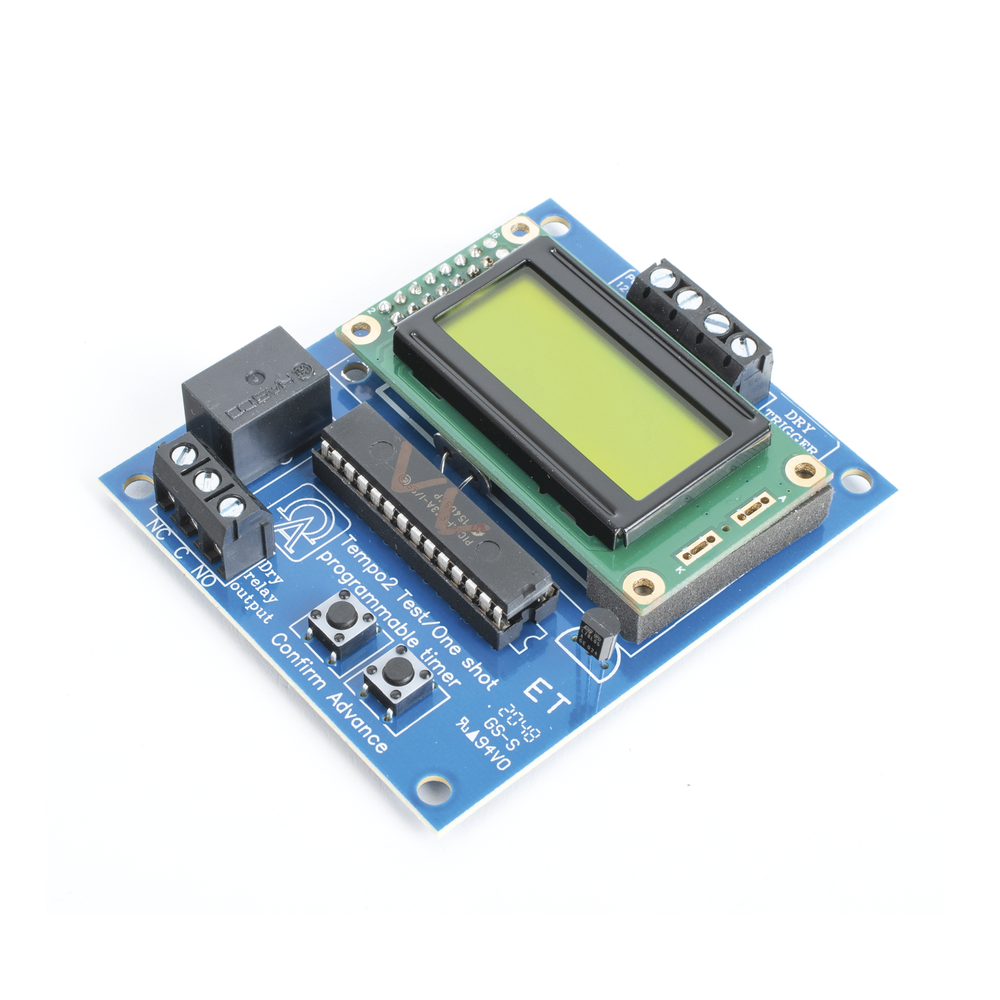

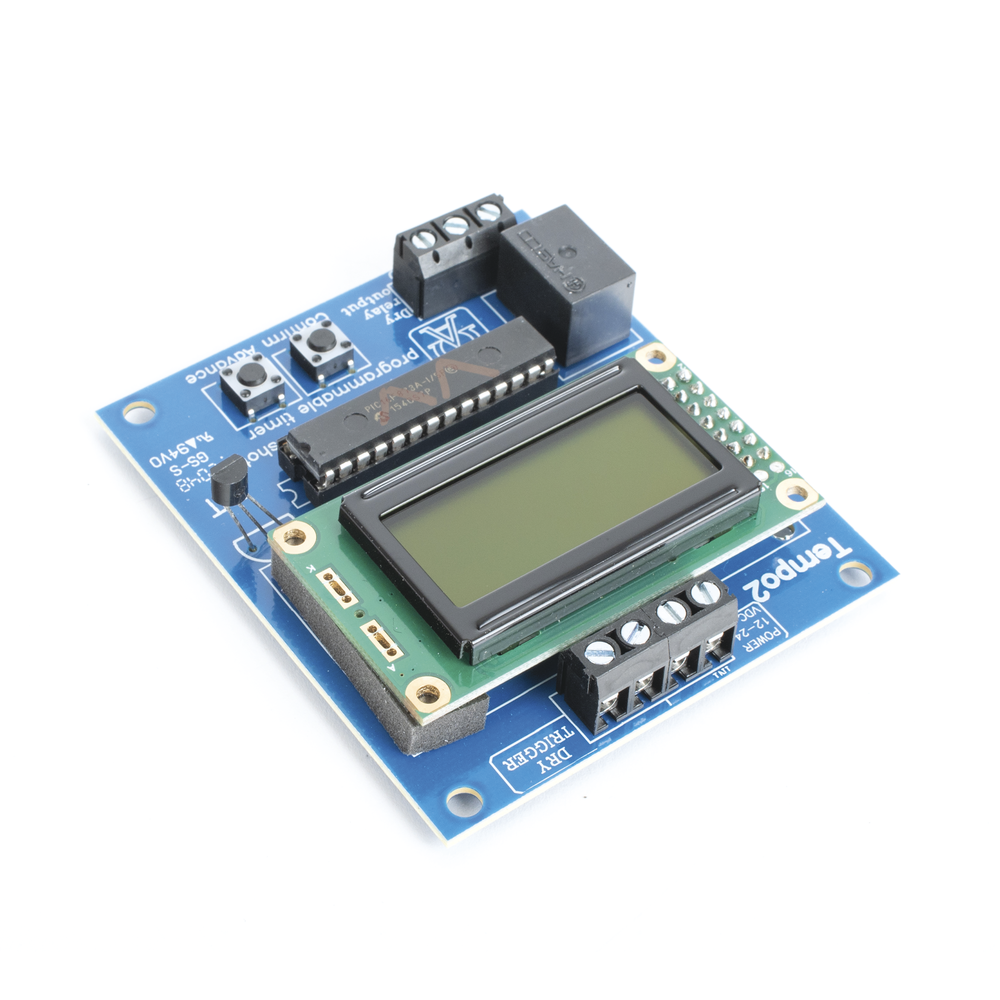

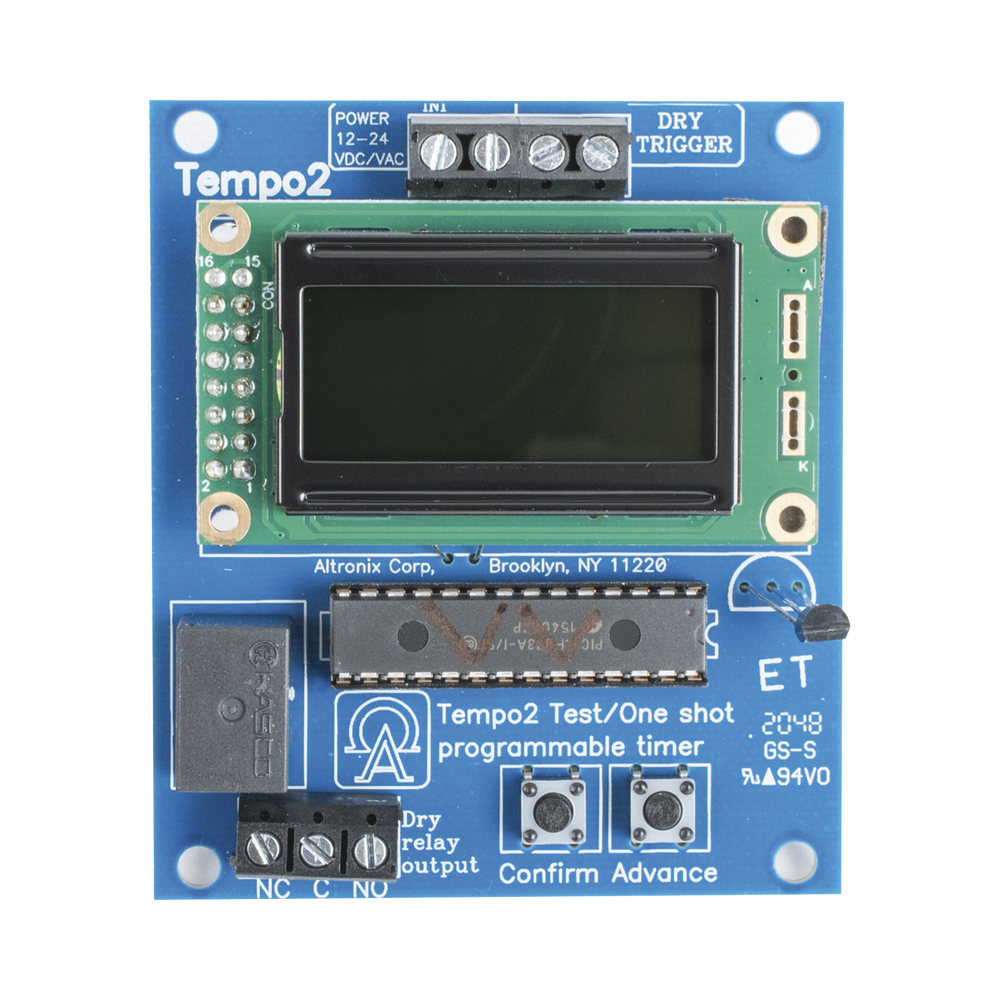

Universal two-stage timer (card)
TEMPO2
Timer, 2-stage universal, 12 - 24 VAC/VDC
Tempo2 is a universal two-stage timer for applications requiring timed operations. A delayed exit function will trigger a door opening from 1 to 60 seconds. Applications include daily/weekly test mode, one-shot, door-support alarm, timed door annunciator, cut-off timer, alarm eliminator, and more. The digital display facilitates programming and real-time information.
Main Features:
- 12 to 24 volt AC or DC operation
- 2 A type “C” dry contact output at 120 Vac/28 Vdc
- Consumption: 15 mA standby, 30 mA with relay energized.
- LCD display for easy programming and countdown function
- EEPROM memory protects against loss of programming due to power outages
Physical and Electrical Characteristics:
- Dimensions: 63.5 mm wide x 76.2 mm long x 19.05 mm high
- Operating temperature: -20ºC to 49ºC (-4ºF to 120ºF).
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Product Weight: 0.65 lbs. (0.29 kg).
- Shipping Weight: 1.25 Lbs. (0.566 kg).
Highlighted Features:
- Modes of Operation:
- a. Time window with delay:
- Relay activation at the end of the time cycle
- b. Delay Mode:
- Relay programming with latch cycle from 1 second to 24 hours.
Out of stock
MODELO: TEMPO-2
