• Duplexer Pasa-Banda-Rechazo de Banda, 148-174 MHz, 4 Cavidades (5"Dia.) 600 kHz, 1.5 dB, 350 Watt, N Hembras.
1 4

TELEWAVE, INC

Band-Pass-Band-Reject Duplexer, 148-174 MHz, 4 Cavities (5"Dia.) 600 kHz, 1.5 dB, 350 Watt, N Females.

Band-Pass-Band-Reject Duplexer, 148-174 MHz, 4 Cavities (5"Dia.) 600 kHz, 1.5 dB, 350 Watt, N Females.

$27.496.120 COP
$30.073.882 COP $27.496.120 COP
Sale Sold out
Shipping calculated at checkout.

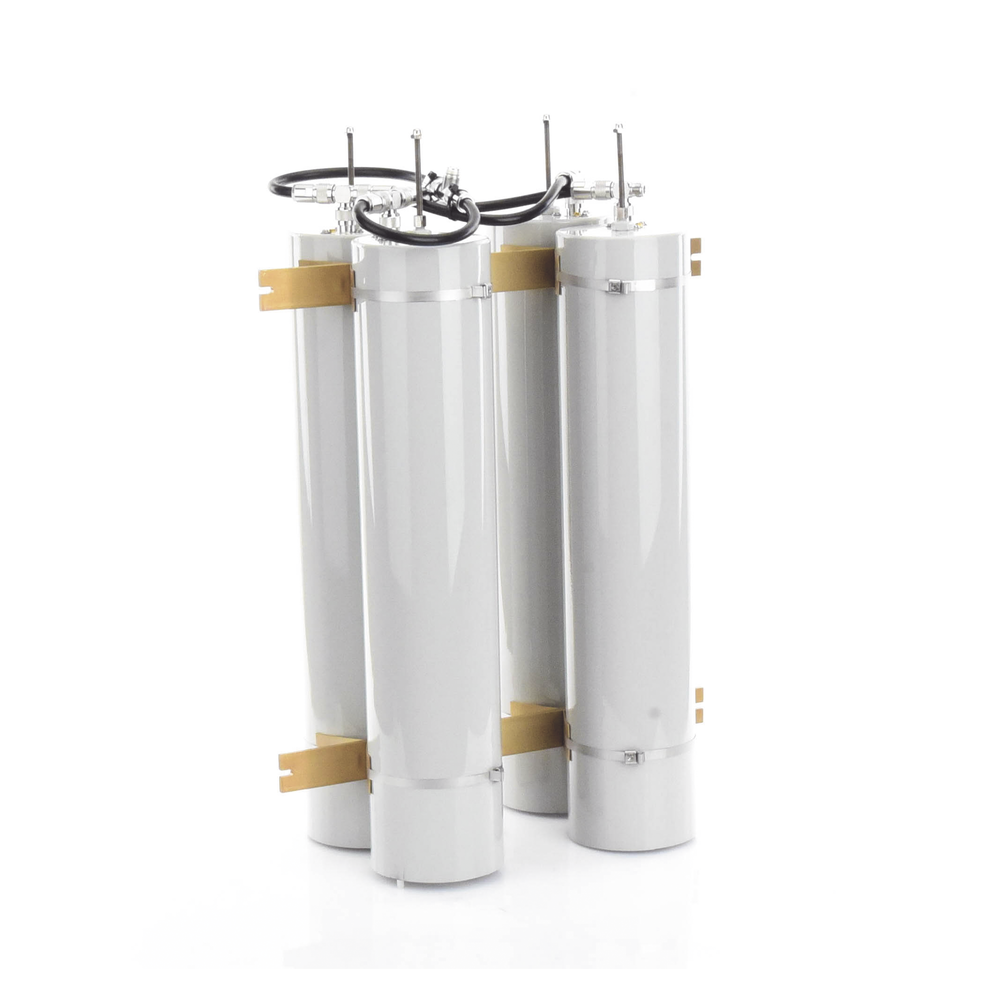

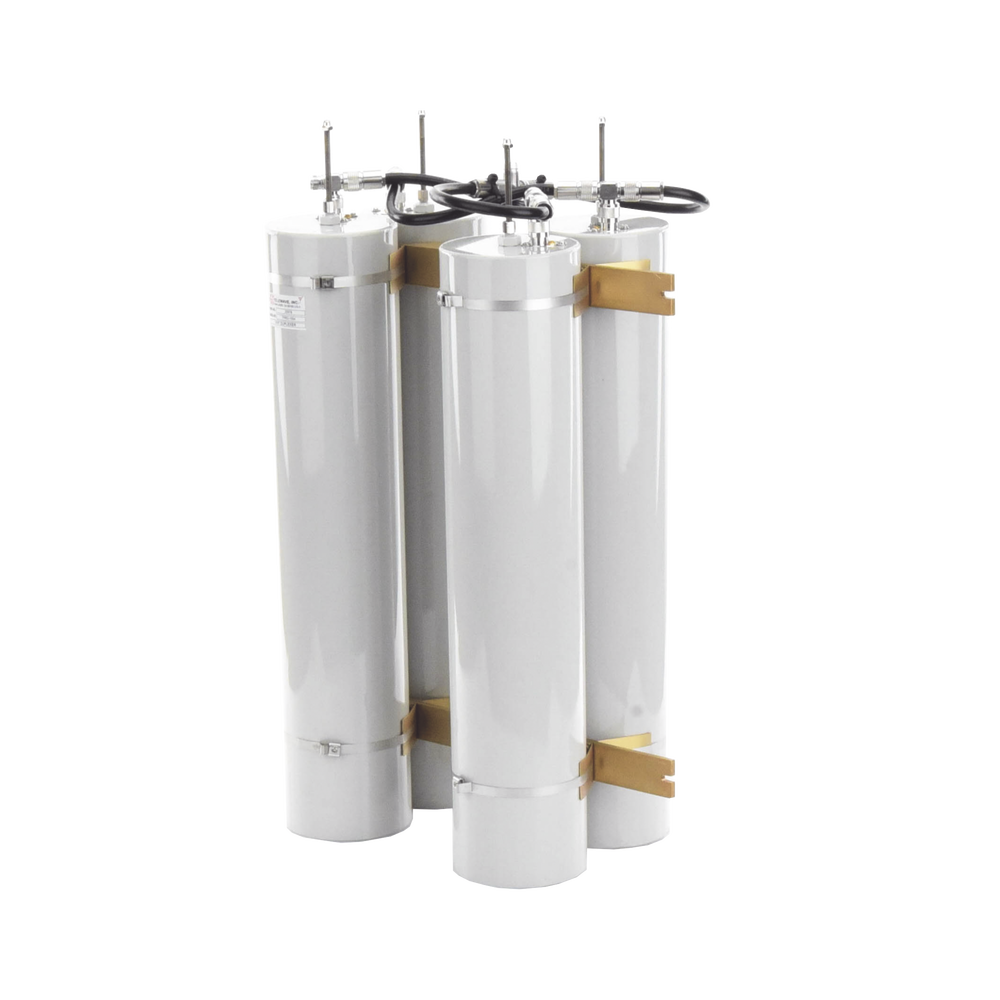

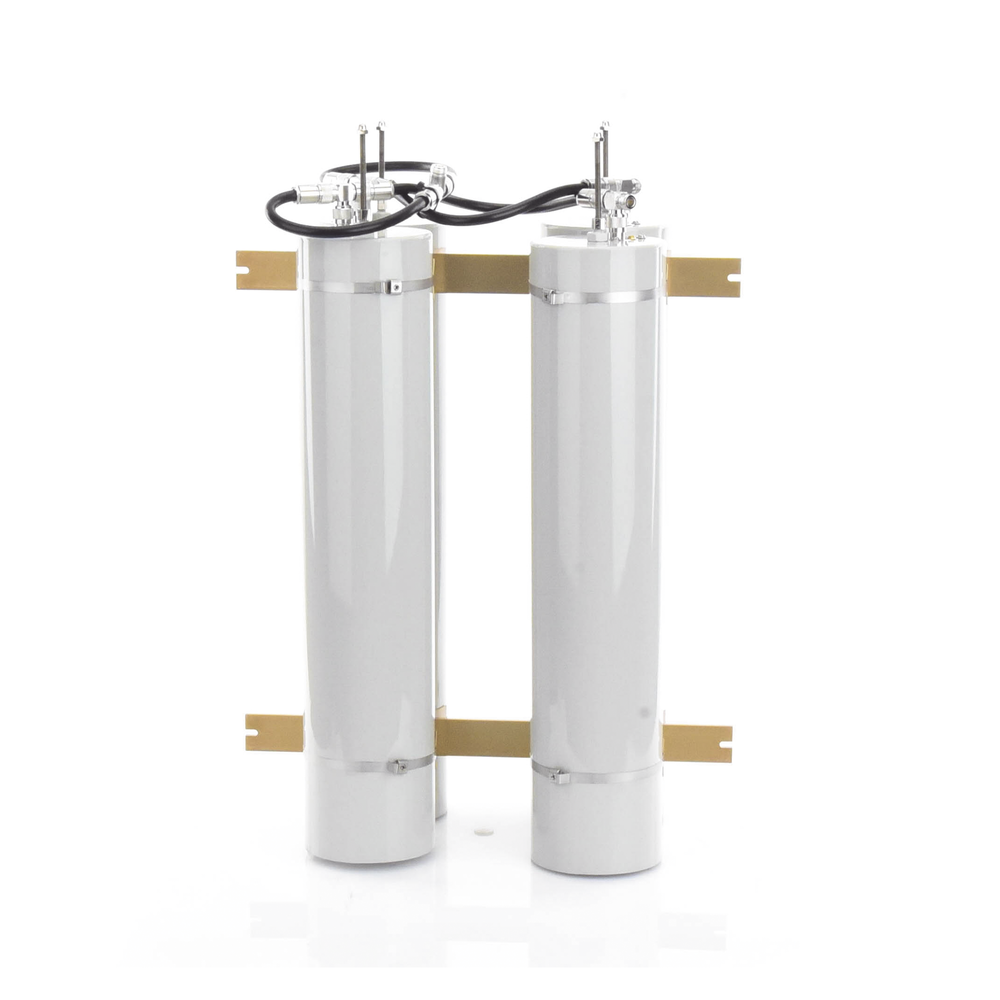

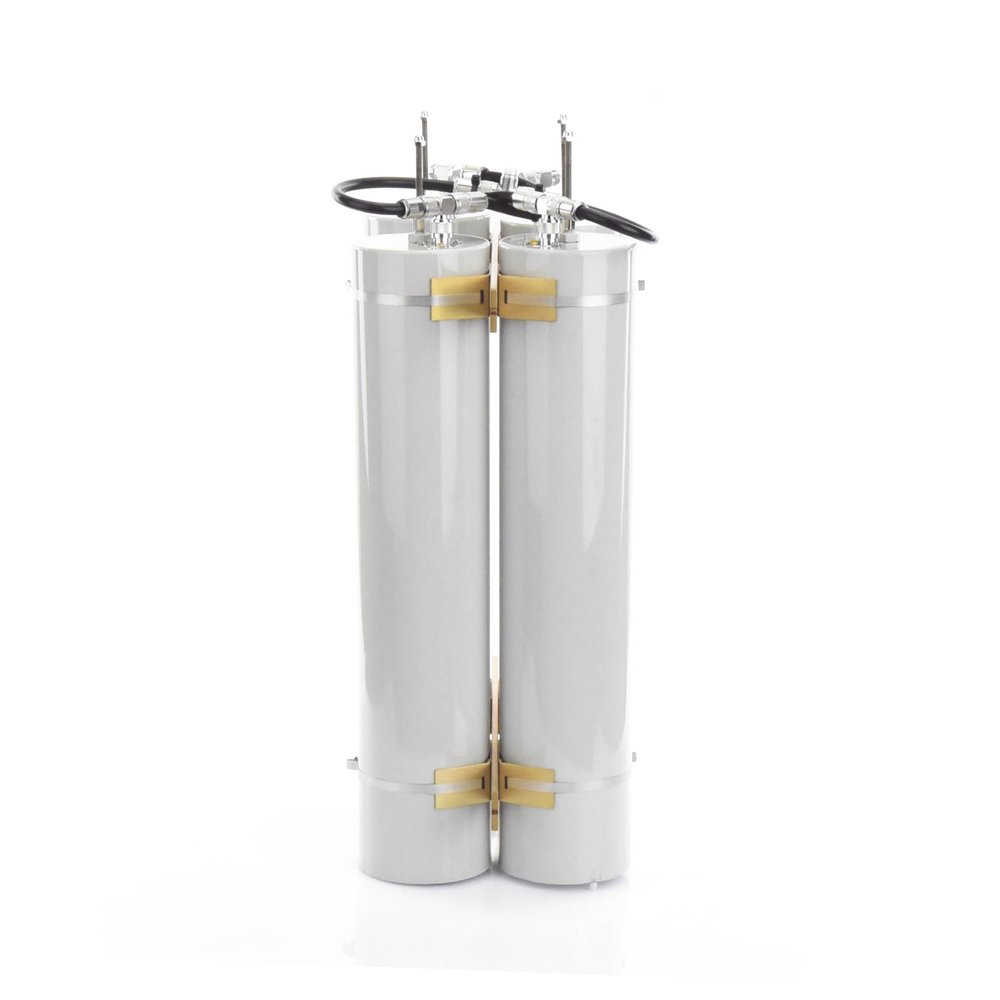

Band-Pass-Band-Reject Duplexer, 148-174 MHz, 4 Cavities (5"Dia.) 600 kHz, 1.5 dB, 350 Watt, N Females.


Band-Pass/Band-Reject Duplexer for VHF, 350 Watt.

  • Frequency Range: 148-174 MHz.
  • Cavities: 4 (5" Diameter).
  • TX-RX Separation (Min.): 600 kHz.
  • Insertion loss: 1.5 dB.
  • Isolation 77 dB (@ 600 kHz).
  • VSWR (max.): 1.5:1
  • Power 350 W.
  • Dimensions (Height x Width x Depth): 711 x 483 x 280 mm.
  • Weight: 8.6 Kg.

    Out of stock

    MODELO: TPRD-1554
