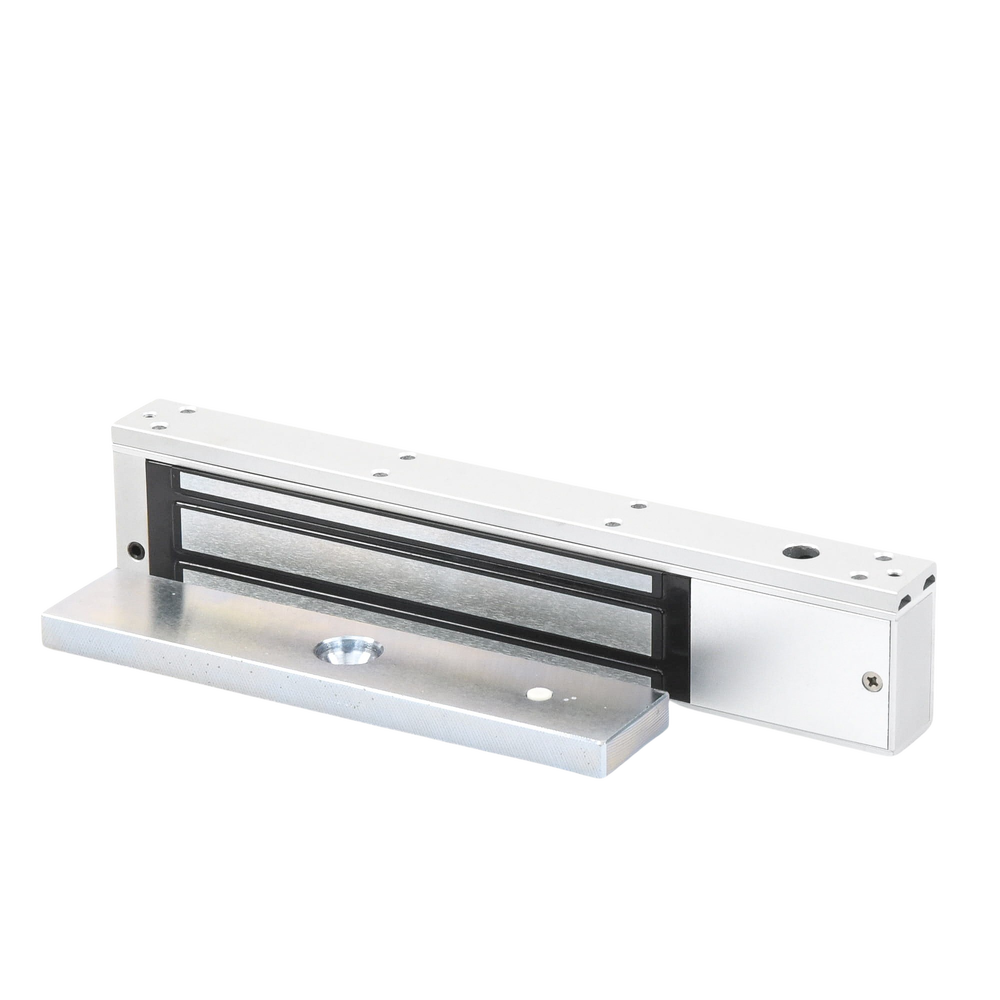

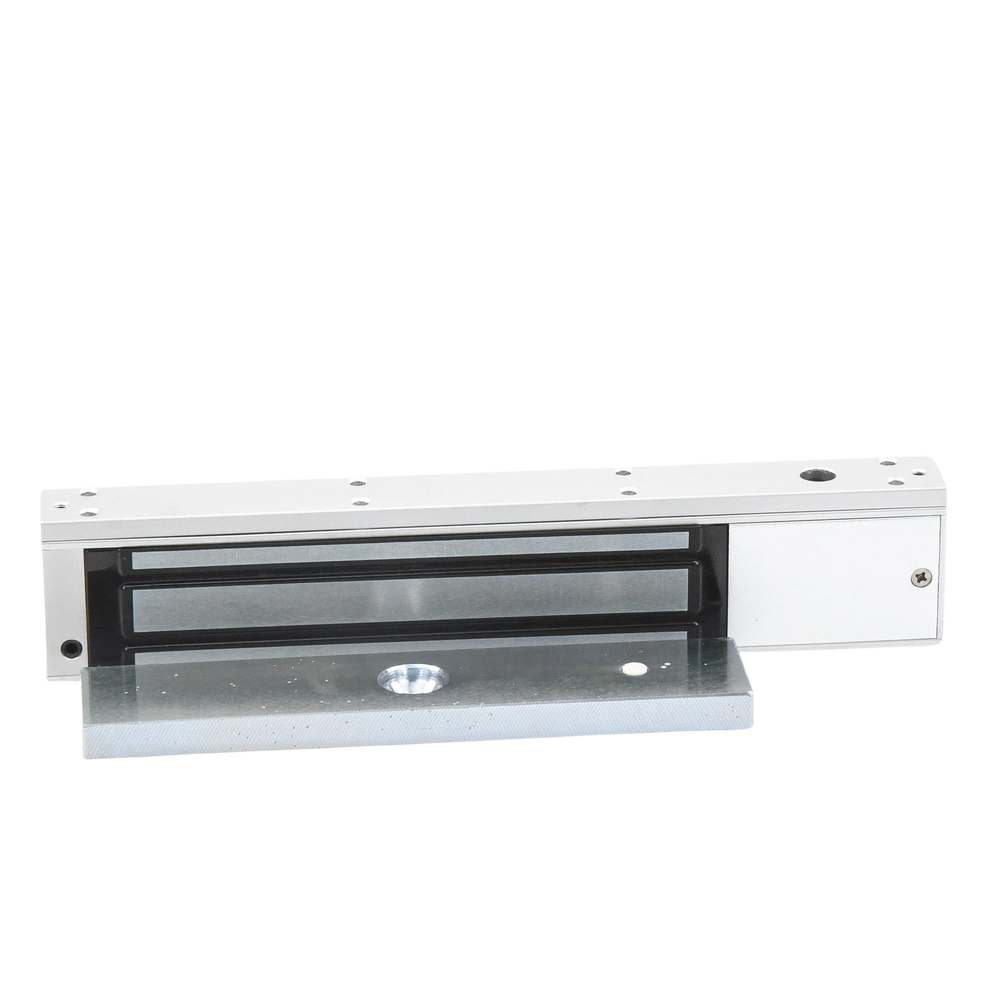

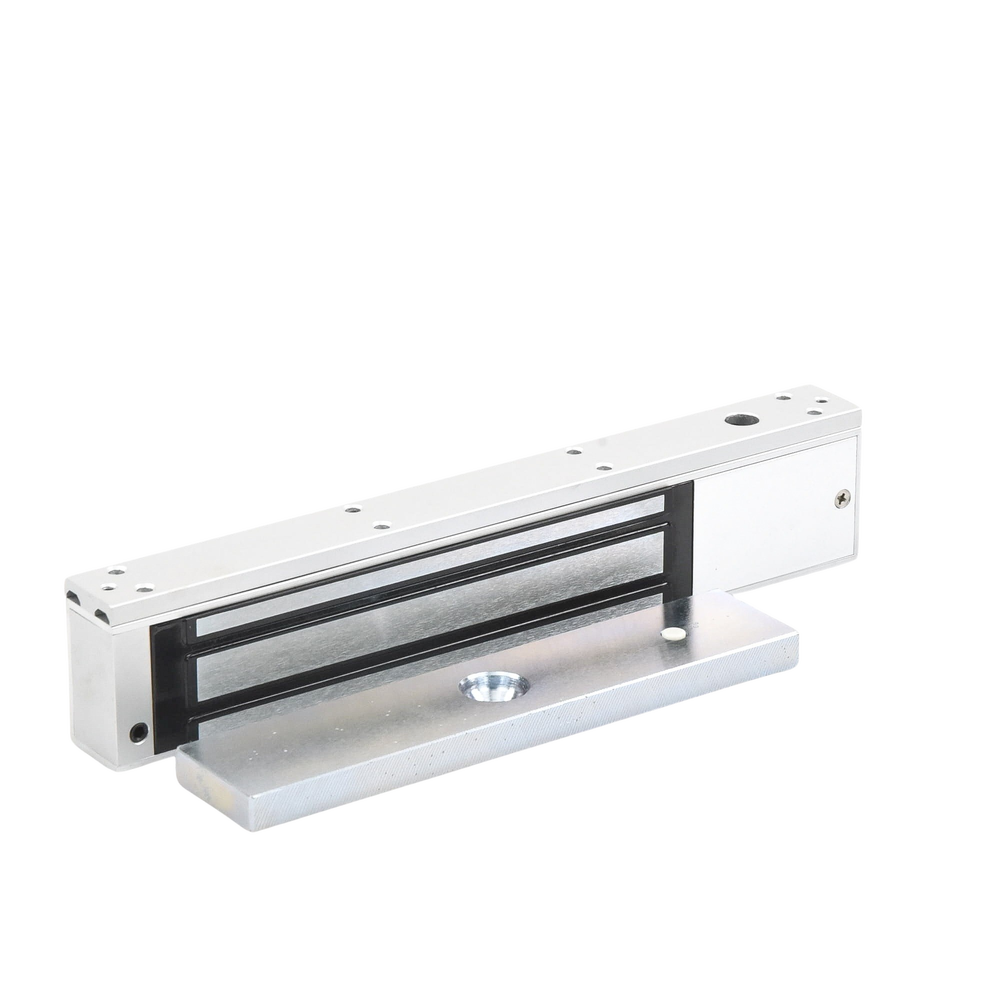

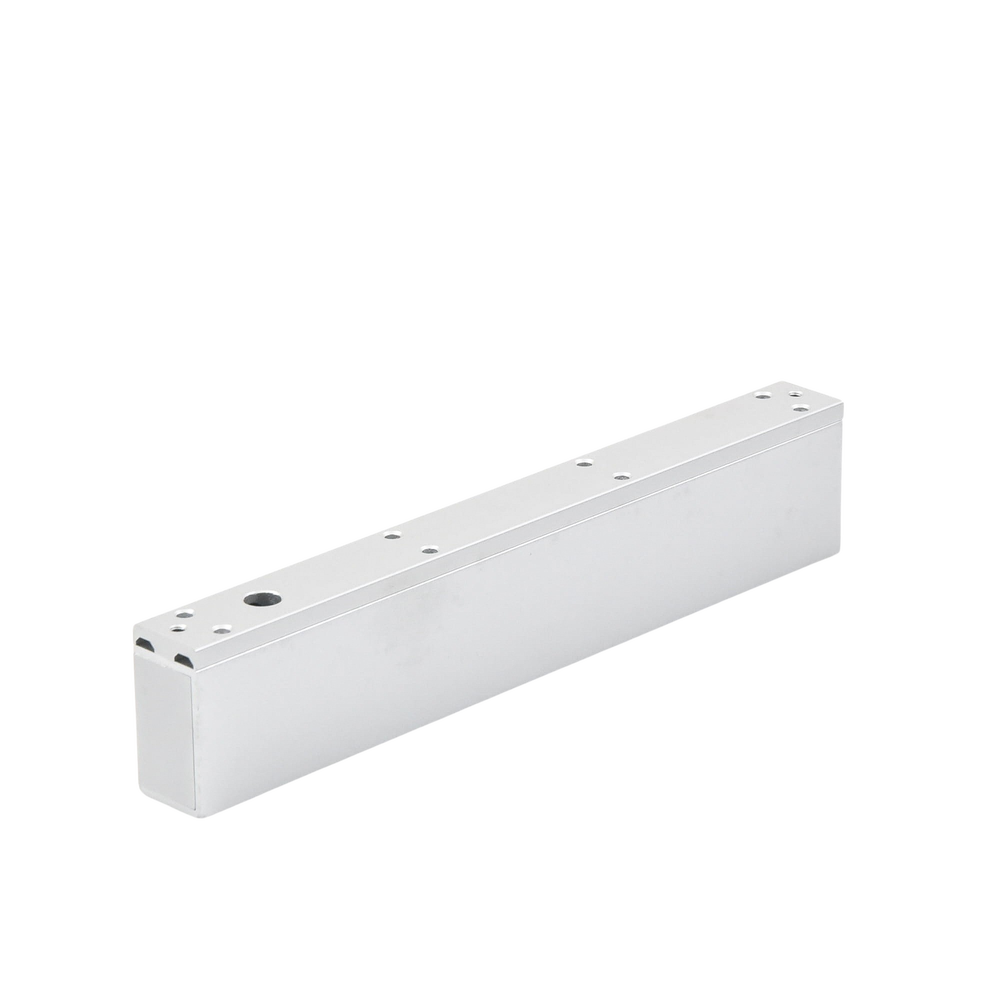

Magnetic Sheet 600 lbs.

Magnetic Sheet 600 lbs.

High performance in its reinforced aluminum finish and zinc plate.

• Clamping Force: 280 kg, (600 lbs).
• Voltage: 12/24 Vdc+10% (selectable by jumper).
• Current consumption: 12Vdc / 500 mA, 24 Vdc / 250 mA.
• Operating Temperature: 10 to 55 ºC (14-131ºF).
• Operating humidity: 0~90% (non-condensing).
• Magnet Finish: Anodized Aluminum.
• Plate finish: Zinc.
• Magnet Dimensions: 250 x 47 x 25 mm.
• Plate Dimensions: 130 x 38 x 11 mm.
