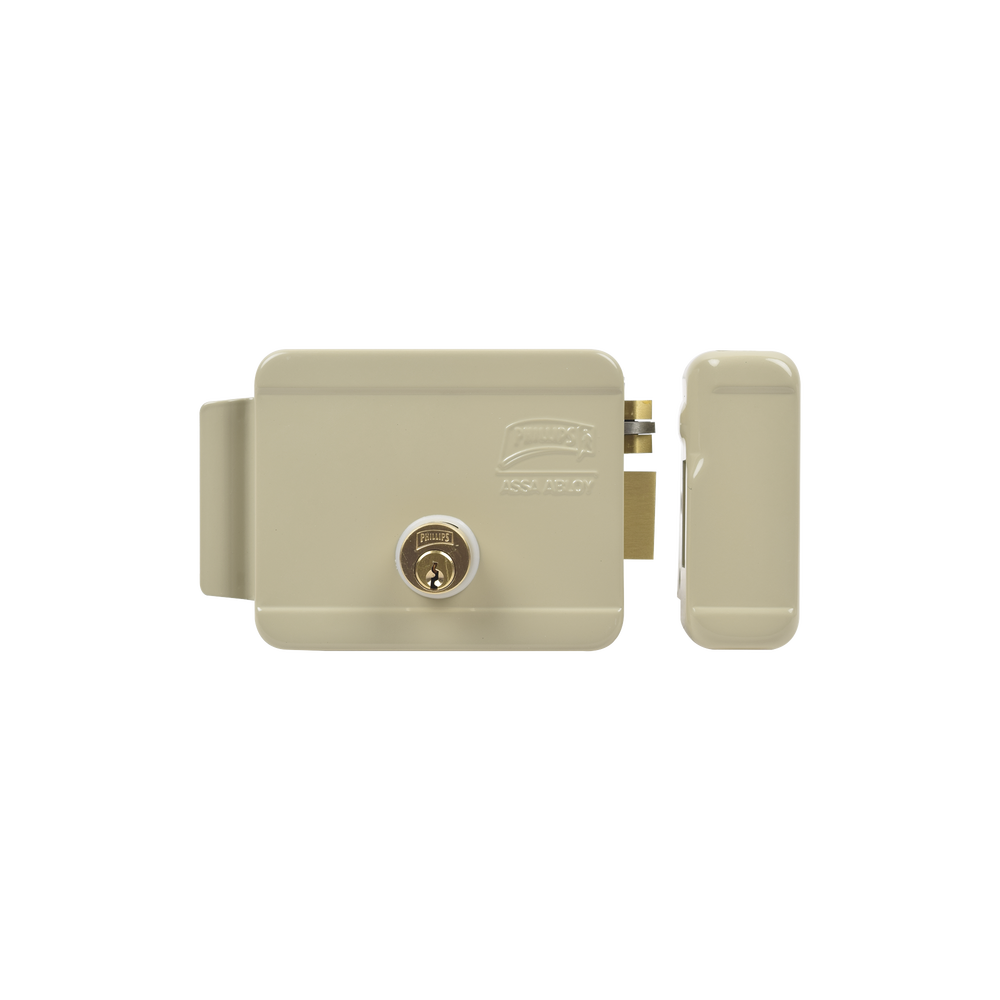

Electric Lock / Key Included / Right / Exterior

Electric Lock / Key Included / Right / Exterior

• For Right door (see diagram below).
• Roller latch.
• Beige color.

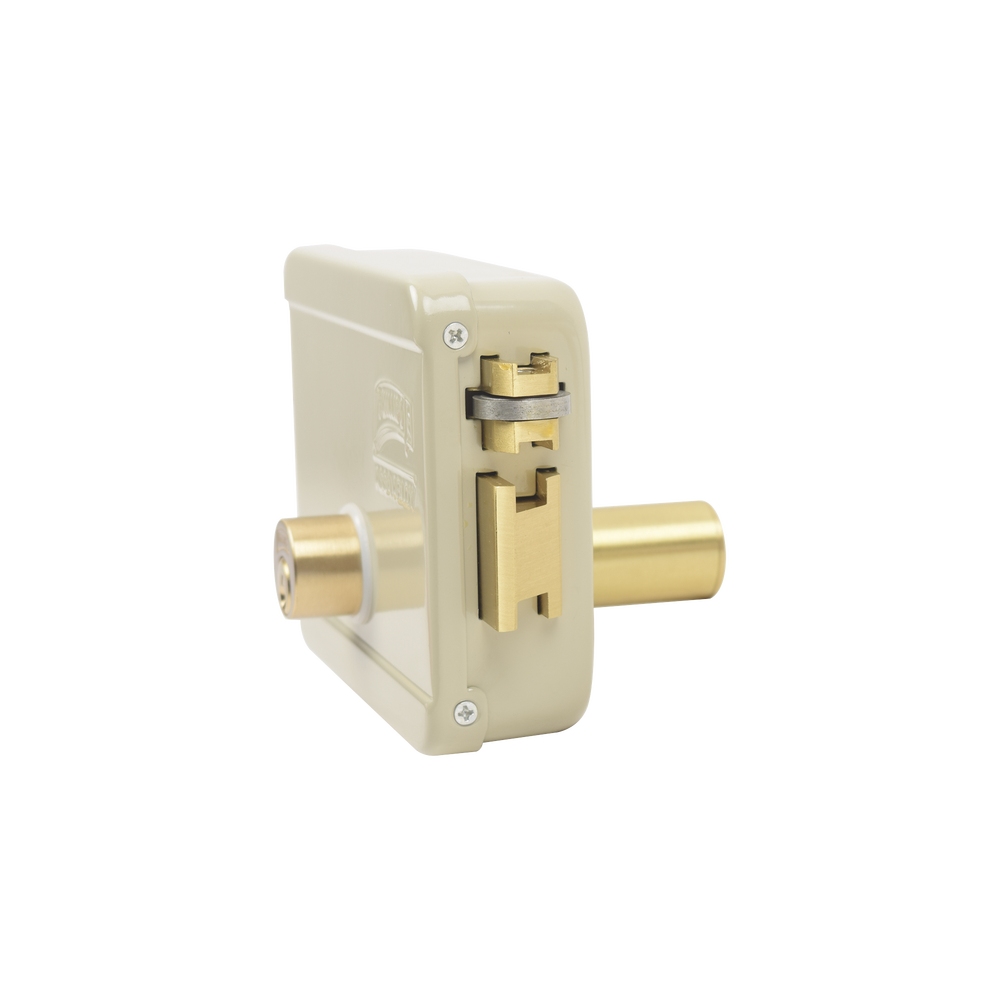

• The lock has a double bolt.
• Operating voltage: 12 Vdc/Vac .
• Current consumption: 2 A at VAC, 4 A at VDC.
• Body dimensions: 129 x 103 x 38 mm.

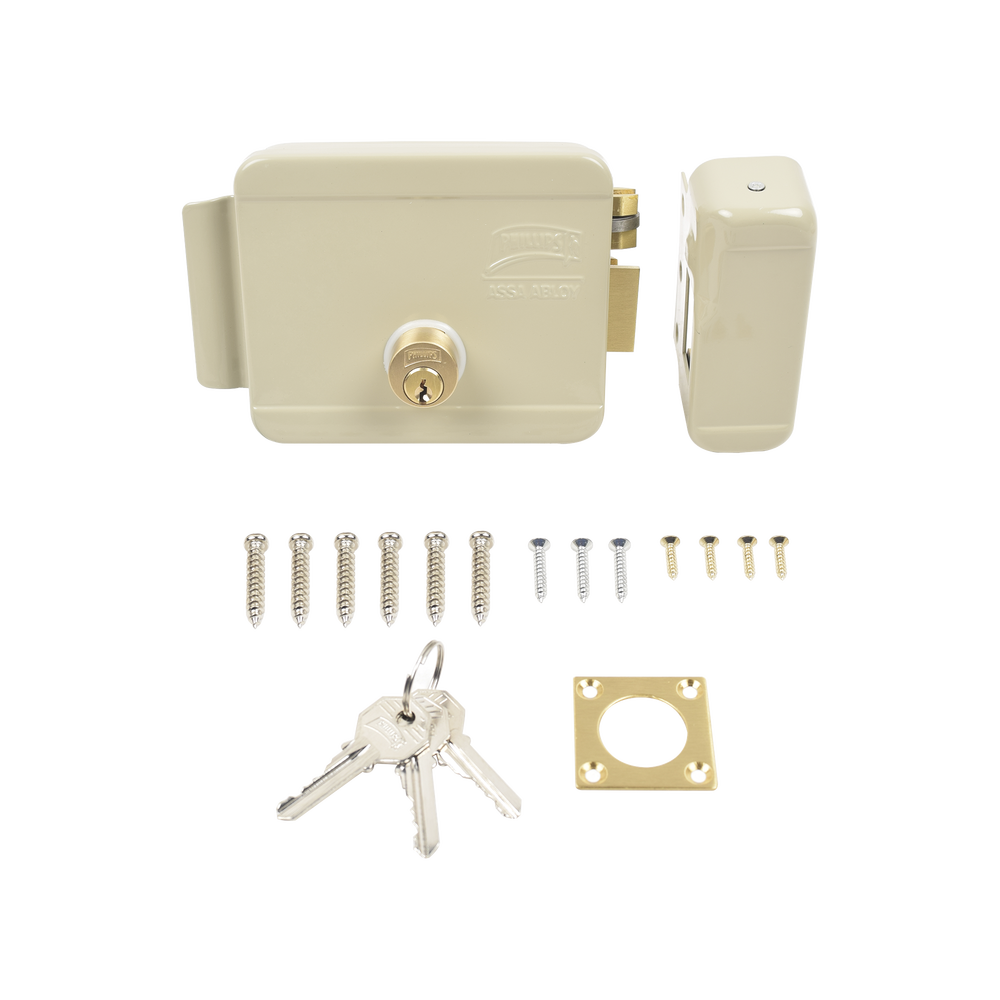

• Conventional key.
• It is activated by receiving a voltage pulse for 2 seconds (do not expose it to voltage pulses for periods longer than 2 seconds).

Power Consumption Demo Videos:

• Direct Current Consumption
• Alternating Current Consumption

IMPORTANT:

• Ensure the lock is not welded to the coil side . This could cause permanent damage to the lock, which does not affect the warranty.
