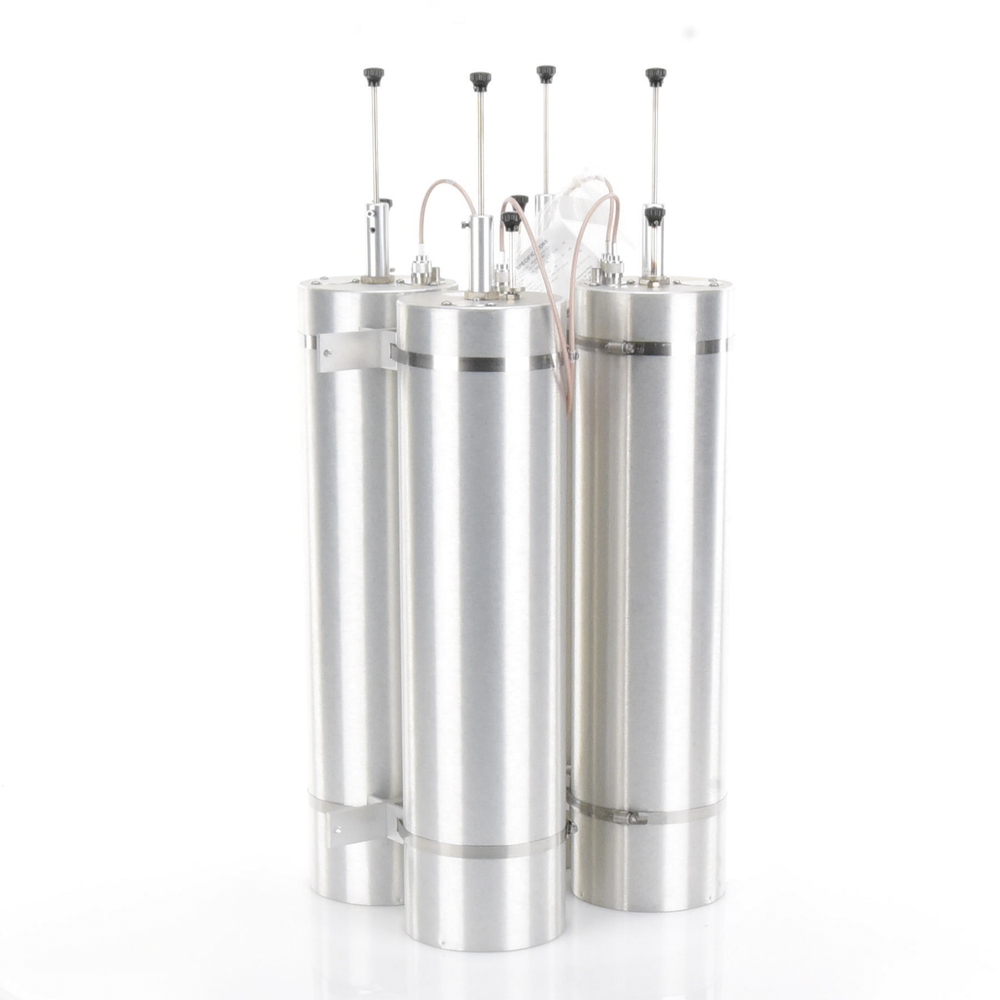

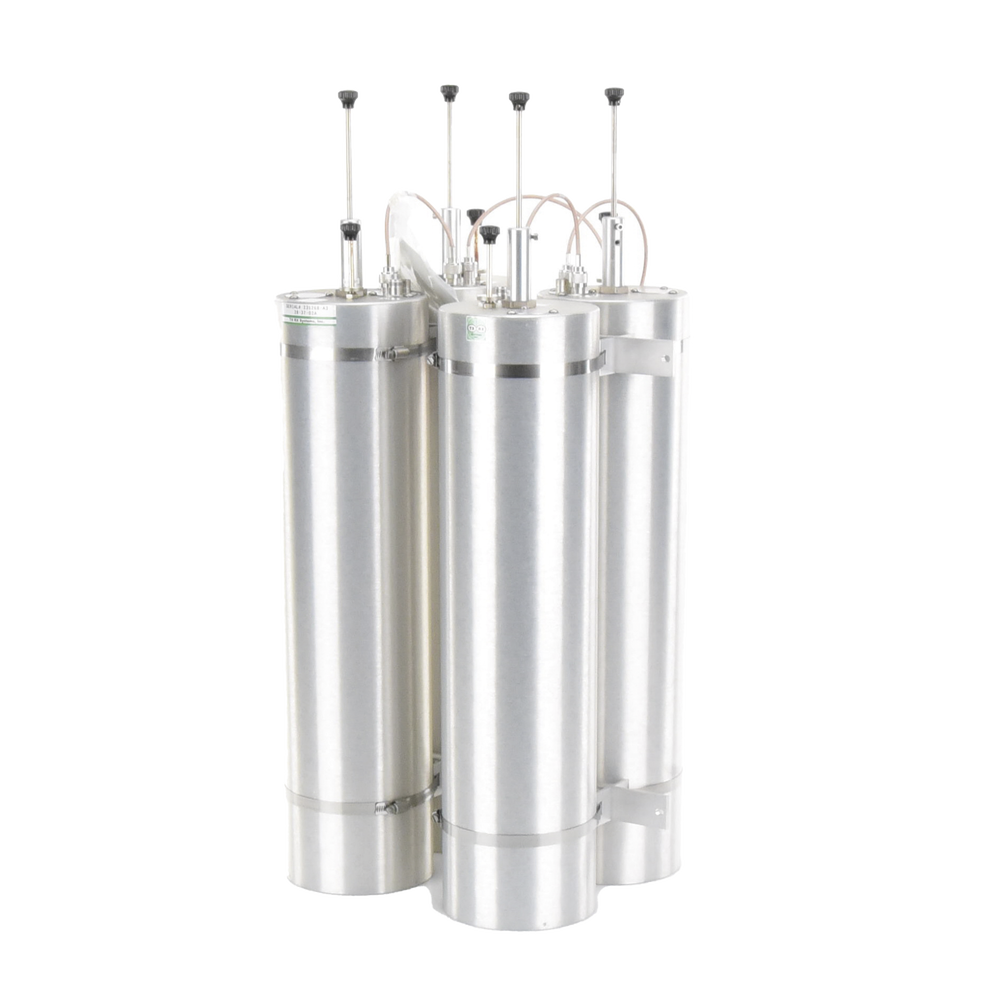

Bandpass-Band Reject Duplexer, 144-174 MHz, 4 Cavities of 6.625" Diameter, 500 KHz, 400 Watt, BNC Females.

Bandpass-Band Reject Duplexer, 144-174 MHz, 4 Cavities of 6.625" Diameter, 500 KHz, 400 Watt, BNC Females.

Bandpass/Band Reject Duplexer, 144-174 MHz, 500 KHz, 400 Watt.

• Vari-Notch technology to optimize insulation specifications.
• Frequency Range: 144-174 MHz.
• Number of Cavities: 4 (6.625' Diameter).
• Tx-Tx Separation (min.): 500 kHz.
• Input Power (max): 400 Watt.
• Impedance / VSWR: 50 Ohm / 1.3:1.
• Channel Isolation: 85 dB.
• Insertion Loss (max): 1.5 dB.
• Mounting: Designed for 19' Rack
• Temperature range: -40°C to 80ºC.
• Connectors: BNC Female (BNC Male to N Female Adapters Included).
• Dimensions (Height x Width x Depth): 83.8 x 48.3 x 30.5 cm (33' x 19' x 12')
• Cabinet Dimensions: 91.4 x 55.9 x 37.6 cm (36' x 22' x 14.8')

*Ask for availability.
