Coaxial RF Shield for 10 - 1000 MHz with Front Flange and N Female Connectors on Both Sides, 50 Ω

Coaxial RF Shield for 10 - 1000 MHz with Front Flange and N Female Connectors on Both Sides, 50 Ω

$417,740 $510,314
Shipping calculated at checkout.

Coaxial RF Shield for 10 - 1000 MHz with Front Flange and N Female Connectors on Both Sides, 50 Ω

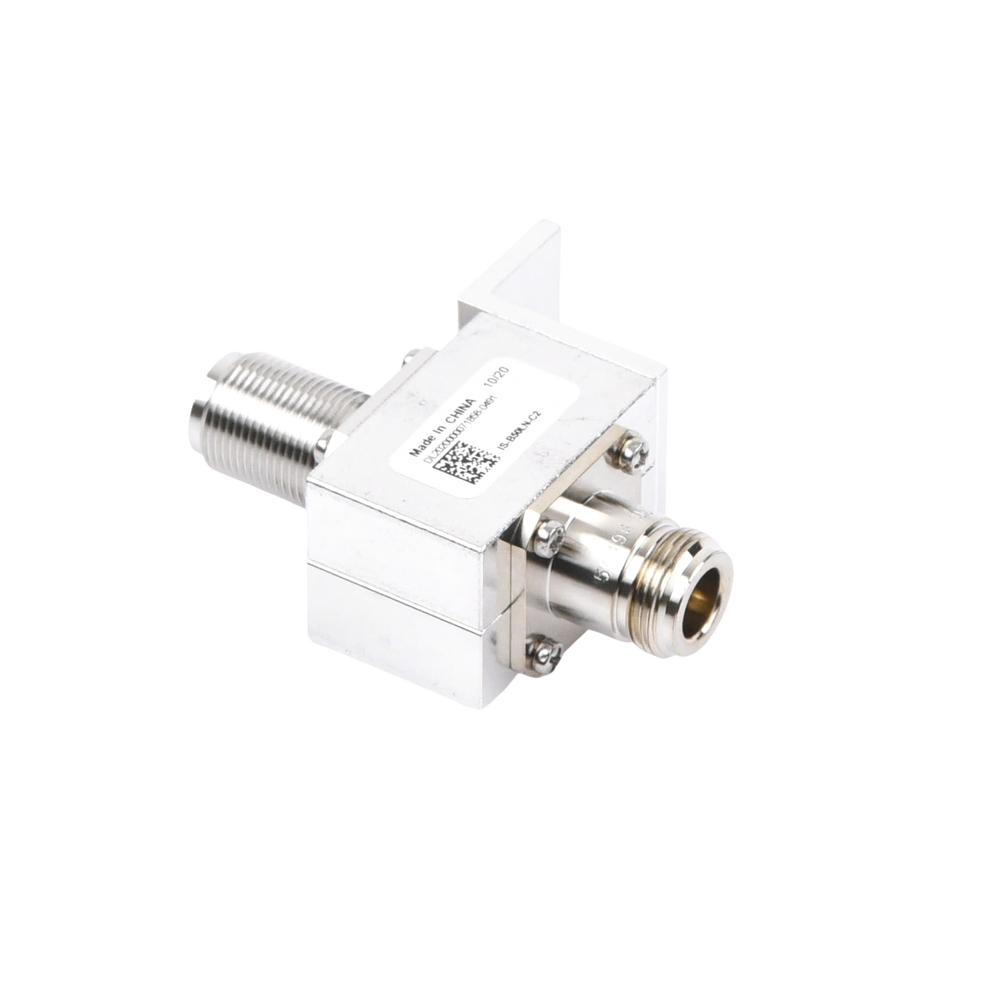

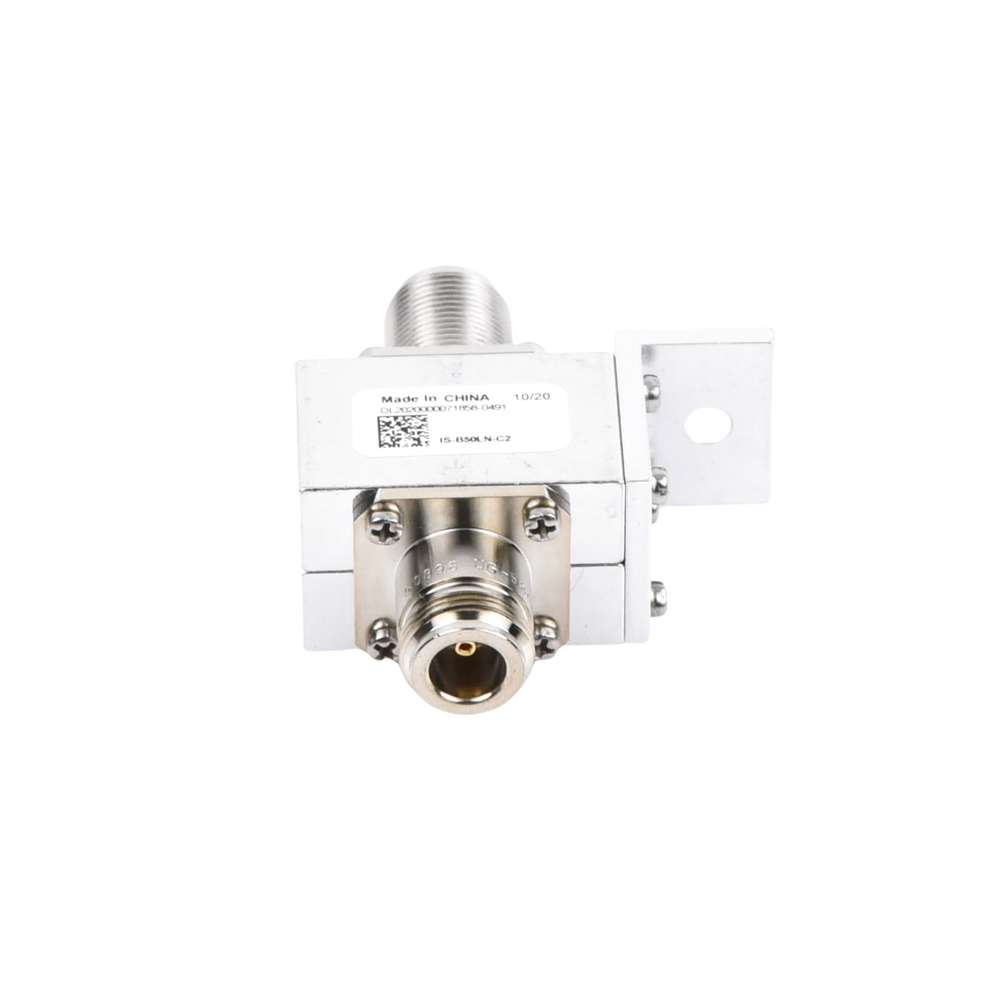

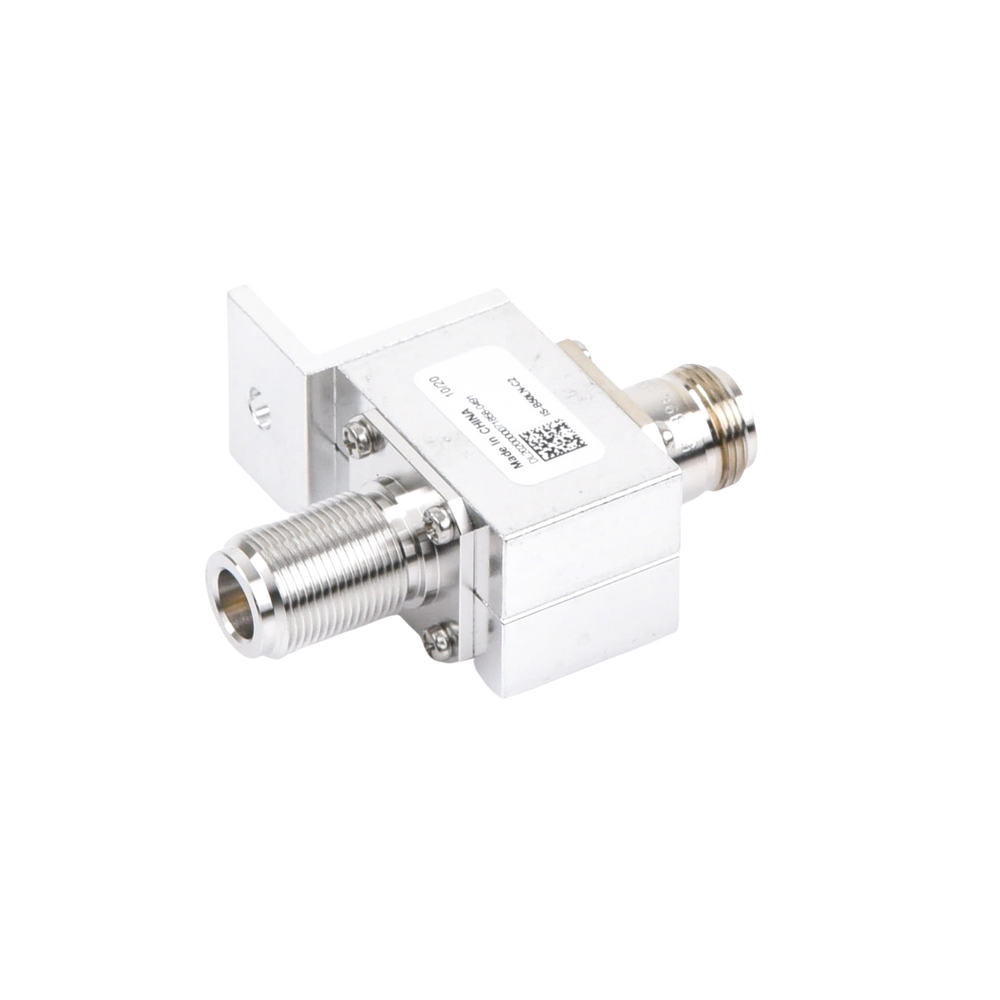

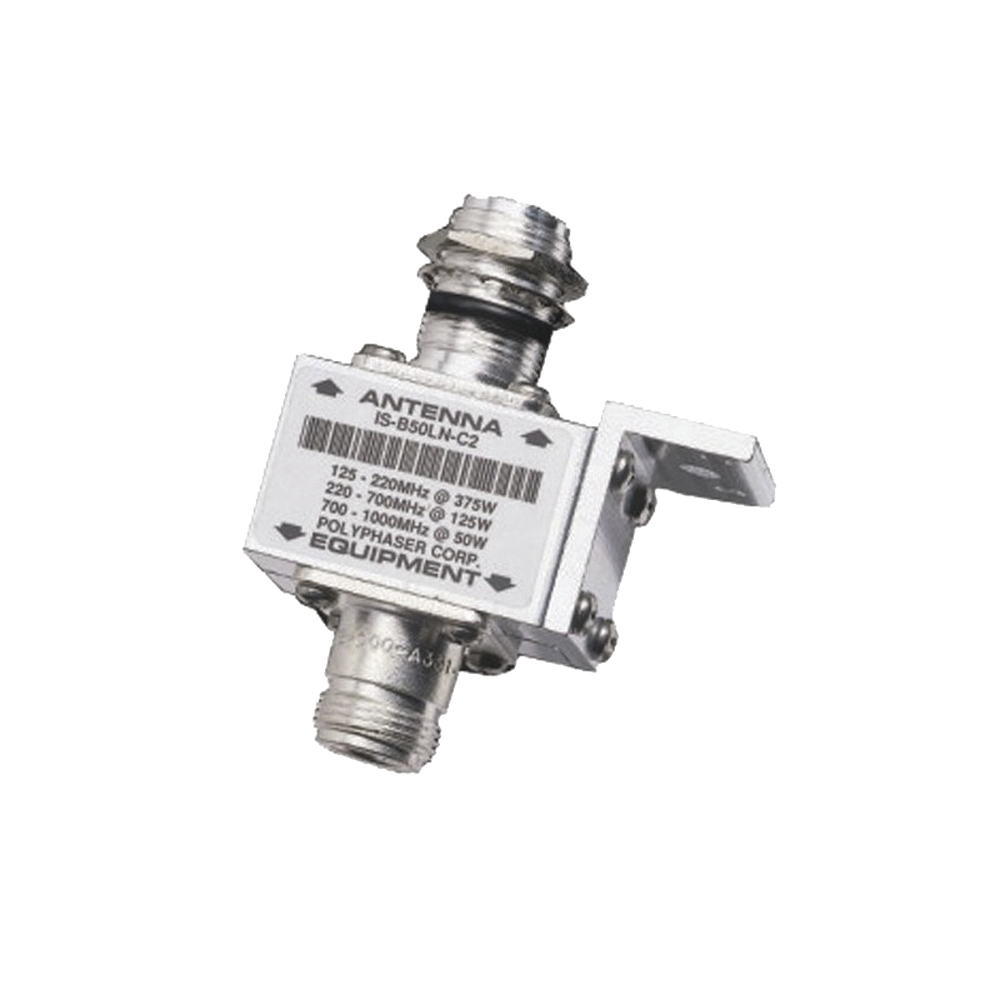

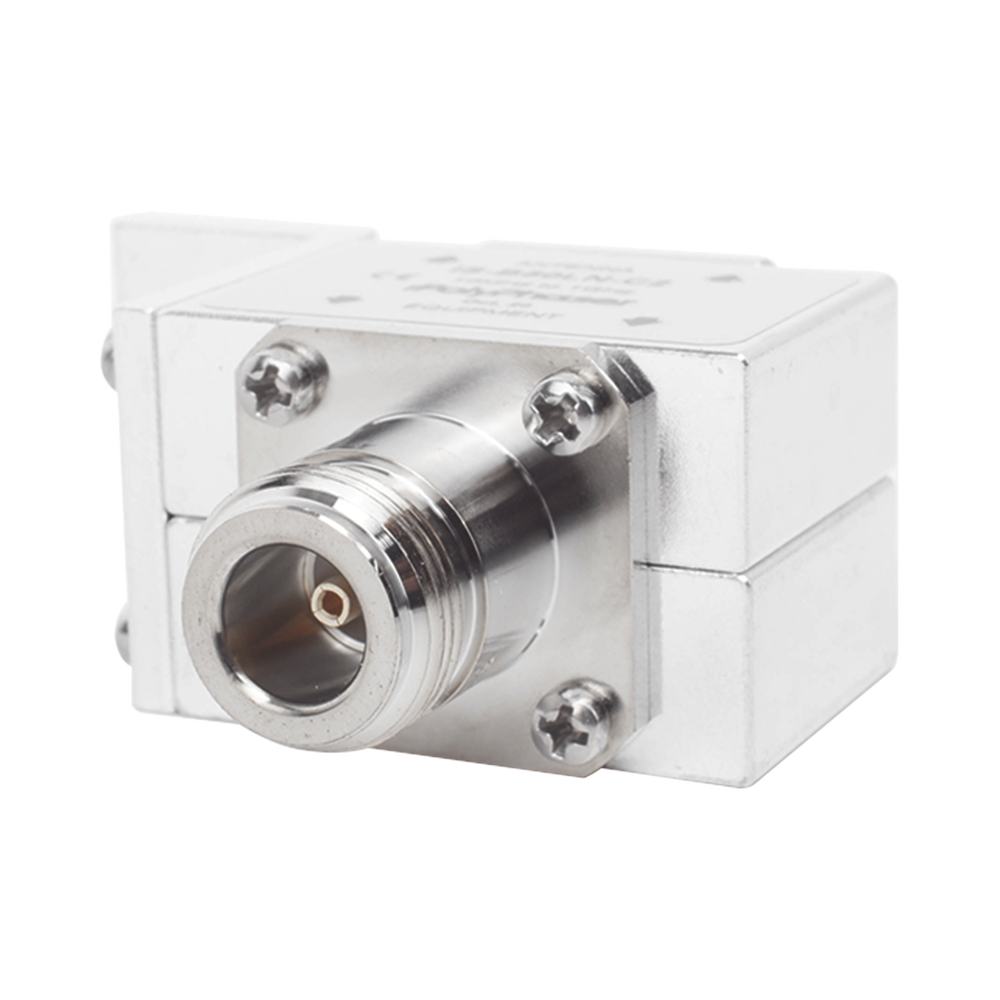

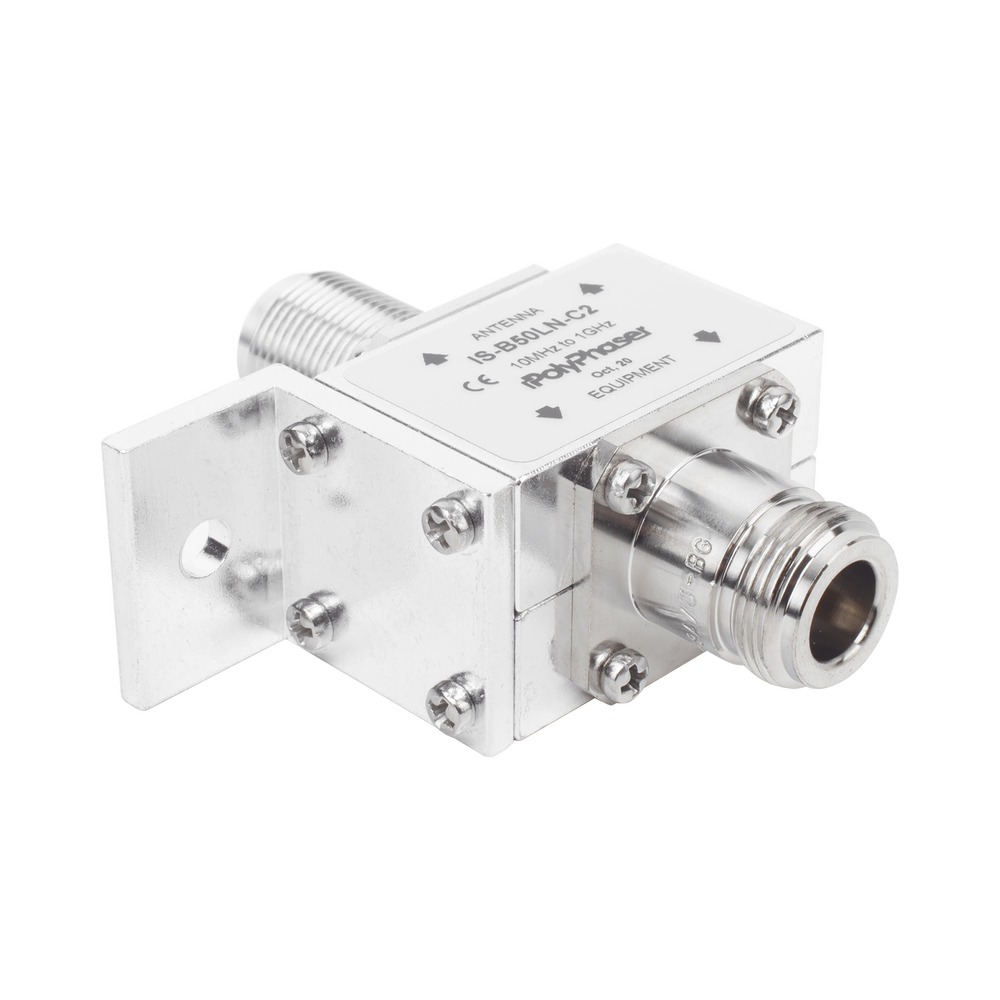

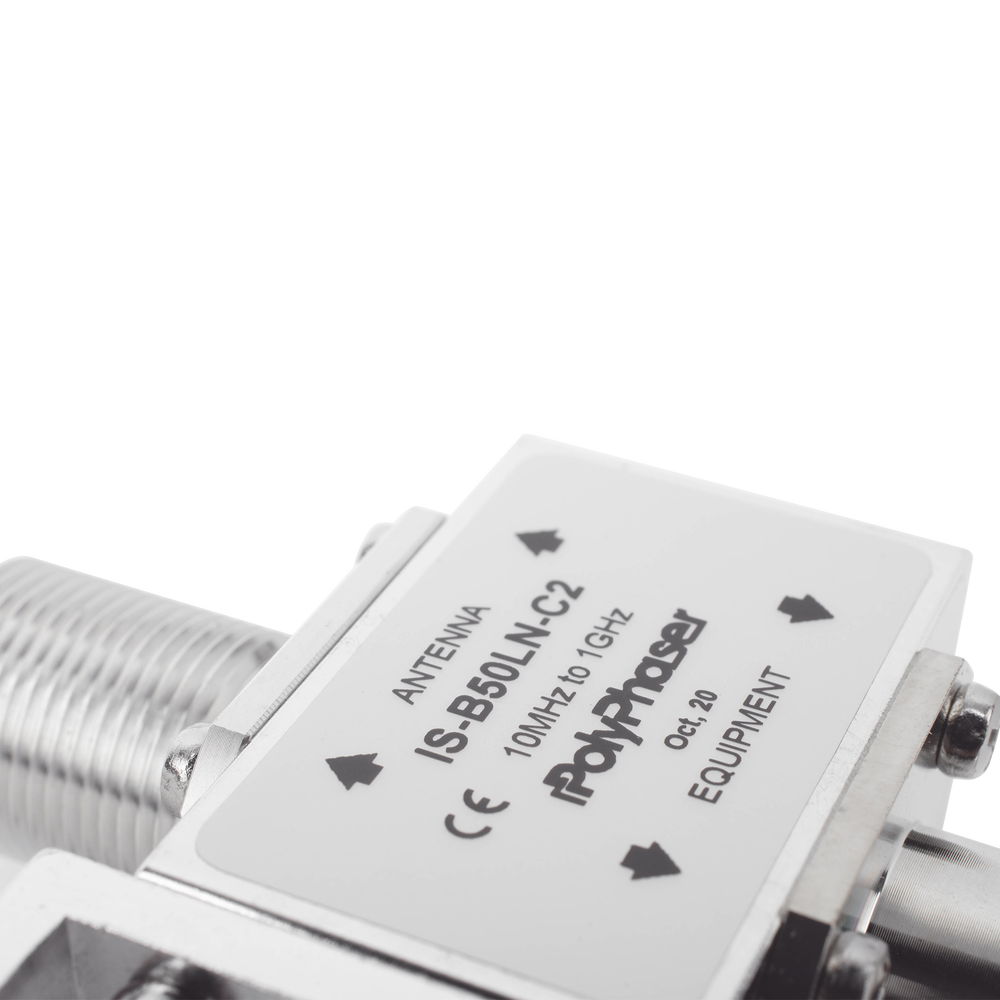

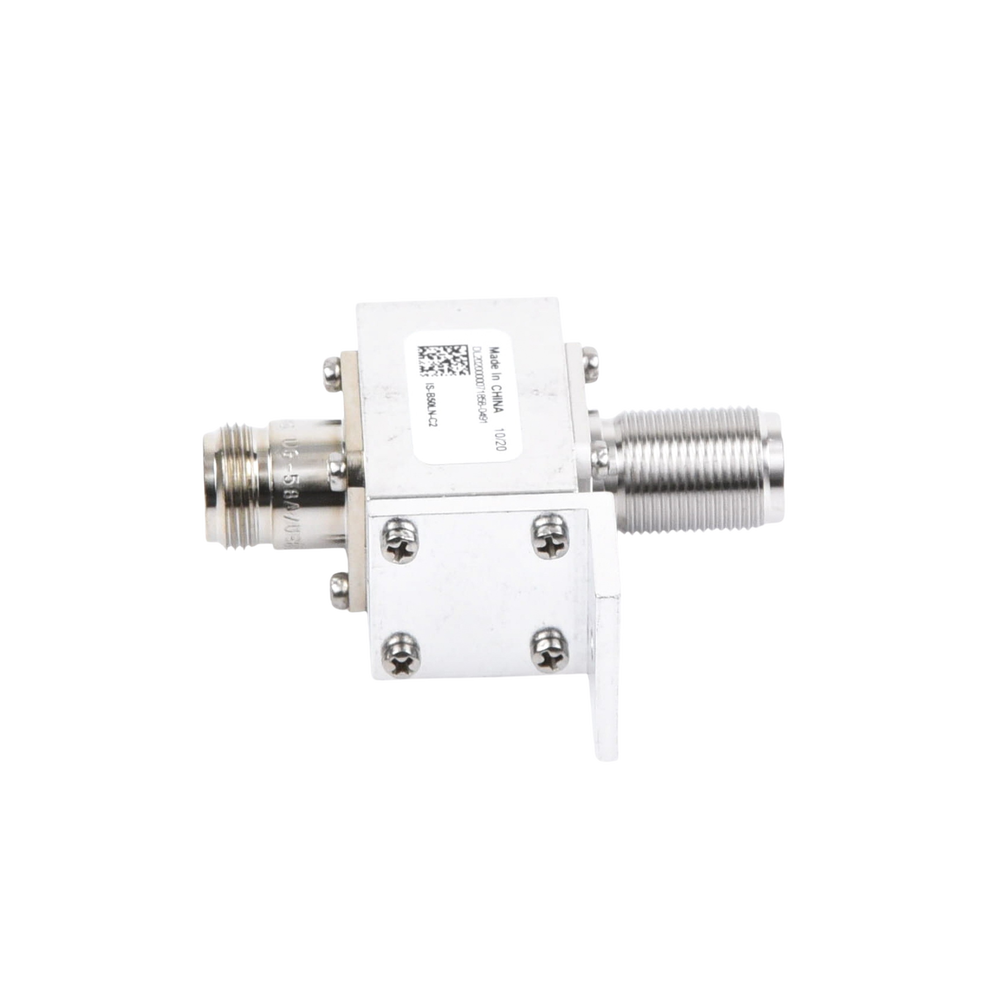

This RF surge protector/lightning rod helps protect your equipment from electromagnetic pulses (EMPs) or surges, which are typically caused by lightning or other strong electrical surges. It is commonly used for radio and antenna installations where part or all of the system is outdoors to protect sensitive equipment. It is designed to pass through 10 MHz to 1 GHz while suppressing DC surges.

Main features:
  • Impedance: 50 Ω.
  • Connector In: N Female.
  • Out Connector: N Female.
  • Minimum Frequency: 10 MHz
  • Maximum Frequency: 1 GHz
  • Direction: Directional.
  • Maximum input power: 1,500 Watts.
  • Energy flow: 120 uJ
  • Current peaks of 20 kA
  • Technology: Gas tube.
Specs:
  • Easy installation.
  • Multiple energy hit capacity.
  • Loss per insertion: 0.1
  • Dimension: 2.72 *1*2.25in(L*W*H*) 69.09*25.4*57.15mm
  • Operating range: -50ºC to 50ºC
  • Storage range: -55ºC to 85ºC
  • 1.5 kW @ 10 to 50 MHz
  • 375 W @ 50 to 220 MHz
  • 125 W @ 220 to 700 MHz
  • 50 W @ 700 to 1000 MHz
Applications:
  • HF, UHF and VHF radios.
  • Ham Radios.
  • Remote industrial monitoring.



    Impedance 50Ω, N Female Connectors, Frequency 10 MHz-1 GHz, Gas Tube, Current Peaks up to 20 kA
