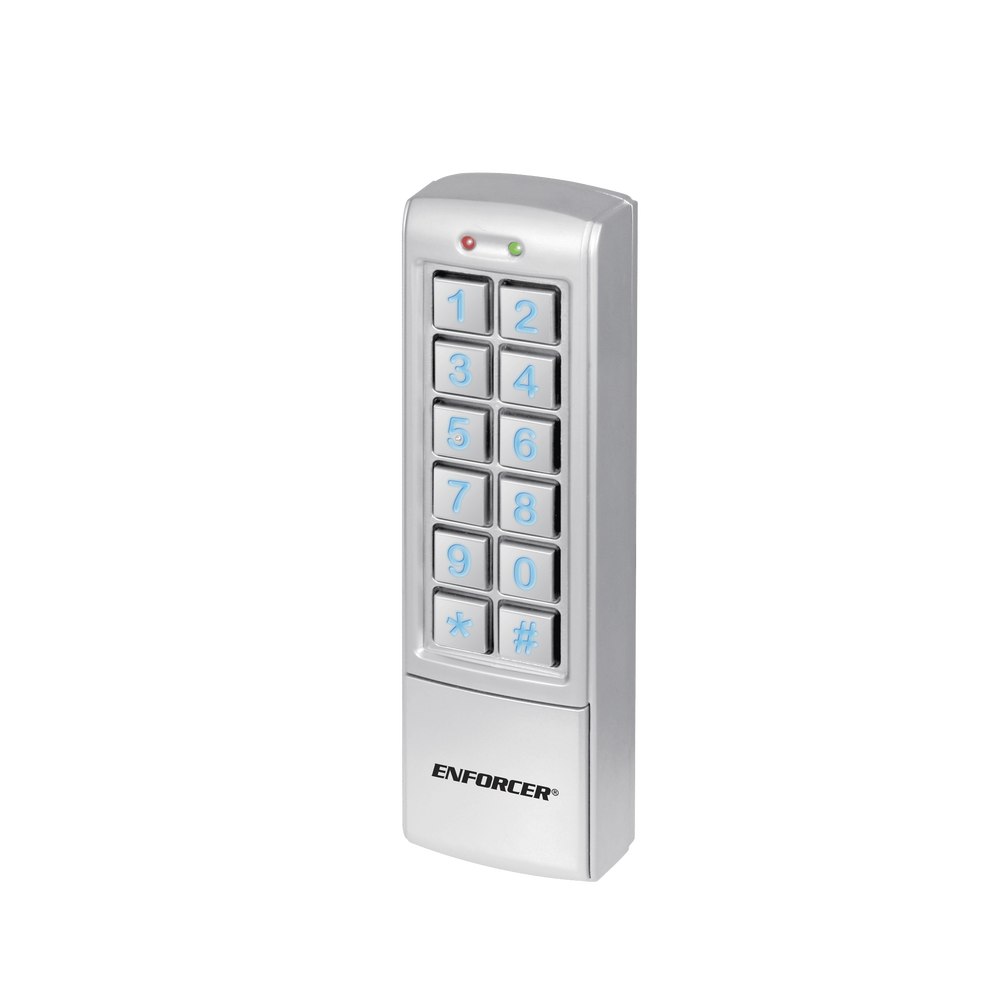

Numeric Keypad for External Access Control - 1010 Users

Numeric Keypad for External Access Control - 1010 Users

• 12~24 VAC/VDC operation.
• 1,010 User Codes (exit #1: 1,000 users, exit #2: 10 users).
• Two Form C relays, each rated at 1A@30V DC.
• Each relay has a programmable output time from 1~99 seconds or switched.
• Output #2 can be programmed for use with a doorbell.
• Two exit entrances and one door sensor input.
• Backlit keys for easy nighttime use.
• All features are programmed directly from the keypad: No external programmer is needed.
• EEPROM memory protects programmed information in the event of a power outage.
• Optical vandalism sensor for greater security.
• The electronic circuits have been fixed using an epoxy pour for outdoor use.
• IP65 waterproof rating, reinforced aluminum construction.
