ALTRONIX 12/24 Vdc Power Supply (Selectable) 6 A / 1 Output / Backup Capacity / Supervision for AC Fail, Low Battery and Battery Presence (Common, NC and NO) / UL-294, UL 1481, cUL, CSFM, MEA, NFPA 72 and FM.

ALTRONIX 12/24 Vdc Power Supply (Selectable) 6 A / 1 Output / Backup Capacity / Supervision for AC Fail, Low Battery and Battery Presence (Common, NC and NO) / UL-294, UL 1481, cUL, CSFM, MEA, NFPA 72 and FM.

$1.556.443 COP
$1.766.156 COP $1.556.443 COP
Sale Sold out
Shipping calculated at checkout.

ALTRONIX 12/24 Vdc Power Supply (Selectable) 6 A / 1 Output / Backup Capacity / Supervision for AC Fail, Low Battery and Battery Presence (Common, NC and NO) / UL-294, UL 1481, cUL, CSFM, MEA, NFPA 72 and FM.

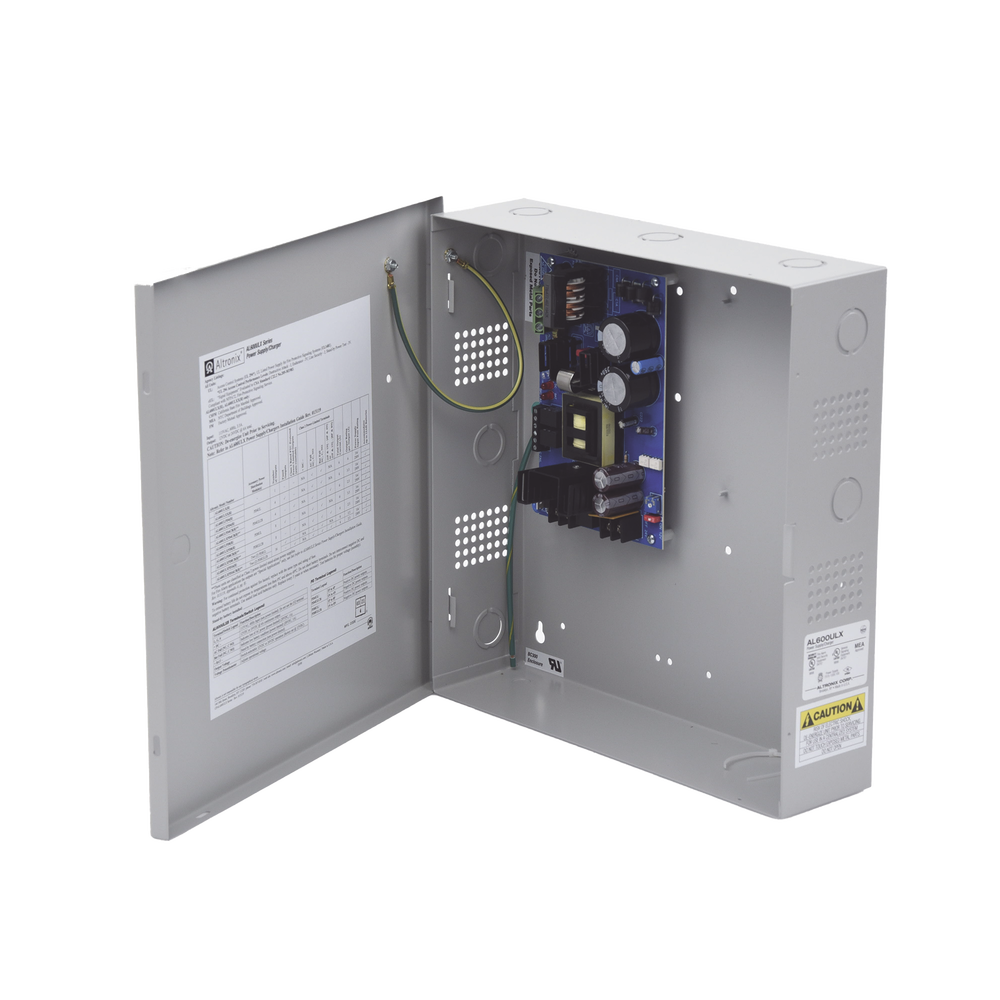

ALTRONIX 12/24 Vdc @ 6 Amp selectable power supply, 1 Output, backup capacity.

The Altronix AL600ULX series power supplies convert a 115VAC, 60Hz input to a PTC-protected output. Outputs are selectable for 12VDC or 24VDC with a total of 6A max. Supports two backup batteries (not included). It has UL294 Access Control, UL1481 Fire Protection Signaling, and UL, CSFM, MEA, NFPA 72, and FM approvals.

Without a doubt, the best power source for your critical projects, where high security is required to protect lives and property from the devastating effects of fires and other hazards.

...

Main Features:

  • Selectable output of 12VDC or 24VDC.
  • Continuous supply current of 6A.
  • Electronically regulated and filtered output.
  • Protection against short circuits and thermal overloads.
  • Integrated charger for sealed lead-acid or gel batteries.
  • Automatic switchover to battery backup when AC fails.
  • AC input and DC output LED indicators.
  • AC fail supervision (Form 'C' contacts).
  • Low battery supervision (form 'C' contacts).
  • Battery presence monitoring (form 'C' contacts).
  • The notification trigger can be selected for 30 seconds (factory set) or 6 hours.
...

Physical and Electrical Characteristics:

  • Supply voltage 115VAC, 60Hz, 3.5A max.
  • Dimensions:330.0(W) x 343.(H) x 83.0(D)mm.
  • Operating temperature: 0°C to 49°C.
  • Storage temperature: - 20 ° C to 70 ° C.
  • Relative humidity: 85% +/– 5%
  • BTU/Hr (Approx.) 12VDC: 37 BTU/Hr./ 24VDC: 74 BTU/Hr.
  • Product weight: 3.2 kg.
  • Shipping weight: 4.1 kg.
...

Highlighted Features:

  • Wall mount box for indoor use
  • Batteries not included, recommended model: PL912FR;
  • Does not include power cable, recommended model: AC-CORD-1.8M;
  • Form C = Common, NC and NO
  • UL for Access Control Systems (UL294)
  • UL for Fire Protection and Signaling Systems (UL1481)
  • cUL Listed CSA Standard C22.2 No.205-M1983
  • CSFM - California State Fire Marshal
  • MEA - NYC Department of Buildings Approved
  • FM - Factory Mutual Approved
  • Complies with NFPA 72

    15 in stock

    MODELO: AL-600-ULX
