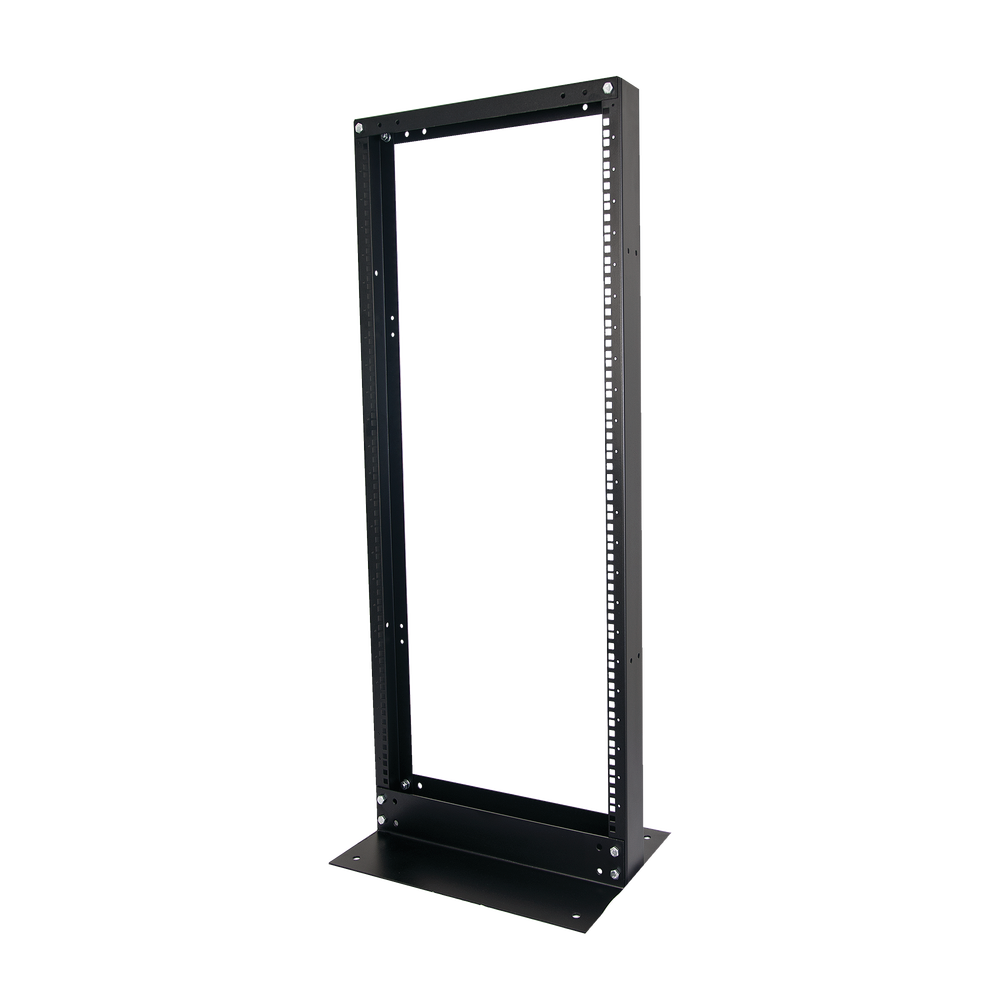

2-Post Rack, Standard 19", 37 Units, Steel, "L" Base for Anchoring to Floor.

2-Post Rack, Standard 19", 37 Units, Steel, "L" Base for Anchoring to Floor.

•Solid base to support equipment (requires floor fixing).
•Units are marked for easy installation.
•Completely made of top quality steel sheet.
•It is compatible with the EIAAR2036 model (Wall Bracket) to secure them to the top-rear part of the wall and make them completely rigid.
•The equipment can be laterally connected to other EIR line Open Rack equipment.

Regulations:
•ANSI/TIA RS-310-D
•IEC-297-2

Physical Characteristics:

•Painting: Baked Electrostatic.
•Color: Matte embossed black.
•Application: Interior.
•Material: Carbon steel.
•Rack Units: 37.
•Weight: 13.2 Kg.
•Dimensions: 515 x 1772 x 362 mm (Width x Height x Depth).
•Base drilling (for anchoring) of 13.5 mm.

Now with hardware to install 6 devices in a Rack!

The Equipment Includes:
•Two Rack posts.
•Two upper L sections.
•Two lower L sections for anchoring to the floor.
•Screws for assembly.
•Installation manual.
•24 Screws with plastic washer (TORRACK).
•24 Rack Cage Nuts (TUERACK).

Installation and Organizers


Side Coupling:



Dimensions (mm).

Physical Ground Installation for Telecommunications Rack.
