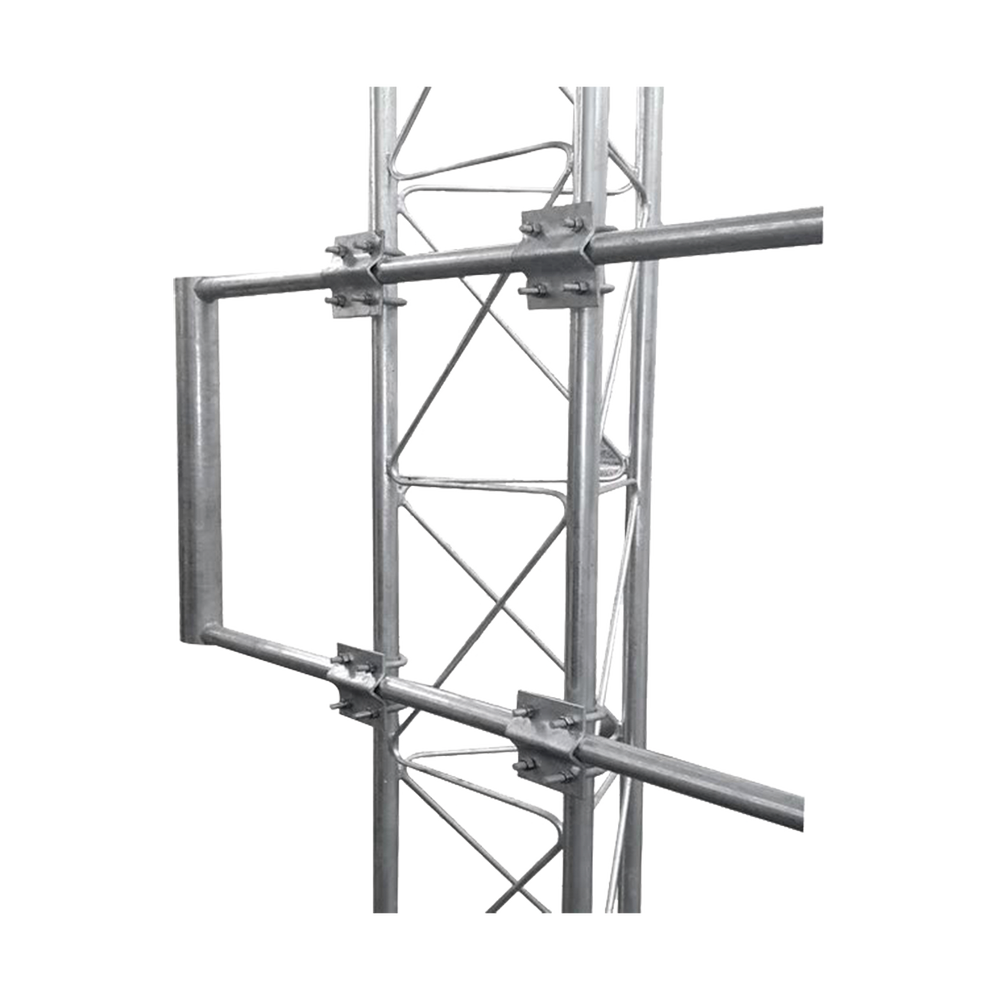

Heavy Duty Arm for STZ Electrolytic Galvanized Tower 170 x 60 cm 2" Ced 30 Tube.

Heavy Duty Arm for STZ Electrolytic Galvanized Tower 170 x 60 cm 2" Ced 30 Tube.

• Material: ASTM A-36 Steel
• Main tube diameter: Ø 2' Ced. 30
• Main tube height: 60 cm
• Side tube diameter: Ø 1' Ced. 30
• Side tube length: 1.7 m
• Protection: Electrolytic galvanized (AST B-633)
• Compatible with STZ30 , STZ35 , STZ45 span towers.
• Adjustable tower spacing from 30 to 100 cm.
• Ideal for avoiding noise between antennas installed on the same tower.
• Great care must be taken with equipment that generates high wind resistance.
• If using dish antennas, they must be fitted with radomes with a maximum diameter of 2 feet (60 cm). The arm should be retracted from the tower as far as possible in this installation.
• It is recommended to install a stabilizer when handling these arms with dish antennas.

  Includes:
• 1 Welded Main Arm.
• Hardware for installation.
  1 Bag with Screws with:
  -4 Holding counters.
  -8 'U' type clamps.
  -16 safety nuts.
