• Bobina de Cable 2 x 16 AWG FPLR para Incendio / 305 mts / Resistente a la Luz Solar / Sin Blindaje / Uso Interior
1 4

GENESIS

2 x 16 AWG FPLR Fire Cable Reel / 305 m / Sunlight Resistant / Unshielded / Indoor Use

2 x 16 AWG FPLR Fire Cable Reel / 305 m / Sunlight Resistant / Unshielded / Indoor Use

$959.027 COP
$1.048.935 COP $959.027 COP
Sale Sold out
Shipping calculated at checkout.

2 x 16 AWG FPLR Fire Cable Reel / 305 m / Sunlight Resistant / Unshielded / Indoor Use

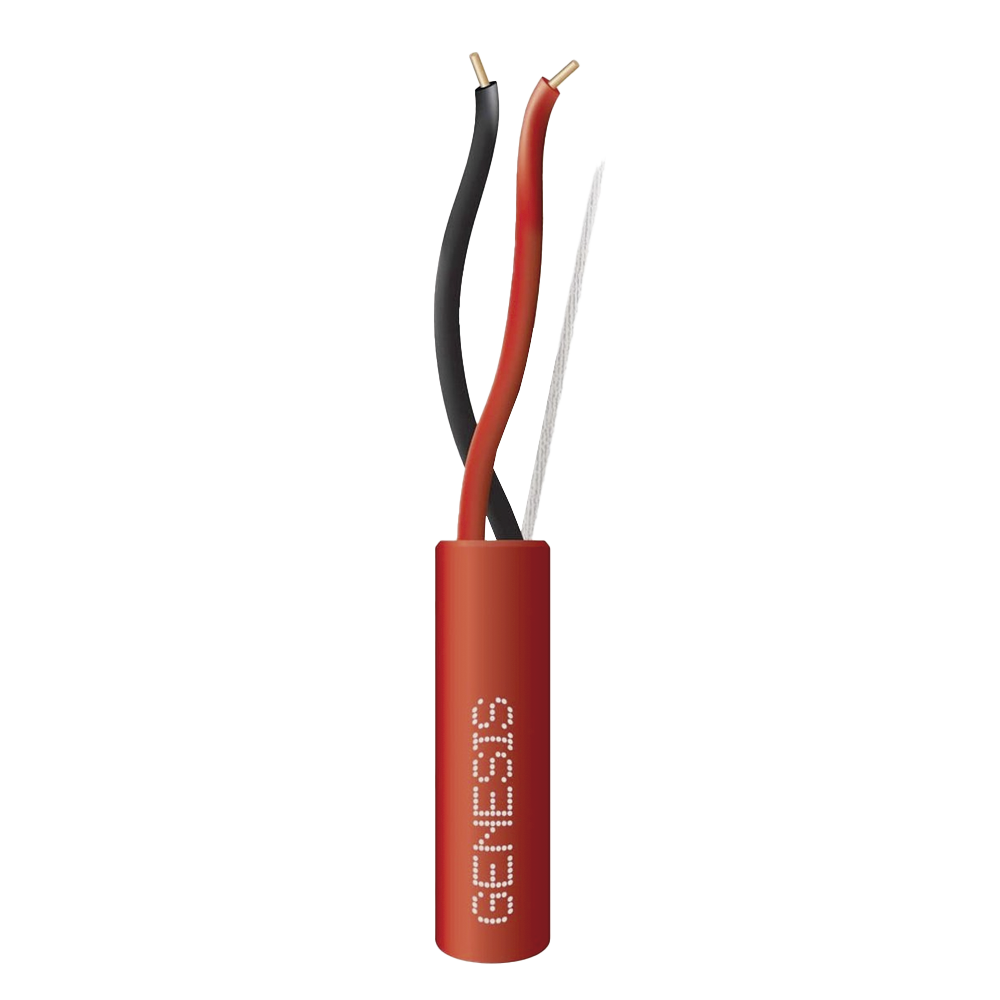

16 gauge 2-conductor cable with red jacket, applications in fire alarms or paging.

Honeywell Genesis® Series cables are specifically designed for underground burial. Manufactured with a more ribbed jacket, these cables exhibit a higher threshold of crush and impact resistance. Our outdoor cables are not only designed for burial, but are also independently tested and approved to meet direct burial and wet location requirements.

Characteristics:
  • Insulation colors: Black and Red .
  • Ripcord: Yes.
  • Nominal Outside Diameter: 0.4191 cm (0.165 in).
  • Solid or multifilament: Solid.
  • Conductor material: Bare copper.
  • Conductor insulation material: Polypropylene.
  • Jacket material: PVC.
  • Shielding: No.
  • Operating temperature: -20° to 75°C

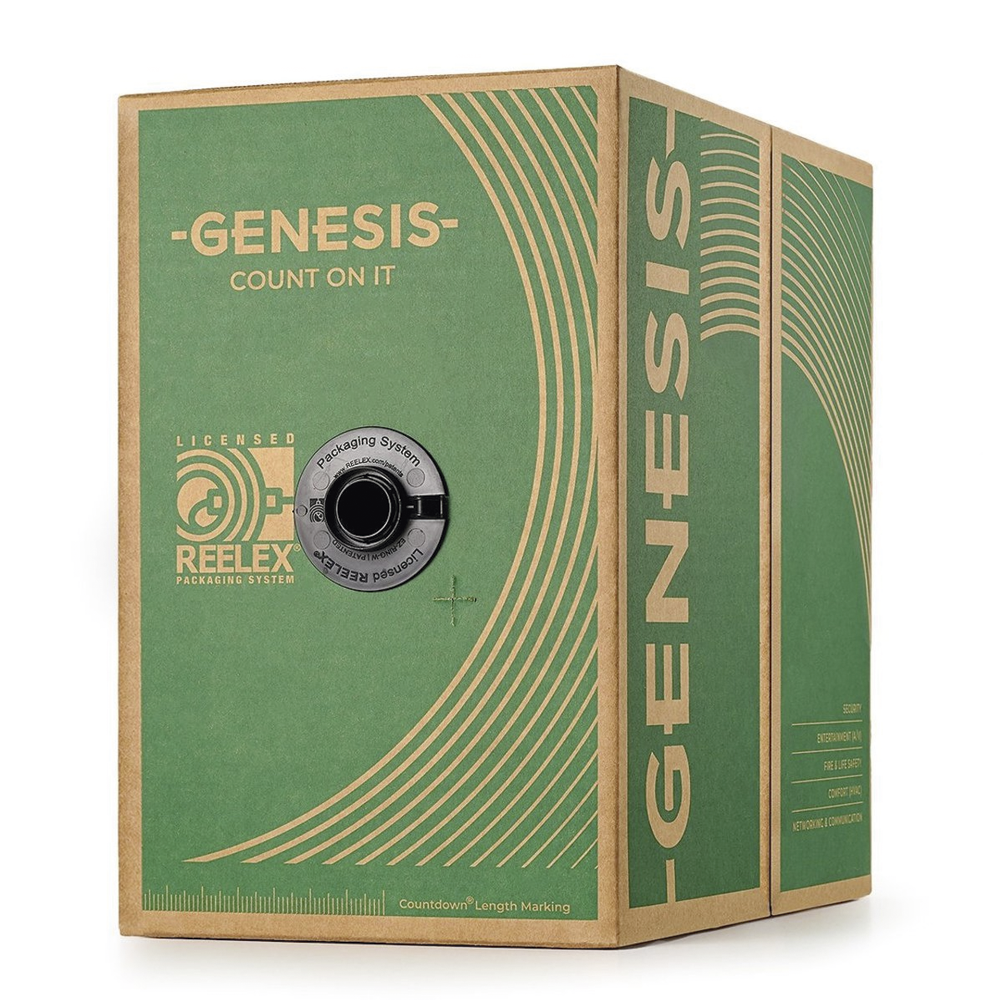

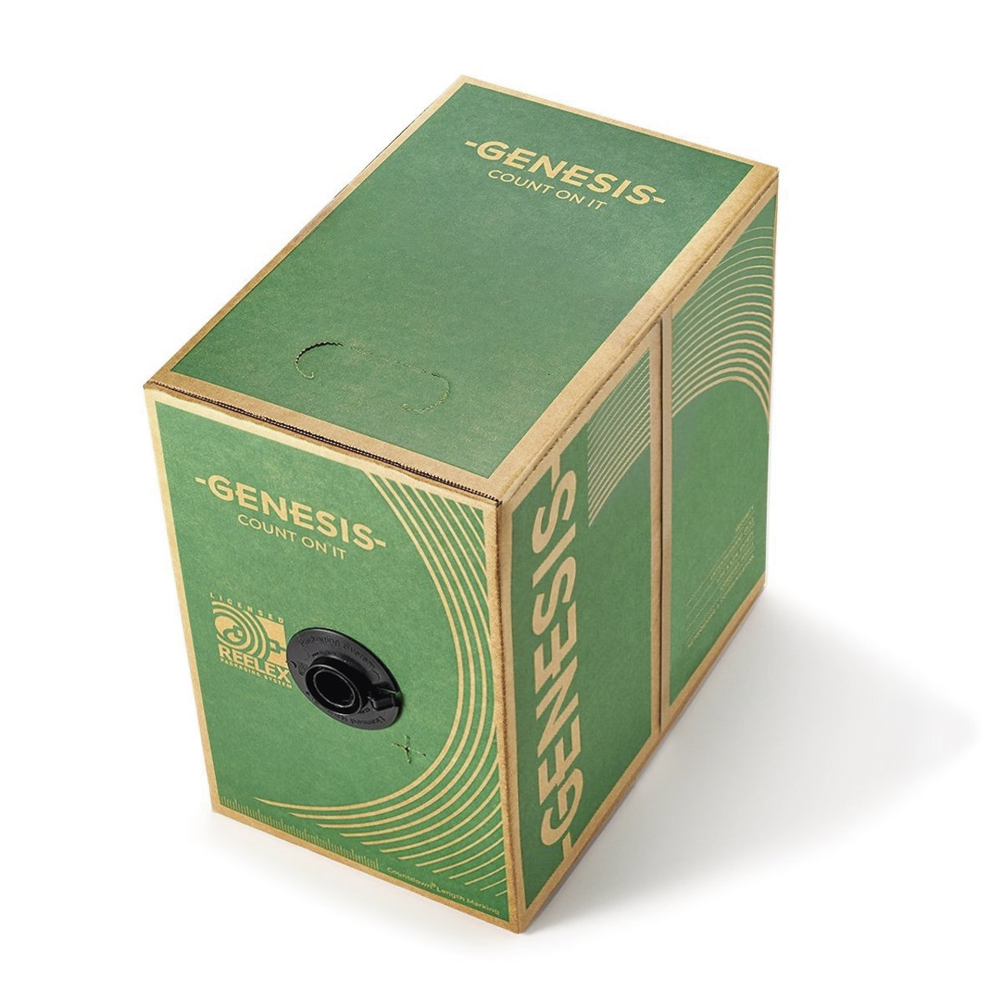

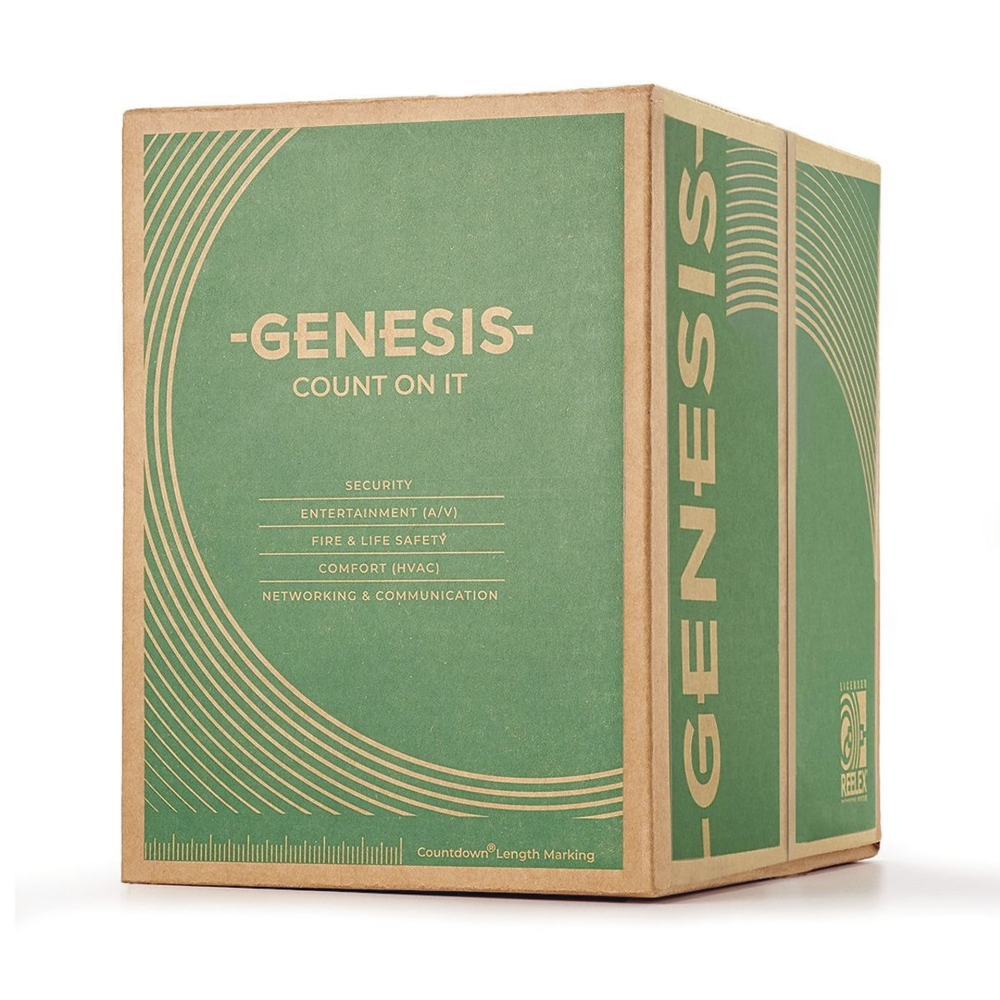

  • Cable packaging: Pull Box.
  • Length per unit: 305 meters (1000 feet).
  • Dimensions: 33.02 x 33.02 x 19.685 cm (13 x 13 x 7.75 inches).
  • Weight: 10160.47 g
Physical and electrical characteristics:
  • Nominal voltage (max.): 300 V.
  • Direct Current Resistance (Max): 4.1 ohms/1000 ft at 20°C.
  • Capacitance (nominal): 22.3 pF/ft.
  • Impedance (nominal): 68 Ohms.
Standards:
  • Cable list: FPLR, CL3R, FT4.
  • It can be installed in locations exposed to sunlight, as it has been tested for 720 continuous hours of sunlight without any alterations.
  • This Genesis® cable features two 16 AWG stranded copper conductors and a general-purpose rating. Choose this cable for a reliable connection for security, controls, audio, and other low-voltage applications.

* Price per 305 meter coil.

    Sunlight Resistant, Solid Cable, Riser Type, 2 x 16 305 m Cable Reel

265 in stock

MODELO: 4311-1104/1000
