ANDREW / COMMSCOPE

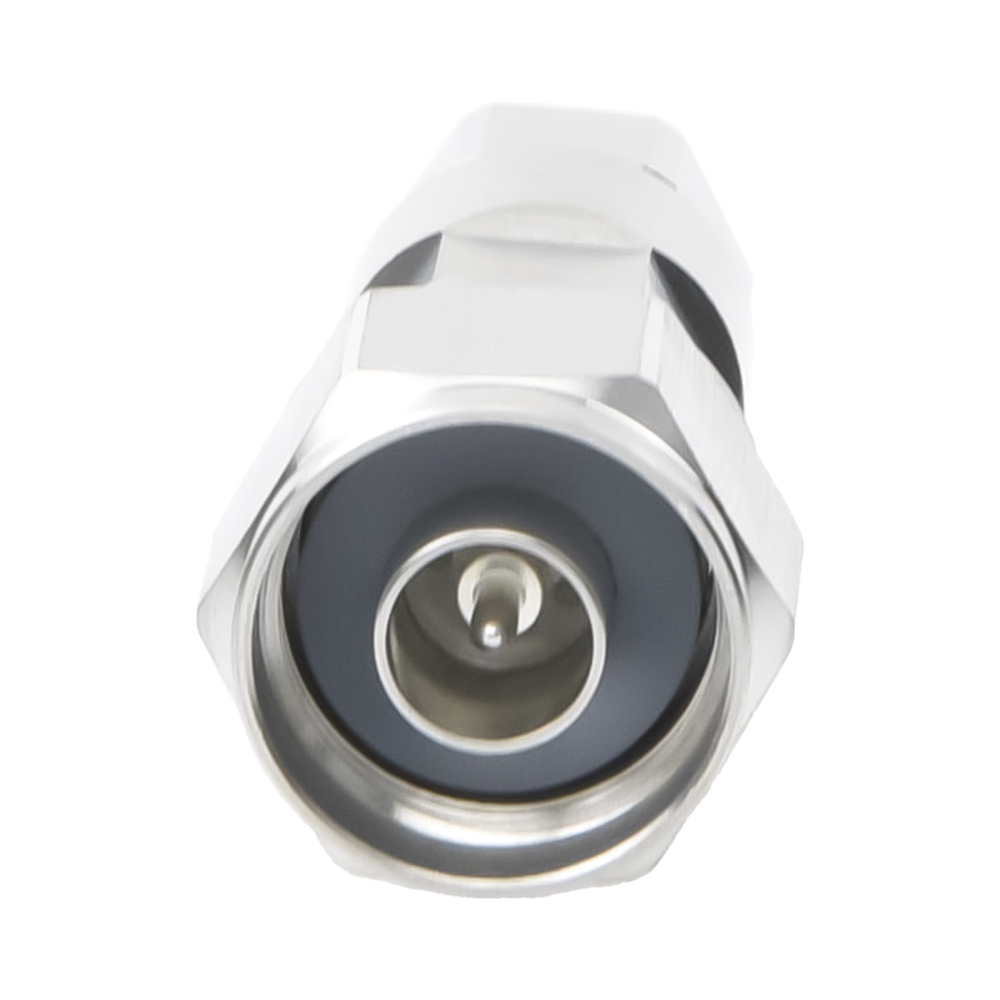

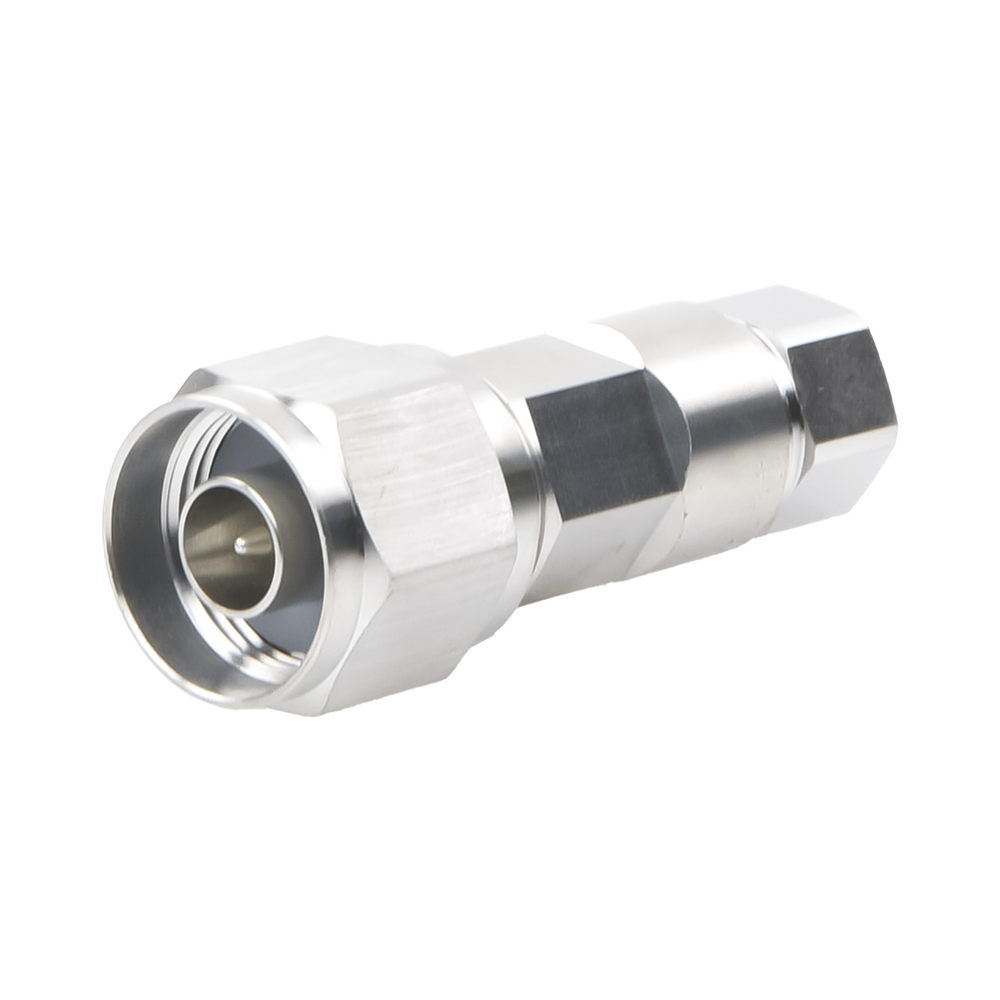

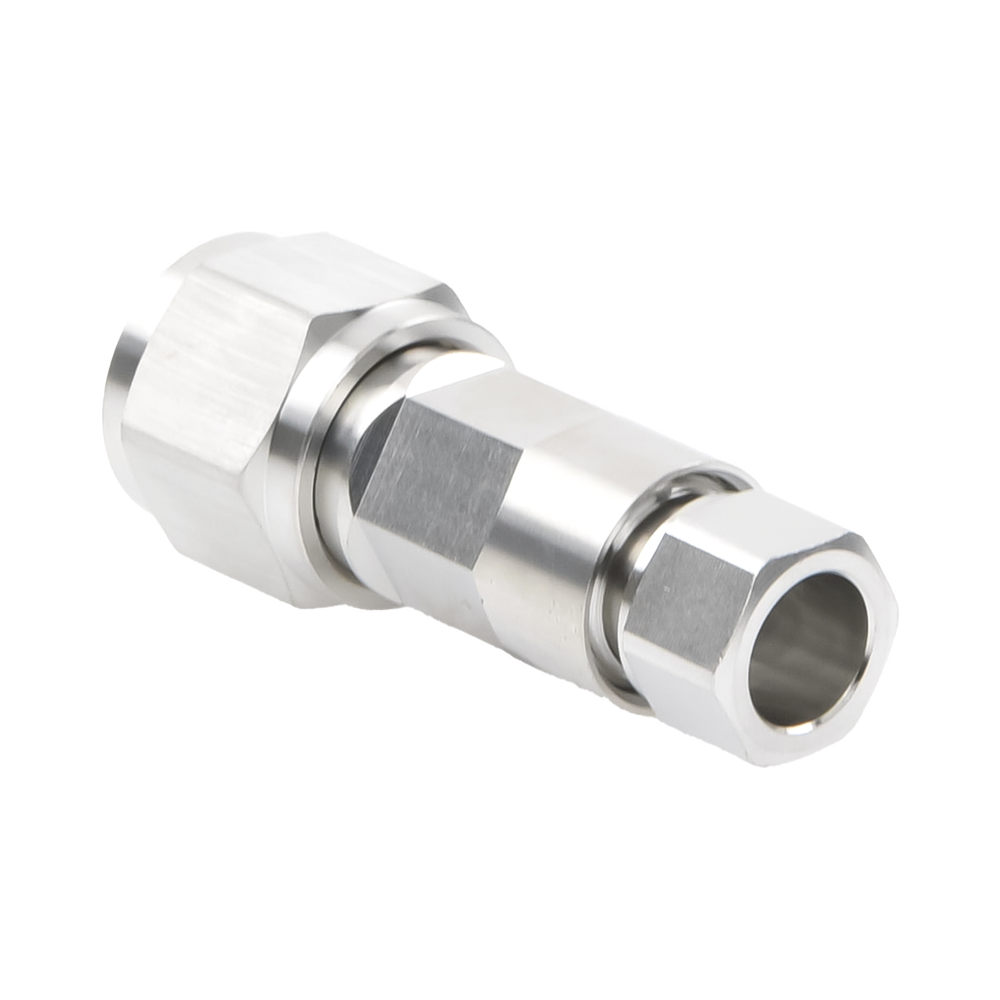

N Male connector for FSJ1-50A cable
N Male connector for FSJ1-50A cable
Regular price
$123.004 COP
Regular price
$134.536 COP
Sale price
$123.004 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
N Male connector for FSJ1-50A cable
| General Specifications | |
| Interface | N Male |
| Style | Right |
| Brand | HELIAX® |
| Mounting angle | Right |
| Electrical specifications | |
| Connector impedance | 50 ohm |
| Operating frequency band | 0 – 18000 MHz |
| Cable impedance | 50 ohm |
| 3rd Order IMD, typical | -116 dBm at 910 MHz |
| 3rd Order IMD test method | 2 carriers of +43 dBm |
| RF operating voltage, maximum (vrms) | 565.00 V |
| CD voltage test | 1600 V |
| External contact resistance, maximum | 0.25 mOhm |
| Internal contact resistance, maximum | 1.00 mOhm |
| Insulation resistance, minimum | 5000 MOhm |
| Average power | 0.4 kW at 900 MHz |
| Peak power, maximum | 6.40 kW |
| Effective shielding | -110 dB |
Share
30 in stock
MODELO: F1TNM-HC
