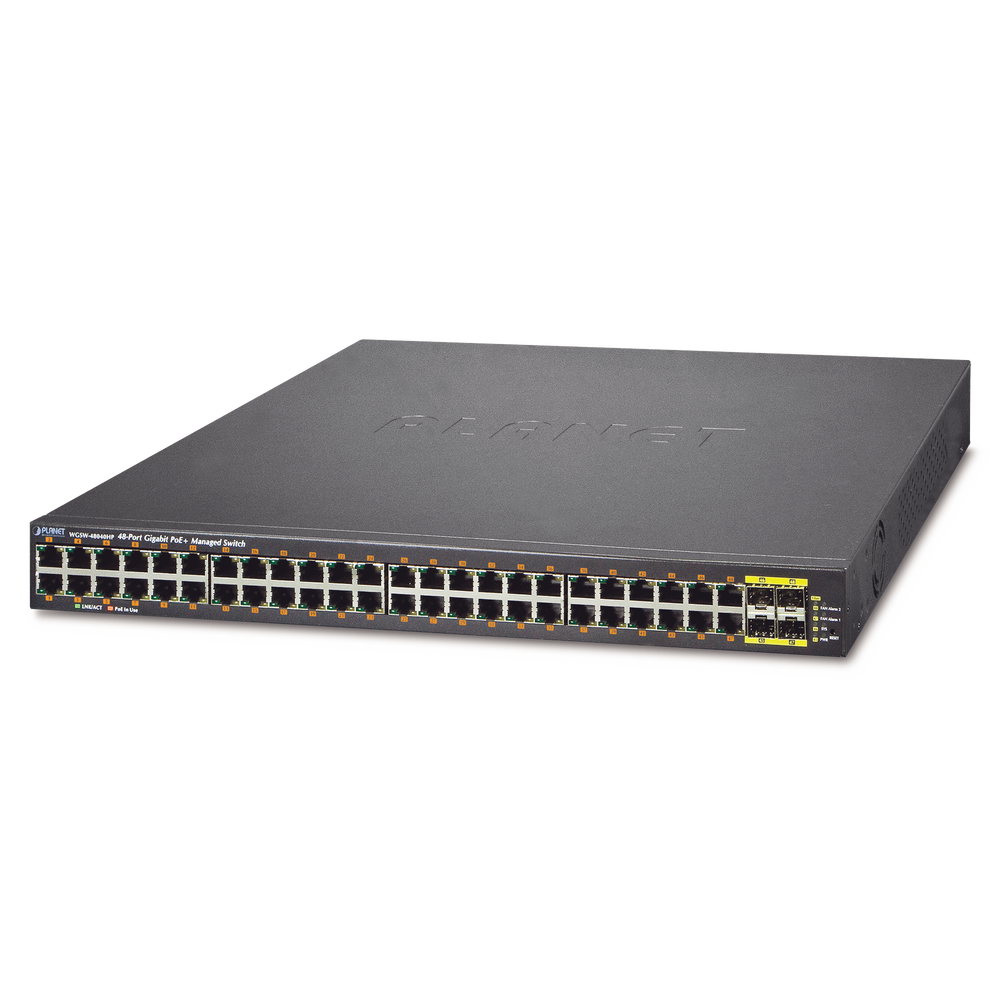

L2+ managed switch, with 48 highPoE ports + 4 shared TP/SFP / 100/1000X ports (600W)

L2+ managed switch, with 48 highPoE ports + 4 shared TP/SFP / 100/1000X ports (600W)

Ports:
48 High PoE 10/100/1000Base-TX Ports.
4 Shared 10/100/1000Base-X RJ-45/SFP Ports (ports 45-48).
Compatible with 802.3af PoE / 802.3at High PoE devices up to 30W per port.
Throughput: 71.4 Mpps@64Bytes.

Protection:
Auto-detects 802.3af PoE and 802.3at PoE devices, protecting equipment from damage due to improper installation.
Circuit protection that prevents interference between ports.

PoE Management:
Intuitive Web Interface for Administration.
Monitoring of Status and Power Consumed by Port.
Monitoring of Total Power Consumed.
Power limit per port and priority.
PoE Enable/Disable per port.
Supports SNMP Trap for alarm notification events.

Administration:
Administration by Web Interface.
Telnet/Console Command Line Interface.
Monitoring by SNMP v1, v2c, and v3
Supports SSH/ SSL.
DHCP Client.
Firmware/Configuration Update via TFTP and HTTP.
Real-time monitoring with history, statistics, alarms, and events.
Reset button to restore factory settings.
User privilege control.

Layer 2 Features:
High-performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets
to optimize network bandwidth.
Spanning tree protocol, Port Mirroring.
Throughput 71.4 Mpps@64Bytes.

Layer 3 Features:
Supports up to 128 static routes and route summary.

Security:
Password protected access, IP/MAC Binding, Port Security, 802.1x Port-based Network Access Control.
Supports RADIUS/TACACS+ user authentication, with built-in RADIUS Client.
Defense against DoS attacks.
Spoofing Attack Prevention.
Dynamic ARP Inspection
DHCP Snooping to prevent untrusted DHCP messages.
IP access list to prevent intruders.

Protection:
ESD 2KV Electrostatic Discharge Protection.

Physical and Electrical Characteristics:
Power: 100-240VAC @ 722W
Dimensions: 1U Rack, 440 x 440 x 44.2 mm.

*3 years warranty.
