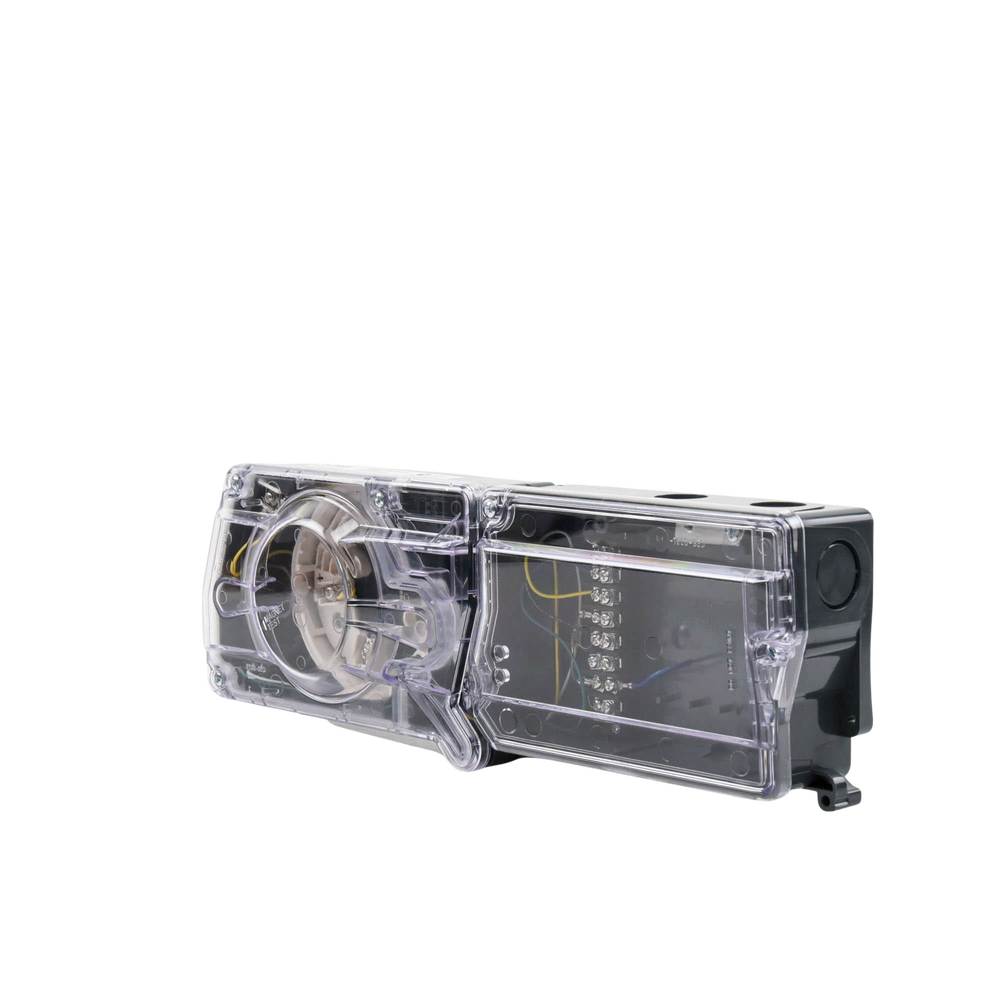

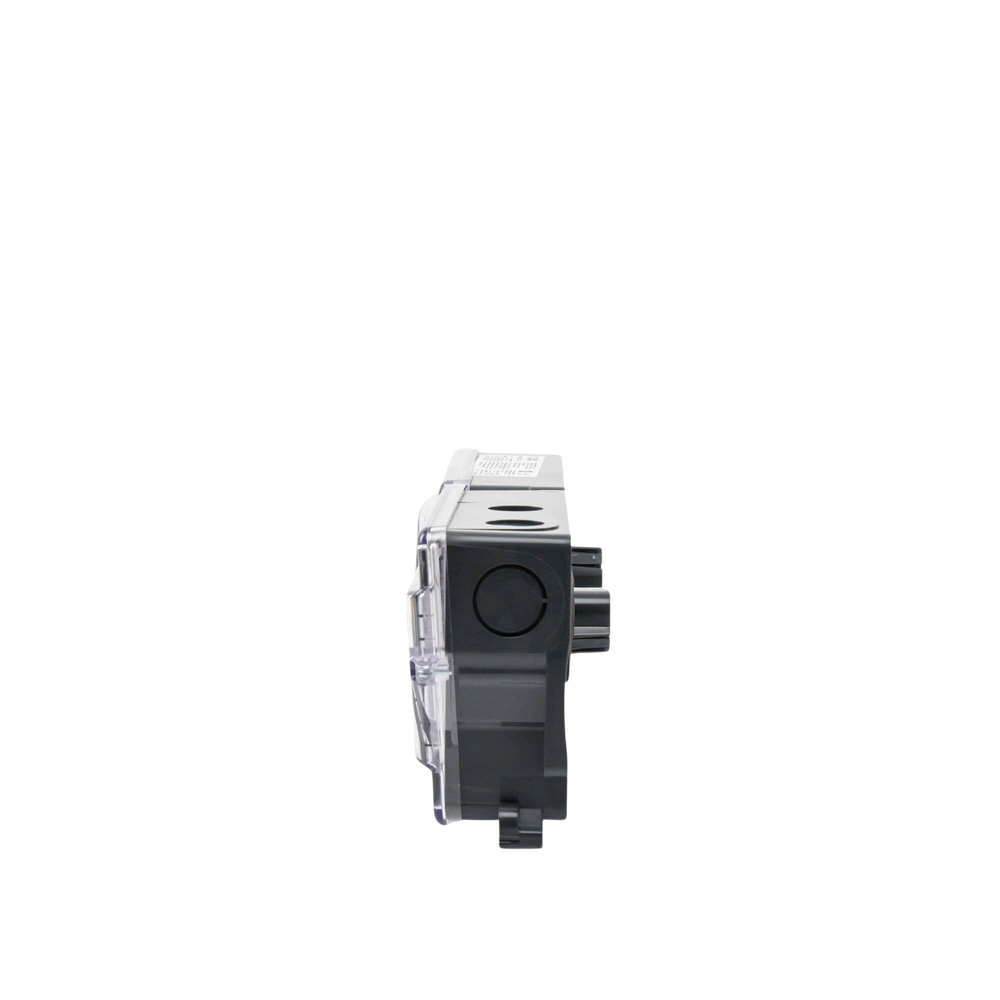

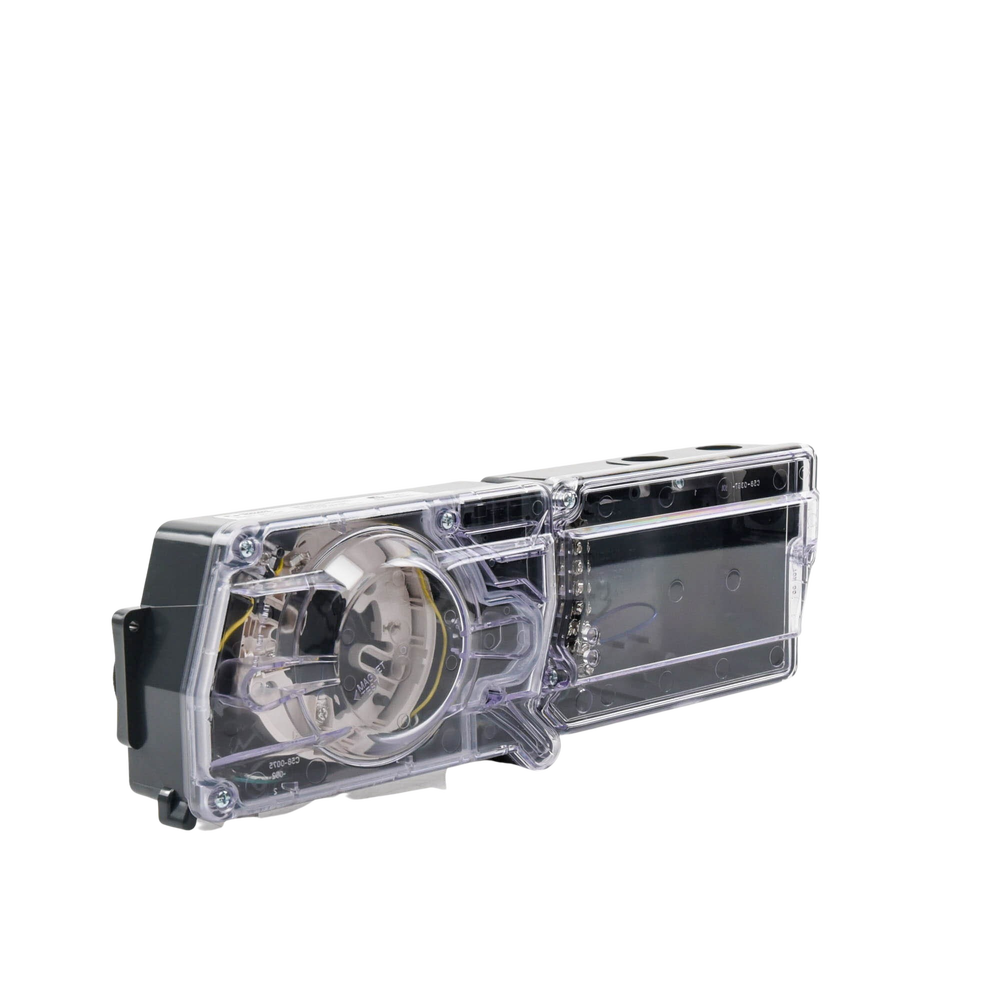

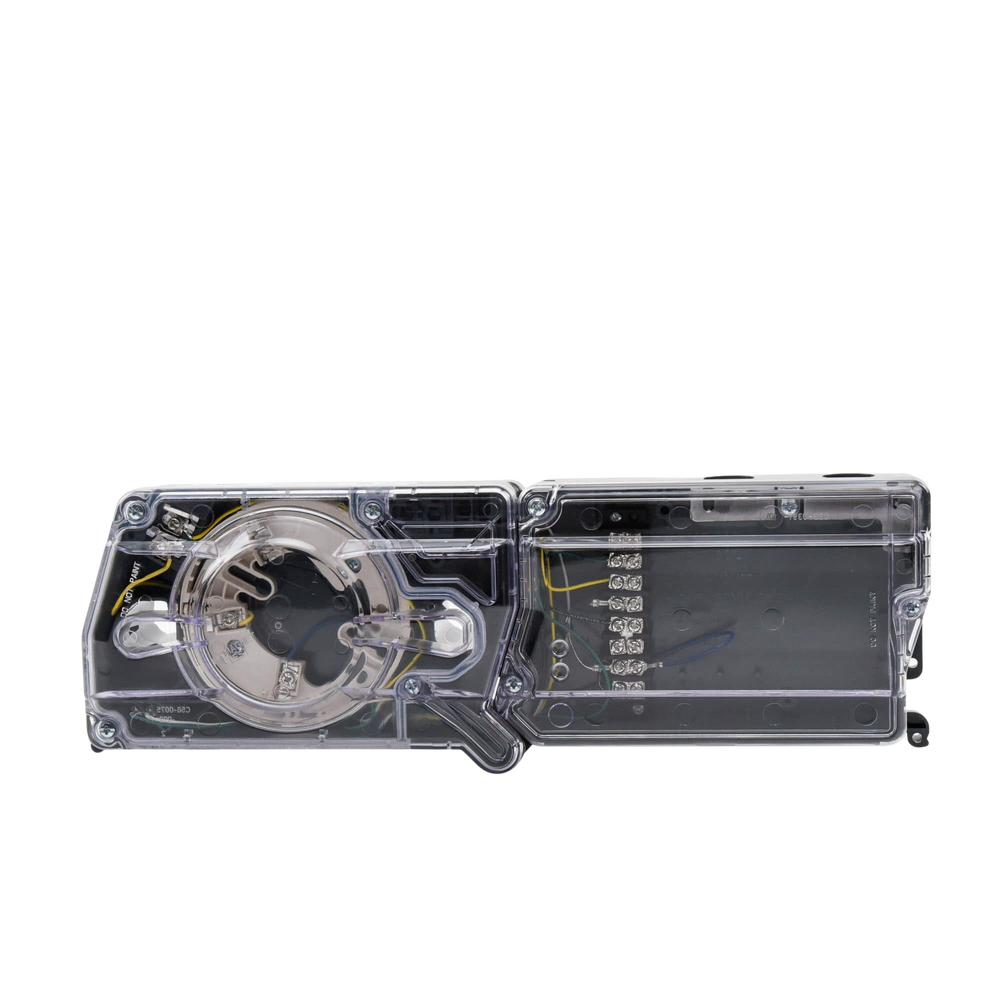

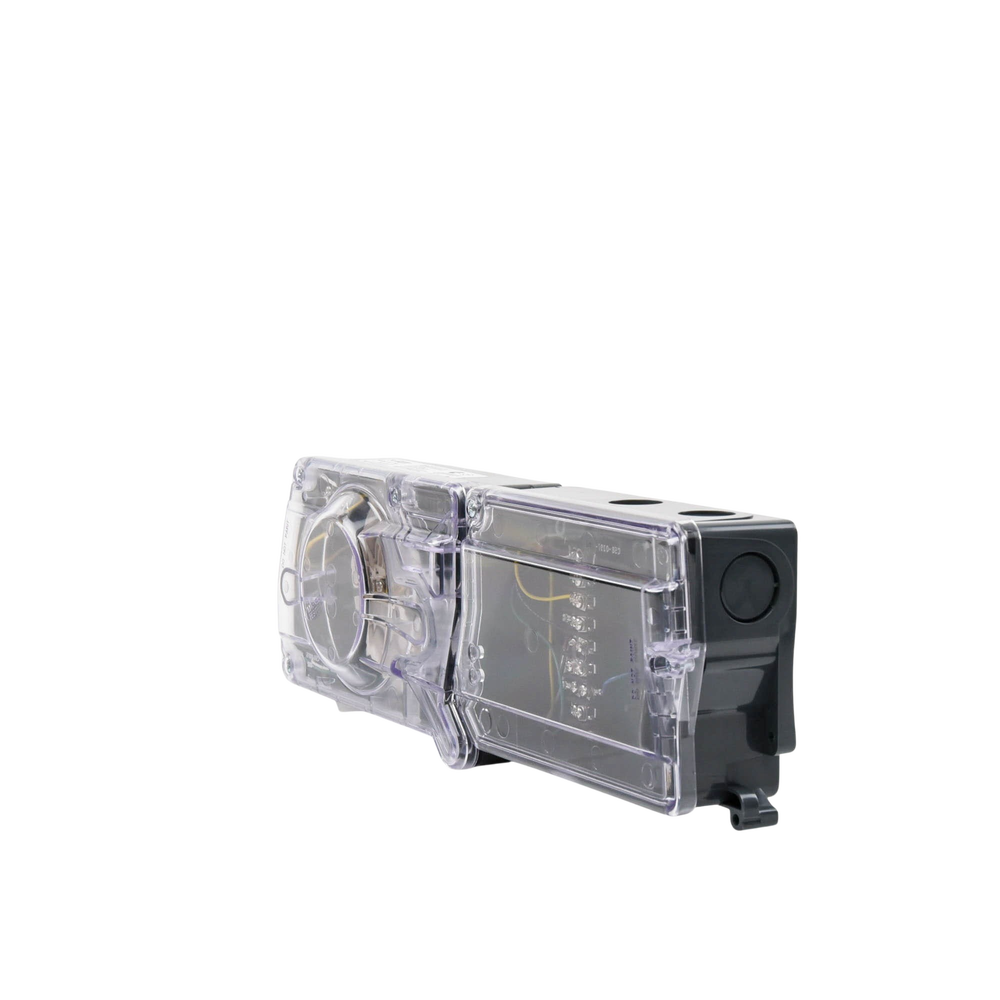

Housing for Conventional or Addressable Smoke Detection in Ducts

Housing for Conventional or Addressable Smoke Detection in Ducts

Advanced IDP and SK Series of Detectors and Modules for Silent Knight Panels

The IDP and SK Series Detectors and Modules are intelligent addressable devices for use with Silent Knight Analog Addressable Panels. They communicate with the Fire Panel via the Signaling Line Circuit (SLC) using a two-wire connection; no shielded or twisted pair cable is required. Up to 99 detectors and 99 modules can be connected per loop (the IFP2000 panel can have up to 159 detectors and 159 modules per loop). Any combination of IDP or SK addressable devices can be used on a single SLC loop.

• Compatible with SD365, IDPPHOTOW and SKPHOTOW detectors
• Air speed : 0.5 to 20.32 meters per second
• Supports Class A and Class B wiring
• The DST3 sampling tube installs from the front or rear without the need for tools (not included)
• UL Listed
• Provides trouble signal in case the sensor is removed or improperly installed
