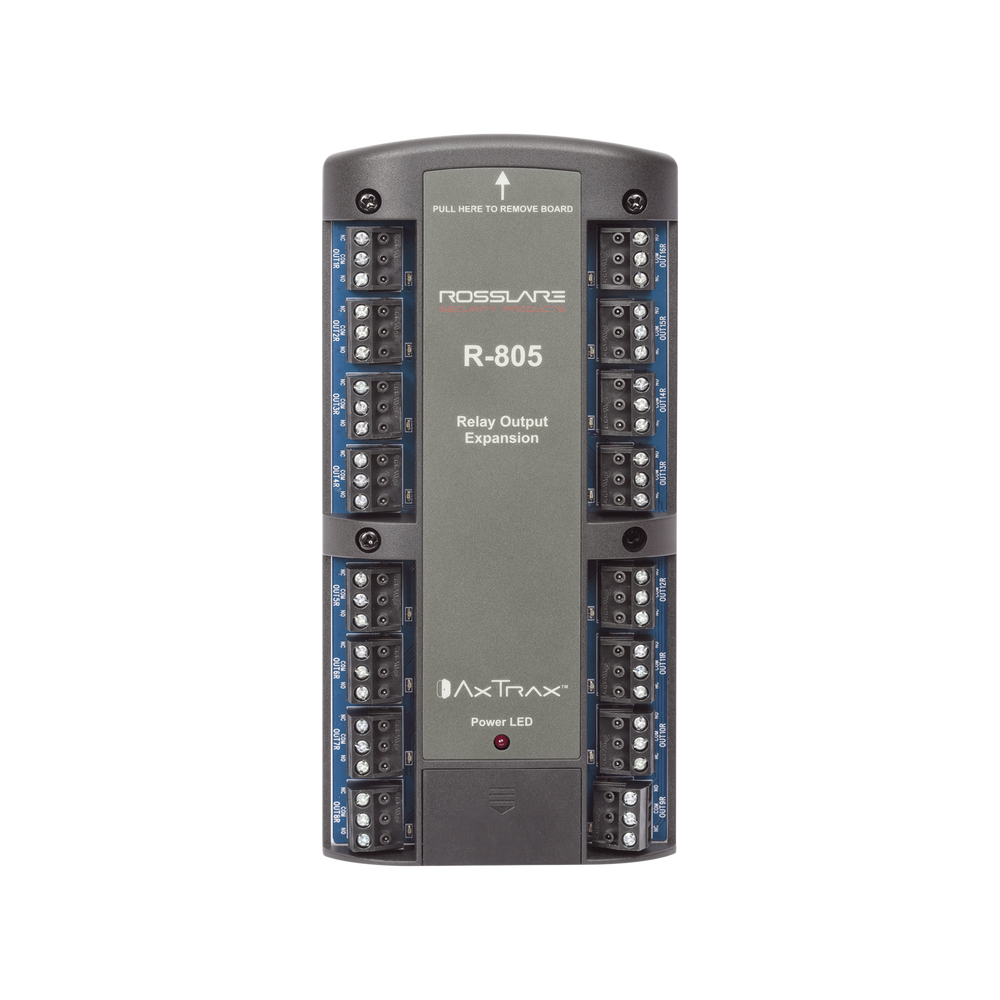

16-output relay expansion card for AC825IP

It is one of the 4 expansion cards in the new AC825IP series of controllers.
Ideal for residential and commercial solutions. The expansion card increases the flexibility of the access control system by adding 16 relays to the system.

MAIN FEATURES

• Compatible with AC825IPL panel.
• A single expansion card can be connected directly to the main board, and up to 16 expansion cards can be supported via the OSDP port.
• 16 5A Type C Relays.
• Wiegan, Clock and Data data transmission formats.
• LED indicator of power supply status and relay status.
• Better and faster modular installation.

NOTE Only one expansion card can be installed in the panel directly, if more are to be installed in the system, the ME-1505 cabinet is required for each pair of expansion cards.
