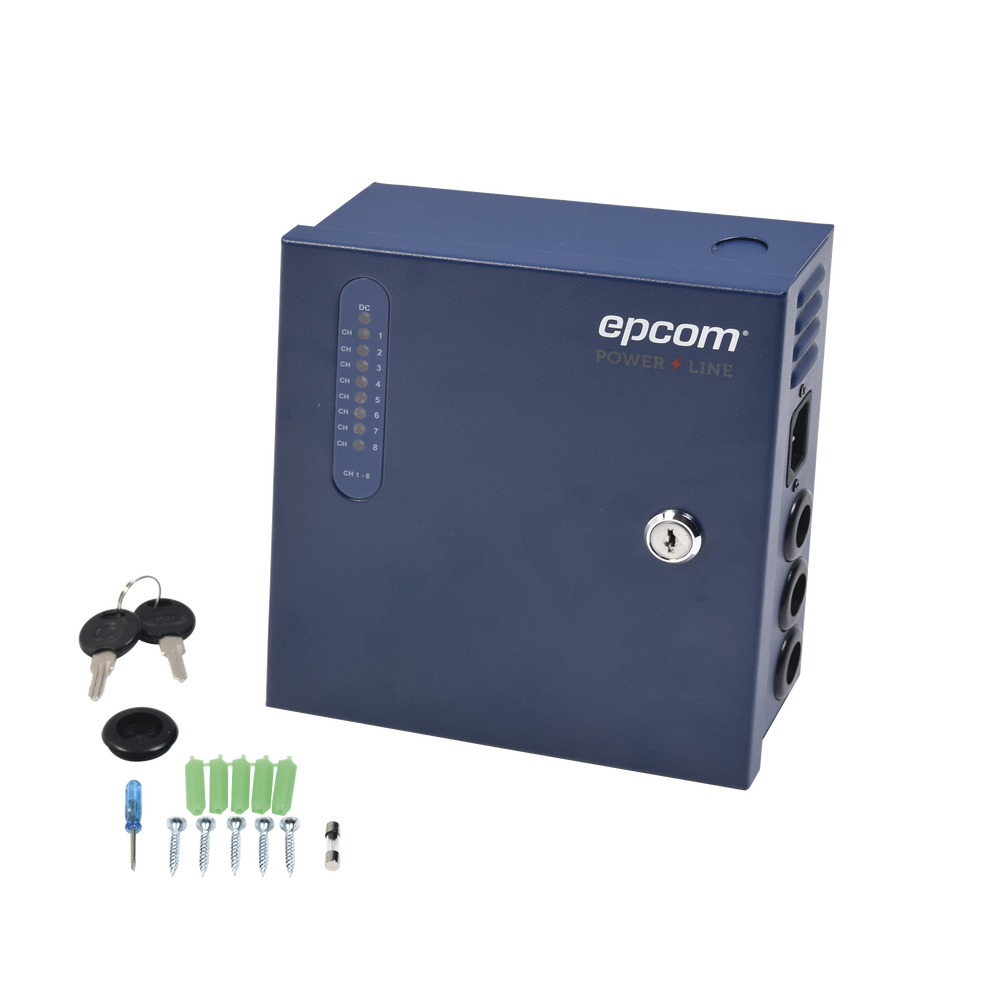

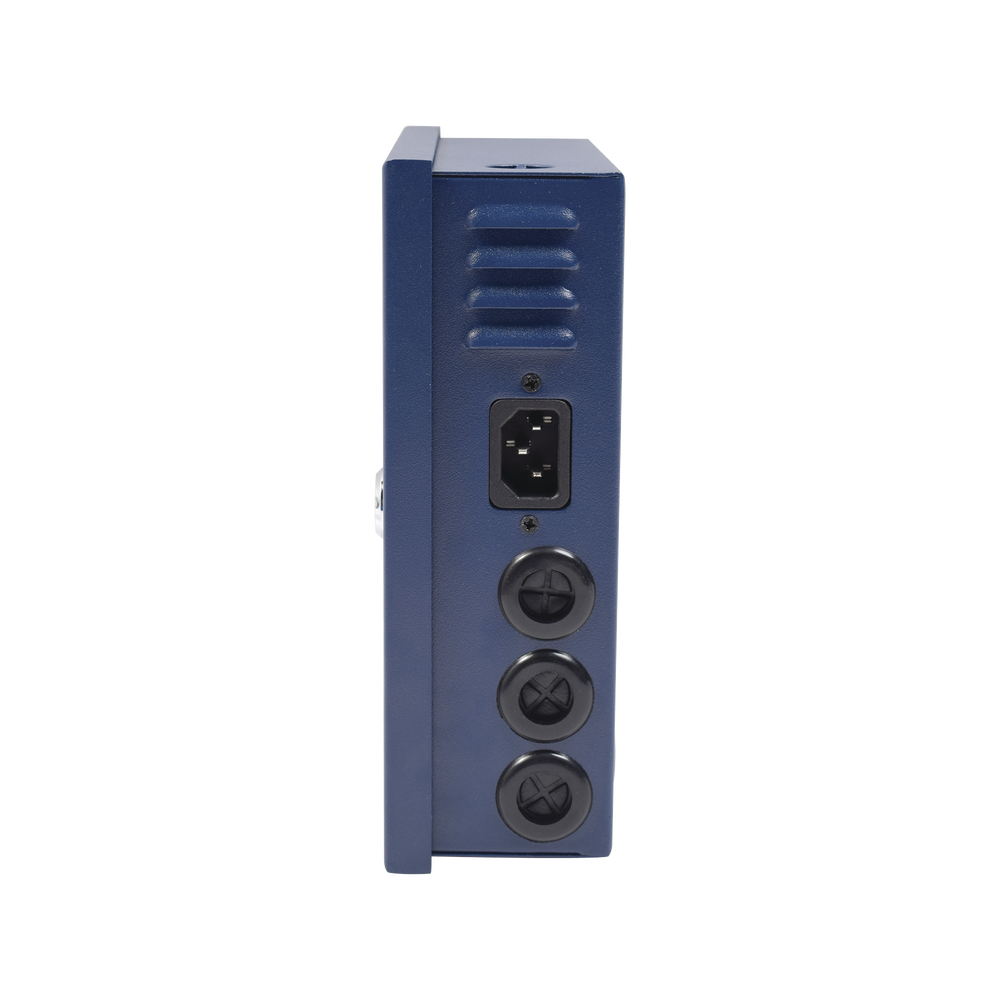

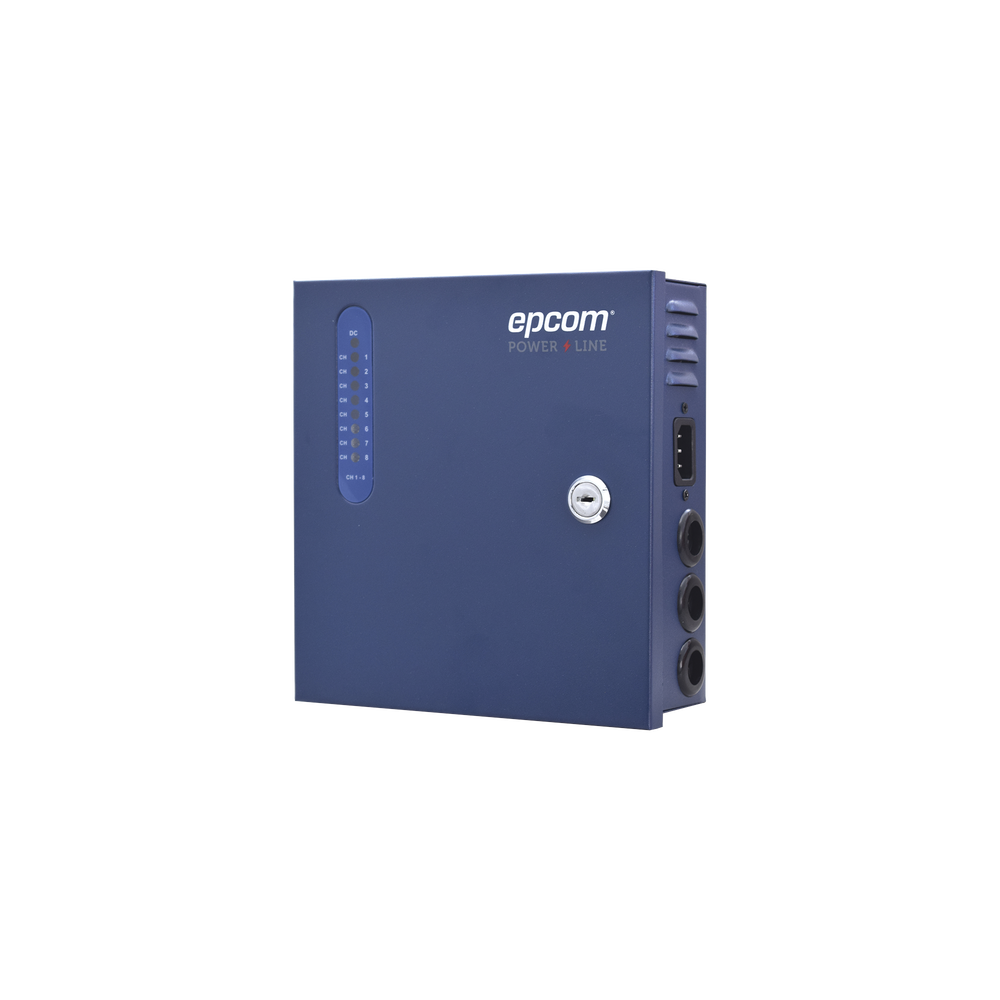

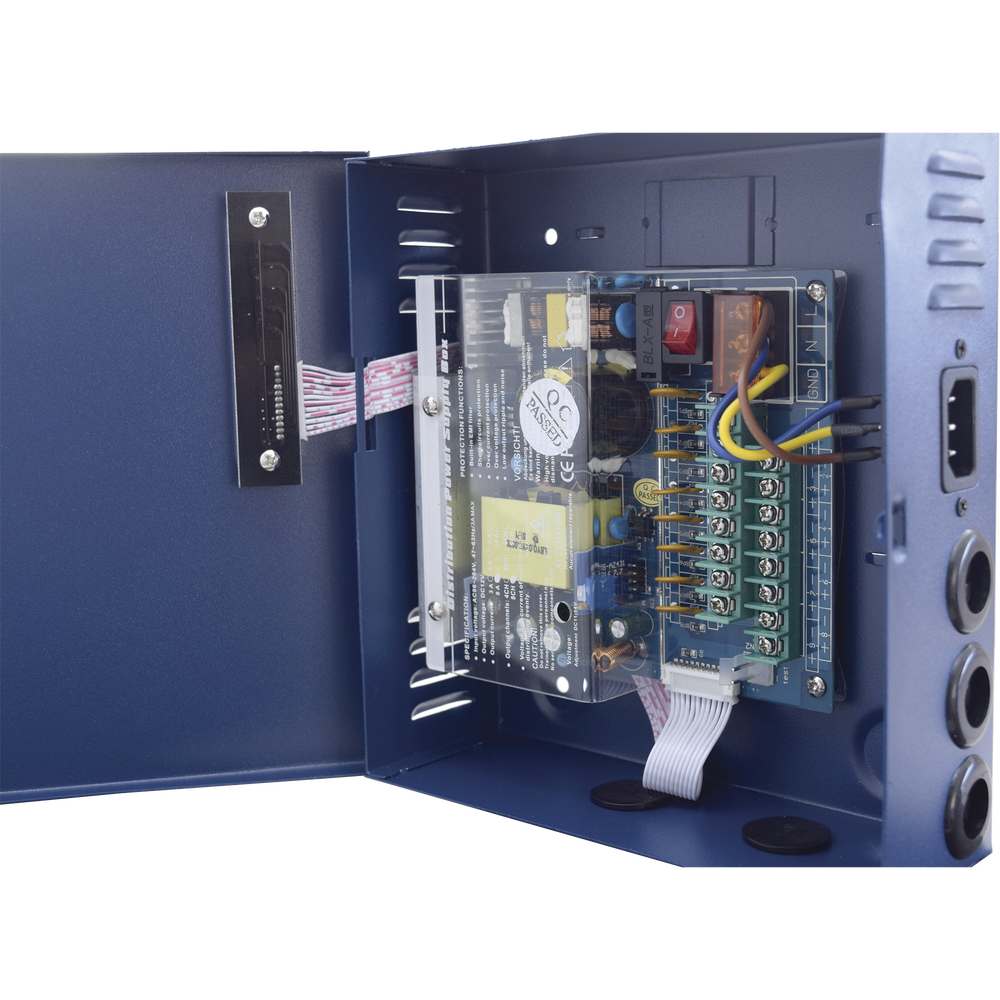

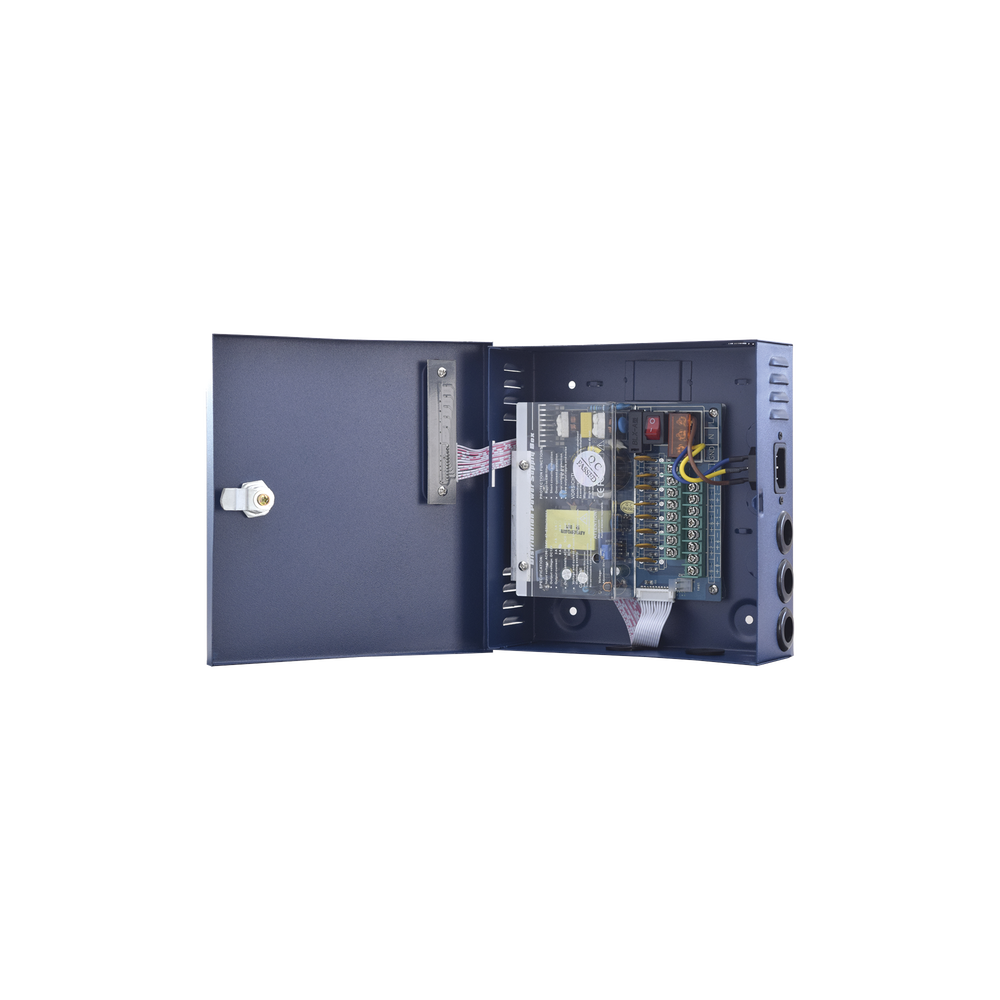

Professional 12-15 VDC @ 8 Amp power supply for 8 cameras, input voltage: 96-264 VAC

Professional 12-15 VDC @ 8 Amp power supply for 8 cameras, input voltage: 96-264 VAC

The new generation of power supplies specializes in providing efficient power, providing a better solution in security systems, unique in using chips
"Fairchild" in every power supply.
They are widely applied in security systems such as CCTV, alarms, access control.
These sources are certified with international standards such as CE, ROHS, FCC.

Characteristics:

• Easy to install fountain.
• Short circuit, over current and over voltage protection.
• 5 KA overcurrent protection
• Air convection cooling system.
• External indicator LEDs for each channel output.
• Built-in EMI filter against electromagnetic interference.

Specifications:

• Input voltage: 96-264 Vac.
• Output voltage: 12-15 Vdc.
• Output current: 8 Amp.
• Output power: 120 W.
• Output channels: 8.

Protection:

• Overcurrent protection: 120-150%
• Overvoltage protection: 20-150% (At rated output voltage)
• Short circuit protection: cuts off the output voltage, with automatic reset.

Safety standards:

• IEC/EN/CSA, 60950 GB4943

Operating temperature:

• -20 °C to 70 °C

Dimensions:

• 289 x 215 x 65 mm
