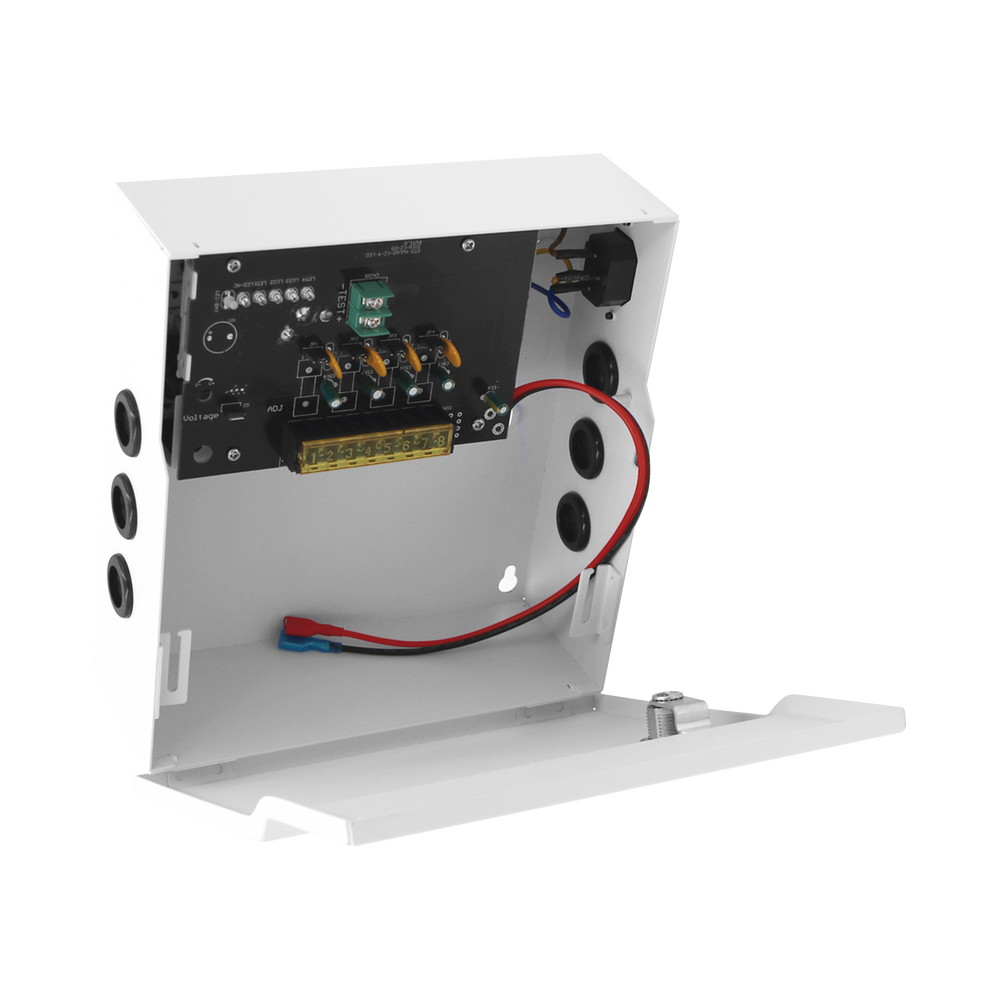

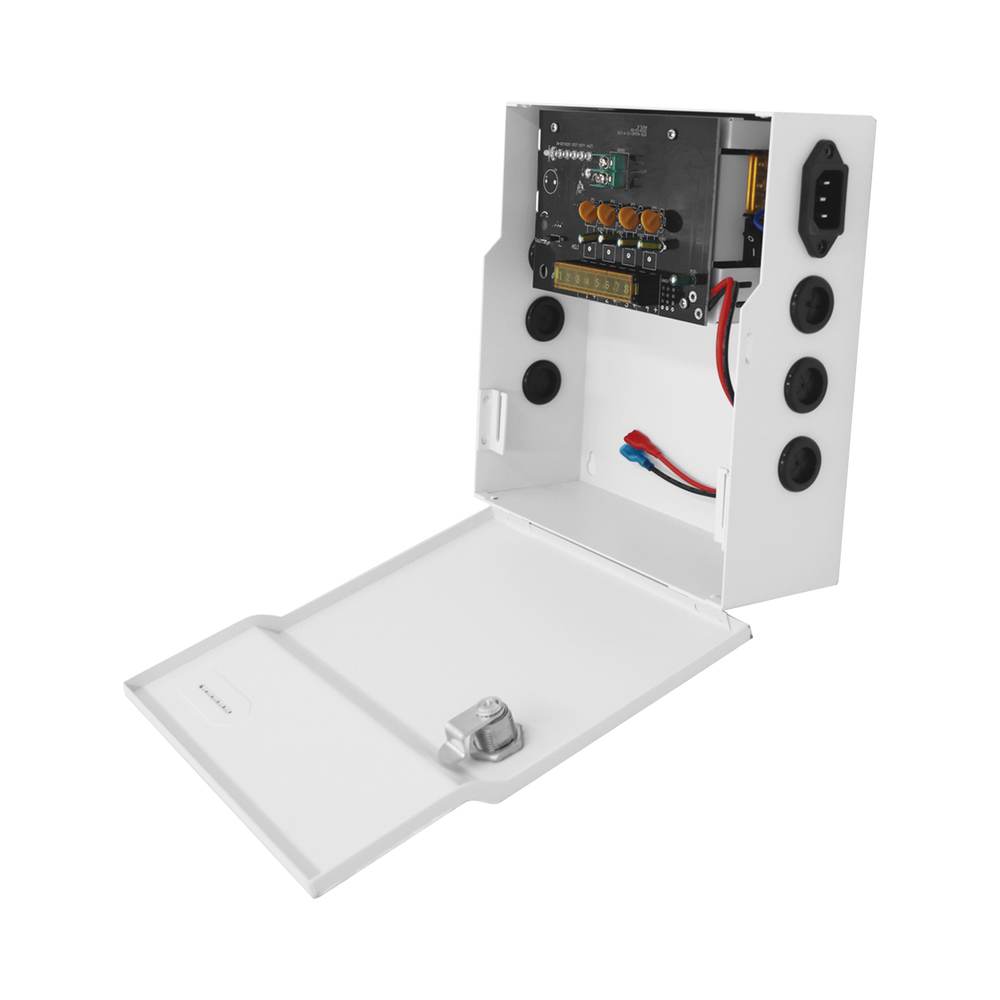

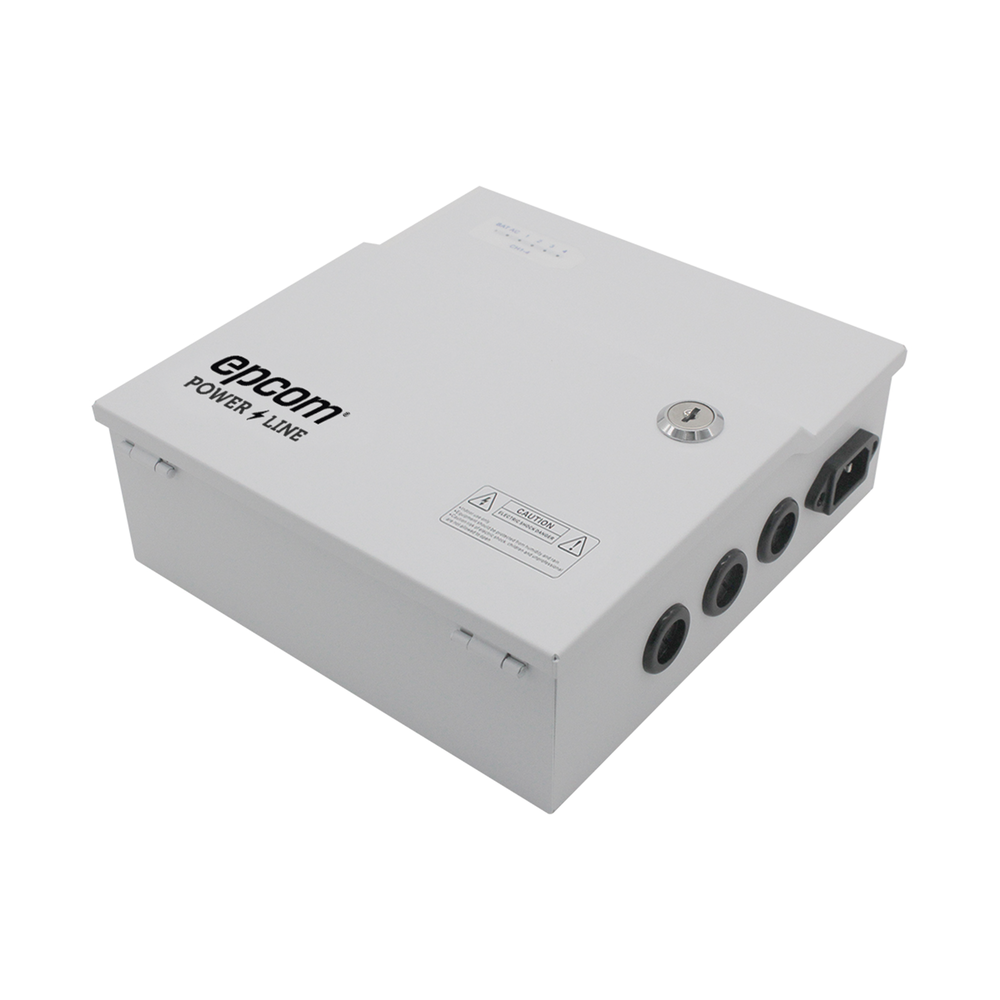

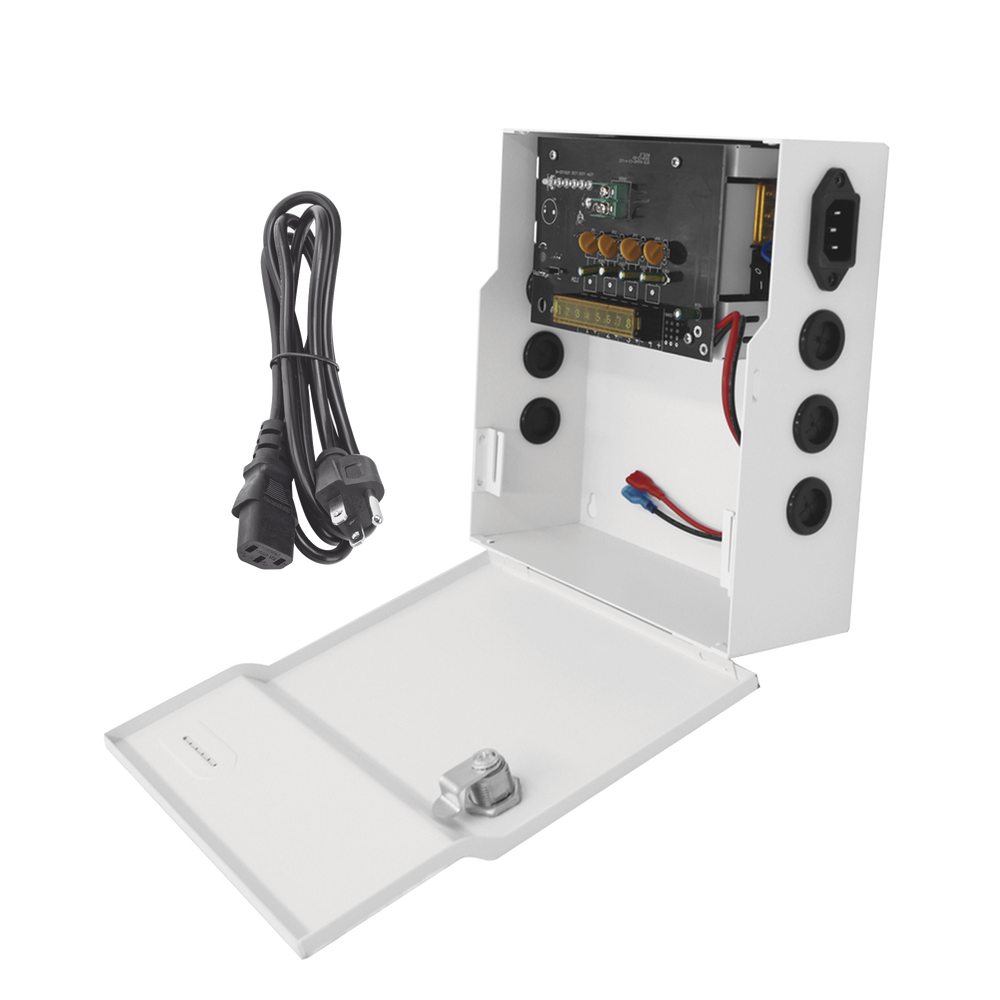

Professional 12V DC @ 4A Power Supply / Supports 4 Cameras / Backup Battery Capacity (Not Included) / Input Voltage 96-264V AC

Professional 12V DC @ 4A Power Supply / Supports 4 Cameras / Backup Battery Capacity (Not Included) / Input Voltage 96-264V AC

The new generation of power supplies specializes in providing efficient power, providing a better solution in security systems, unique in using chips
'Fairchild' in every power supply.
They are widely applied in security systems such as CCTV, alarms, access control.
These sources are certified with international standards such as CE, ROHS, FCC.

Characteristics:

• Easy to install fountain.
• Short circuit, over current and over voltage protection.
• With backup battery capacity.
• Battery not included.
• Suggested batteries: PL4.512 / PL712 / PL912.
• Air convection cooling system.
• External indicator LEDs for each channel output.
• Built-in EMI filter against electromagnetic interference.

Specifications:

• Input voltage: 96-264 Vac.
• Output voltage: 12 Vdc
• Output current: 5 Amp.
• Output power: 60 W.
• Output channels: 4.

Protection:

• Overcurrent protection: 120-150%
• Overvoltage protection: 20-150% (At rated output voltage)
• Short circuit protection: cuts off the output voltage, with automatic reset.

Safety standards

• IEC/EN/UL/CSA, 60950 GB4943

Operating temperature

• -20 °C to 45 °C


Dimensions:

• 202 x 216 x 73 mm

* Requires 12V DC backup battery.

- 5 Year Warranty.
