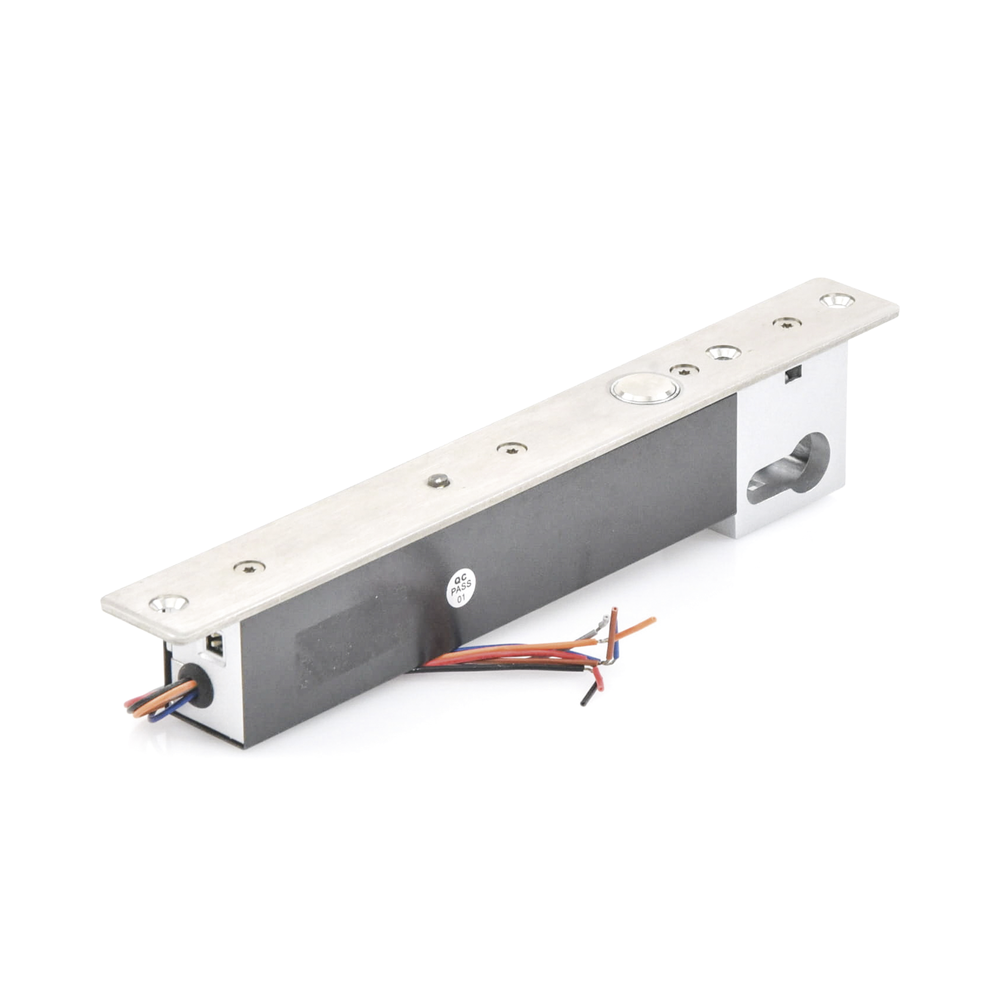

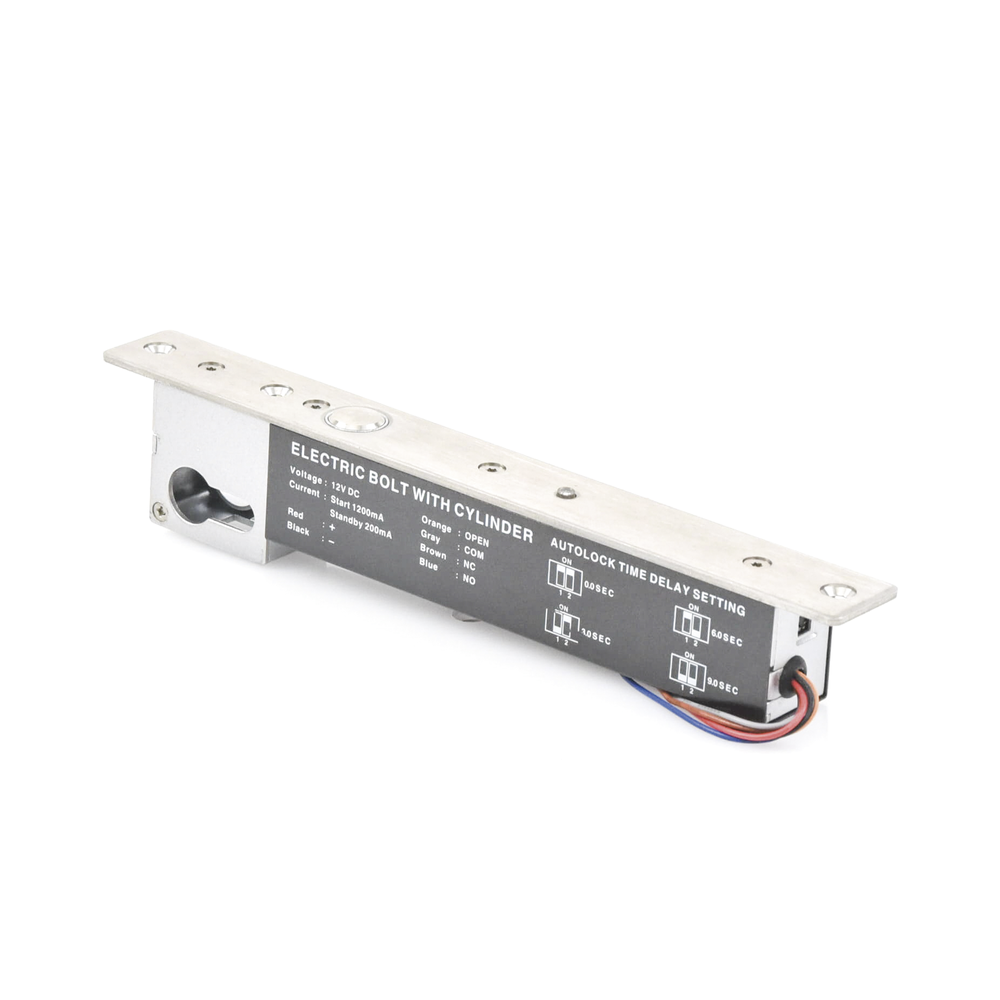

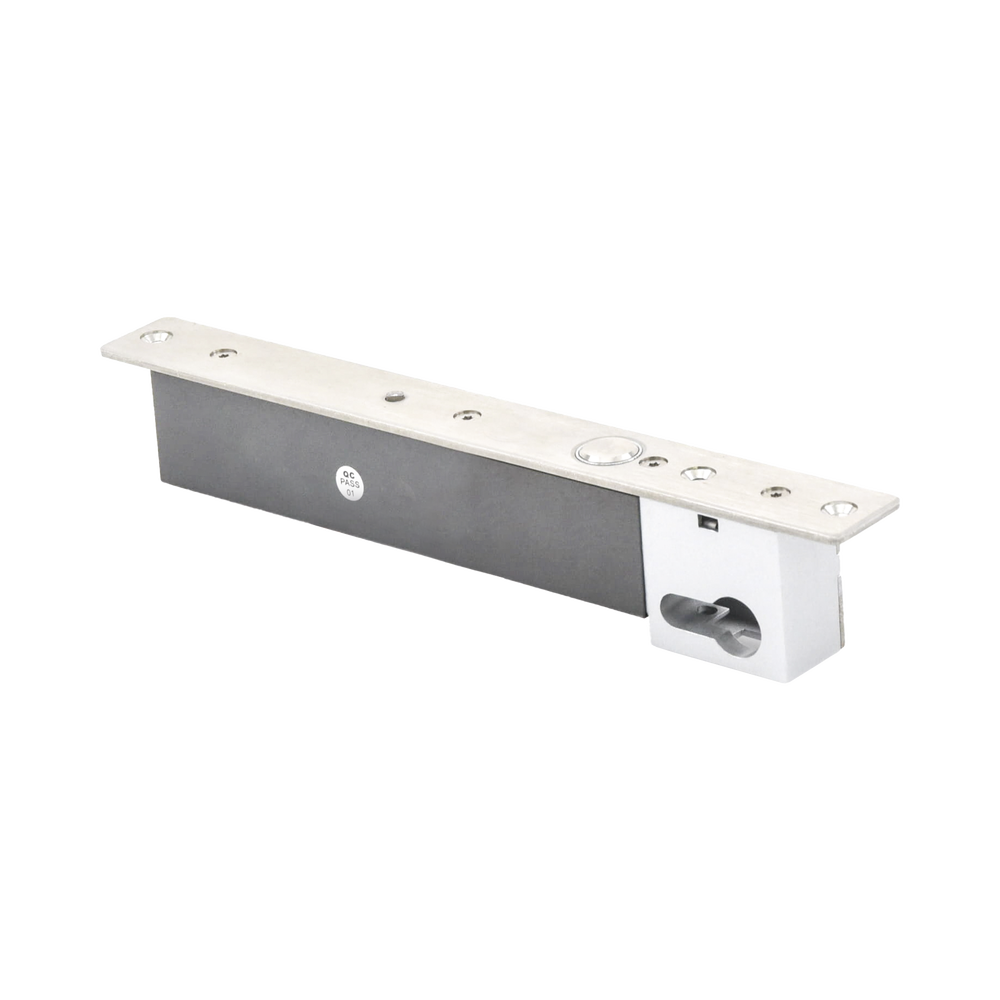

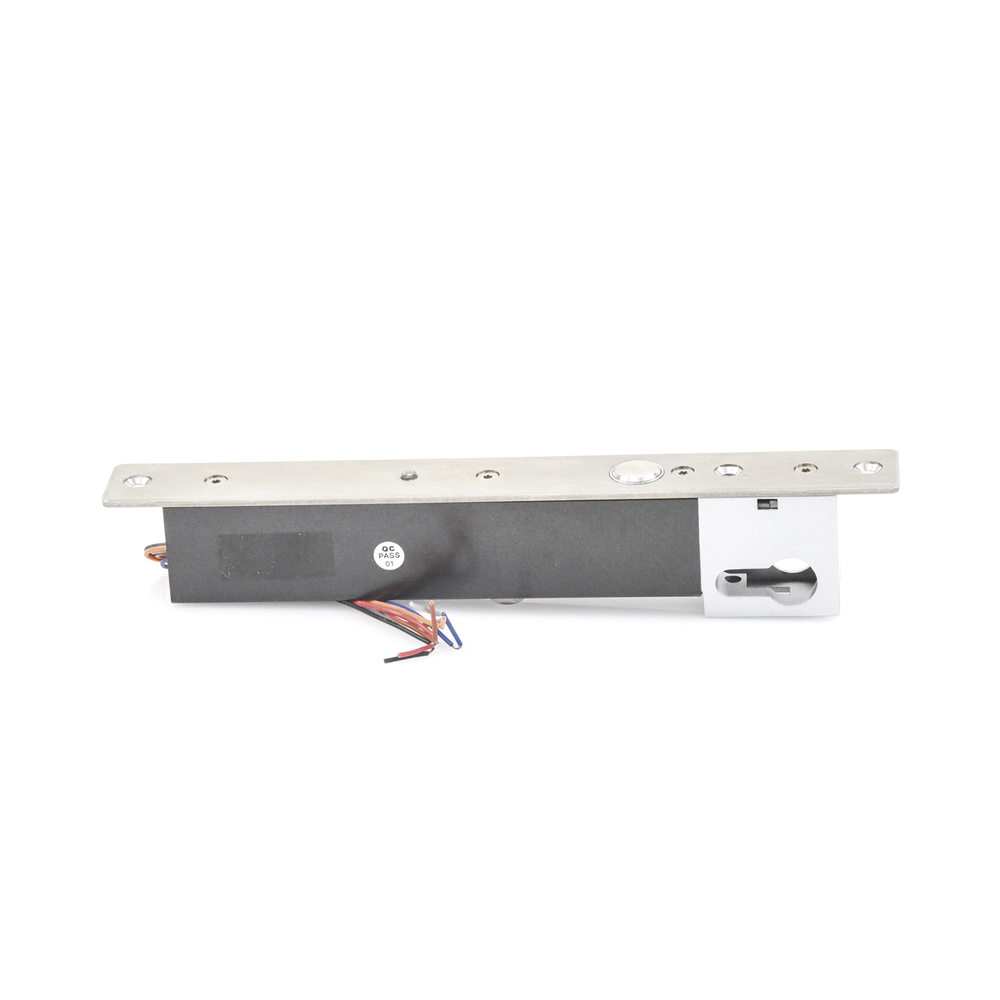

Electric Bolt Lock Open in case of failure with key opening in case of emergency

Electric Bolt Lock Open in case of failure with key opening in case of emergency

• Fail-open: Opens when energized
• Supply voltage: 12 VDC
• Current consumption: 1200 mA in operation, 200 mA in standby.
• Includes LED.
• Tested for over 500,000 cycles.
• Timer: 0, 3, 6, 9 sec
• Door sensor output: NC, NO, COM
• Bolt dimension: 16mm DIA
• Lock dimensions: 260 x 30 x 48 mm
• Plate dimensions: 100 x 25 x 2.5 mm
• Weight: 1.8 Kg.
• Certification: CE&MA
• Warranty: 2 Years.
