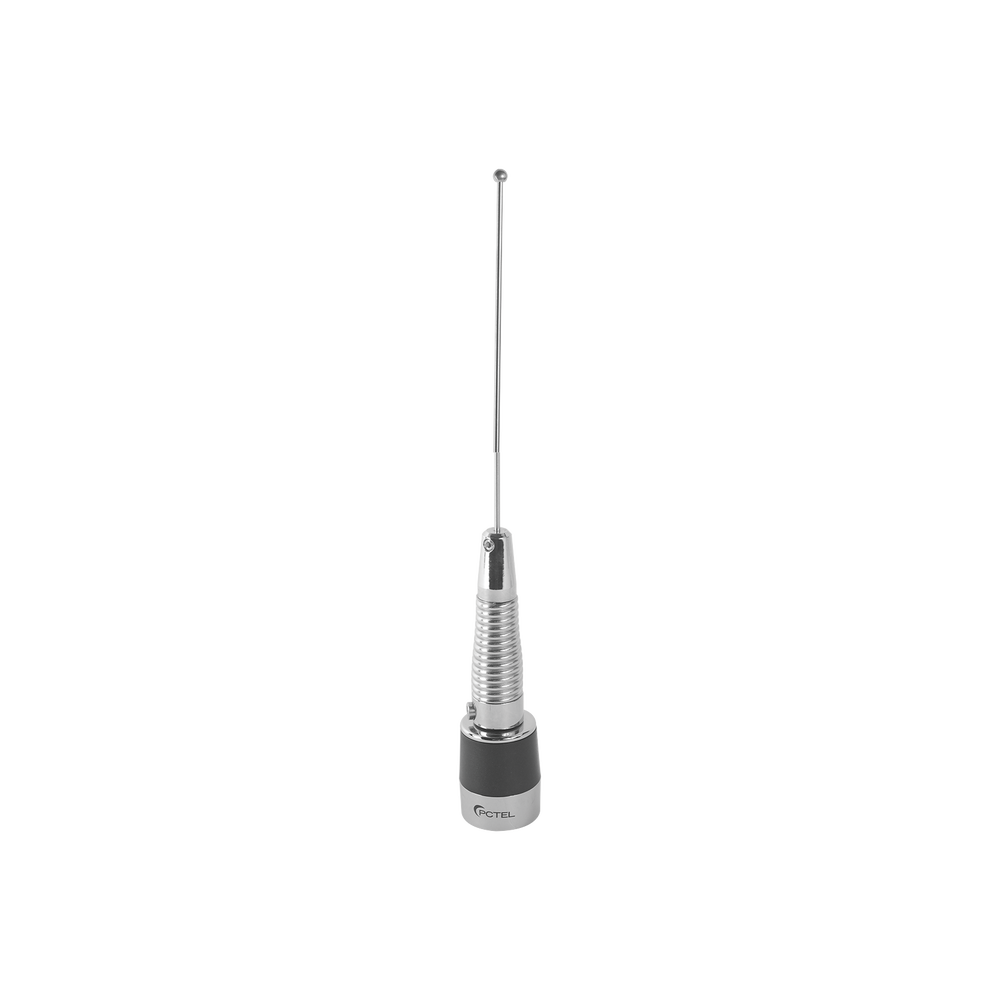

MAXRAD Heavy Duty Antenna, Frequency Range 430-450 Mhz

MAXRAD Heavy Duty Antenna, Frequency Range 430-450 Mhz

Model: MUF4303.
Frequency Range: 430-450 Mhz.
Factory Tuned Frequency: Field tunable.
Gain with/without Ground Plane: ​ 3 dB.
Maximum Power: 200 watts.
Nominal Impedance: 50 ohms VSWR: < 1.5:1.
Radiator Material:
.100” - diameter stainless steel (UHF models).
.125” - .100” diameter tapered stainless steel (MHB5800HD models).
Grounding: DC Grounded (MHBDC models only).
Optional Spring: Stainless steel.
Base Coil Housing: Molded polymer jacket with copper, nickel and chrome plated bushing.
Antenna Type: Base loaded 5/8 Wave.
