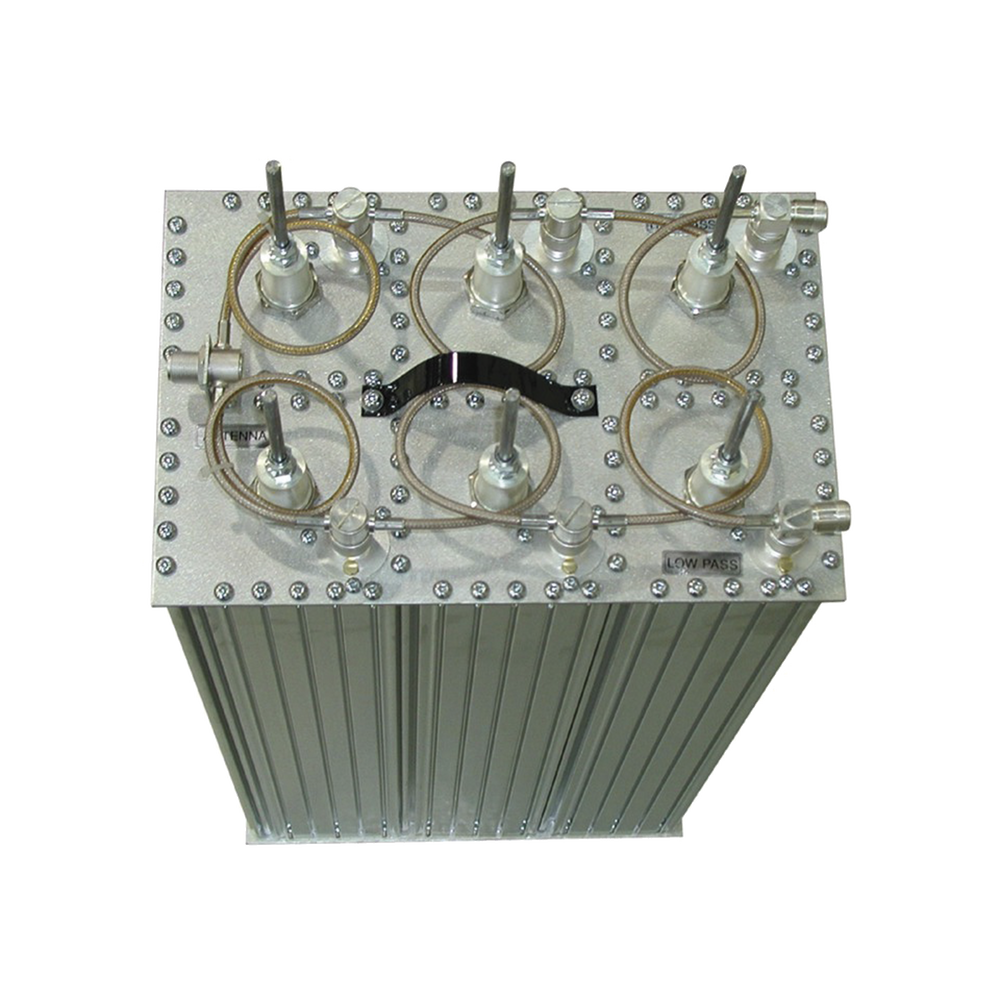

SINCLAIR Duplexer, 6 Cavities, 138-174 MHz, 85 dB Isolation @ 500 kHz Tx-Rx Separation, Rack Mount, N Females, 350 W.

SINCLAIR Duplexer, 6 Cavities, 138-174 MHz, 85 dB Isolation @ 500 kHz Tx-Rx Separation, Rack Mount, N Females, 350 W.

SINCLAIR Duplexer, 138-174 MHz, 6 Cavities, 500 kHz Sep. 350 Watt.

• 1/4 wave Band Pass Filters.
• Reduces interference, intermodulation and desensitization.
• Eliminates spurious radiation.
• Silver-plated copper/bronze inner conductors to eliminate corrosion and improve performance.
• Recommended in areas of high interference
• 1 year warranty.

Specs:

• Frequency range: 138-174 MHz.
• Minimum insulation: 85 dB.
• Impedance: 50 Ω.
• Maximum power: 350 W.
• Frequency separation (min.): 0.5 MHz.
• Maximum insertion loss: 1.5 dB.
• Cavities: 4 (4' Diameter).
• Connectors: N Female.
• Operating temperature: -40 to 60ºC.

*Ask for delivery time.
