MIKROTIK

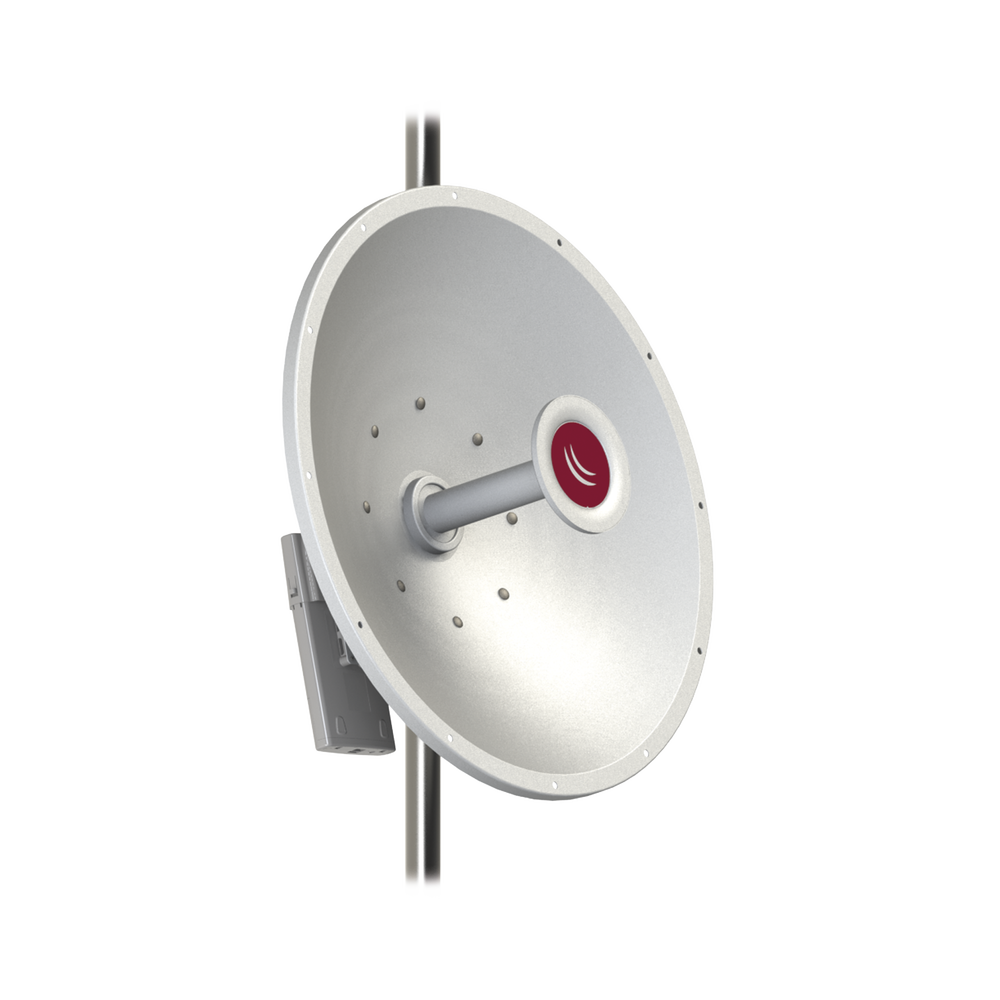

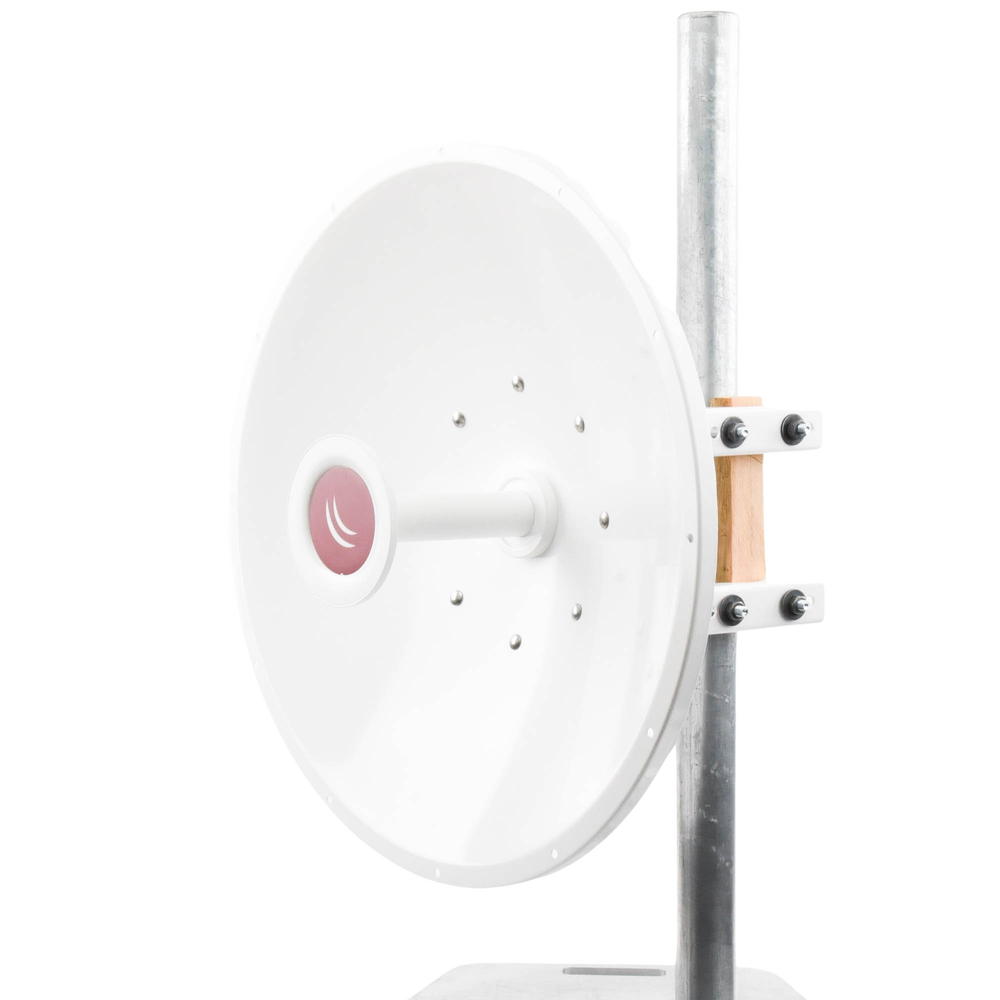

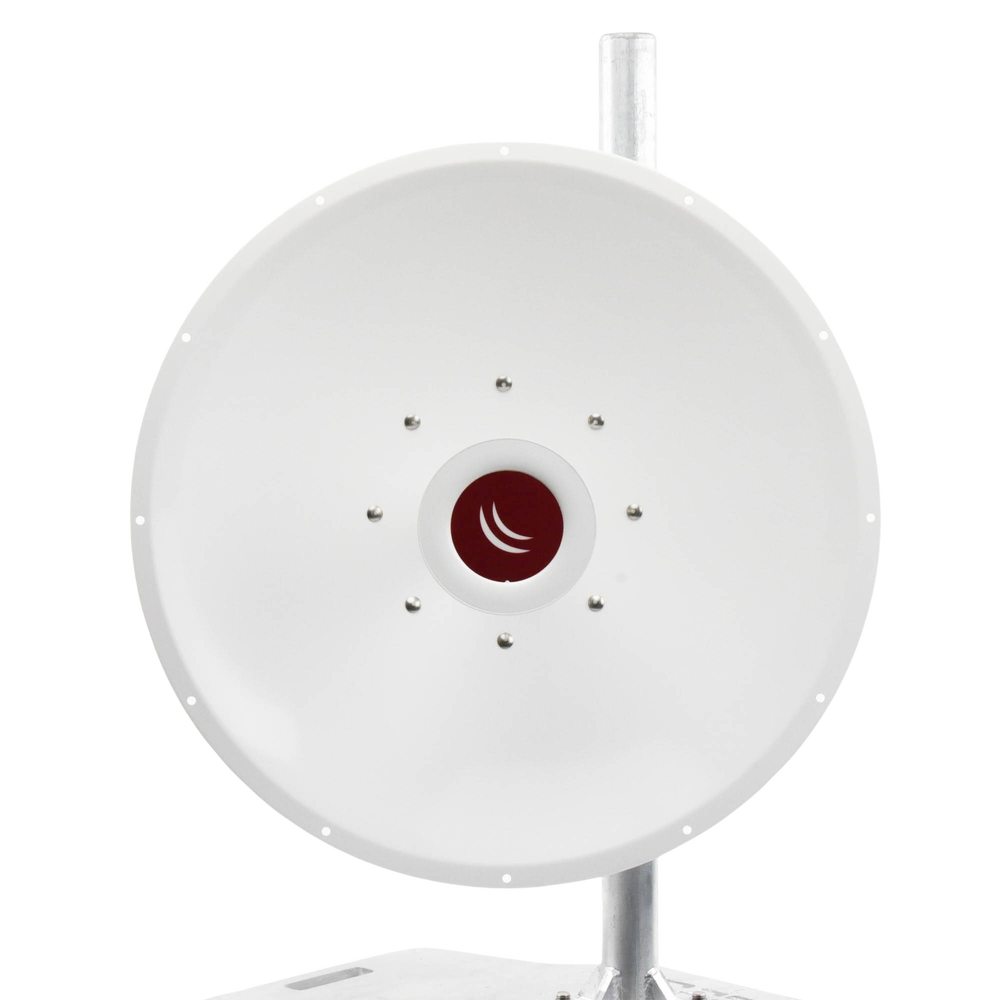

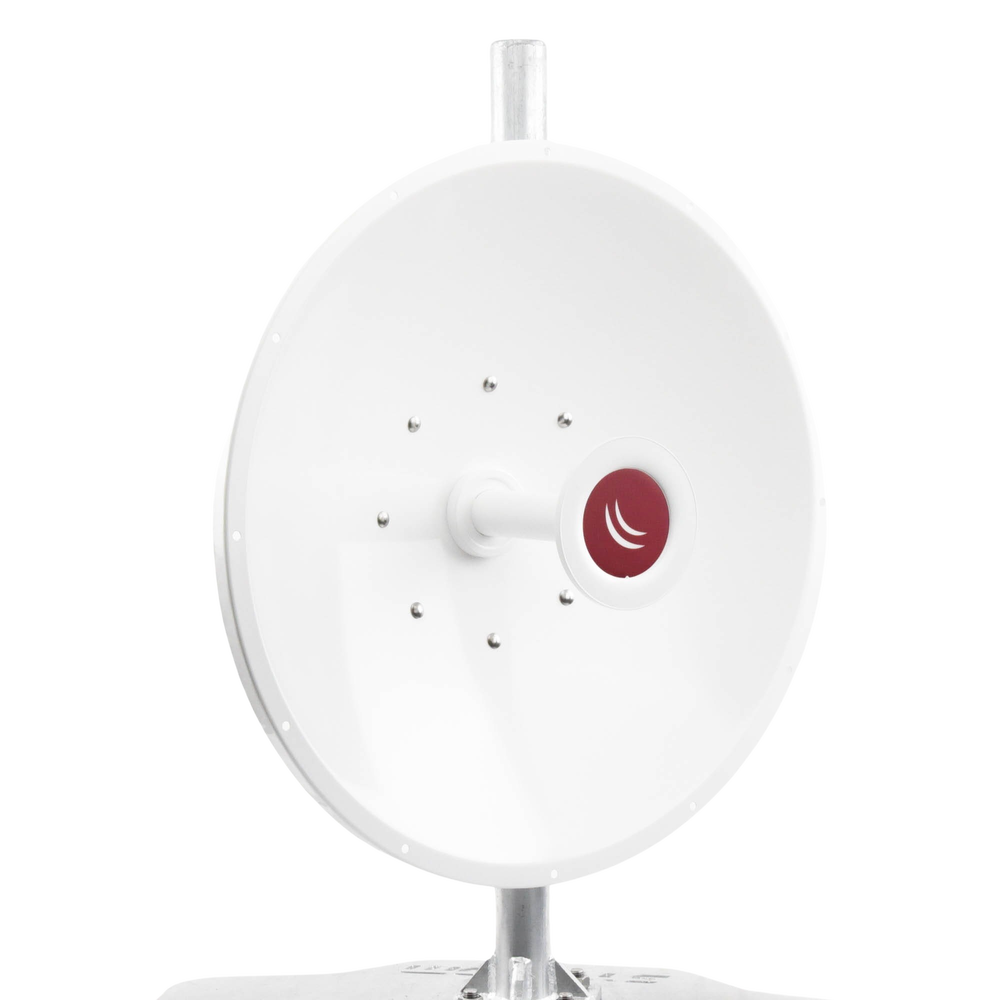

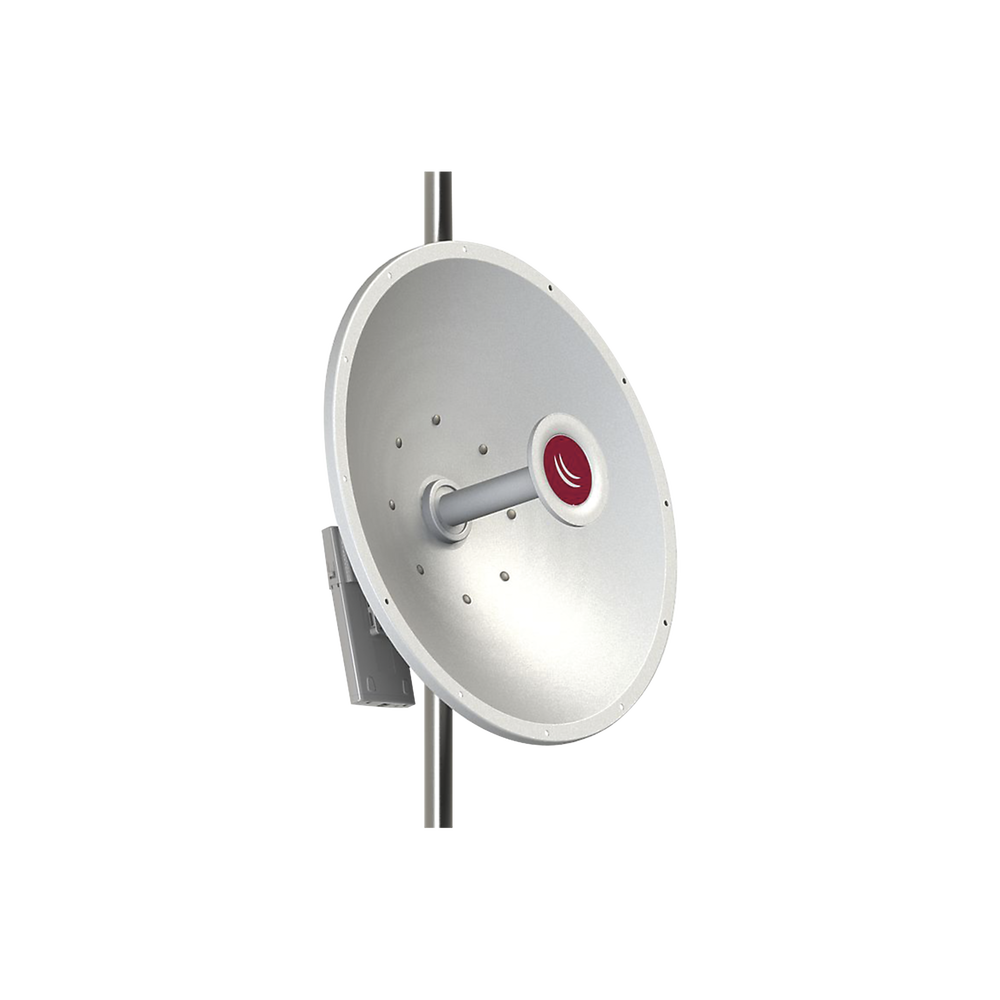

(mANT30 PA) 4.7 - 5.8 GHz directional antenna, 30dBi gain, SMA female connector. With precision alignment mount.
(mANT30 PA) 4.7 - 5.8 GHz directional antenna, 30dBi gain, SMA female connector. With precision alignment mount.
Regular price
$1.088.765 COP
Regular price
$1.190.837 COP
Sale price
$1.088.765 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
(mANT30 PA) 4.7 - 5.8 GHz directional antenna, 30dBi gain, SMA female connector. With precision alignment mount.
The mANT30PA is a professional 5 GHz 30 dBi parabolic antenna, built to the highest industry standards. Designed to perfectly fit our connectorized MikroTik products, it can also be used for any pole-mounted wireless device thanks to the included FlexGuide cable's convenient length.

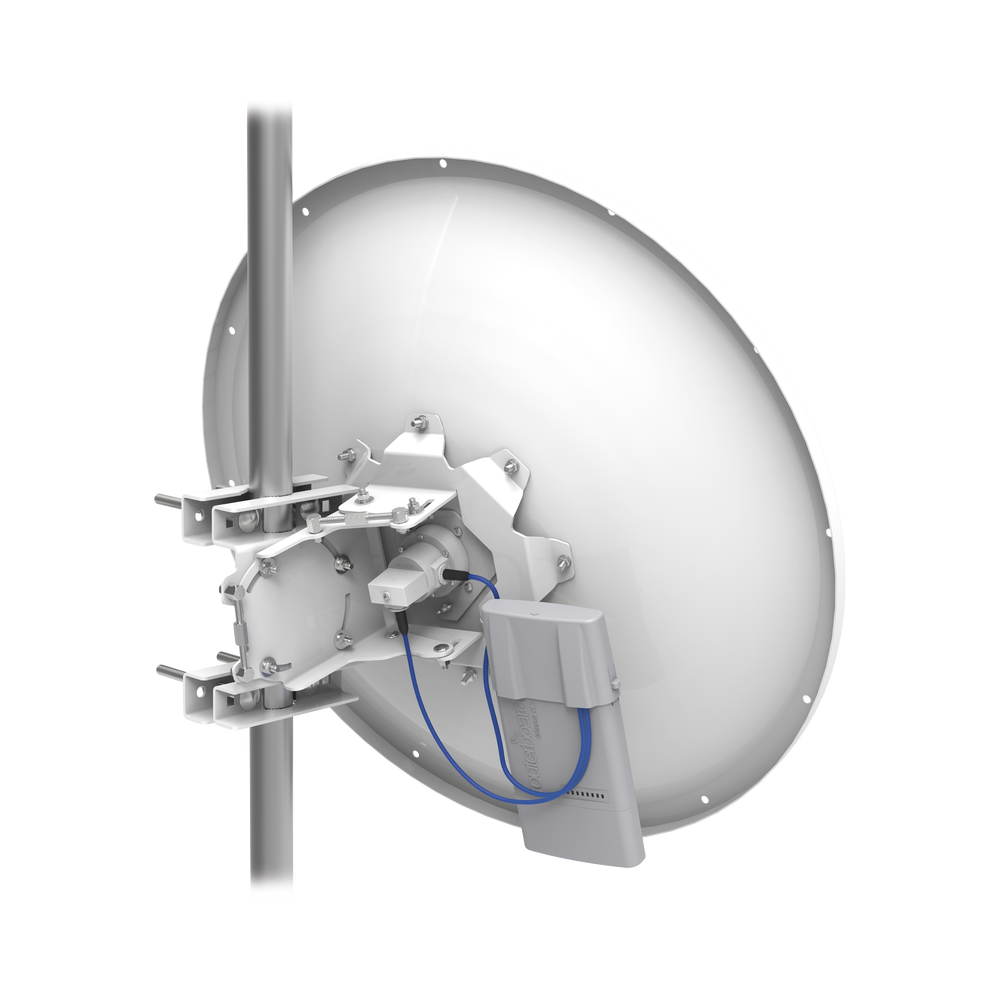

The antenna includes a precision alignment mount and the necessary cables or jumpers for its connections.
Note : The Basebox wireless device illustrated is not included.
Product specifications
| Details | |
|---|---|
| Product code | MTAD-5G-30D3-PA |
| Opening | +/- 2.5 degrees |
| Certification | CE, ROHS |
| Connector | 2x RP-SMA Female (external thread) |
| Cross polarization | > 40 dB |
| Diameter x depth | 70 x 45cm (27.5 x 17.8 inches) |
| Elevation adjustment range | +/- 15 degrees |
| Frequency range | 4.7-5.875 GHz |
| Front to back relationship | > 30 dB |
| Impedance | 50 ohms |
| MTBF | Approximately 200,000 hours at 25°C |
| Outdoor rating | ETSI EN 300 019-2-4 |
| Packed size | 73x73x20cm (29x29x8 inches) |
| Packaged weight | 8.4 kg (18.5) |
| Polarization | Vertical and Horizontal |
| Pole Mount Diameter Range | 3 to 10 cm (1.2 to 3.9 in) |
| Port-to-port isolation | > 40dB min |
| Nominal power | 100W |
| Reflector | Aluminum |
| Standards | EN 302326 DN1, DN2, DN3, DN5 |
| Room temperature tested | -50°C to 80°C (-49°F to 158°F) |
| VSWR | ≤ 1.4 typical, ≤ 1.8 max. |
| Weight | 5.7 kg (12.6 lbs) |
| Wind load (125 mph) | 181.4 kg (400 lb), 50 kg at 40 m/s, 28 kg at 30 m/s |
| Wind Survival | 201 km/h (125 mph) |
- 30 dBi Gain, SMA Female Connectors, Withstands Winds of 201 km/h - 125 mph
