Addressable Fire Detection Panel | 318 Points Expandable to 636 Points | Includes Communicator

Addressable Fire Detection Panel | 318 Points Expandable to 636 Points | Includes Communicator

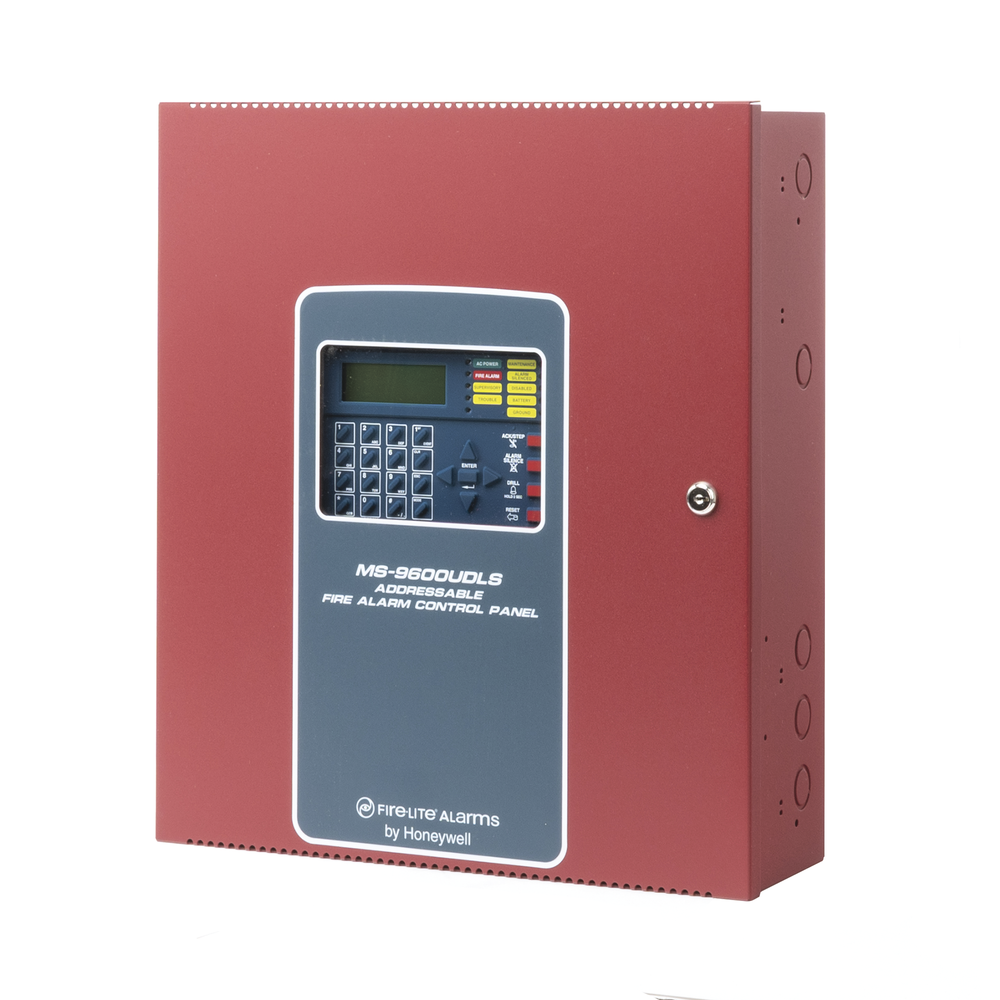

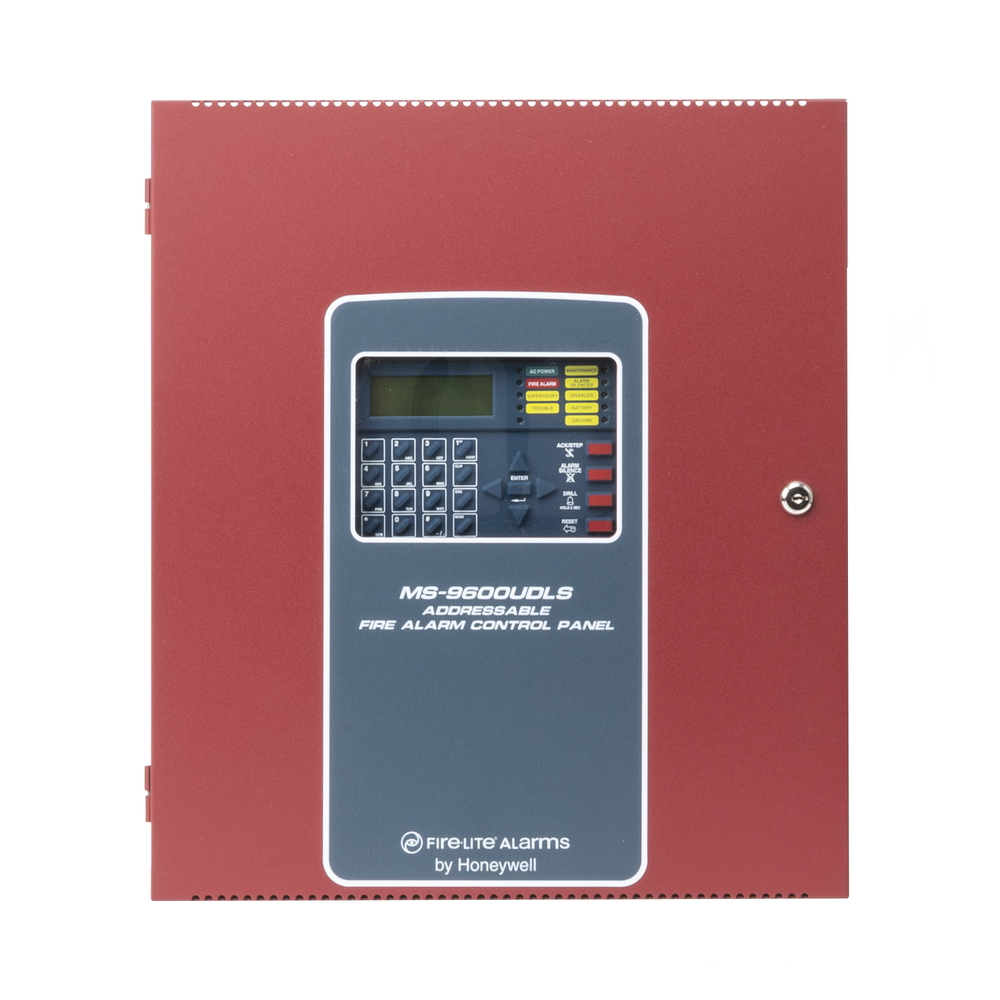

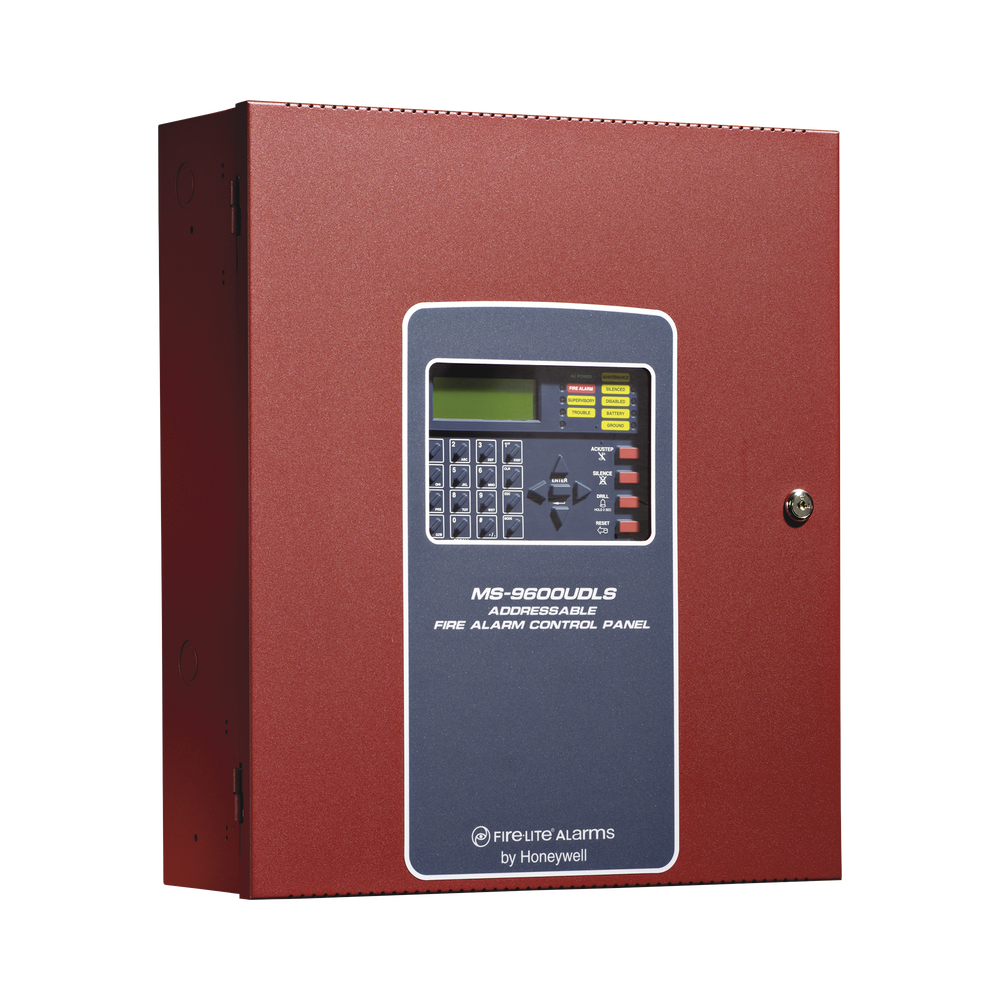

The MS-9600UDLS is a 318-point addressable fire alarm control panel with integrated digital communicator and expandable to 636 addressable points with an optional second SLC signaling circuit.

Characteristics:

• UL, FM, MEA and CSFM Listed
• Up to 159 detectors and 159 control/monitoring modules for a total of 318 devices per SLC loop, expandable to 636 with the SLC-2LS loop expander.
• LiteSpeed ​​protocol for SLC communication, polls 10 devices at once and works with standard unshielded cable
• Integrated digital communicator for monitoring and remote upload/download
• Automatic programming function that quickly configures detectors and modules
• Advanced fire technology including sensitivity testing and automatic drift compensation
• 7 amps distributed across 4 NACs with integrated synchronization for System Sensor®, Gentex®, and Wheelock® devices
• Two programmable relays and one for trouble
• Requires 2 batteries (not included)
• Power supply: 120Vac, 60Hz, 3A
• Dimensions: 482 x 422 x 132 mm



  Scope of a Fire-Lite System





Note: Please quote the detectors models of the 365IV series (SD365IV, H365IV, etc.), to avoid compatibility problems.

159 Detectors, 159 Modules, Expandable to 636 points, Compatible with SWIFT Wireless Sensors
