Addressable Monitor Module / Allows Adding Conventional Sensors to the Panel / Class A and B Wiring / Compatible only with Fire-Lite Addressable Panels

Addressable Monitor Module / Allows Adding Conventional Sensors to the Panel / Class A and B Wiring / Compatible only with Fire-Lite Addressable Panels

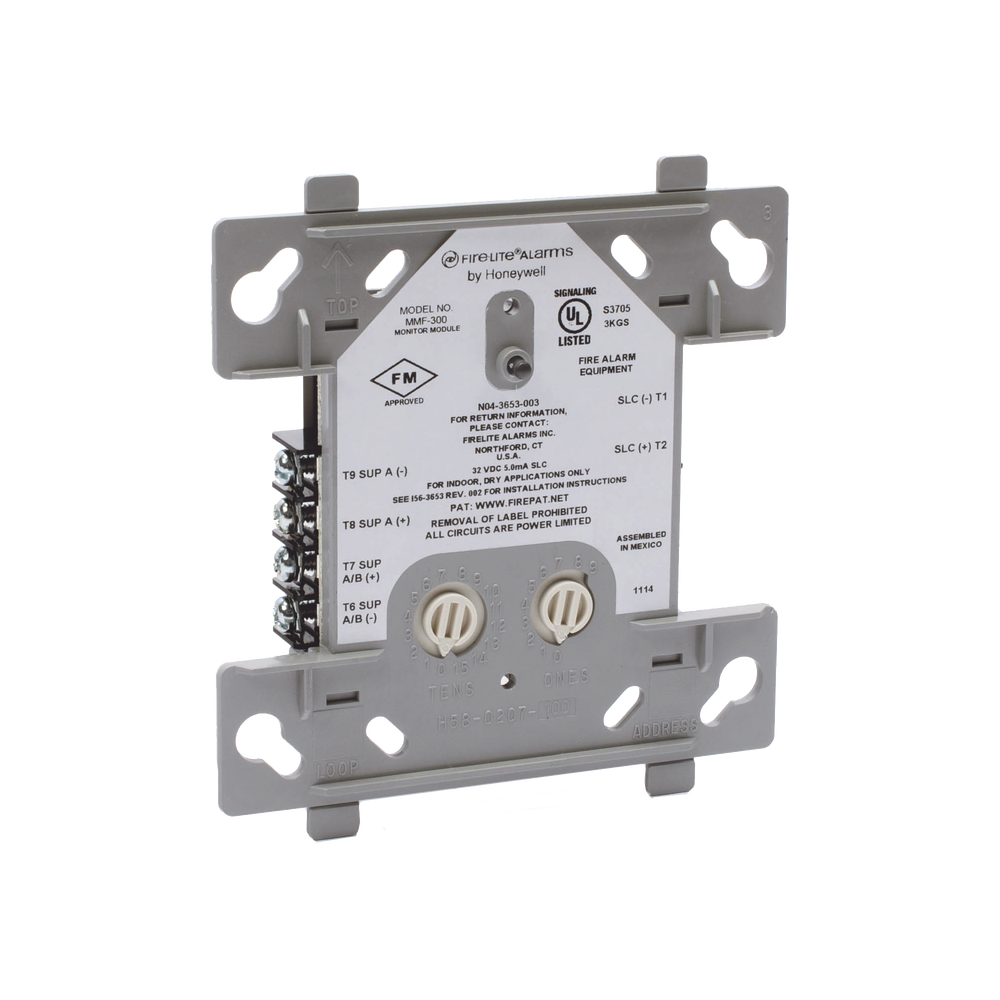

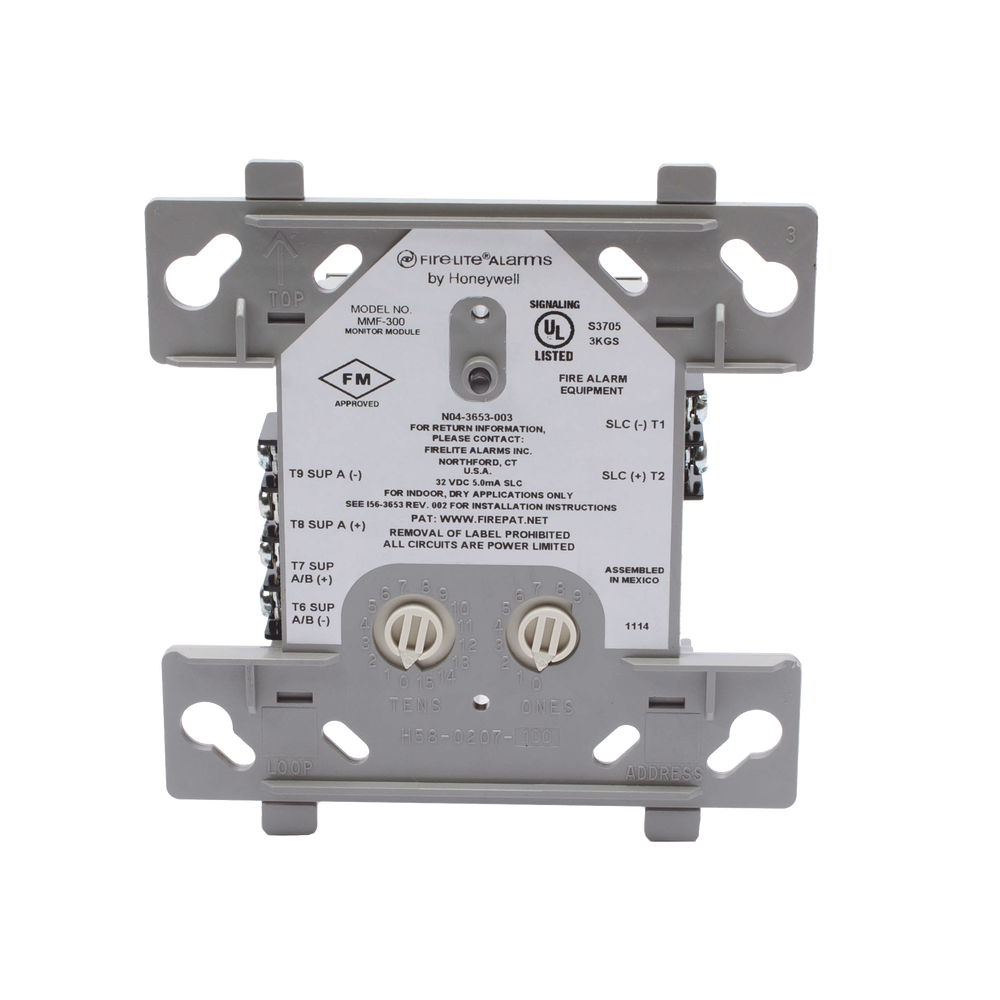

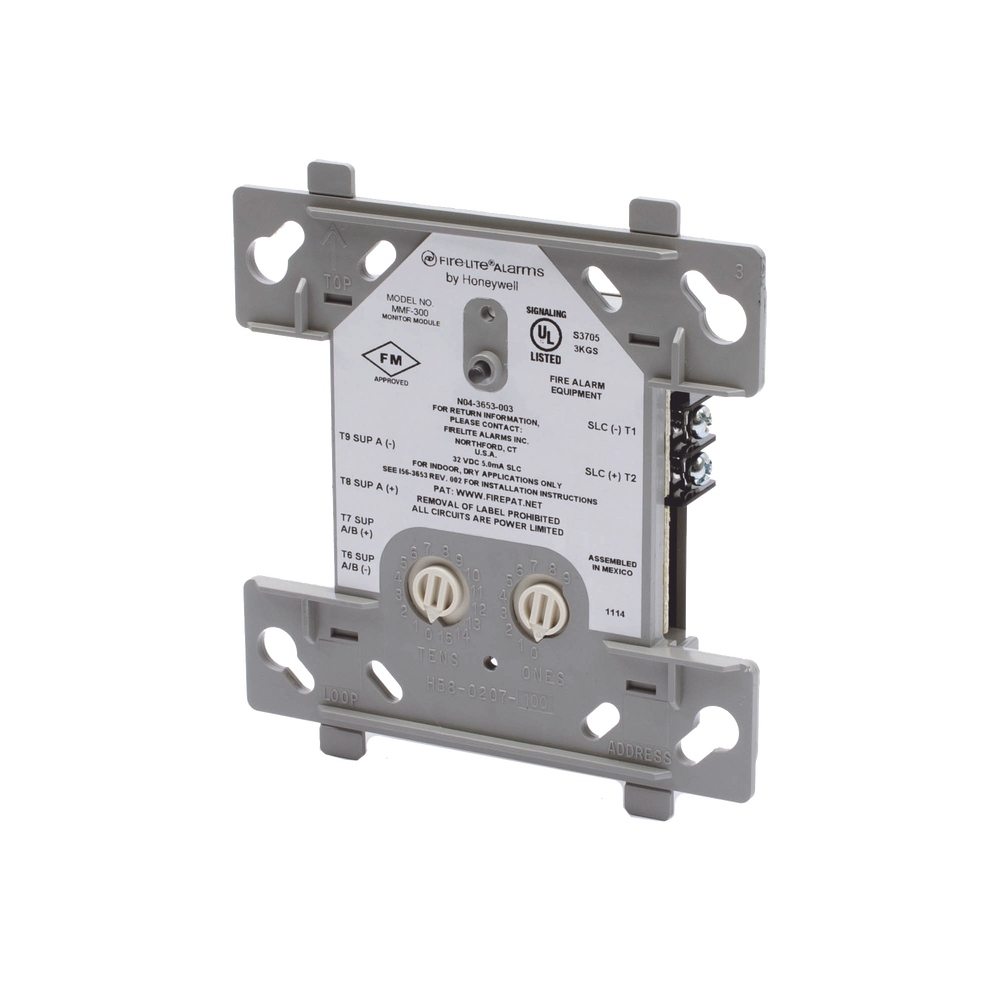

The MMF-300 is an addressable monitoring module that is suitable for a wide variety of applications. It is used to monitor an Initiating Device Circuit (IDC) such as; heat detectors, smoke detectors, pull stations, gas detectors, flow sensors, pressure sensors, etc. It is used exclusively with Fire-Lite Endurance Series MS-9050UD, MS-9200UDLS, MS-9600UDLS addressable fire detection panels and the ES50X, ES50XI, ES200X, and ES200XI Series.

Characteristics:

• UL, ULC, MEA, FM and CSFM Listed
• Monitors a Class A or Class B Initializing Device Circuit (IDC)
• To monitor a normally open contact circuit of conventional type initiating devices.
• It is automatically identified in the control panel
• Power supply: 24 Vdc
• Consumption: 5 mA
• Dimensions: 114 x 101 x 31 mm

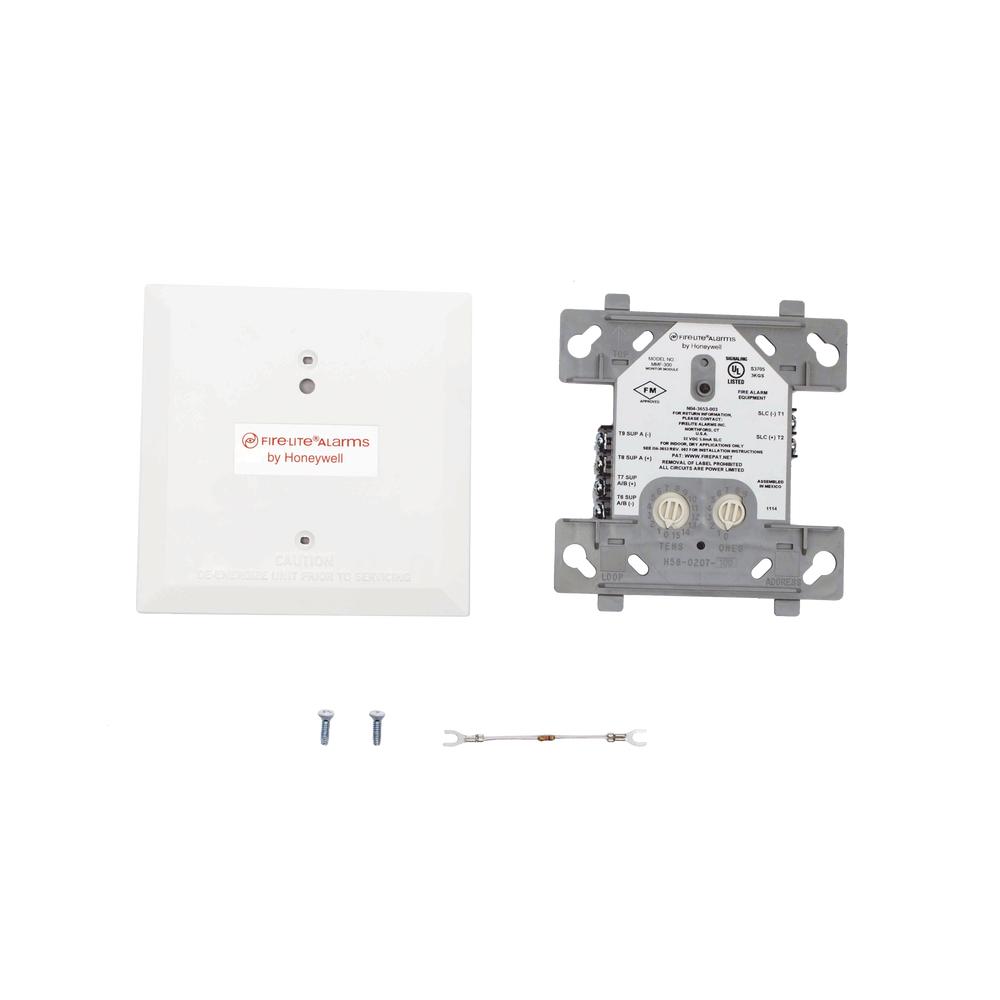

Addressing by rotary switches, Includes Cover and Resistor
