80-Character (4x20) Remote Annunciator / Acknowledge, Silence, Reset, and Evacuate Buttons / Status LEDs / Compatible with Fire-Lite Addressable Panels

80-Character (4x20) Remote Annunciator / Acknowledge, Silence, Reset, and Evacuate Buttons / Status LEDs / Compatible with Fire-Lite Addressable Panels

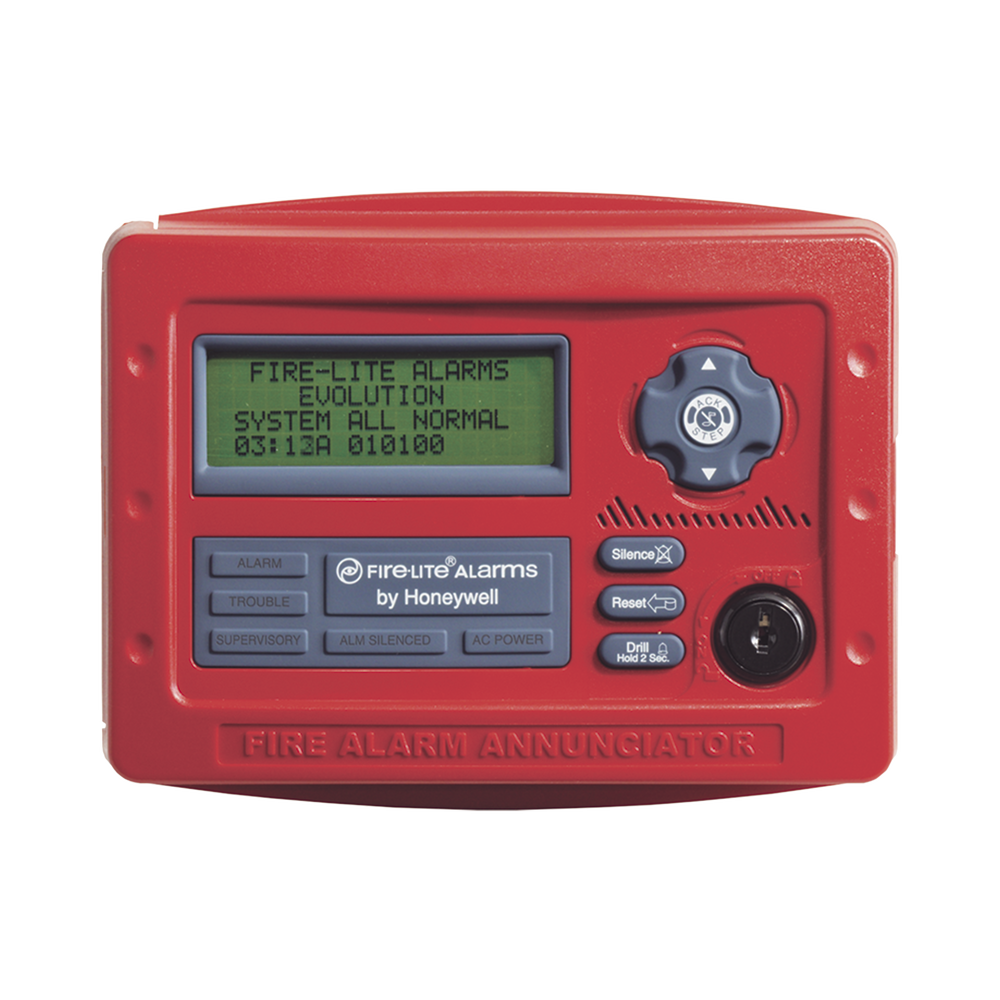

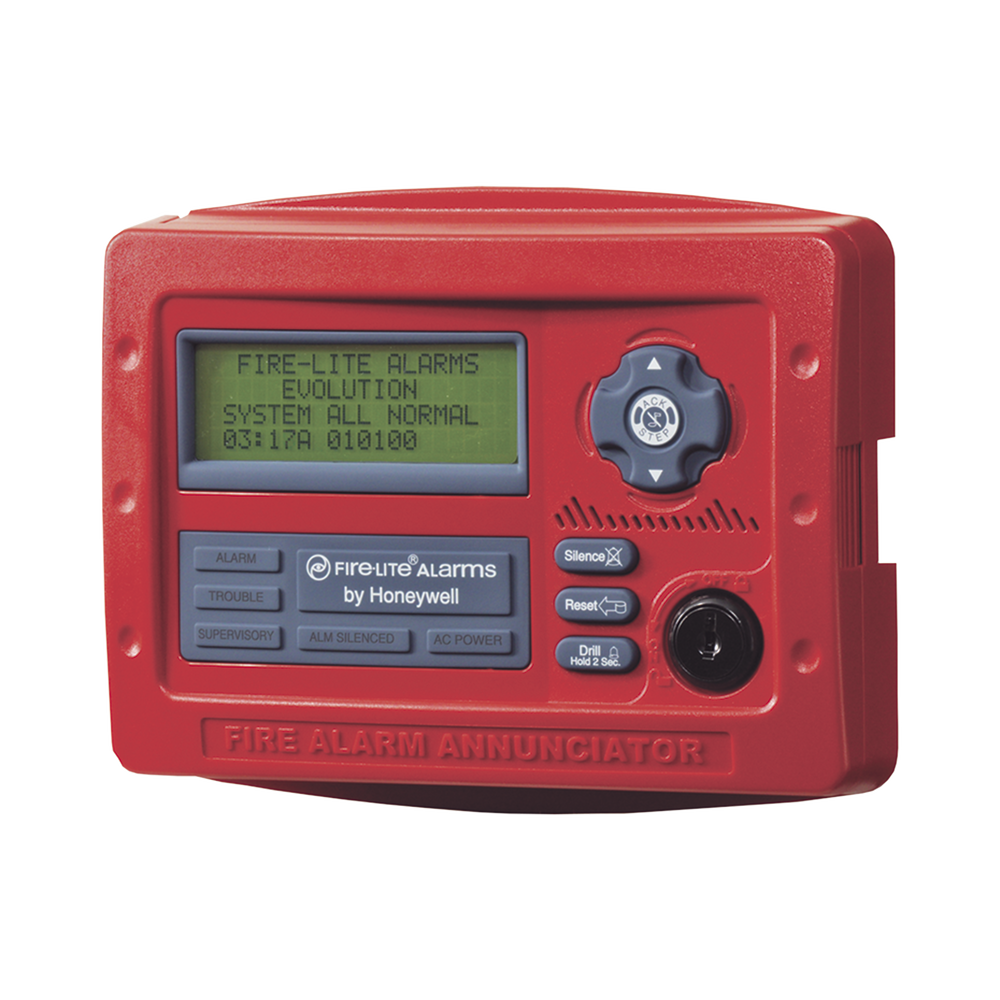

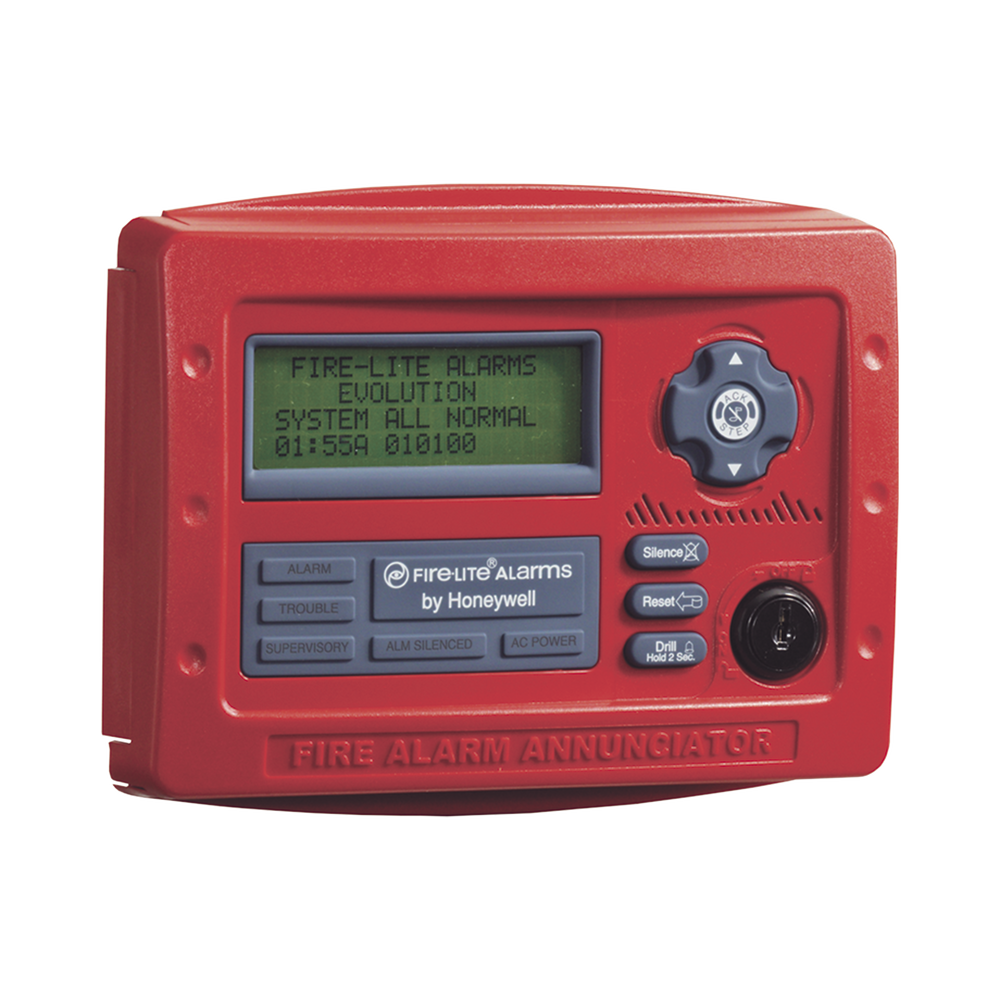

The ANN-80 is a compact, backlit, 80-character LCD annunciator for Fire-Lite fire detection panels that replicates the panel's display. It provides system status indicators for AC power, alarm, trouble, supervisory, and silenced alarm conditions. The ANN-80 and panel communicate via a two-wire serial interface using the ANN-BUS communication format. It is powered by the panel or a remote power supply.

Characteristics:

• Compatible with panels; MRP2002, MS10UD7, MS-9050UD, MS-9200UDLS, MS-9600UDLS and the new Endurance series ES50X, ES50XI, ES200X, ES200XI, ES1000X and ES1000XI.
• Control switches for; Acknowledge, Silence, Evacuate and Reset
• Control switches can be turned on or off independently
• The key activates/deactivates the control switches and blocks access to the annunciator
• Fully supervised
• The local siren can be activated or deactivated from the panel
• Displays alarm, trouble and monitoring status by specific point
• It can be installed at a maximum distance of 1800 m
• Lighting turns off during an AC failure to conserve system battery power, but turns back on if an alarm condition occurs.
• Direct surface mounting or conventional electrical box mounting
• Power supply: 24 Vdc
• Consumption: 40 mA
• Dimensions: 136 x 174 x 35 mm

Programmable buttons, Requires key
