Wireless Gateway for receiving Fire-Lite SWIFT devices

Wireless Gateway for receiving Fire-Lite SWIFT devices

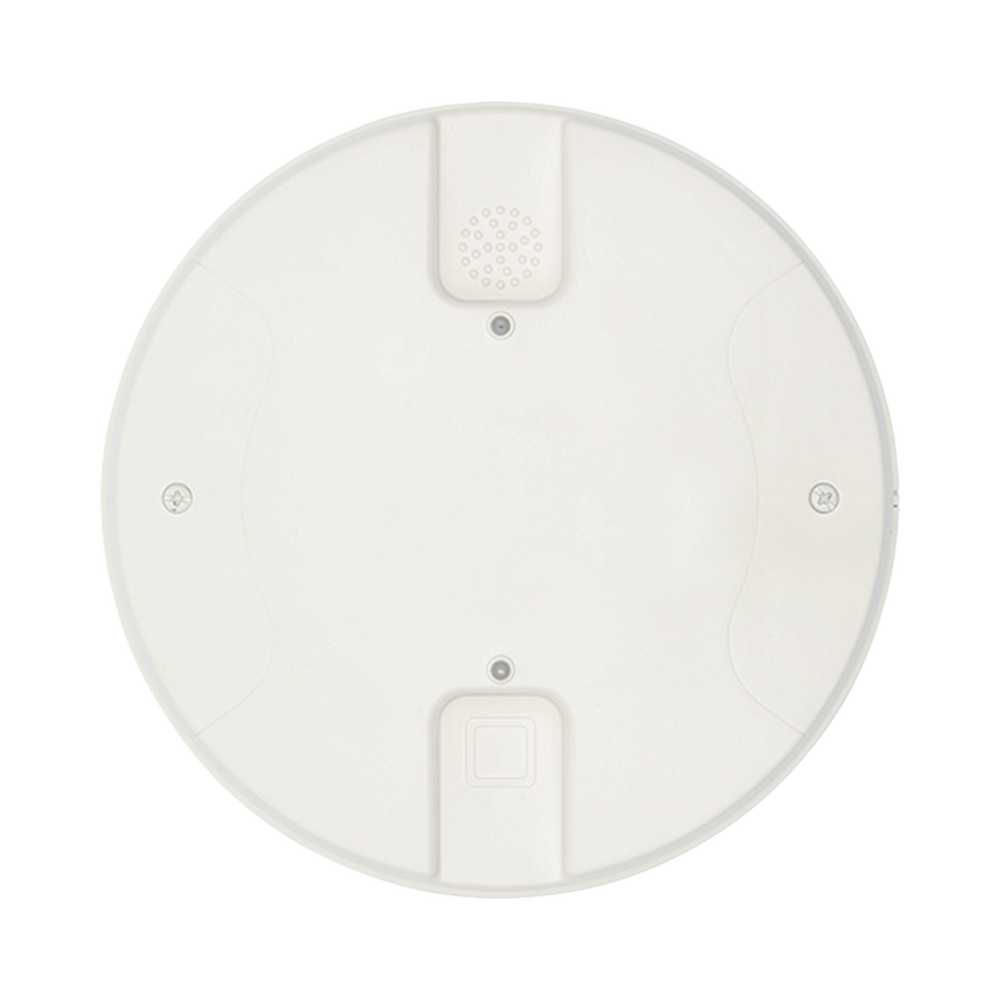

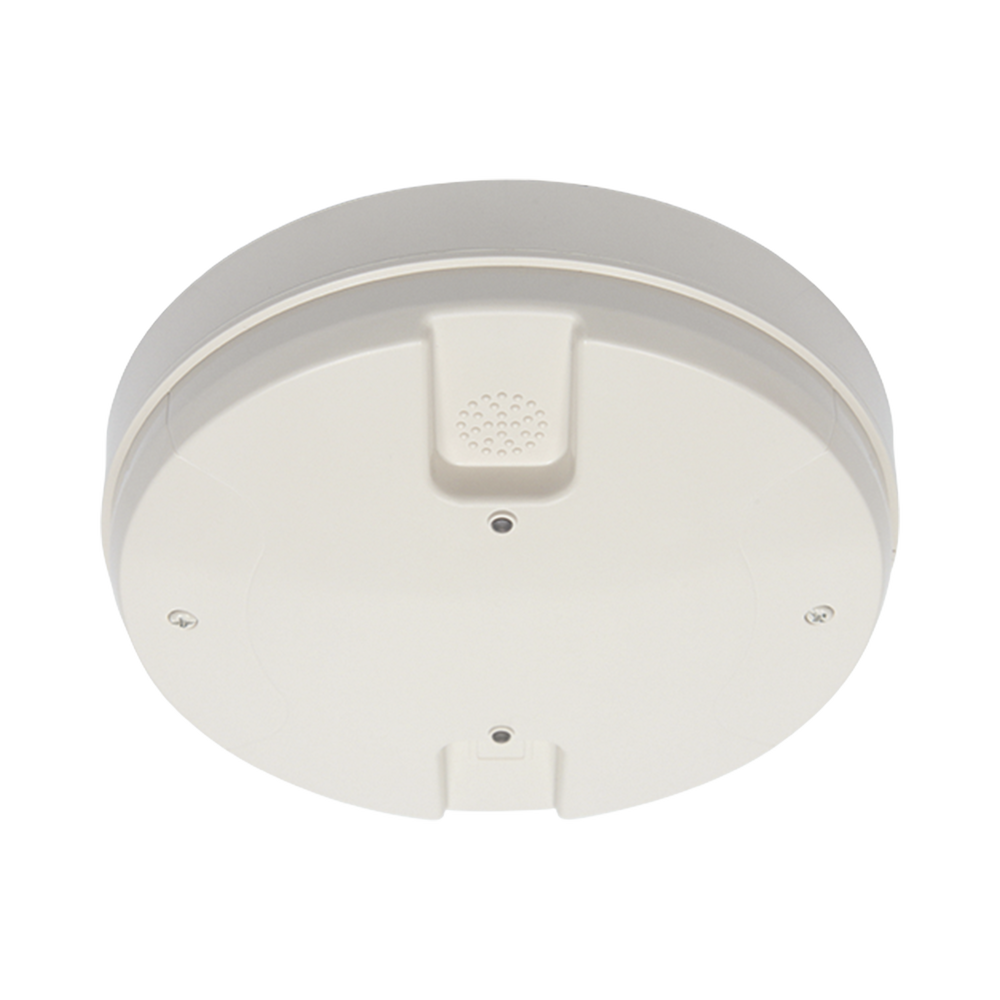

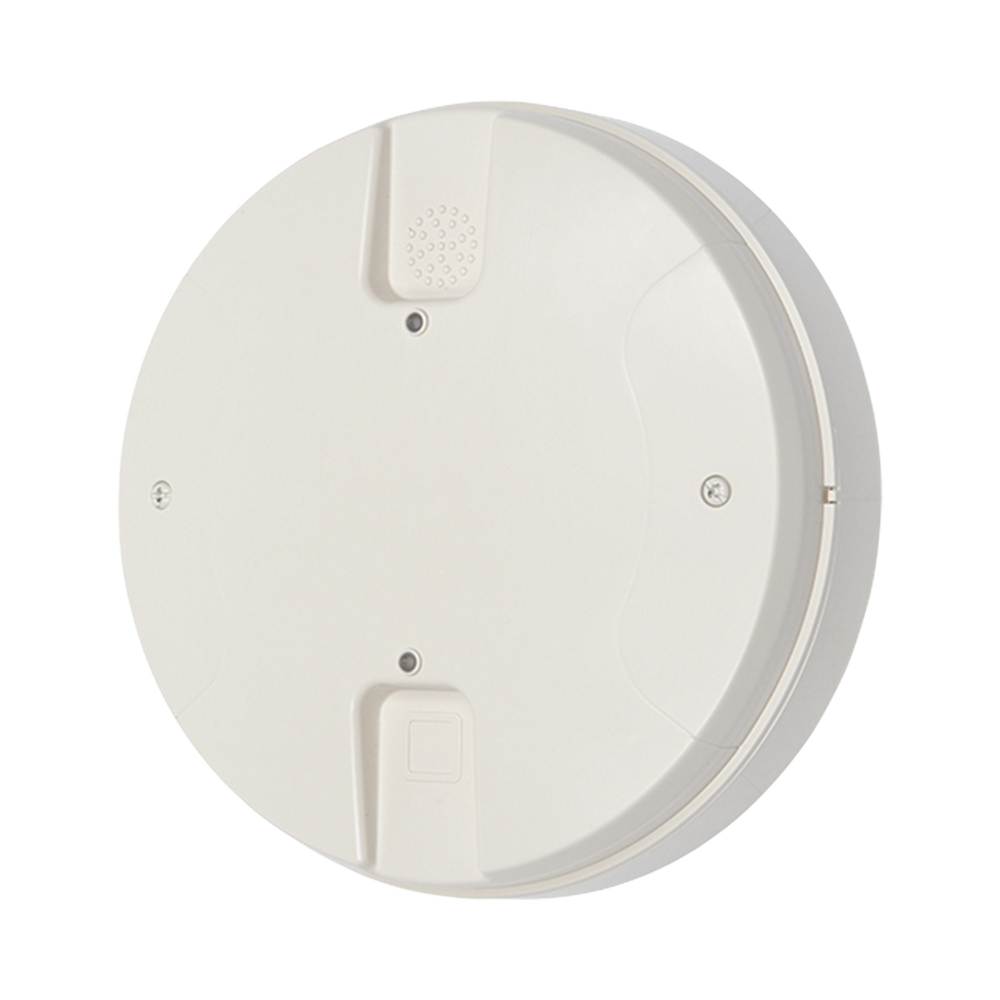

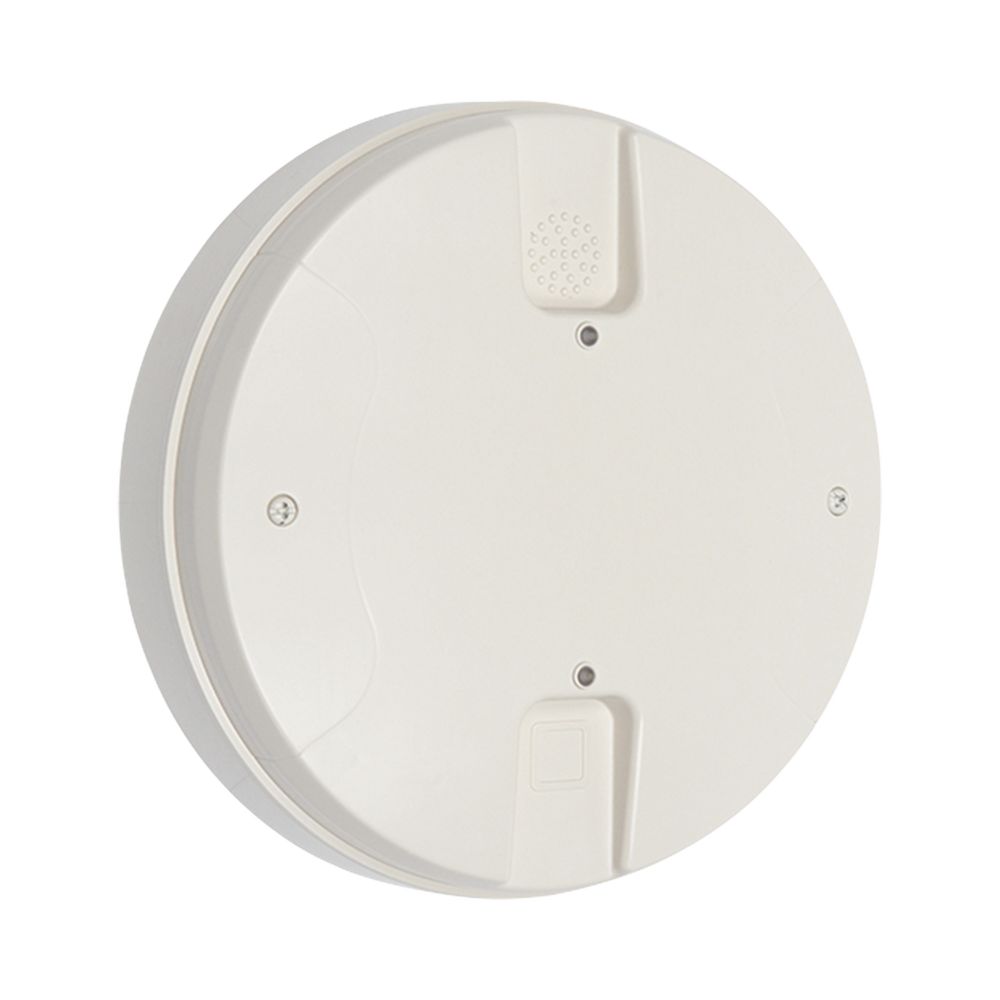

W-GATE is the fire alarm system’s wireless gateway that acts as a bridge between the ES50X, ES200X, and MS-9600(UD)LS Fire Alarm Control Panels (FACPs) and wireless fire devices. The wireless gateway uses mesh networking technology to communicate with the devices and offers high reliability for commercial applications. The W-GATE can be installed anywhere on the SLC and is an excellent solution for retrofits and “hard-to-wire” applications. The W-GATE requires a W-DIS-D controller (Wireless Display Controller) and an ANN-80-W (ANN-80 Annunciator, White).

• Listed: UL, FM, and NFPA
• Cascaded mesh wireless network technology (902-928 MHz frequency)
• Mesh operation provides verification of redundant communication paths
• Any wireless device can be added to function as a repeater
• The gateway supports up to 50 addresses: 1 wireless gateway, 1 display controller, and 48 wireless devices.
• The gateway assumes 3 SLC addresses on the FACP (does not include wireless devices)
• Up to 4 wireless networks can be installed with overlapping radio network coverage
• The site survey feature allows you to evaluate a site prior to installation.
