SWIFT Series Wireless Relay Output Module, Compatible with Fire-Lite Addressable Panels.

SWIFT Series Wireless Relay Output Module, Compatible with Fire-Lite Addressable Panels.

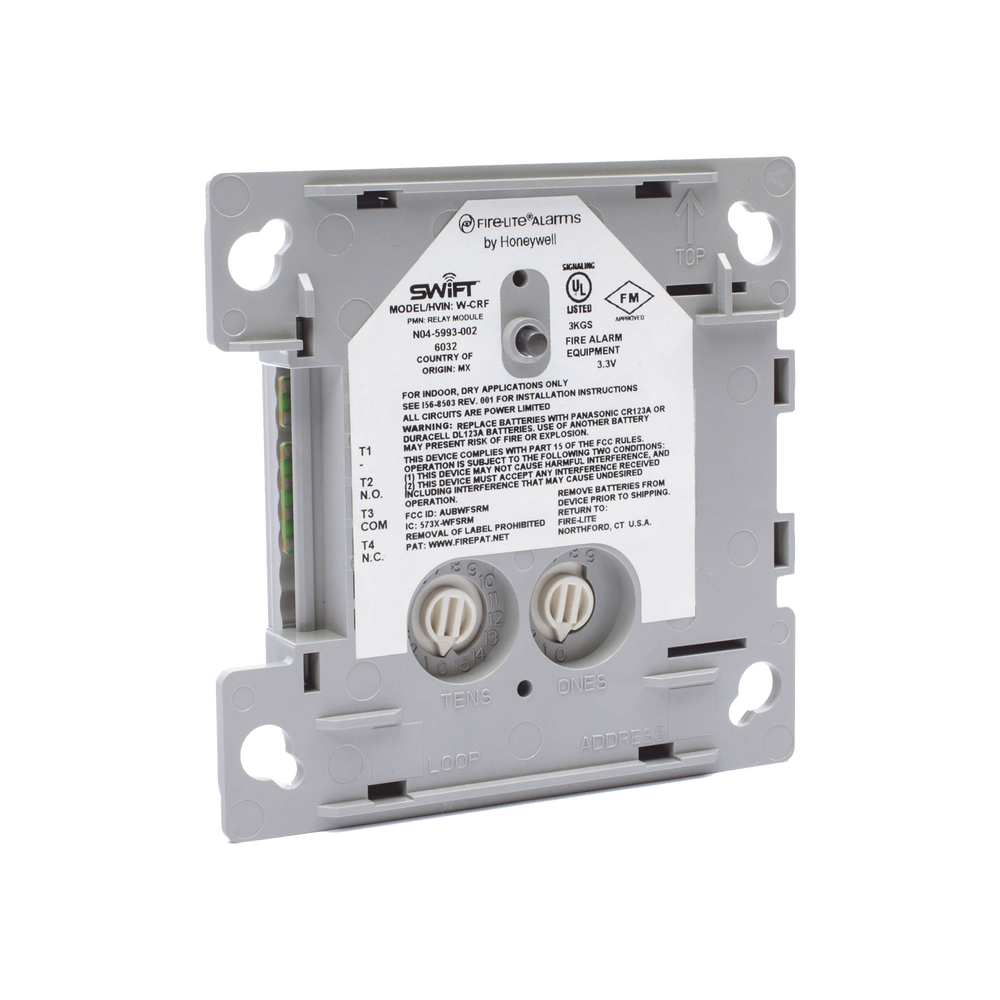

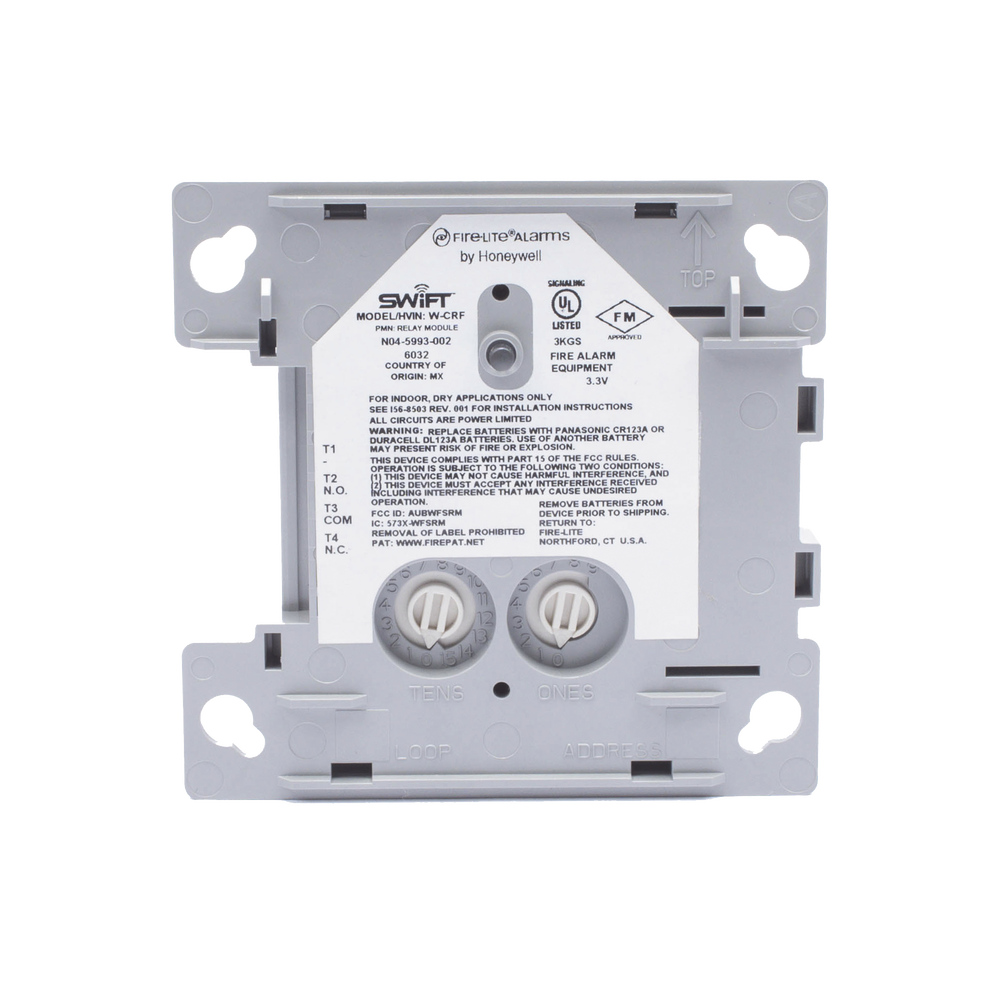

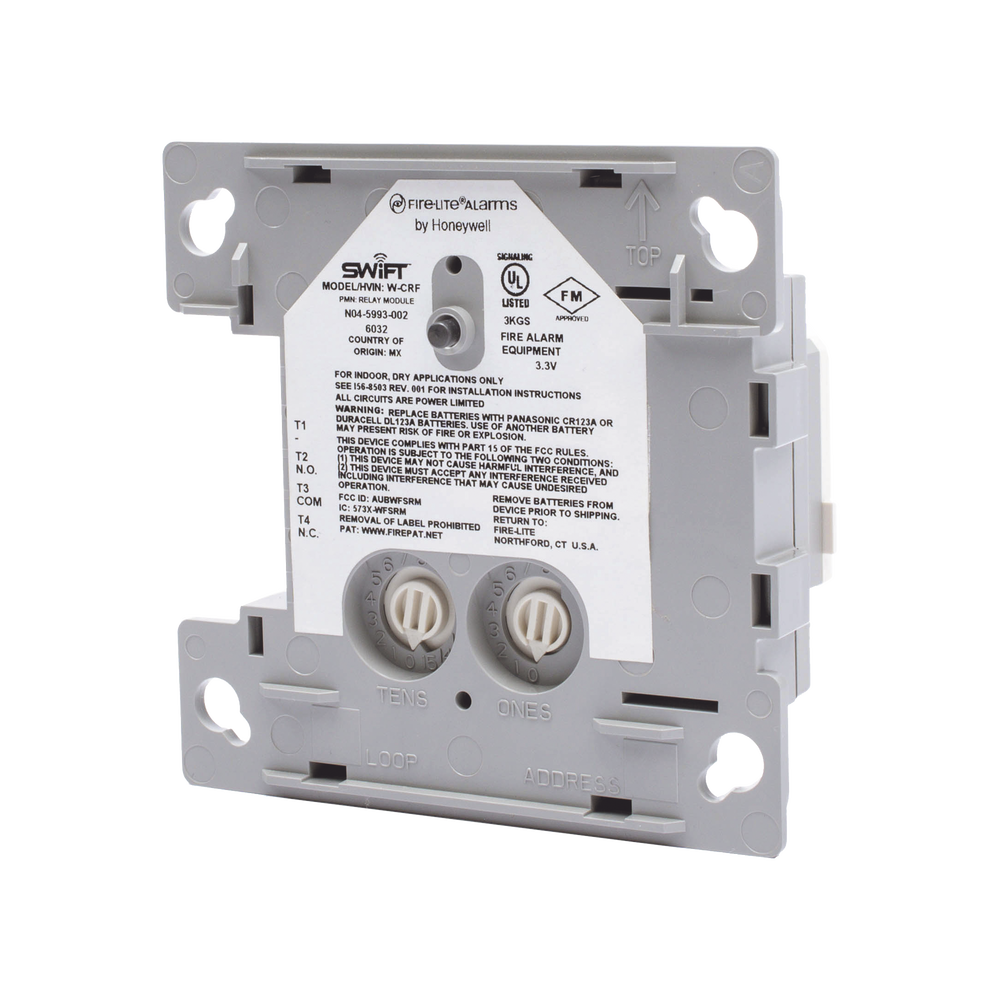

The W-CRF is a standard-size, wireless addressable relay module that enables ES50X, ES200X, and MS-9600UDLS panels to wirelessly control dry contacts. The relay contains two Form C dry contact relays, which function as a DPDT switch. It can be used to activate functions such as remote power control, elevator recall, and extractor fan control within the same mesh network.

NOTE: Not compatible with MS9050 panel

• Listed: UL, FM, and NFPA
• Standard size containing 2 Form C dry contact relays
• Single Pole Double Throw (DPDT) Switch
• Mesh wireless technology frequency: 902-928 MHz
• Any wireless device can be added and act as a repeater

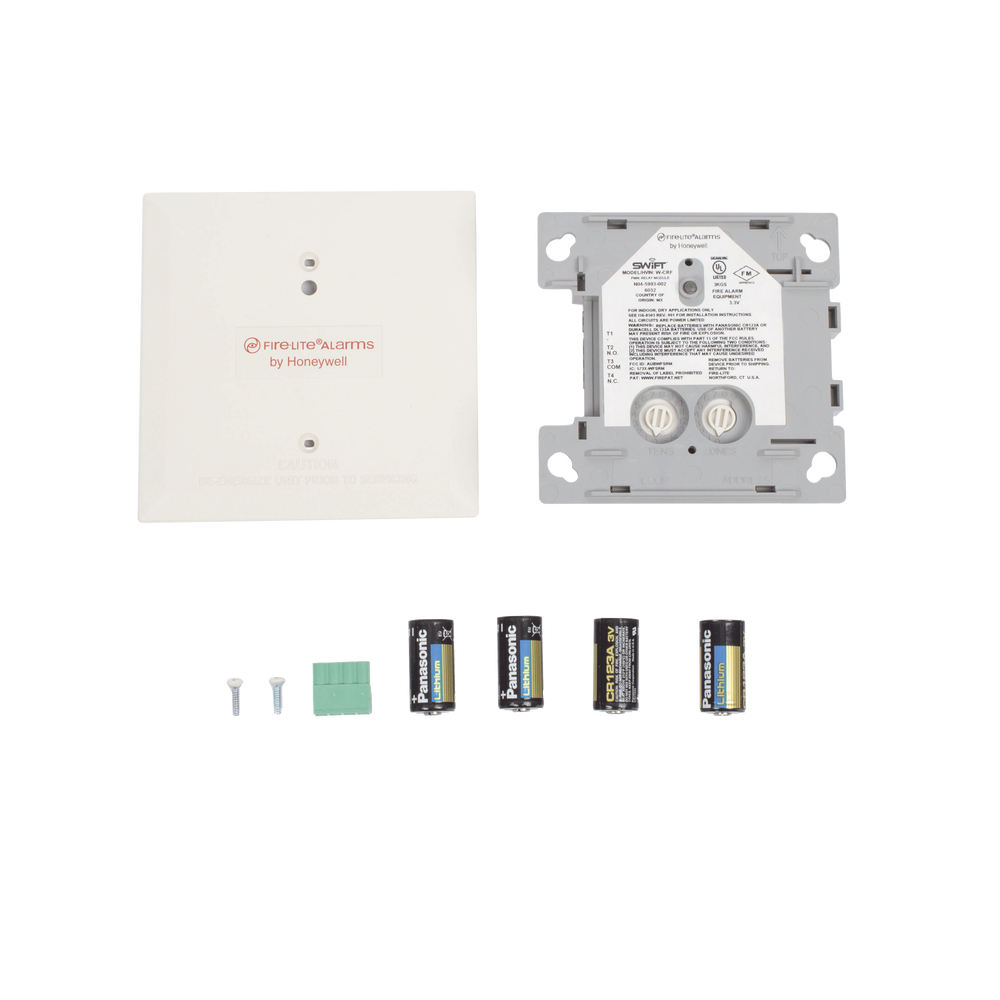

• Requires 4 CR-123AP batteries (included)

NOTE: Requires SWIFT Series WGATE Wireless Receiver.
