Emergency Command Center for Paging and Evacuation

Emergency Command Center for Paging and Evacuation

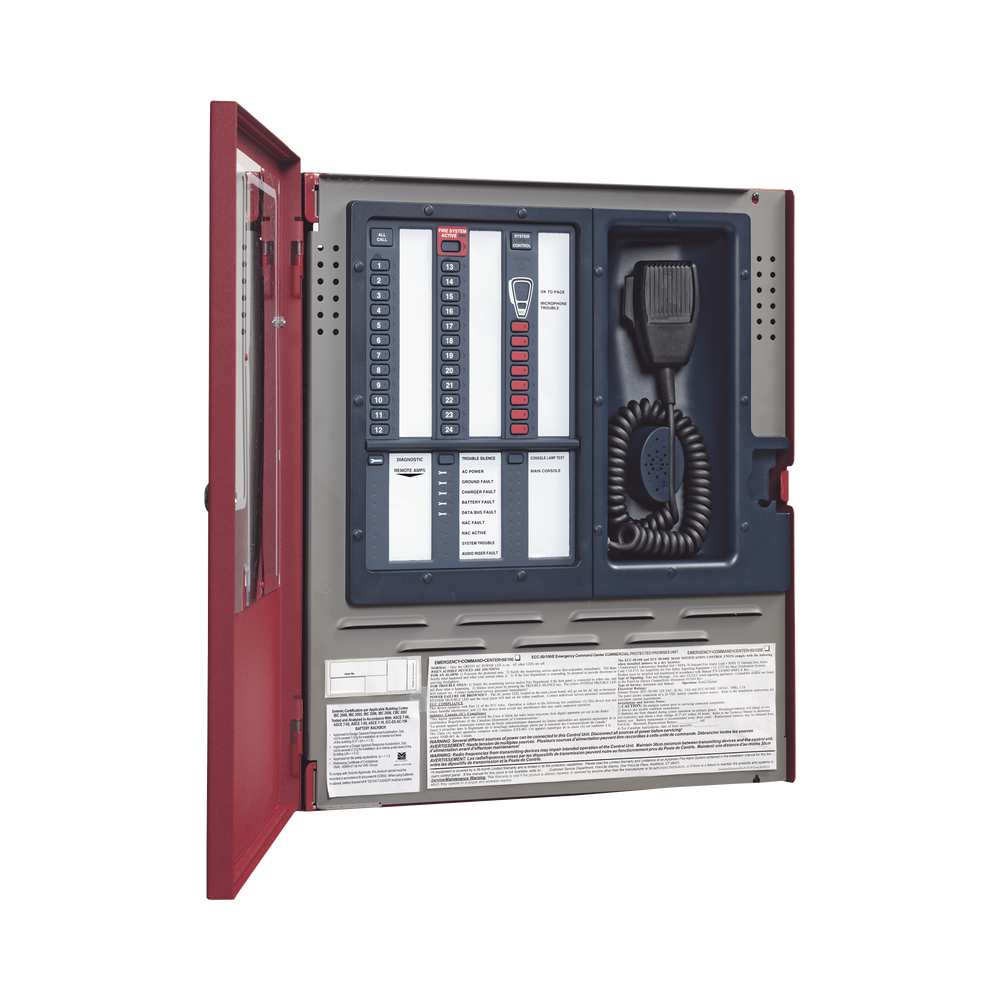

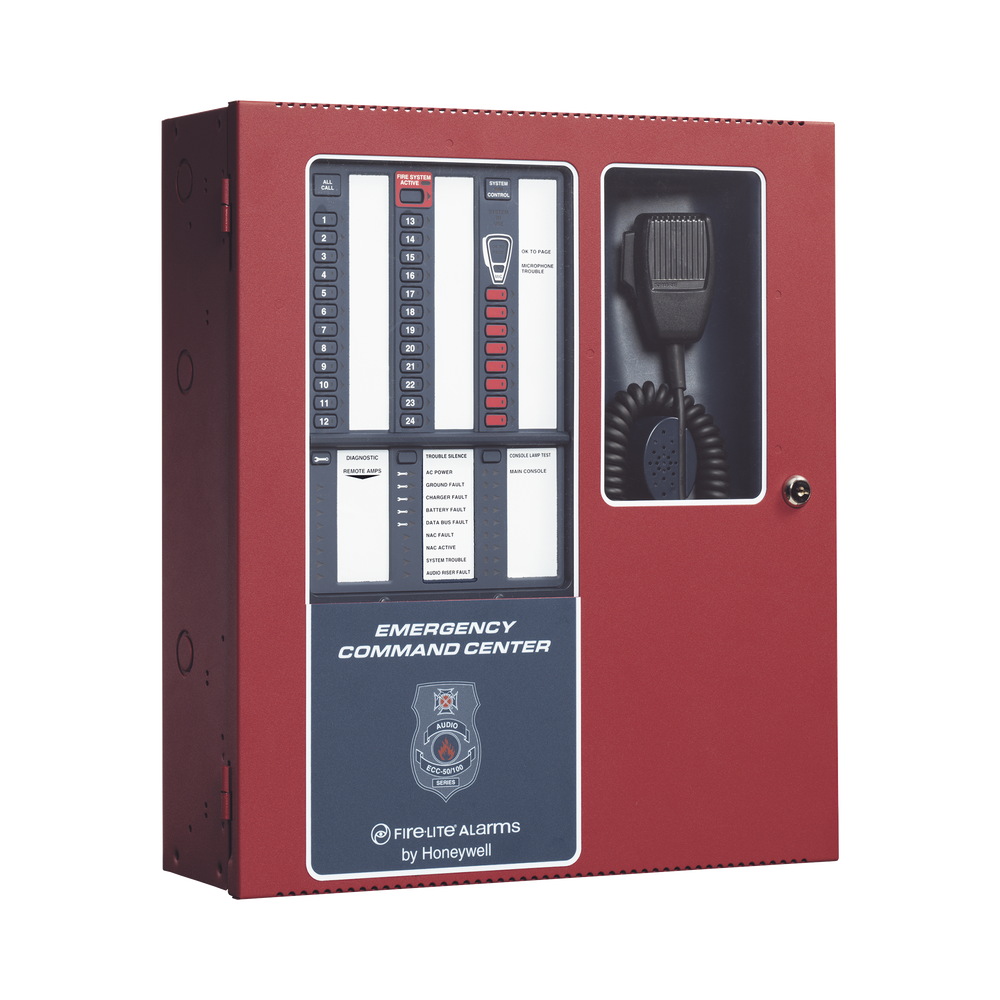

The ECC-50/100 is a voice emergency evacuation panel that can be used for fire, mass notification, or both. This state-of-the-art panel is capable of producing 50 watts of audio power on a single speaker circuit. It can be used with any UL-listed fire alarm control panel or seamlessly integrated with Fire-Lite's MS-9200UDLS and MS-9600UDLS addressable panels.

• UL, FM and NFPA Listed
• Modular design for maximum system flexibility and easy expansion
• 50 Watts RMS audio power at 25 Vdc (expandable to 100 watts)
• Eight input circuits to activate messages 1 to 8:
• Full integration and control when connected to Fire-Lite ES200X, ES1000X, MS-9200UDLS, and MS-9600UDLS panels via the ANNBUS communication bus
• Speaker circuits can be expanded up to 8 outputs (with an optional expansion module)
• Removable terminal blocks for ease of maintenance.
• 2 Amp Notification Appliance Circuit Follower (NAC) or Sync Output for System Sensor, Wheelock, or Gentex Protocols:
• Integrated supervised microphone.
