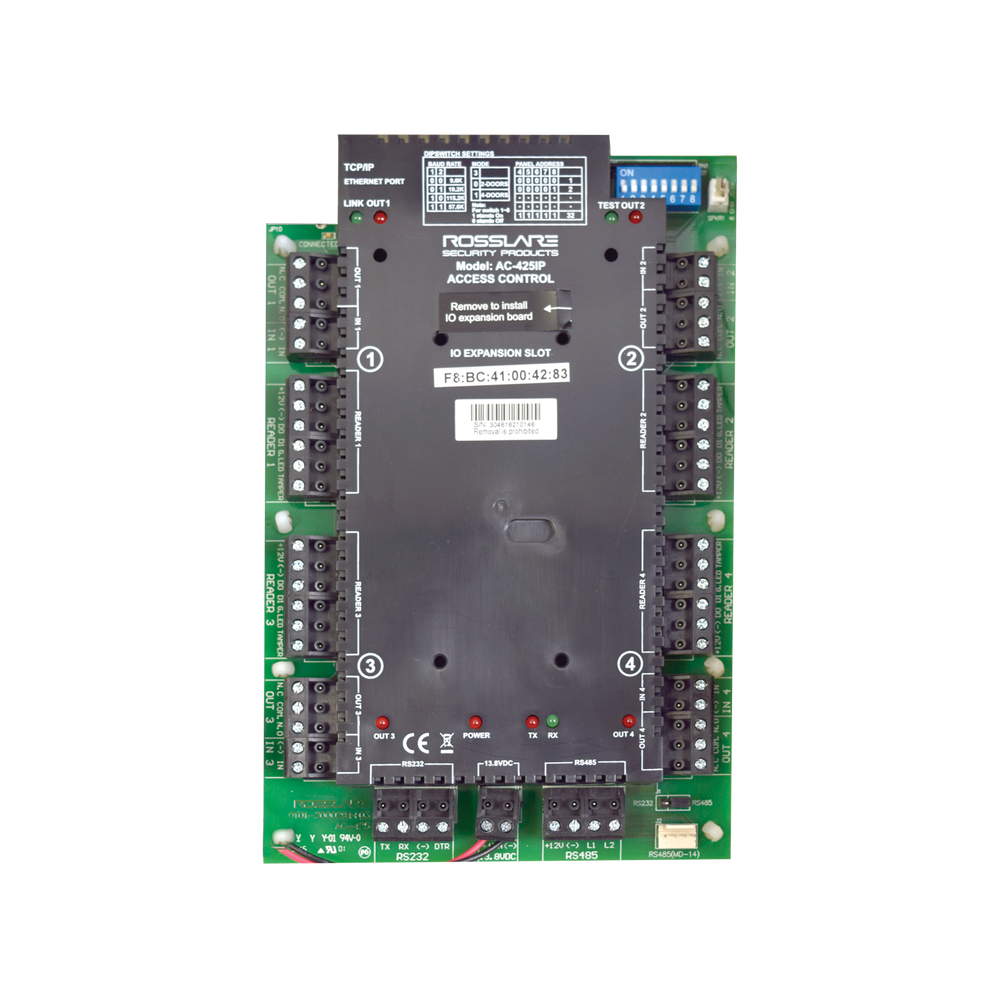

Controller card for 4 readers, 30,000 users, expandability

Controller card for 4 readers, 30,000 users, expandability

Software
• AXTRAX NG software (level 0) in Spanish/English.
• Suggested Windows 7 Professional for versions prior to AXTRAXNG 26 , recommended for AXTRAXNG 26.00.00.06 Windows 8 Pro .
• Requires Windows 7 Professional.
• Database in SQL Server.
• Works as a client/server.
• Ability to manage up to 1023 doors (With licenses*).
• Operator level programming.
• Supports up to 64 controllers (free).
• 32 schedules.
• 128 authorization groups.
• Real-time monitoring.
• Ability to incorporate photographs.
• Antipassback and Global Antipassback function.
• User-friendly reports by user and department.
• Support for manual and automatic programming.
• Map capacity.

Communication
• RS-485 (use MD14).
• TCP/IP.

Controller
• 30,000 cards.
• 20,000 records.
• 4 inputs for reader (Wiegand) 26 bits.
• Expansion of another 4 readers using the MDD04, on the same panel.
• 4 relays for door opening.
• Built-in alarm horn.
• Removable screw terminals.
• Cabinet with power supply (110 Vac input, 12 Vdc output, 3A) with battery charger (battery not included).
• Dimensions: 326 x 263 x 97 mm.
• Weight 2.4 kg.

MDD04
• Expander for 4 additional readers on the same panel.
• Input of 4 26-bit Wiegand readers.
• 4 relays for door opening.

Note: This panel does not have door status sensor inputs, therefore the locking function cannot be performed.

If you are going to use AXTRAXNG version 26 software on Windows 8 Pro, for previous versions it is recommended to use Windows 7 Pro.

*1 Year Warranty.

*The sale of this equipment requires a certification course provided by SYSCOM.

Notes: Support is only provided for software supplied with the equipment or provided by SYSCOM, provided it uses the same database engine included. Any other implementation to other software or another database version is the responsibility of the integrator or developer in charge.
