Mini Addressable Module / Dry Contact Monitoring / Class B Wiring / No Poleo LEDs / Compatible with Fire-Lite Addressable Panels

Mini Addressable Module / Dry Contact Monitoring / Class B Wiring / No Poleo LEDs / Compatible with Fire-Lite Addressable Panels

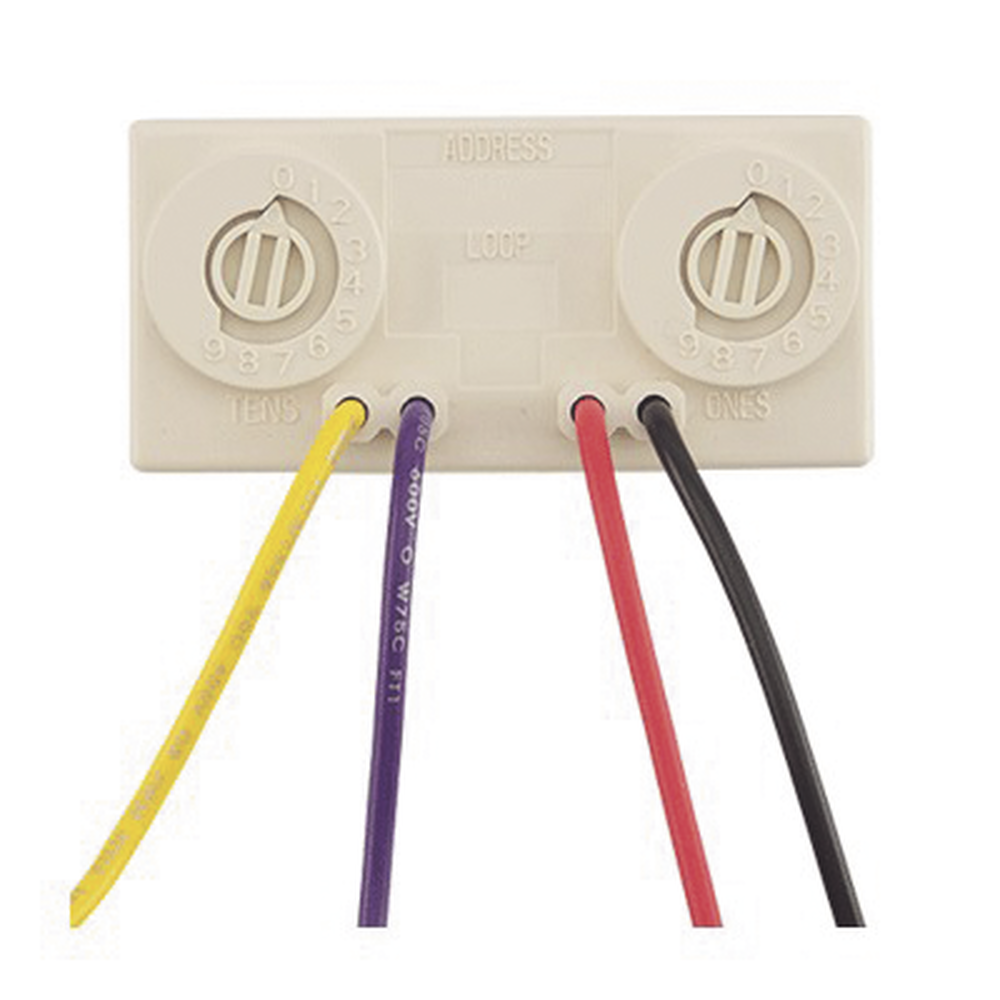

The MMF-301 is an addressable monitoring module that is suitable for a wide variety of applications. It is used to monitor an Initiating Device Circuit (IDC) such as; heat detectors, smoke detectors, pull stations, gas detectors, flow sensors, pressure sensors, etc. It is used exclusively with Fire-Lite Endurance Series MS-9050UD, MS-9200UDLS, MS-9600UDLS addressable fire detection panels and the ES50X, ES50XI, ES200X, and ES200XI Series.

Features:

• UL, ULC, MEA, FM and CSFM Listed
• Monitors a Class B Initializing Device Circuit (IDC)
• It is automatically identified in the control panel
• Power supply: 24 Vdc
• Consumption: 5 mA
• Dimensions: 69 x 33 x 16 mm

NOTE: The module only accepts normally open contacts.

Monitors a conventional device, Always goes Hidden
